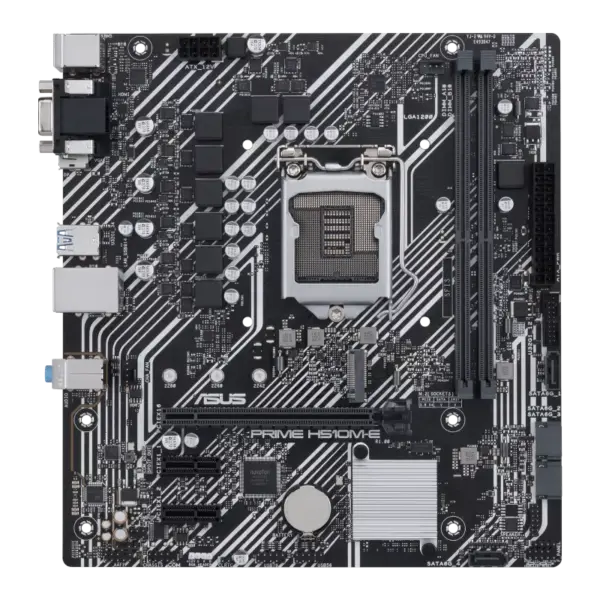

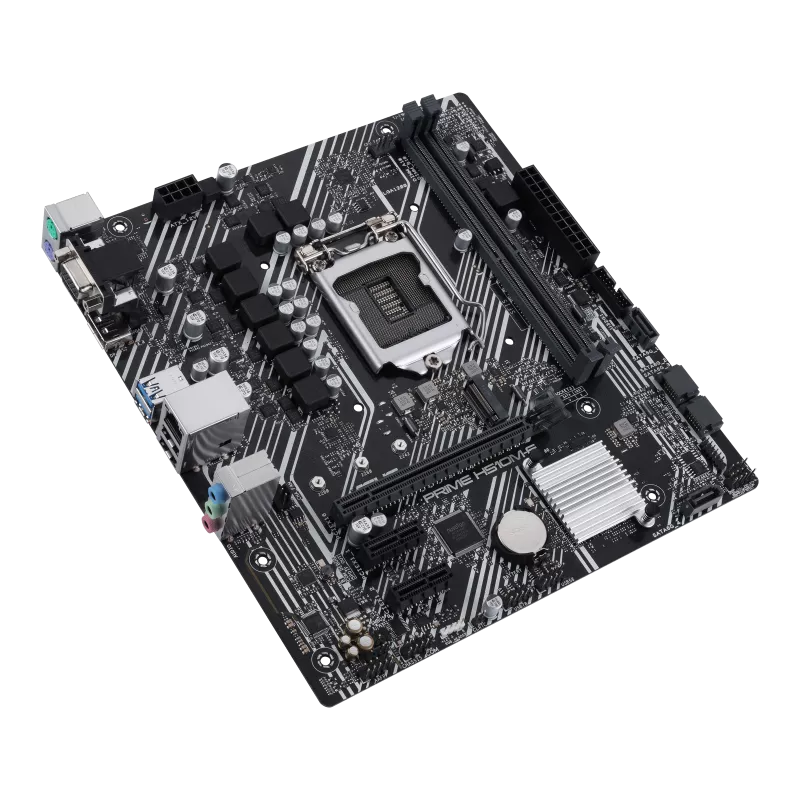

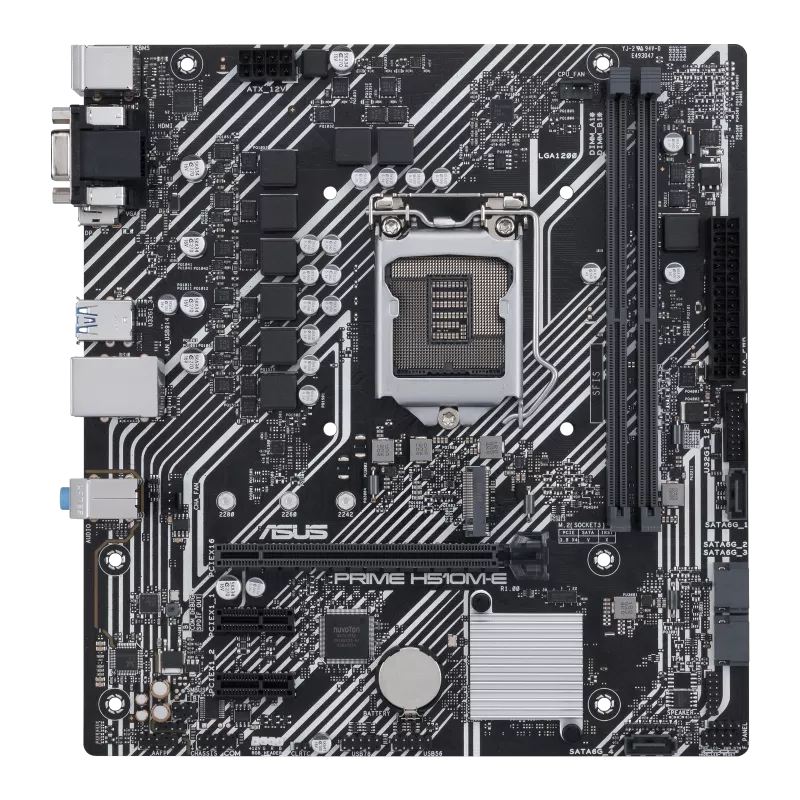

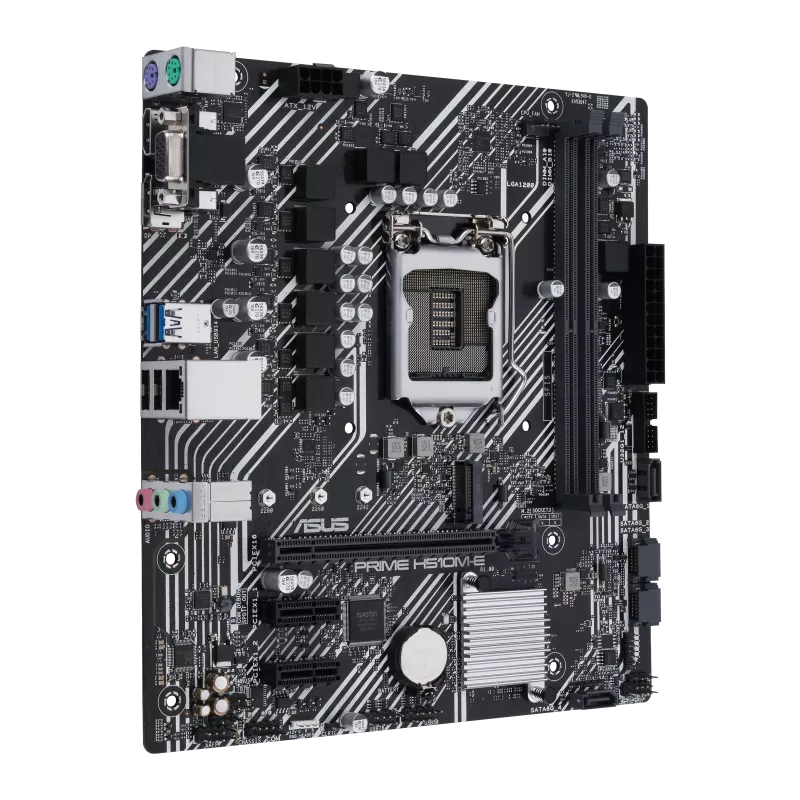

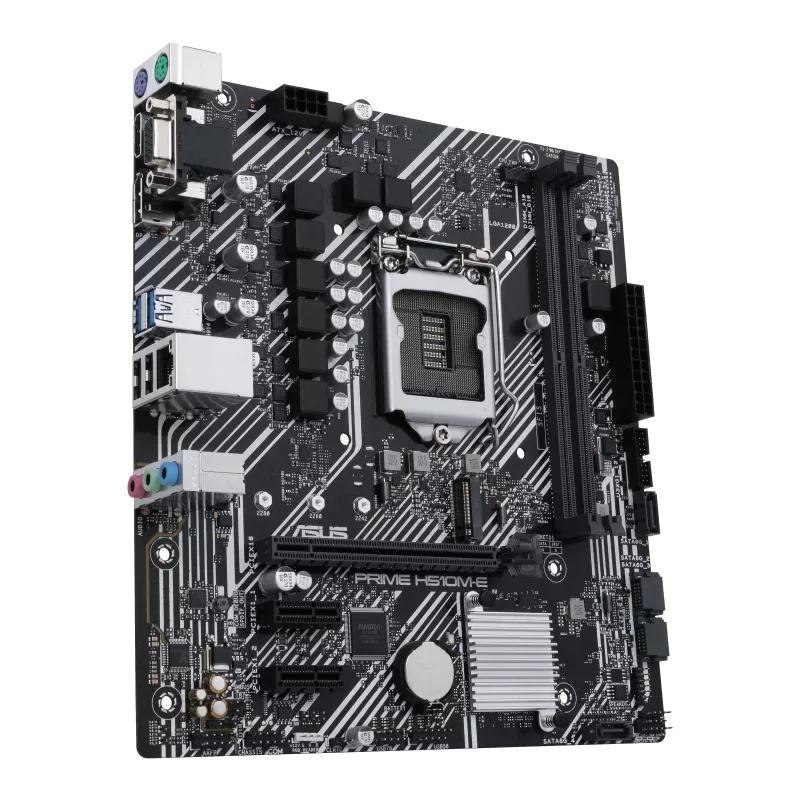

About Asus Prime H510M-E Motherboard
Featuring the Intel H510 chipset and LGA1200 socket, it supports 11th and 10th Gen Intel Core processors, along with compatible Pentium Gold and Celeron CPUs.
Two DDR4 DIMM slots support up to 64GB of memory, while Intel XMP support enables compatible memory configurations.
For expansion, the motherboard includes a PCIe 4.0 x16 slot with supported 11th Gen processors and two PCIe 3.0 x1 slots.
Storage options include a 32Gbps M.2 slot supporting PCIe 3.0 x4 and SATA modes, together with four SATA 6Gb/s ports.

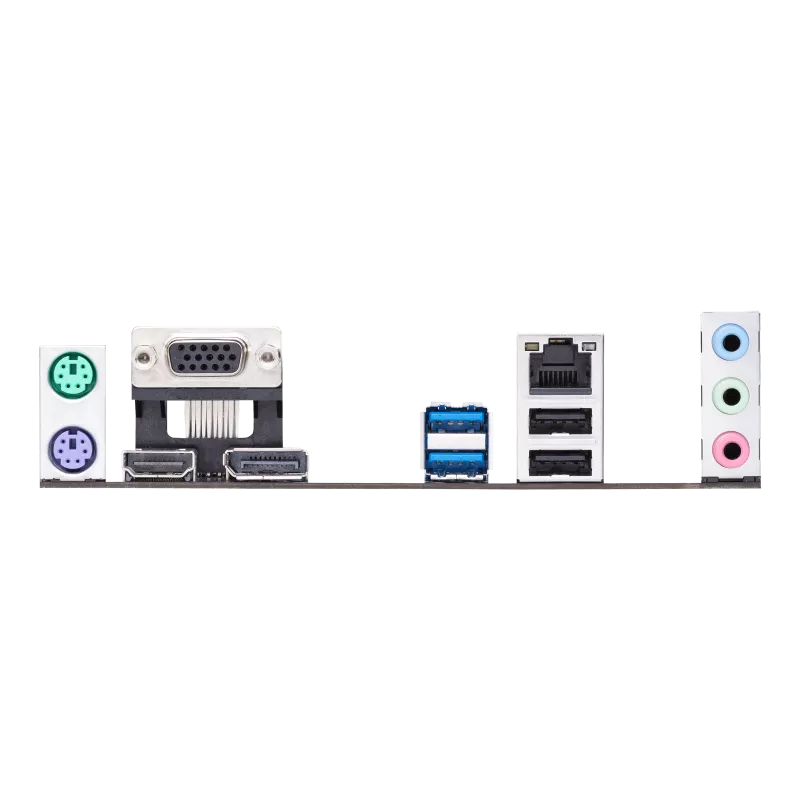

Display connectivity includes DisplayPort 1.4, HDMI and D-Sub.
Intel 1Gb Ethernet provides reliable network connectivity, while USB 3.2 Gen 1 and USB 2.0 ports support peripherals.
Realtek 7.1-channel audio, comprehensive cooling and ASUS 5X Protection III further enhance this Micro ATX motherboard for everyday computing and PC building.
| Specification | Details |
|---|---|
| Model | ASUS Prime H510M-E |
| Form Factor | Micro ATX |
| Dimensions | 22.6 × 21.1 cm |
| CPU Socket | Intel LGA1200 |
| CPU Compatibility | Intel 11th Gen & 10th Gen Core processors, Pentium Gold and Celeron processors |
| Chipset | Intel H510 |
| CPU Technology | Supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0, depending on CPU |
| Memory Type | DDR4 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 64GB |
| Memory Speed | DDR4 3200 (OC)/2933/2800/2666/2400/2133 MHz |
| Memory Architecture | Dual-channel |
| Memory Support | Non-ECC, Un-buffered, Intel XMP |
| Graphics Output | 1 × DisplayPort 1.4, 1 × HDMI 2.0, 1 × D-Sub |
| DisplayPort Resolution | Up to 4096 × 2304 @ 60Hz with supported CPUs |
| HDMI Resolution | Up to 4K @ 60Hz with 11th Gen Intel processors |
