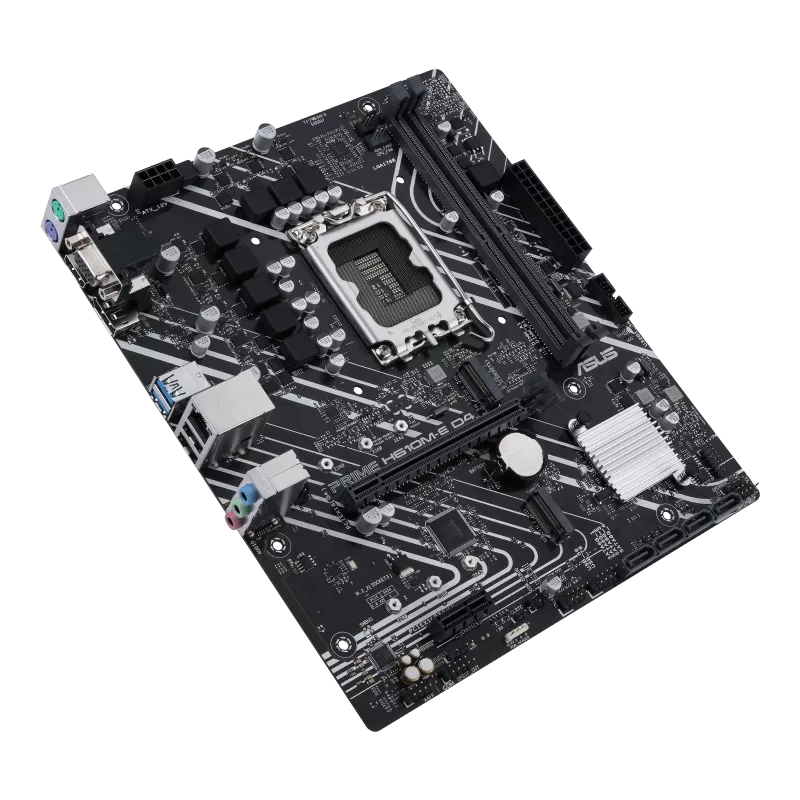

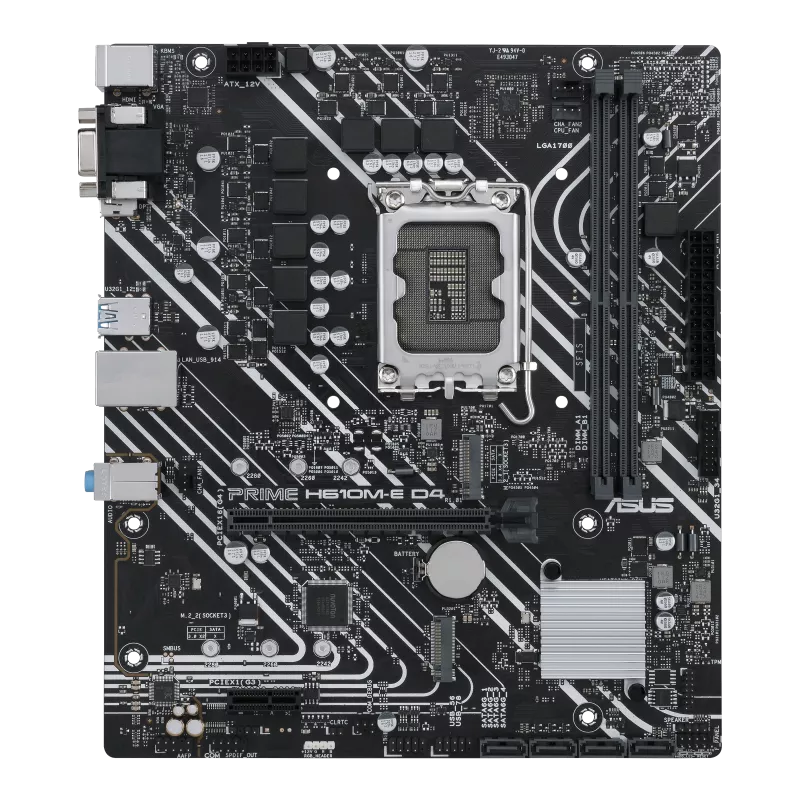

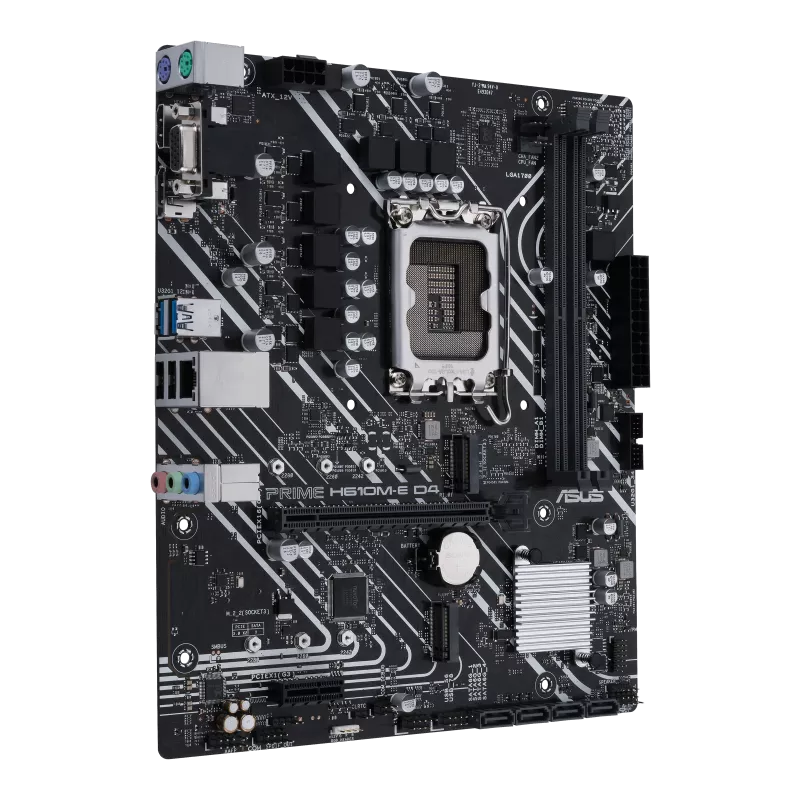

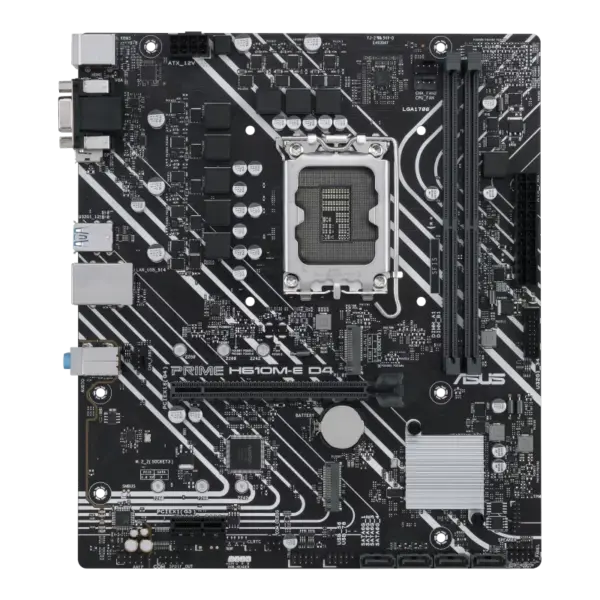

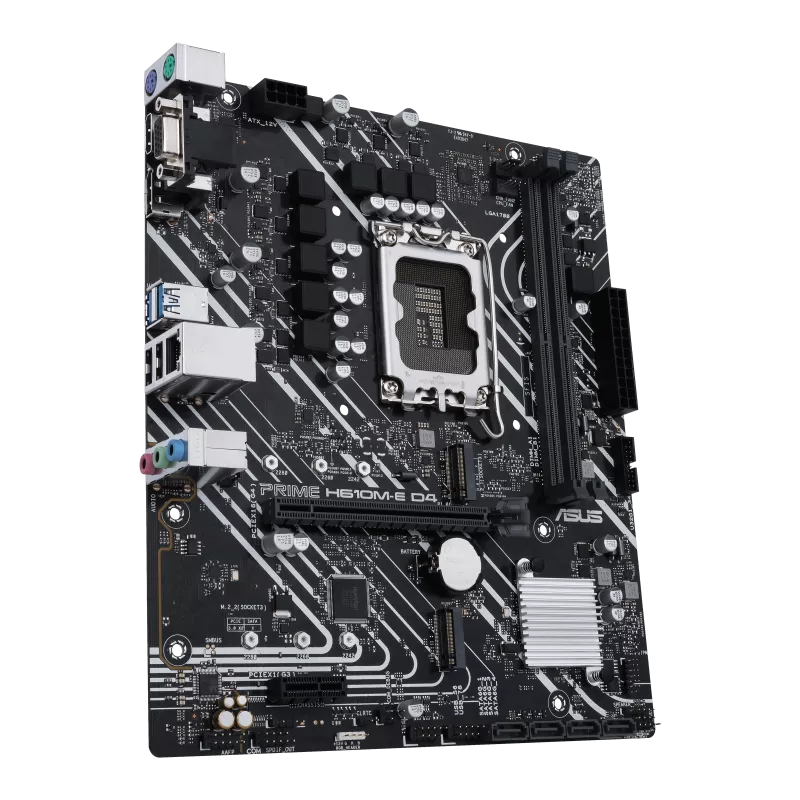

About Asus Prime H610M-E D4 Motherboard
Built with the Intel H610 chipset and LGA1700 socket, it supports Intel Core 14th, 13th and 12th Gen processors, along with compatible Pentium Gold and Celeron CPUs.
Two DDR4 DIMM slots support up to 64GB of memory and Intel XMP technology.
Storage flexibility comes from two M.2 slots supporting PCIe 3.0 interfaces and four SATA 6Gb/s ports.

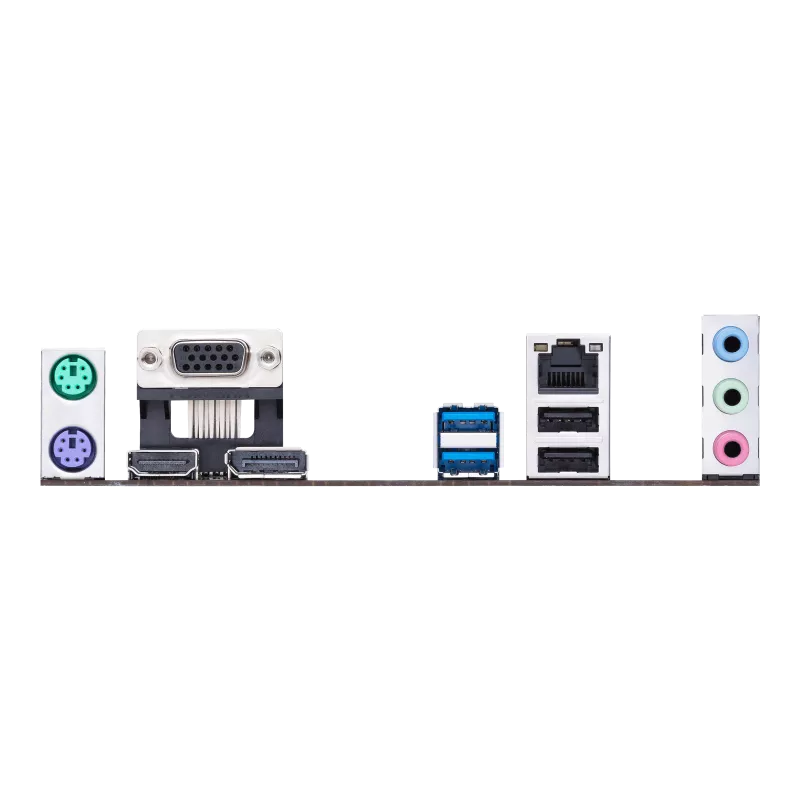

The PCIe 4.0 x16 slot supports compatible graphics cards, while DisplayPort, HDMI and D-Sub outputs provide versatile display connectivity.
Realtek 1Gb Ethernet and USB 3.2 Gen 1 offer practical connectivity for everyday systems.
Realtek 7.1-channel high-definition audio provides enhanced sound capabilities.
ASUS 5X Protection III, SafeSlot Core, DIGI+ VRM and comprehensive cooling features further support stable operation for home, office and PC-building applications.
| Specification | Details |
|---|---|
| Model | ASUS Prime H610M-E D4 |
| Form Factor | Micro ATX |
| Dimensions | 24.4 × 21.1 cm |
| CPU Socket | Intel LGA1700 |
| CPU Compatibility | Intel Core 14th, 13th & 12th Gen processors, Pentium Gold and Celeron processors |
| Chipset | Intel H610 |
| Memory Type | DDR4 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 64GB |
| Memory Speed | DDR4 3200/3000/2933/2800/2666/2400/2133 |
| Memory Architecture | Dual-channel |
| Memory Features | Non-ECC, Un-buffered, Intel XMP |
| DisplayPort | 1 × DisplayPort 1.4, up to 4K @ 60Hz |
| HDMI | 1 × HDMI 2.1, up to 4K @ 60Hz |
