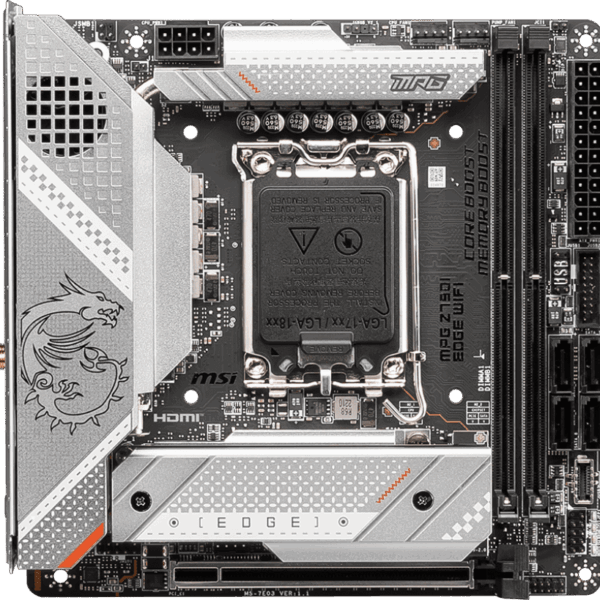

About MSI MPG Z790I Edge WiFi DDR5 Mini‑ITX Motherboard
The MSI MPG Z790I Edge WiFi DDR5 is designed to provide high performance in a small form factor (170 x 170 mm). It combines state-of-the-art features with a compact design, supporting Intel LGA 1700 CPUs (12th, 13th, and 14th Gen). Memory capabilities are enhanced by 2× DDR5 DIMM slots, which support up to 64 GB of RAM that is overclocked to 7800 MHz. This makes it perfect for demanding multimedia, gaming, and multitasking tasks. Reliable power is guaranteed by a robust 8 2 1 VRM configuration, even during memory tuning or when heavy loads are present.

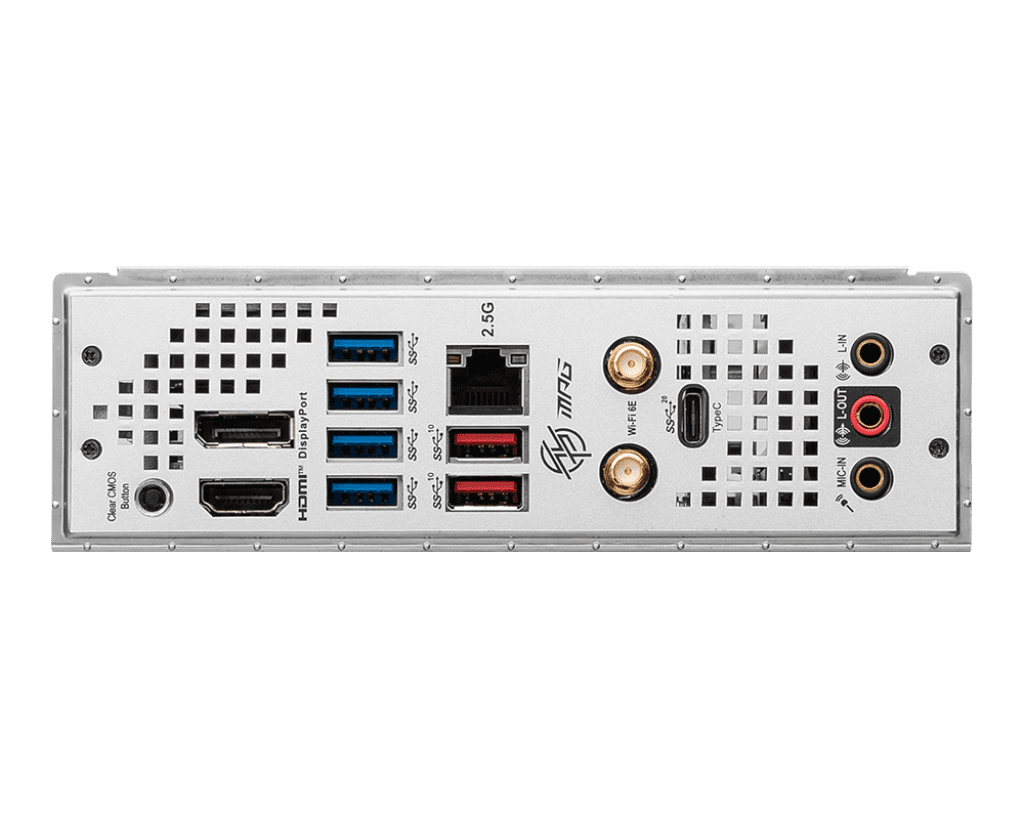

It is ready for top-tier GPUs and has a PCIe 5.0 x16 Steel Armor slot. PCIe 4.0 M dual. Fast storage in a small space is provided by two slots (one with a heatsink), and additional drives are supported by two× SATA 6Gb/s connectors. For quick and reliable networking, connectivity features include Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN. For a variety of peripherals, the rear I/O features USB 3.2 Gen2 Type-C, USB 3.2 Gen1 Type-A, and USB 2.0 ports.
With chipset and VRM heatsinks as well as M.2 Shield Frozr for the best thermal performance, cooling is strong despite its small size. Installation is made easy by build-friendly features like reinforced PCIe/DIMM slots, EZ Debug LEDs, and an I/O shield that is already installed.
Features of the MSI MPG Z790I Edge WiFi DDR5 Mini‑ITX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel Z790 / LGA 1700 |
| CPU Support | Intel 12th–14th Gen Core / Pentium / Celeron |
| Form Factor | Mini‑ITX (170×170 mm) |
| Memory Support | 2× DDR5 DIMMs, up to 64 GB, OC to 7800 MHz |
| Power Design | 8 2 1 VRM with Core Boost |
| PCIe Slot | 1× PCIe 5.0 x16 (Steel Armor) |
| M.2 Storage | 2× PCIe 4.0 M.2 (one with/ heatsink) |
| SATA Ports | 2× SATA 6 Gb/s |
| Networking | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.3 |
| USB Ports | USB 3.2 Gen2 Type-C, USB 3.2 Gen1, USB 2.0 |
| Audio | High-Definition audio via Realtek codec |
| Cooling & Build | VRM/chipset heatsinks, M.2 Shield Frozr, debug LEDs |
| PCB & Durability | Reinforced slots, pre-installed I/O shield |
Ideally Best For
- Compact gaming setups with full-size GPU support
- Mini-ITX creator PCs with fast storage and high-speed RAM
- Portable performance systems for LAN or travel setups
- DIY builders seeking a small form factor with top-tier specs
- Future-ready mini PCs leveraging DDR5 and PCIe 5.0 tech
Buy MSI MPG Z790I Edge WiFi DDR5 Mini‑ITX Motherboard LGA 1700 DDR5 Online Today.`
