Asus Prime-H610M-CS-D4 Motherboard | Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, LPT header, TPM header, Luminous Anti-moisture coating
Product Description

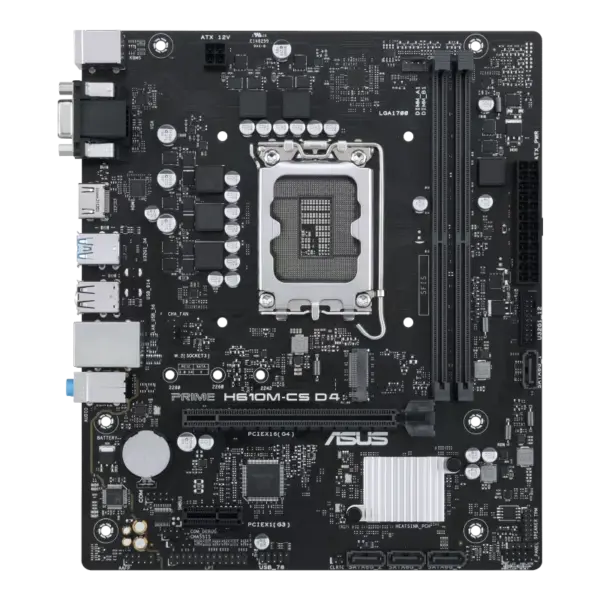

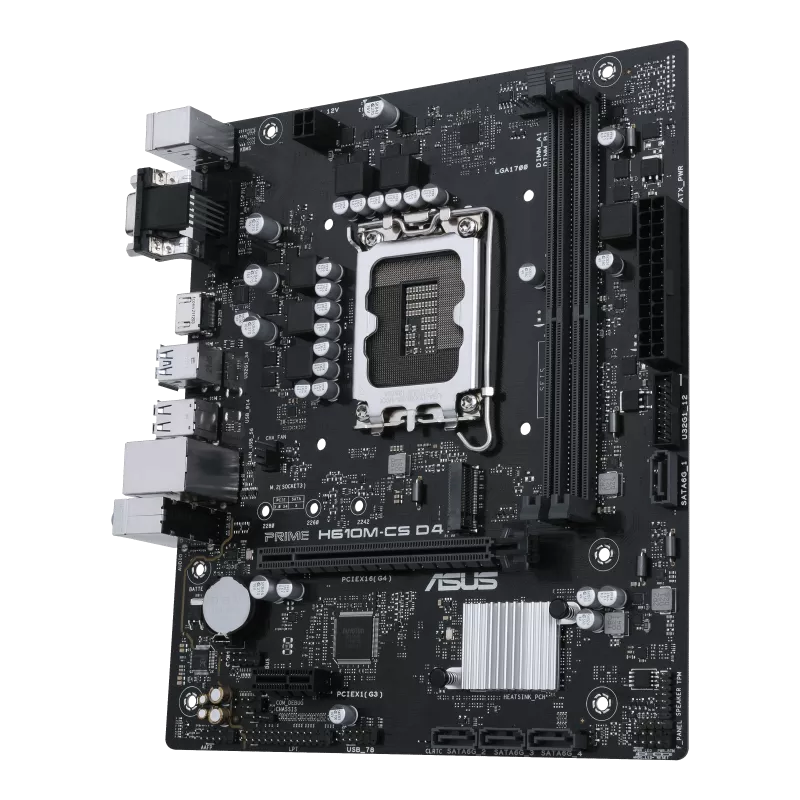

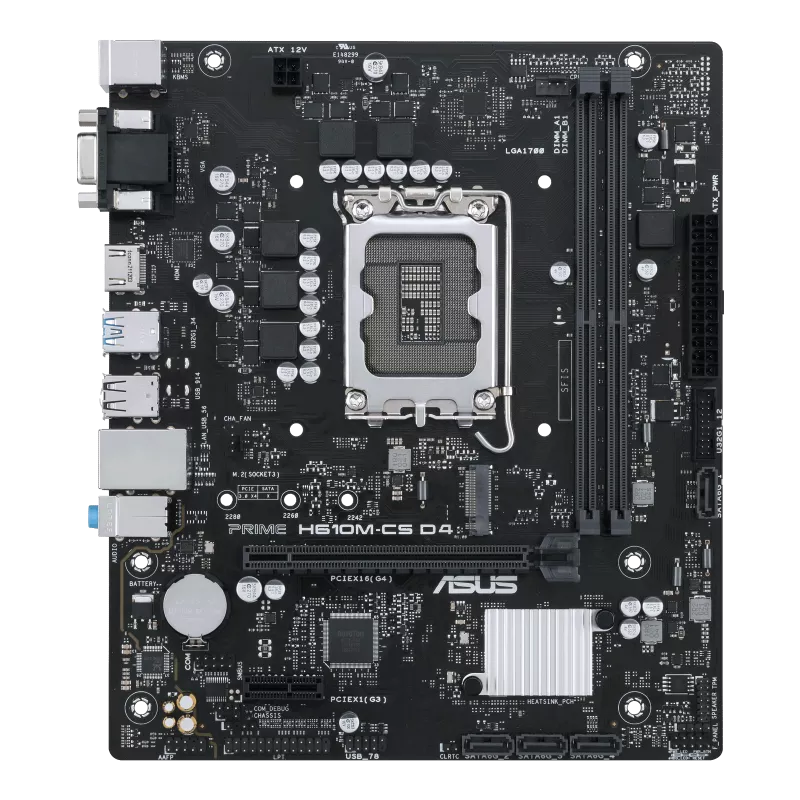

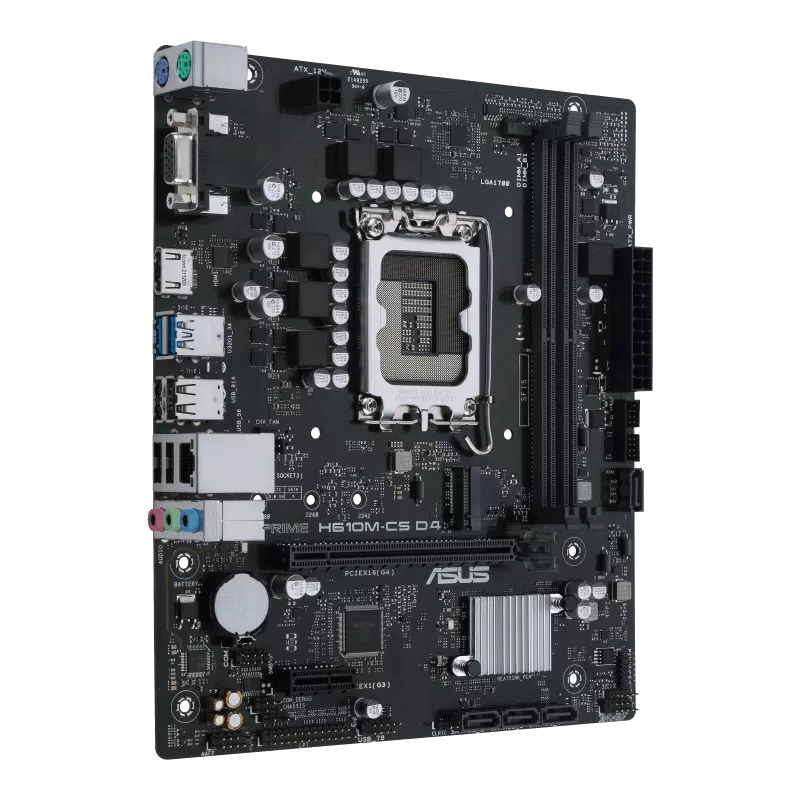

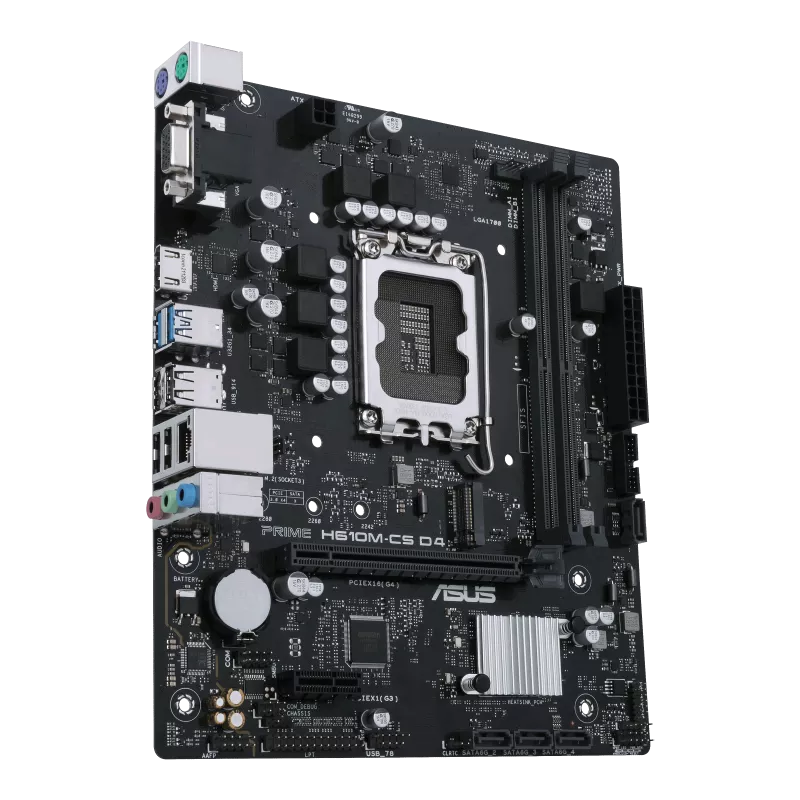

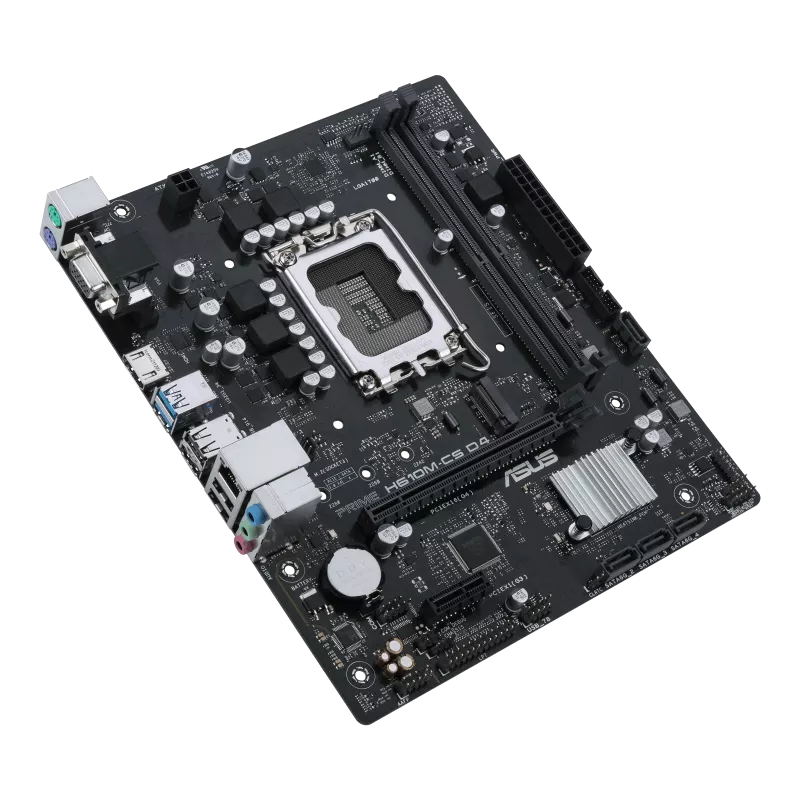

About Asus Prime-H610M-CS-D4 Motherboard
Built around the Intel H610 chipset, the Asus Prime-H610M-CS-D4 Motherboard features an LGA1700 socket compatible with Intel Core 14th, 13th and 12th Gen processors, along with supported Pentium Gold and Celeron CPUs.
Two DDR4 DIMM slots support up to 64GB of memory, while the PCIe 4.0 x16 slot provides bandwidth for compatible graphics cards.
The Asus Prime Series Desktop Motherboard has a storage options that includes an M.2 PCIe 3.0 x4 slot for NVMe SSDs and four SATA 6Gb/s ports.

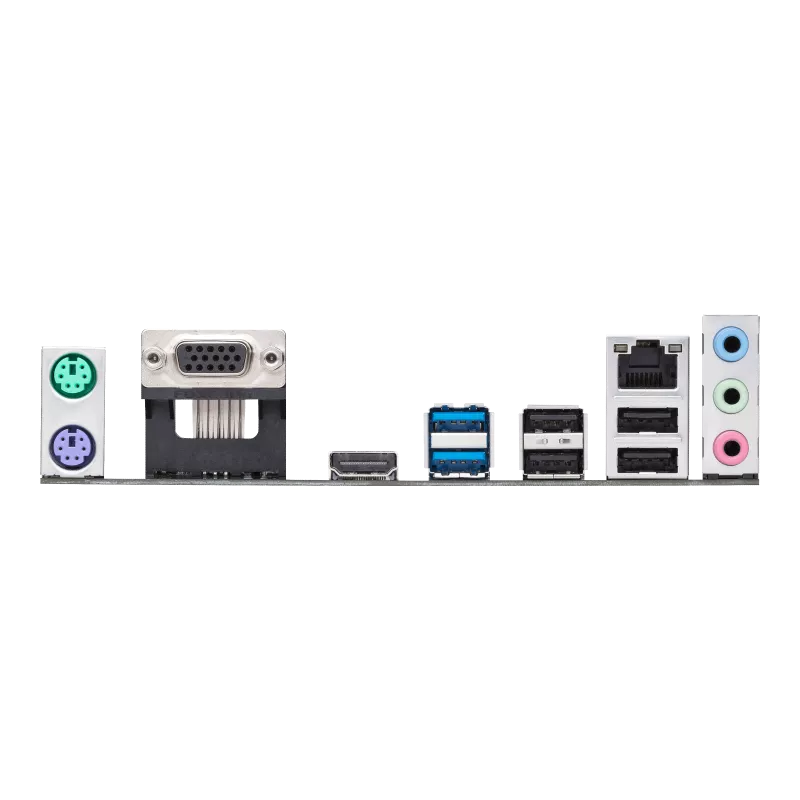

Connectivity includes Realtek 1Gb Ethernet, USB 3.2 Gen 1, USB 2.0, HDMI and D-Sub outputs.
Realtek 7.1-channel high-definition audio delivers enhanced sound capabilities.
ASUS 5X Protection III, DIGI+ VRM, SafeSlot Core and anti-moisture protection further enhance durability, making the Asus Intel Powered Desktop Motherboard suitable for everyday computing, office systems and versatile PC builds.
| Specification | Details |
|---|---|
| Model | ASUS Prime H610M-CS D4 |
| Form Factor | Micro ATX |
| Dimensions | 8.9 × 7.6 inches / 22.6 × 19.3 cm |
| CPU Socket | Intel LGA1700 |
| CPU Compatibility | Intel Core 14th & 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron processors |
| CPU Power Support | Supports up to Intel 65W CPU |
| Chipset | Intel H610 |
| Memory Type | DDR4 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 64GB |
| Memory Speeds | DDR4 3200/3000/2933/2800/2666/2400/2133 |
| Memory Architecture | Dual-channel |
| Memory Features | Non-ECC, Un-buffered, Intel XMP support |
| Graphics | 1 × HDMI, 1 × D-Sub |
| HDMI Resolution | Up to 4K @ 60Hz |
