About MSI PRO B760M‑A WiFi DDR5 Micro‑ATX Motherboard
For high-performance Intel builds in small spaces, the MSI PRO B760M‑A WiFi DDR5 was designed. This micro-ATX motherboard, which is built around the Intel B760 chipset and supports LGA 1700, provides contemporary features without sacrificing speed or stability.
- Memory: Equipped with 4 DDR5 DIMM slots supporting up to 128 GB and overclocking to 6800 MHz, boosting fast multitasking, smooth rendering, and agile system responsiveness.
- Power & Cooling: Built with a 10 1 phase VRM and strategically placed heatsinks, it ensures reliable voltage delivery—even under demanding loads or overclocked configurations.
- Expansion & Storage: Features a reinforced PCIe 4.0 x16 slot for the latest GPUs, one PCIe 3.0 x1 slot for add-in cards, one M.2 PCIe 4.0 x4 slot with heat protection, and four SATA 6 Gb/s ports for flexible storage options.

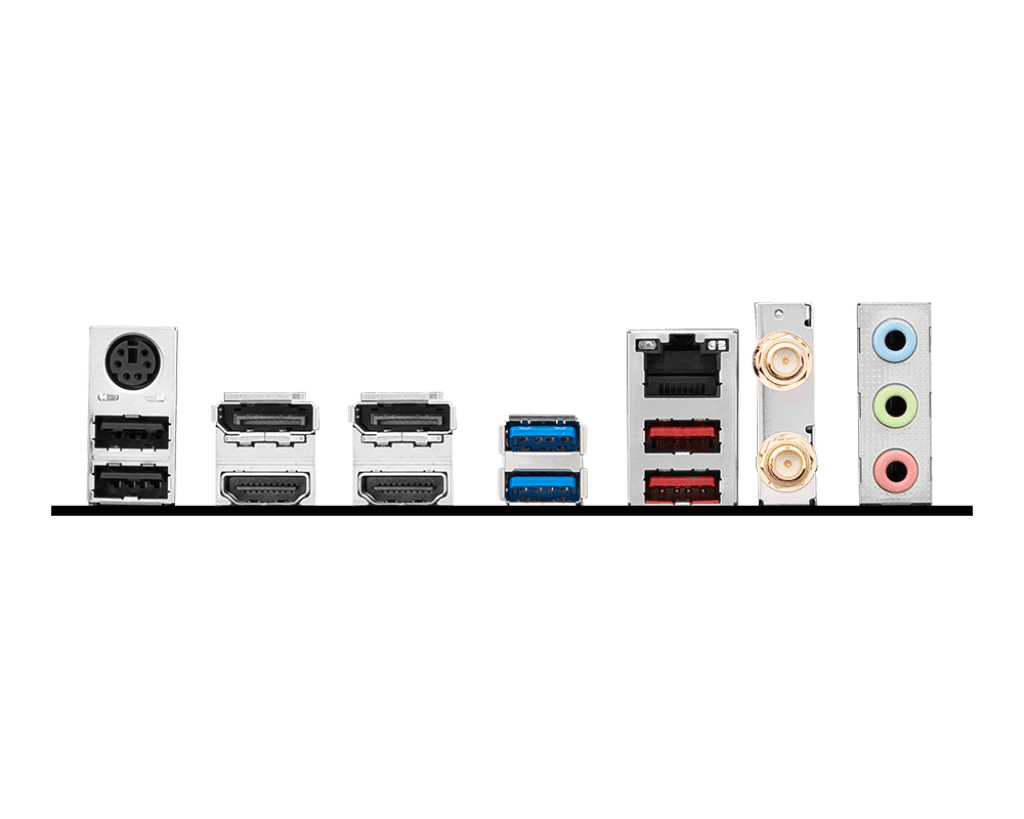

- Connectivity: The board offers built-in Wi‑Fi 6E, Bluetooth 5.3, and 2.5G LAN for high-speed network performance. The rear panel includes USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A, and legacy USB 2.0 ports, along with HDMI 2.1 and DisplayPort 1.4.
- Build Experience: A pre-installed I/O shield, EZ Debug LEDs, BIOS Flash button, and ARGB headers enhance ease of installation, diagnostics, and customisation.
Features of the MSI PRO B760M‑A WiFi DDR5 Micro‑ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel B760 / LGA 1700 |
| CPU Compatibility | 12th–14th Gen Intel Core / Pentium / Celeron processors |
| Form Factor | Micro‑ATX |
| Memory Support | 4× DDR5 DIMM, up to 128 GB, OC up to 6800 MHz |
| Power Design | 10 1 phase VRM with efficient heatsinks |
| PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
| M.2 Storage | 1× PCIe 4.0 x4 NVMe M.2 with heatsink |
| SATA Ports | 4× SATA III (6 Gb/s) |
| Network | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.3 |
| USB Connectivity | USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | Realtek high-definition 7.1 surround audio |
| Build-Friendly Tools | EZ Debug LEDs, BIOS Flash Button, pre-installed I/O shield, ARGB headers |
Ideally Best For
- Compact gaming builds leveraging Intel 12th–14th Gen CPUs
- Mini office workstations needing fast memory and wireless networking
- Budget-friendly mini-ATX creators using mid-tier GPUs and NVMe storage
- DIY builders and system integrators seeking easy installation and diagnostics
- Hybrid setups where space-saving meets performance
Buy MSI PRO B760M‑A WiFi DDR5 Micro‑ATX Motherboard LGA 1700 DDR5 | PCIe 4.0 M.2, Wi‑Fi 6E Online Today.
