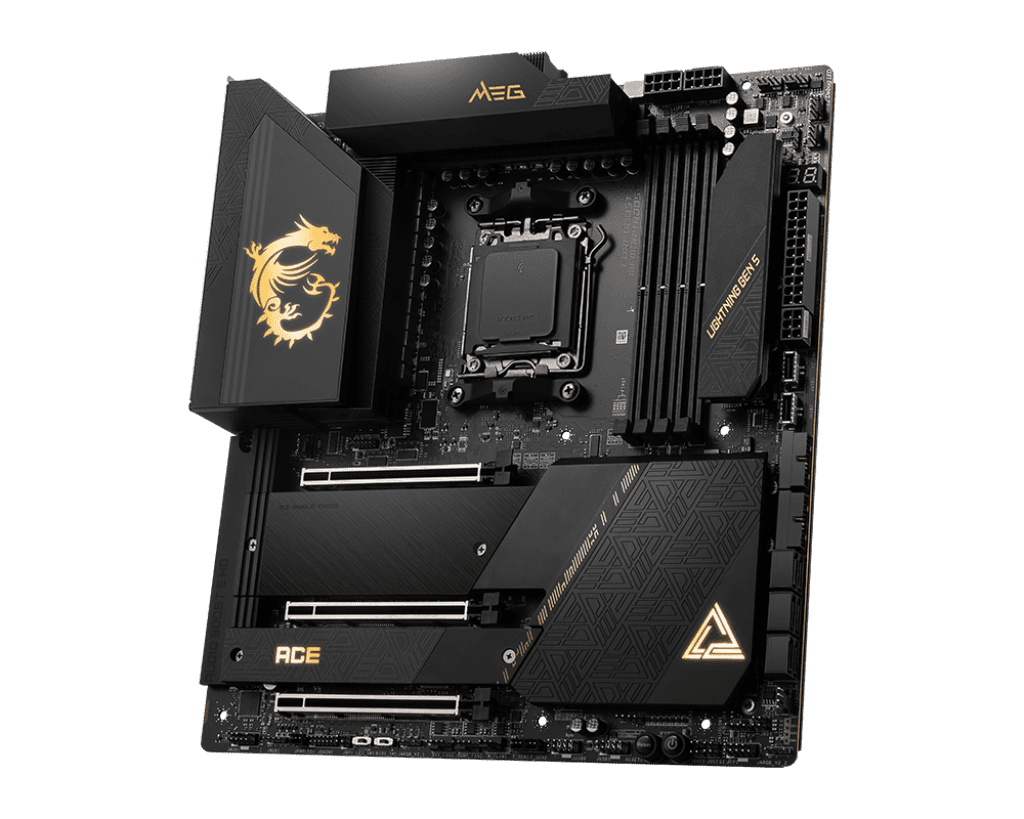

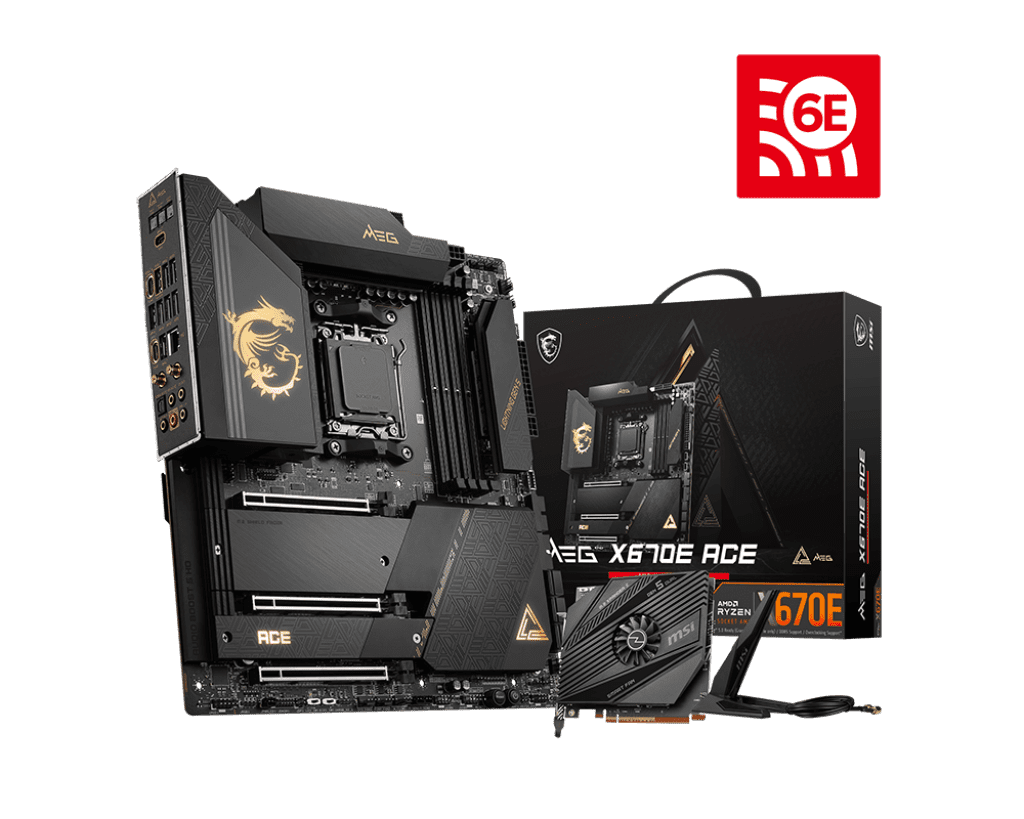

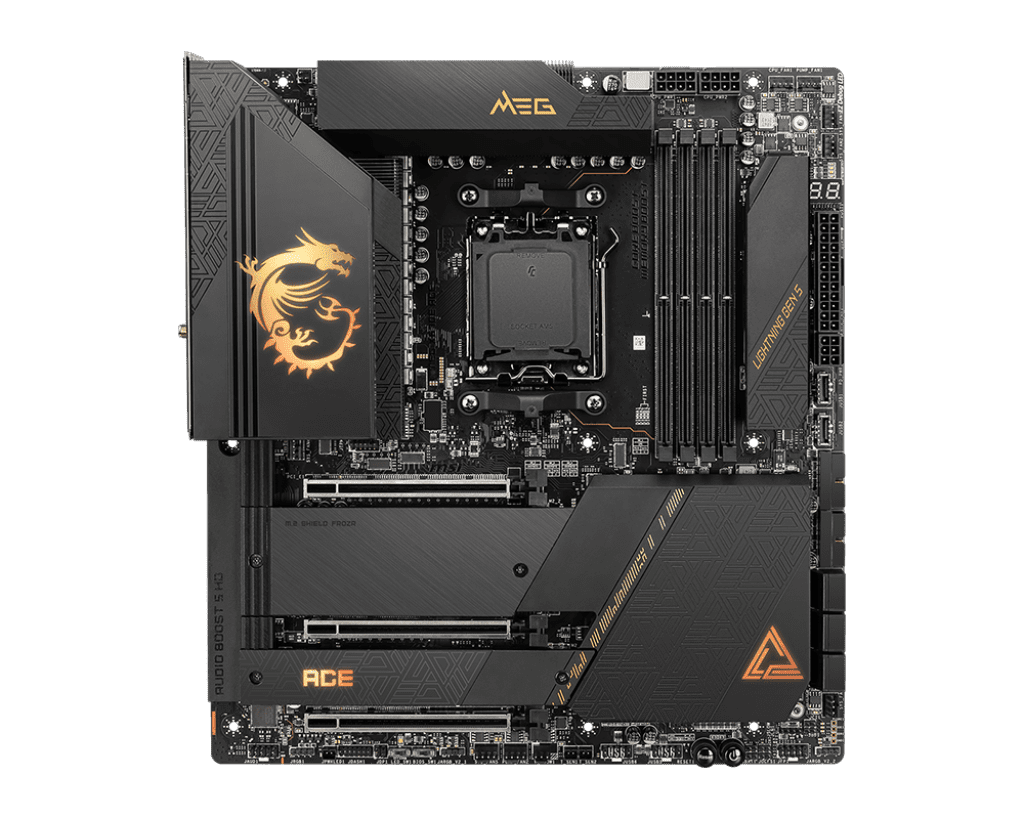

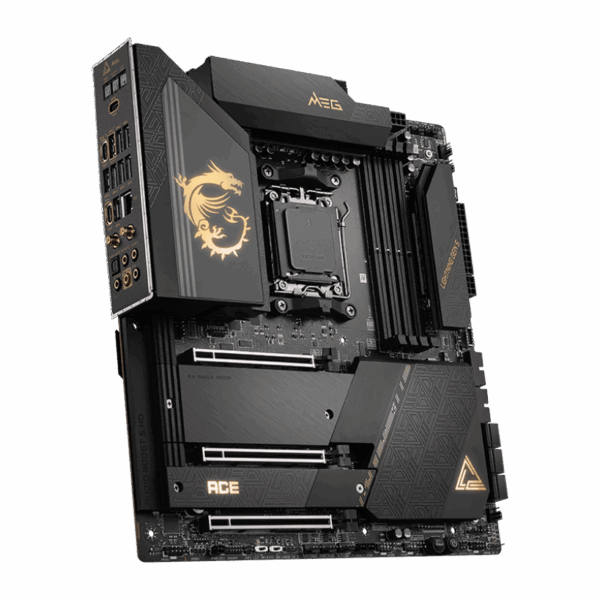

About MSI MEG X670E ACE E‑ATX Motherboard
A powerful motherboard made for the pickiest PC builders and performance enthusiasts is the MSI MEG X670E ACE. This E-ATX board offers unmatched speed, dependability, and aesthetics thanks to its construction on AMD’s cutting-edge X670E chipset, which supports the most recent Ryzen 7000, 8000, and upcoming 9000 series processors. It has four DDR5 DIMM slots, supports up to 256 GB of RAM, and can overclock to over 8000 MHz, giving it unparalleled memory bandwidth for demanding workloads in simulation, gaming, rendering, and 3D modelling.
Even under severe overclocking circumstances, the board’s 22 2 1 phase VRM (with 90A power stages), dual 8-pin CPU connectors, 8-layer PCB with 2 oz copper, and stacked fin heatpipes guarantee strong and effective cooling. Additionally, it has high-end onboard audio with crystal-clear 7.1 surround sound for immersive gaming or professional audio work, powered by an ESS Sabre DAC and a Realtek ALC4082 codec.
Smart design elements such as screwless M.2 installation, EZ Debug LEDs, a BIOS Flashback button, a pre-installed I/O shield, and RGB & ARGB headers that can be customised to customise the build’s appearance will be appreciated by do-it-yourself builders. The MEG X670E ACE is designed to conquer any task, whether you’re building a workstation, a streaming setup, or an incredibly powerful gaming PC.
Features of the MSI MEG X670E ACE E‑ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | AMD X670E / AM5 |
| CPU Support | Ryzen 7000, 8000, 9000 Series |
| Form Factor | E-ATX (305 × 277 mm) |
| Memory | 4× DDR5, up to 256 GB, 8000 MHz OC |
| Power Phases | 22 2 1 with 90 A stages |
| Expansion Slots | 3× PCIe 5.0 x16 (x16/x8/x4 modes) |
| M.2 Storage | 1× PCIe 5.0 x4 3× PCIe 4.0 x4, with SMXPANDER support (total up to 6 M.2 devices) |
| SATA Ports | 6× SATA 6 Gb/s |
| LAN & Wireless | 10G Ethernet Wi‑Fi 6E BT 5.2 |

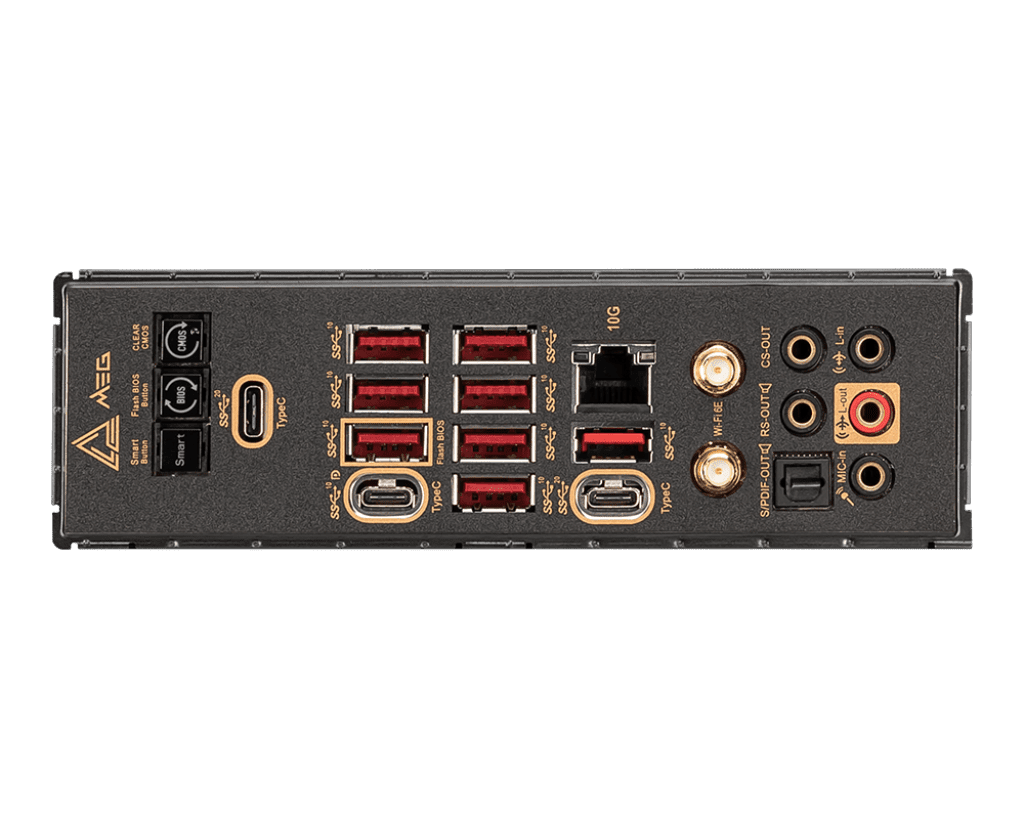

| USB Ports | Front USB-C Gen2x2 Rear USB Gen2x2, Gen2, Gen1, USB 2.0 |
| Audio | Realtek ALC4082 ESS ES9280 DAC |
| Cooling System | Stacked heatsinks, heat-pipes, Shield Frozr, 8-layer PCB |
| Build Tools | EZ Debug LEDs, BIOS FlashBack, M.2 clip, Smart Button |
| Form Factor / Dimensions | E‑ATX (305 × 277 mm) |
| Warranty | 3 years (region dependent) |
Ideally Best For
- Extreme Overclockers seeking voltage control, thermal headroom, and VRM stability
- Professional Creators handling 4K editing, 3D rendering, and real-time production
- Gamers & Streamers wanting PCIe 5.0 GPUs and ultra-low latency networking
- Workstation Builders needing 10G LAN, massive M.2 storage, and fast DDR5 RAM
- Enthusiasts building an ultra-premium, future-proof AM5 desktop setup
Buy MSI MEG X670E ACE E‑ATX Motherboard AM5 DDR5 | PCIe 5.0 x16, Quad M.2 Online Today.
