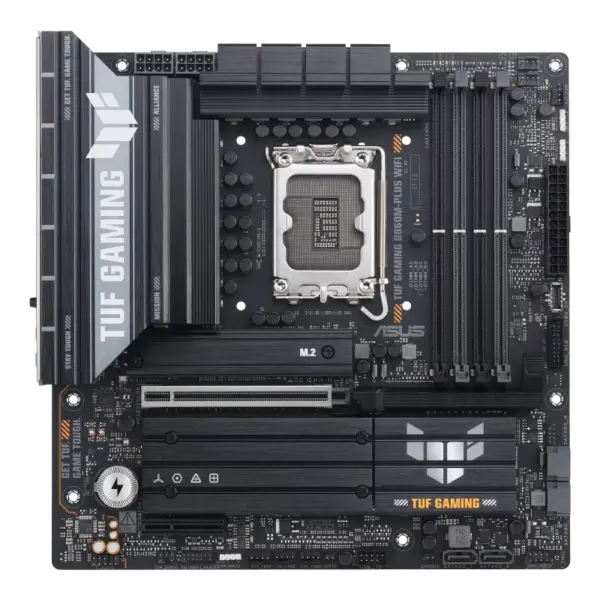

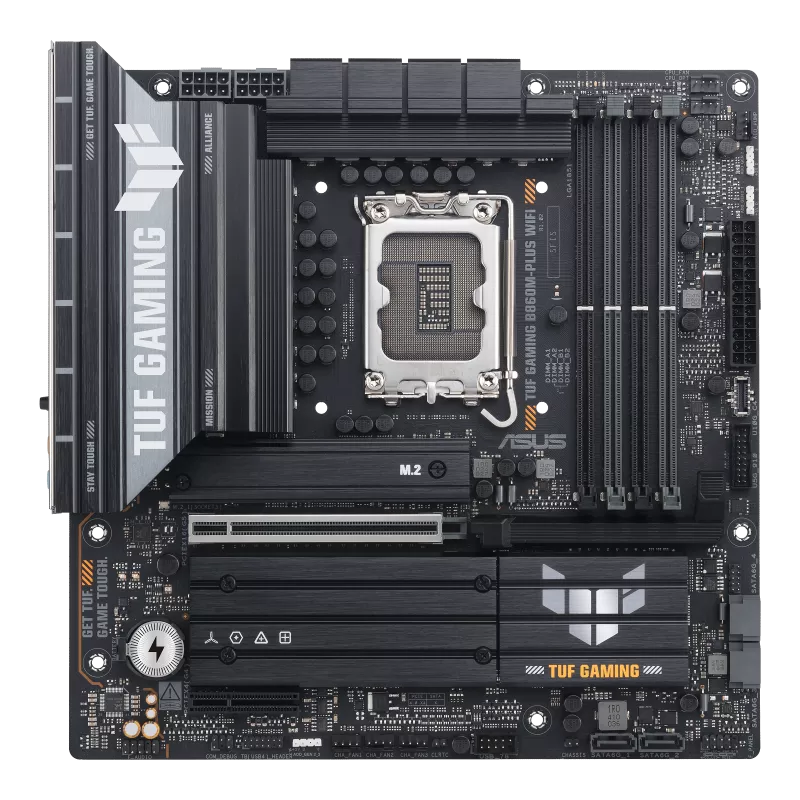

About Asus TUF Gaming B860M-Plus WiFi Motherboard
Designed around the Intel B860 chipset and LGA1851 socket, it supports Intel Core Ultra Processors (Series 2) and features a robust 12+1+2+1 power-stage design with 80A DrMOS stages.
The Asus TUF Gaming WiFi Motherboard offers Four DDR5 DIMM slots thatr support up to 256GB of memory and speeds of up to 8800+ MT/s (OC), while three M.2 slots provide flexible high-speed storage options.
PCIe 5.0 support enables next-generation graphics and SSD performance.

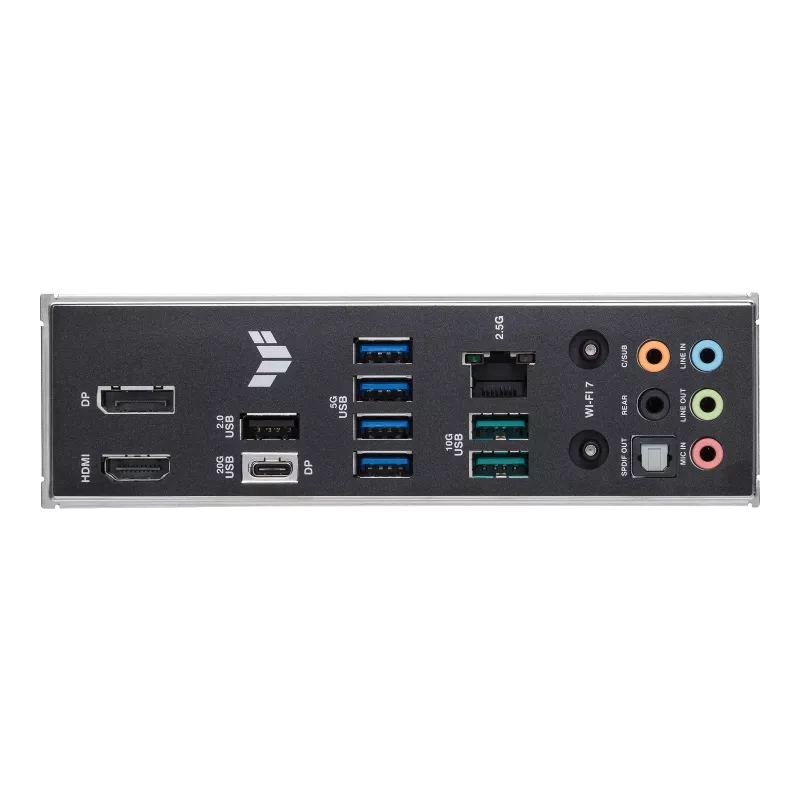

For connectivity, the Asus TUF Gaming Series Motherboard features WiFi 7, Bluetooth 5.4, Realtek 2.5Gb Ethernet and a rear USB 20Gbps Type-C port.
Comprehensive cooling includes enlarged VRM and M.2 heatsinks. TUF protection features such as SafeSlot, TUF LANGuard, ESD Guards and a stainless-steel back I/O panel add durability.
Aura Sync RGB, Q-LED and DIY-friendly features complete this versatile motherboard for gaming and productivity.
| Specification | Details |
|---|---|
| Product Name | ASUS TUF Gaming B860M-PLUS WiFi |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 × 24.4 cm |
| CPU Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| VRM Design | 12+1+2+1 Power Stages |
| Power Stage Rating | 80A DrMOS |
| PCB | 8-layer PCB |
| CPU Power Connectors | 2 × 8-pin +12V |
| Main Power Connector | 1 × 24-pin |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Memory Architecture | Dual Channel |
| Maximum Memory | 256GB |
