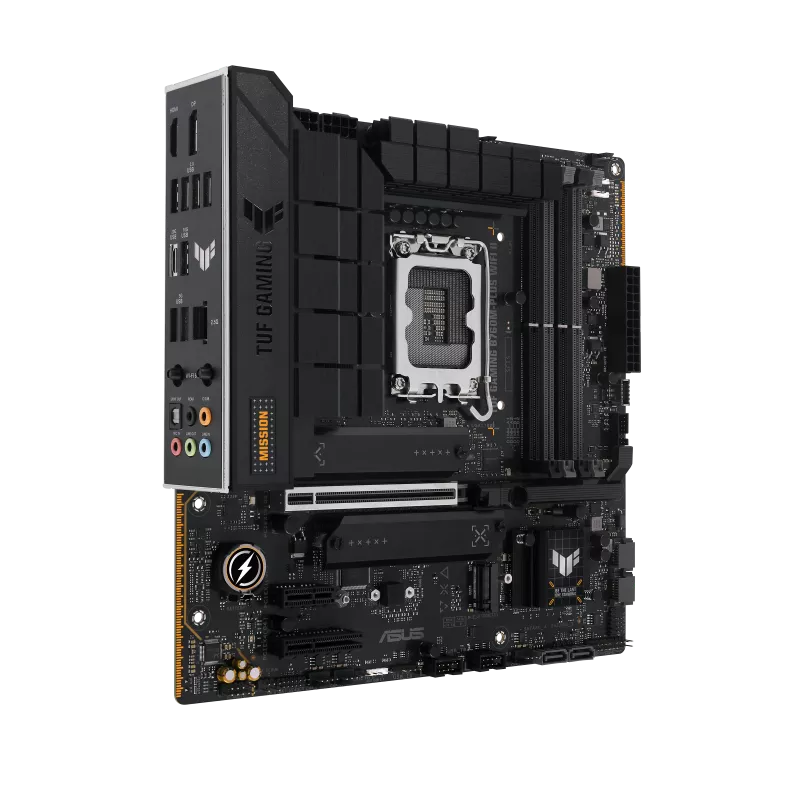

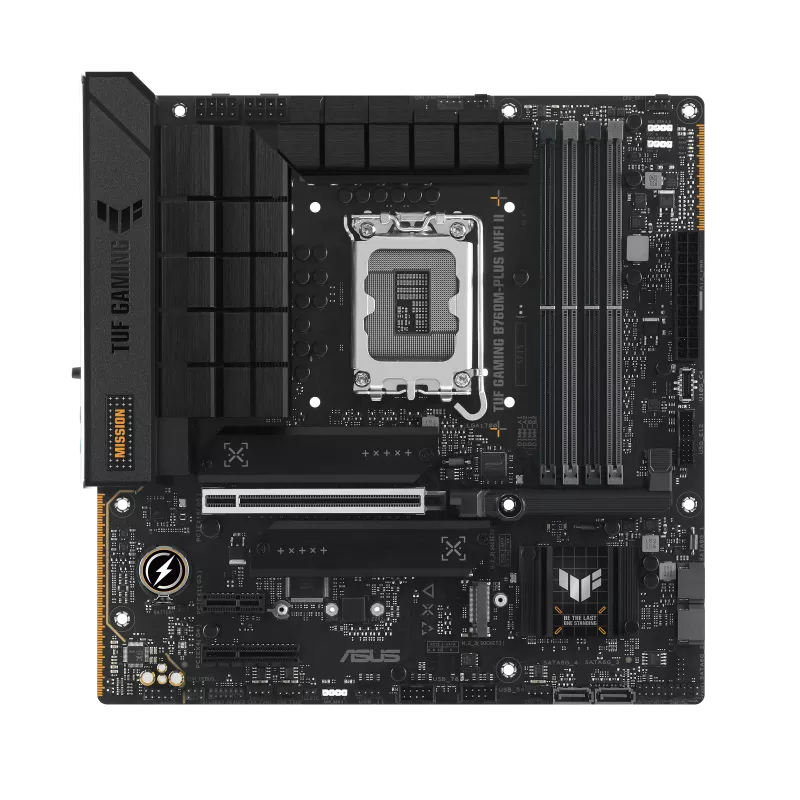

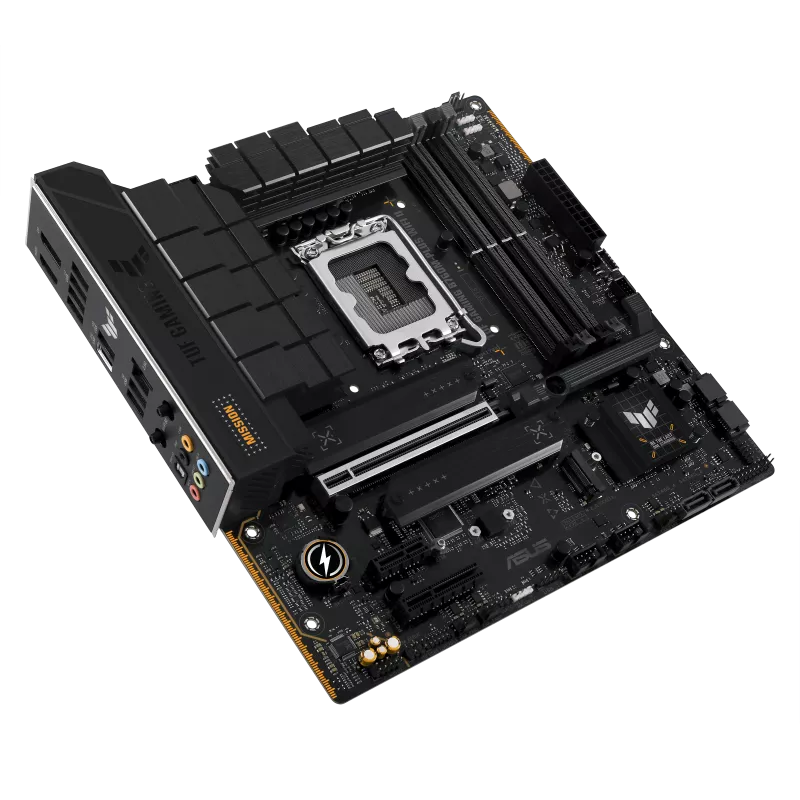

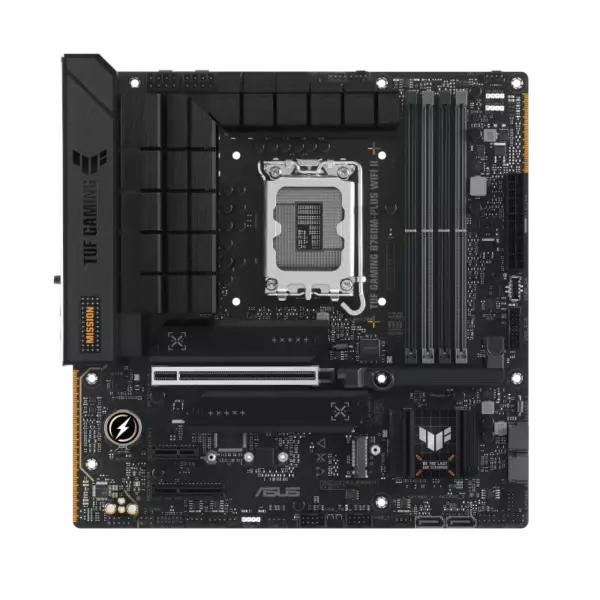

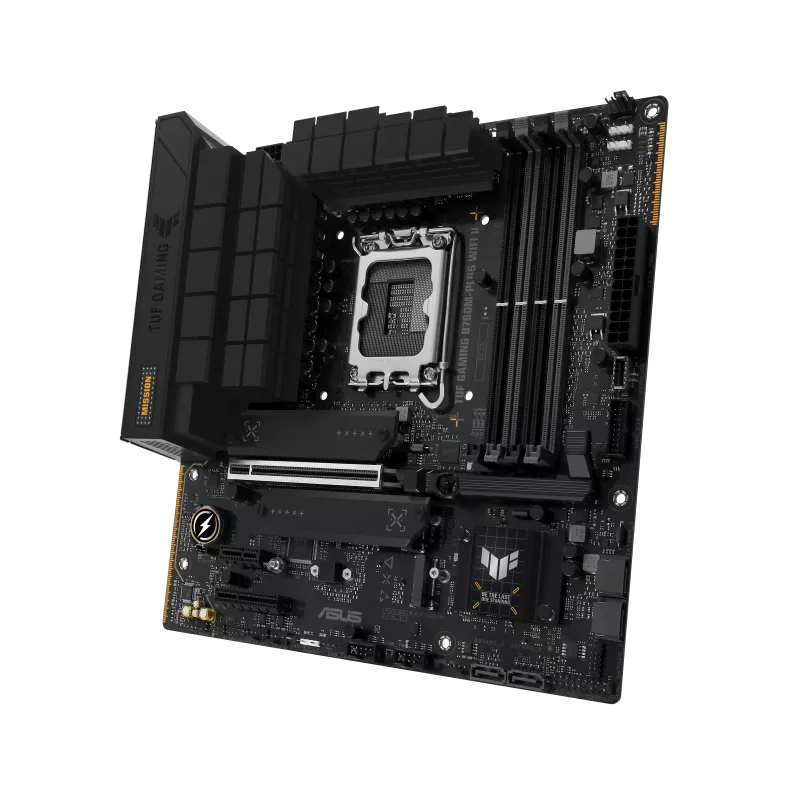

About Asus TUF Gaming B760M-Plus WiFi II Motherboard
Built around the Intel B760 chipset and LGA1700 socket, the Asus TUF Gaming Series Motherboard supports Intel Core 14th, 13th and 12th Gen processors, along with Pentium Gold and Celeron processors.
Four DDR5 DIMM slots support up to 192GB of memory and high-speed configurations up to 7800+ MT/s through overclocking.
For fast storage, the Asus TUF Gaming WiFi Desktop Motherboard includes three M.2 slots and four SATA 6Gb/s ports.
A PCIe 5.0 x16 slot provides high-speed expansion for compatible graphics cards.

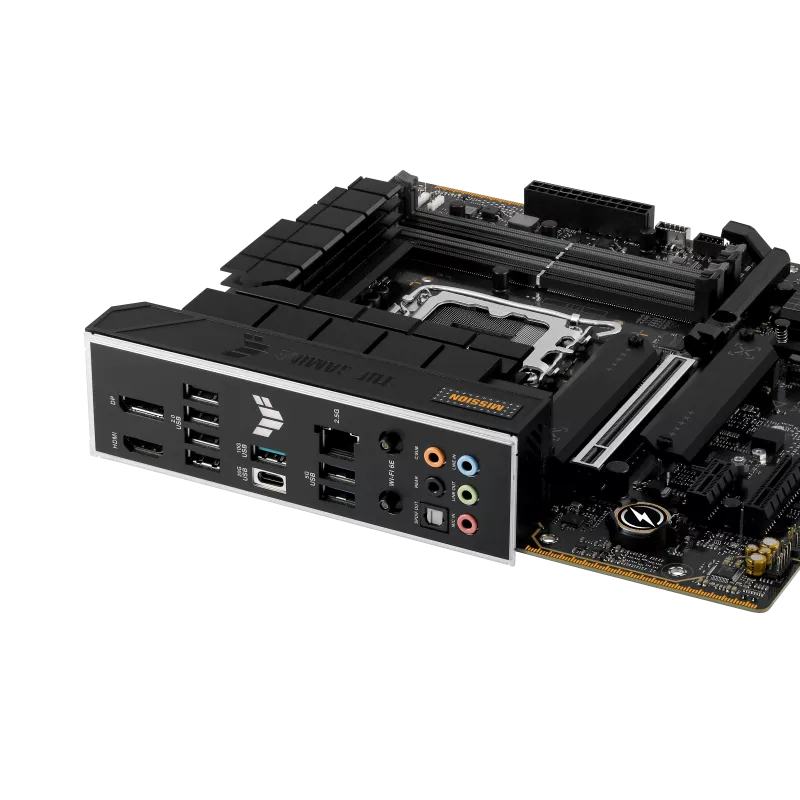

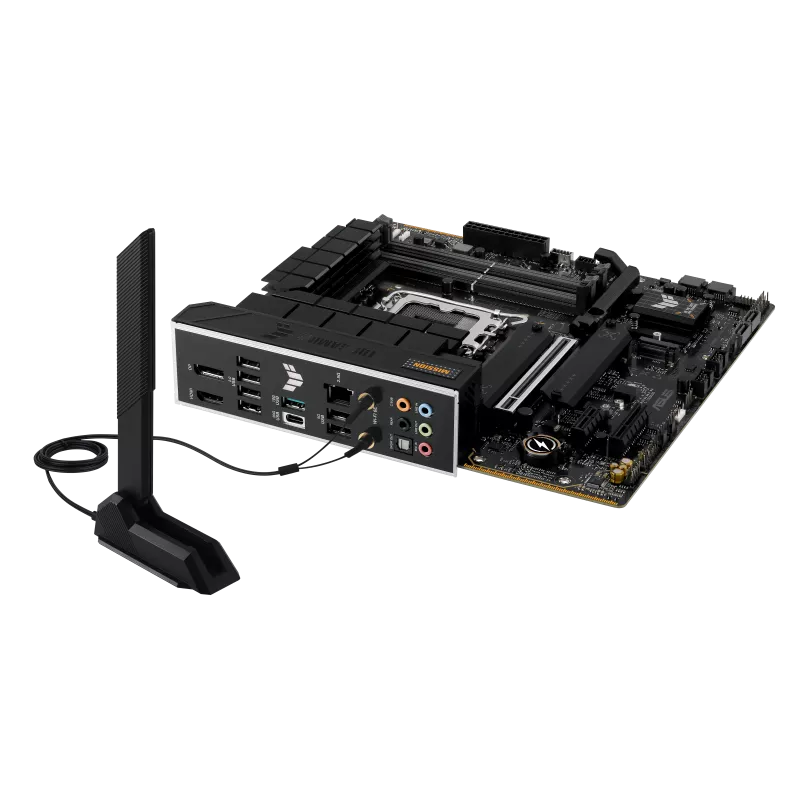

Networking includes Wi-Fi 6E, Bluetooth 5.3 and Realtek 2.5Gb Ethernet. USB connectivity includes a rear 20Gbps Type-C port alongside additional high-speed USB ports.
The Asus TUF Gaming B760M-Plus WiFi II Motherboard also features Realtek 7.1-channel audio, VRM and M.2 heatsinks, DIGI+ VRM, TUF LANGuard, SafeSlot Core+ and ASUS Q-Design technologies for enhanced durability, cooling and convenient installation.
| Specification | Details |
|---|---|
| Model | ASUS TUF Gaming B760M-PLUS WIFI II |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 × 24.4 cm |
| CPU Socket | Intel LGA1700 |
| Supported CPUs | Intel Core 14th, 13th & 12th Gen; Pentium Gold; Celeron |
| Chipset | Intel B760 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 192GB |
| Memory Type | DDR5, Non-ECC, Un-buffered |
| Memory Architecture | Dual Channel |
| Memory Speeds | DDR5 7800+(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600, 5400, 5200, 5000, 4800 MHz |
| Memory Technology | Intel XMP, ASUS OptiMem II |
| Graphics Outputs | 1 × DisplayPort 1.4, 1 × HDMI 2.1 |
| DisplayPort Resolution | Up to 4K @ 60Hz |
| HDMI Resolution | Up to 4K @ 60Hz |
| Primary Expansion | 1 × PCIe 5.0 x16 |
| Secondary Expansion | 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x1 |
