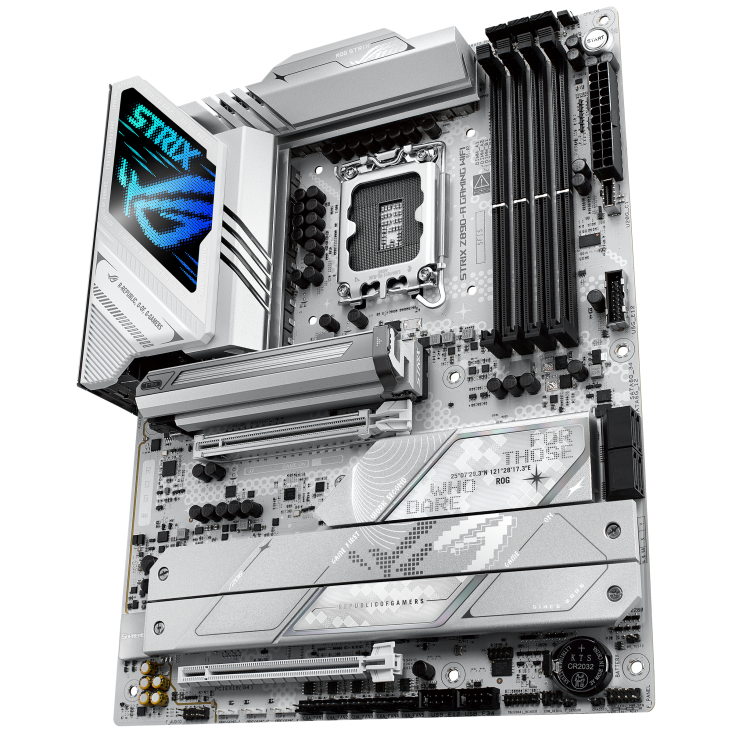

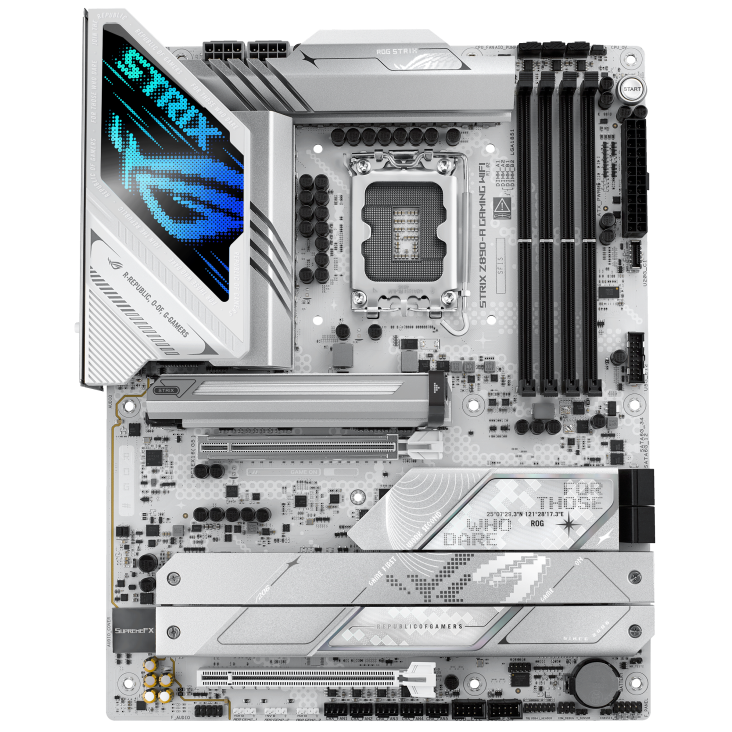

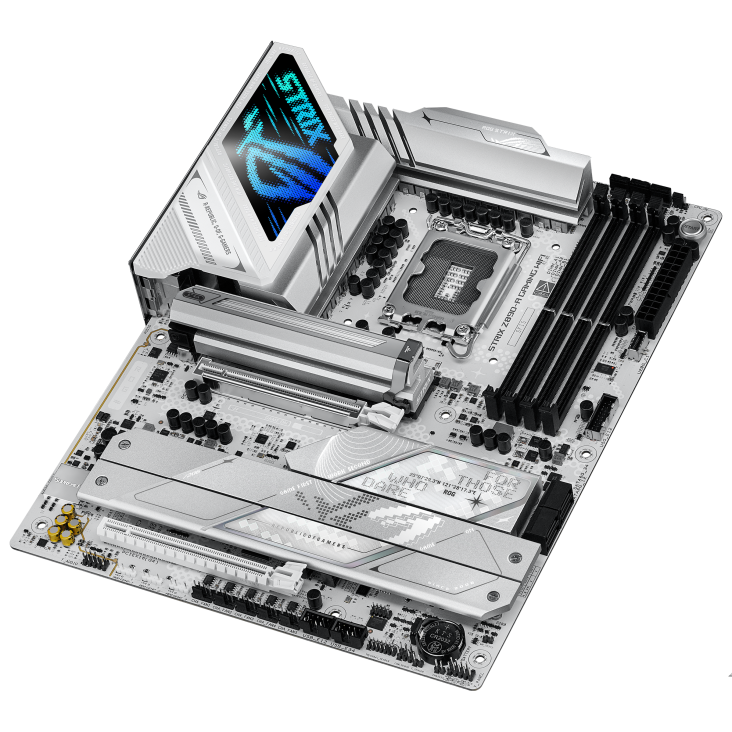

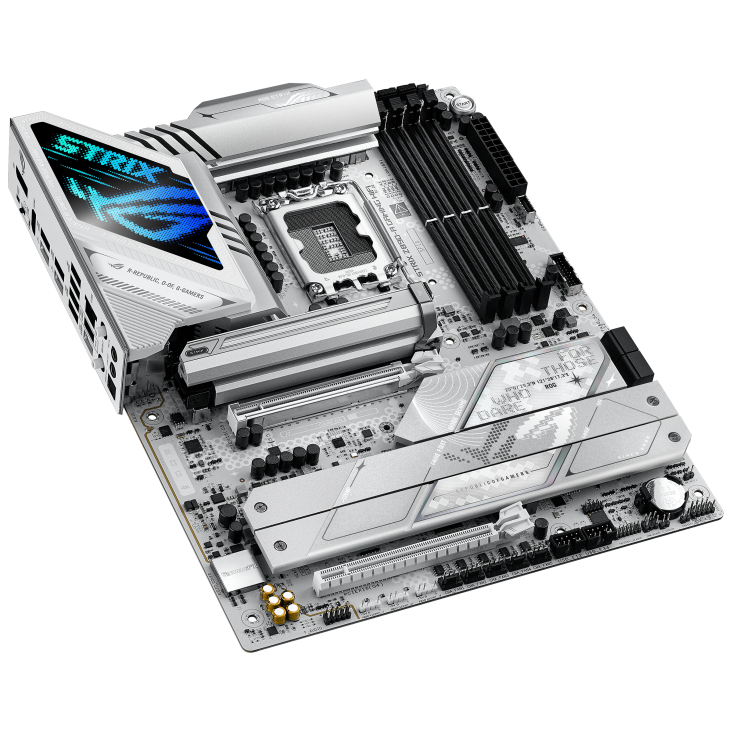

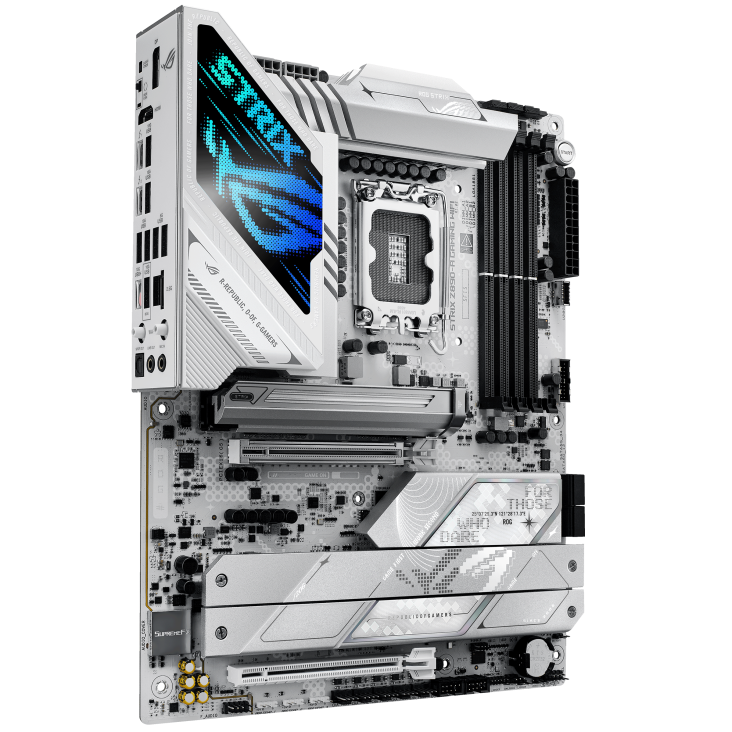

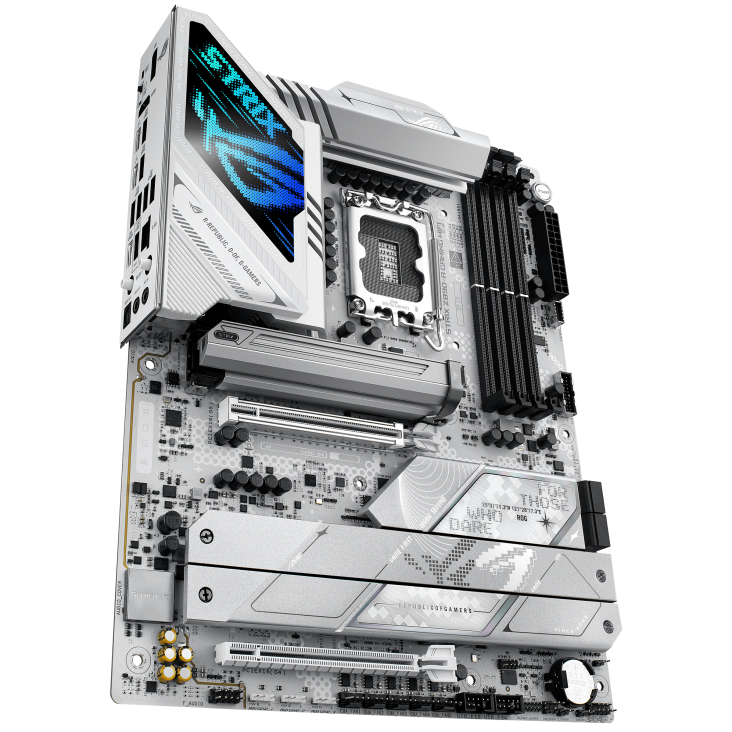

About Asus ROG Strix Z890-A Gaming WiFi Motherboard
Built with the Intel Z890 chipset and LGA1851 socket, it supports Intel Core Ultra Processors (Series 2).
Four DDR5 DIMM slots support up to 256GB of memory and speeds of up to 9066+ MT/s overclocked, with Intel XMP, DIMM Flex and ASUS Enhanced Memory Profile III technologies.
Storage flexibility comes from five M.2 slots, including a PCIe 5.0 x4 slot, along with four SATA 6Gb/s ports.

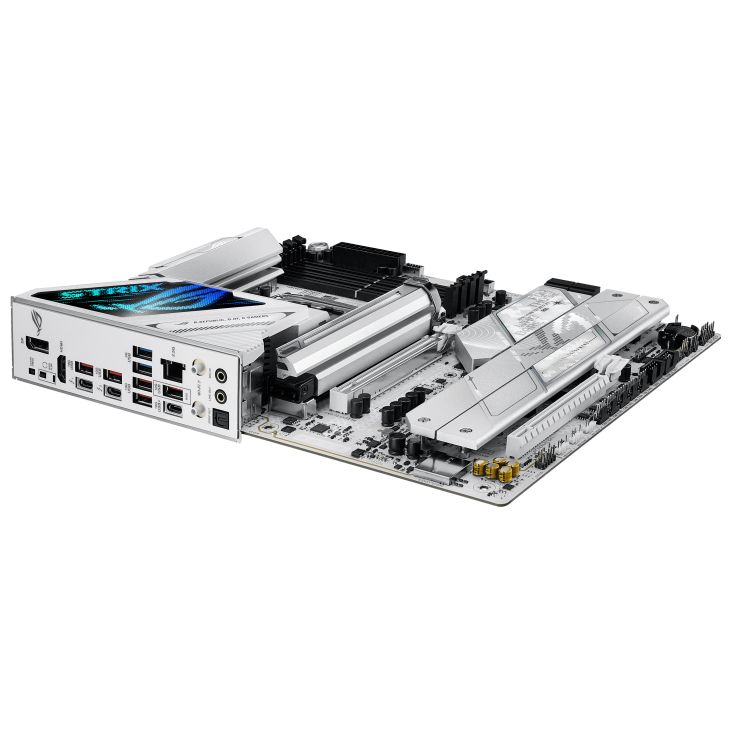

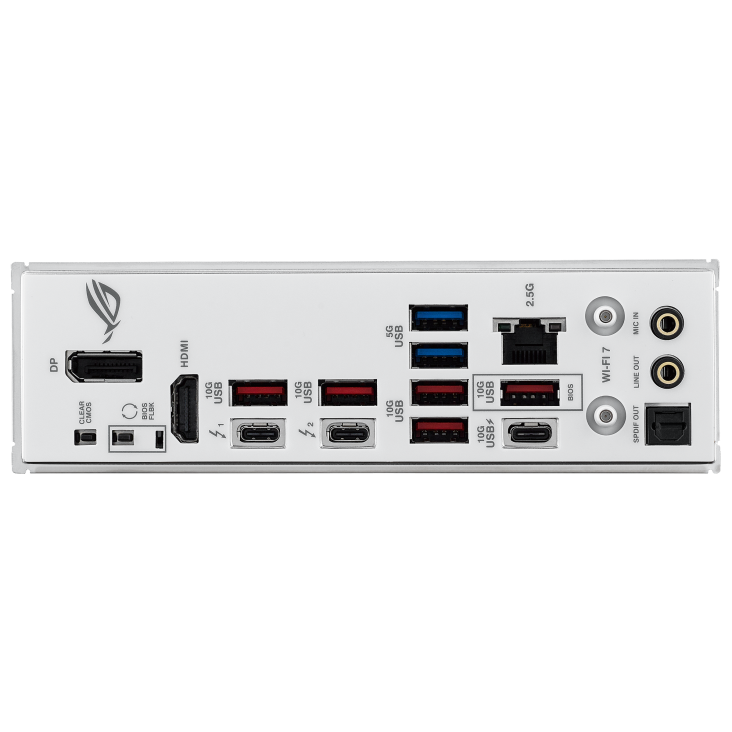

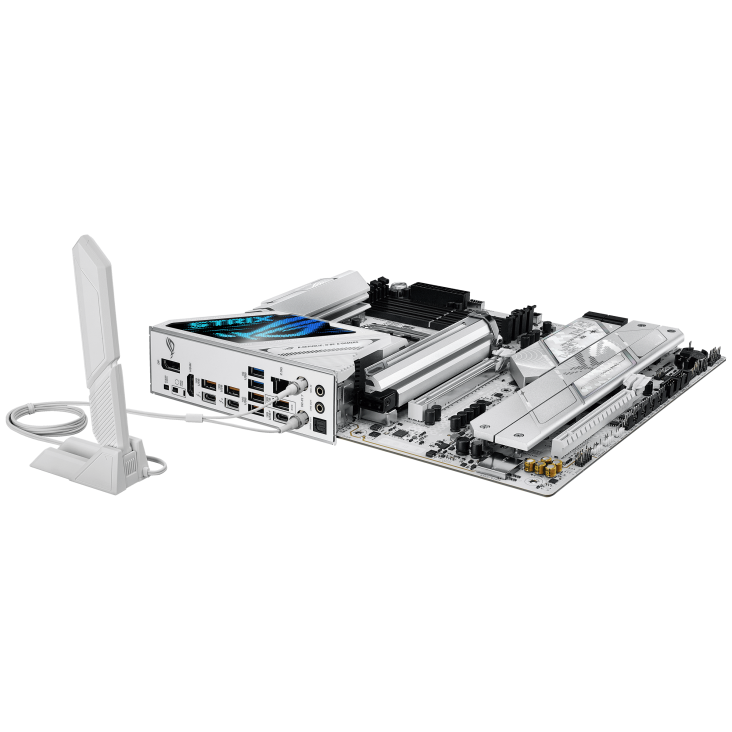

For connectivity, the motherboard features Wi-Fi 7, Intel 2.5Gb Ethernet and two Thunderbolt 4 Type-C ports.
The 16+1+2+2 power-stage design and extensive cooling hardware support demanding workloads.
Gaming-focused features include ROG SupremeFX ALC4080 audio, Polymo Lighting, multiple M.2 heatsinks, BIOS FlashBack and ASUS Q-Design technologies, making it suitable for gaming, content creation and enthusiast PC builds.
| Specification | Details |
|---|---|
| CPU Socket | Intel LGA1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | Up to 256GB |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to 9066+ MT/s (OC) |
| Memory Support | Non-ECC, Un-buffered, CUDIMM |
| Memory Technology | Intel XMP, DIMM Flex, DIMM Fit, ASUS Enhanced Memory Profile III |
| On-Die ECC | Supported with Non-ECC DDR5 memory |
| DisplayPort | 1 × DisplayPort 1.4, up to 8K@60Hz |
| HDMI | 1 × HDMI 2.1, up to 4K@60Hz |
| Thunderbolt Video | 2 × Thunderbolt 4 with DisplayPort/Thunderbolt video output |
| Primary PCIe Slot | 1 × PCIe 5.0 x16 |
| Secondary PCIe Slot | 1 × PCIe 4.0 x16 supporting x4 mode |
