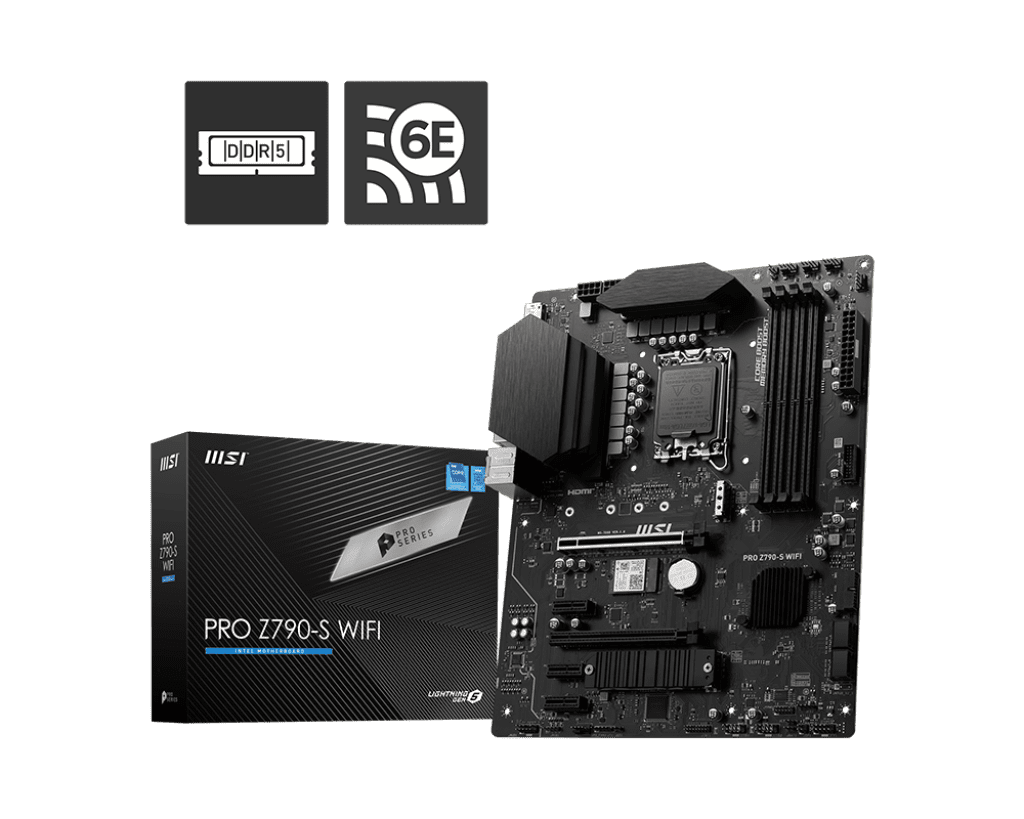

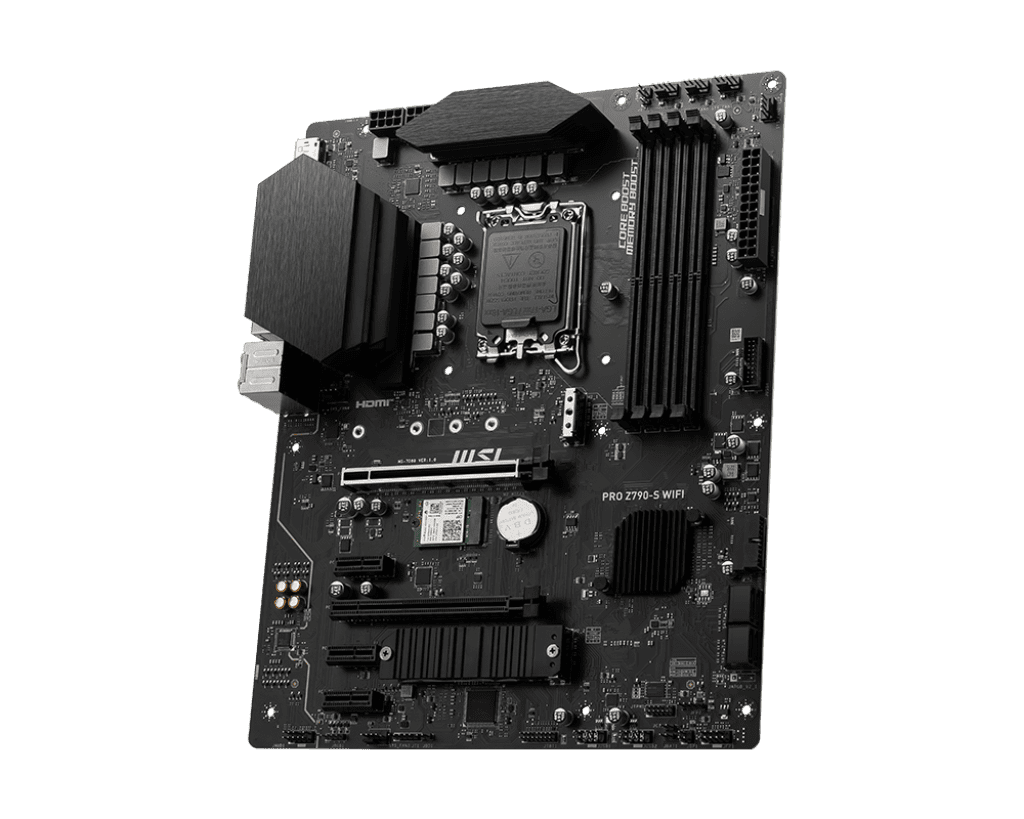

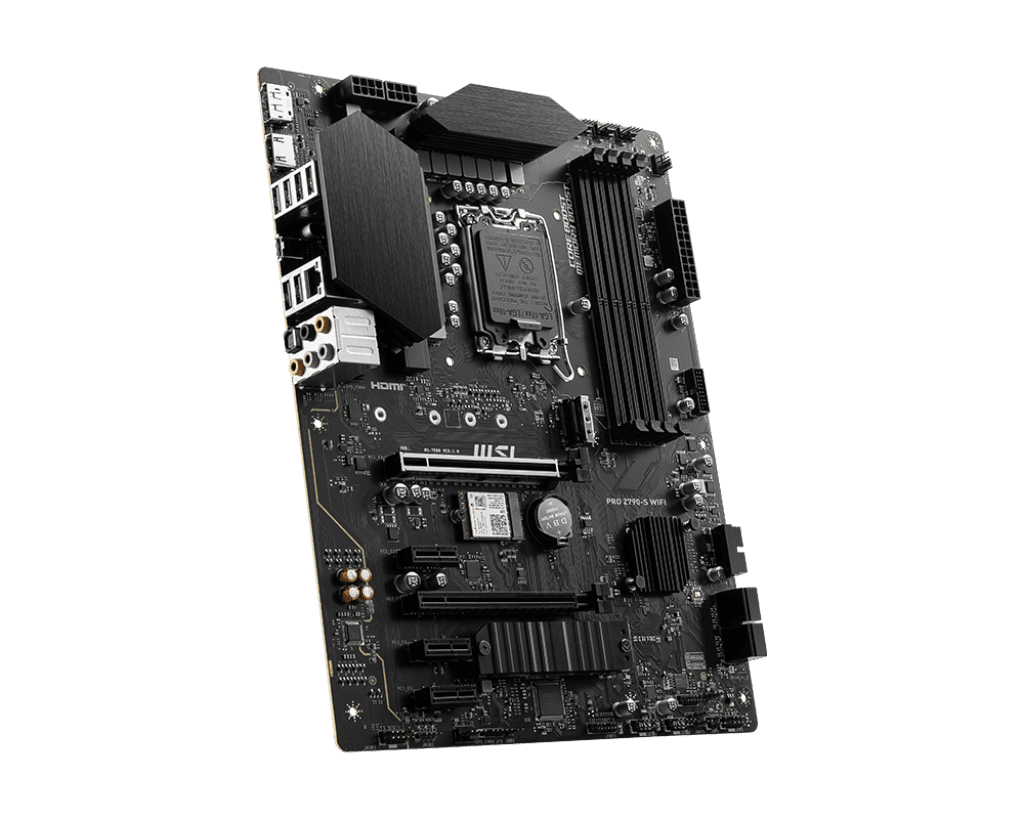

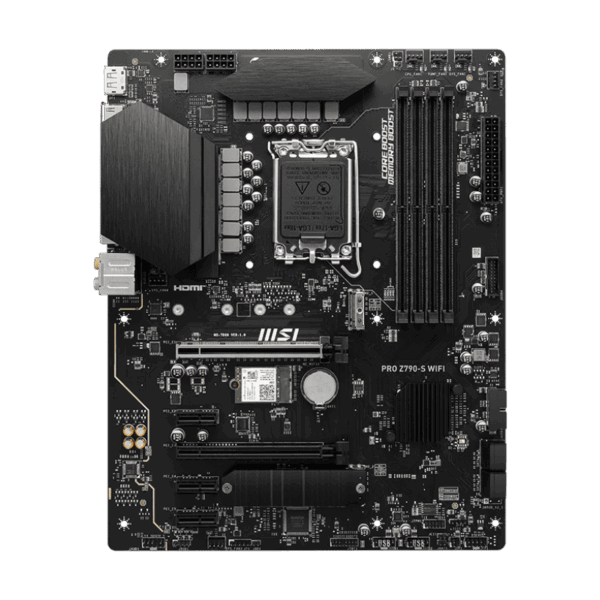

About MSI PRO Z790‑S WiFi ATX Motherboard
The MSI PRO Z790-S WiFi offers strong features and high-end performance in a stylish and long-lasting ATX design. It blends speed, dependability, and convenience and is based on the Z790 chipset, supporting Intel 12th, 13th, and 14th Gen processors.
- Memory: Supports up to 128 GB DDR5, overclockable to 7600 MHz, for superior responsiveness and multitasking.
- Power & Cooling: Equipped with a 16 1 1 phase VRM and large heatsinks, providing stable voltage even during demanding CPU usage.
- Graphics & Expansion: Features a steel-reinforced PCIe 5.0 x16 slot for powerful GPUs, along with multiple PCIe 3.0 x1 slots for additional peripherals.
- Storage: Offers two PCIe 4.0 M.2 slots (with thermal shields) and six SATA 6 Gb/s ports for comprehensive high-speed and legacy storage options.
- Networking: Built-in Wi‑Fi 6E, Bluetooth 5.3, and 2.5G LAN support ensure fast and stable connectivity for wireless and wired usage.
- USB & I/O: Also includes USB 3.2 Gen2x2 Type‑C, Gen2/Gen1 Type‑A, USB 2.0 ports, plus HDMI 2.1 and DisplayPort 1.4 for multi-monitor setups.
- Audio: Delivers clear 7.1-channel HD audio powered by Realtek codec with PCB isolation for enhanced sound fidelity.
- builder-native design: Pre-installed I/O shield, BIOS Flash Button, EZ Debug LEDs, and multiple ARGB/RGB headers support easy installation and custom lighting.
Features of the MSI PRO Z790‑S WiFi ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel Z790 / LGA 1700 |
| CPU Support | 12th–14th Gen Intel Core, Pentium, Celeron |
| Form Factor | ATX |
| Memory Support | 4× DDR5 DIMM up to 128 GB, OC to 7600 MHz |
| Power Design | 16 1 1 phase VRM with advanced heatsinks |
| PCIe Slots | 1× PCIe 5.0 x16 (steel-reinforced), 3× PCIe 3.0 x1 |
| M.2 Storage | 2× PCIe 4.0 x4 NVMe M.2 (heat-shielded) |
| SATA Ports | 6× SATA III 6 Gb/s |
| Wireless & LAN | Wi‑Fi 6E, Bluetooth 5.3, 2.5G LAN |
| USB Configuration | USB 3.2 Gen2x2 Type‑C, Gen2/Gen1 Type‑A, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | Realtek HD 7.1‑channel audio with PCB isolation |
| Build Features | Pre-installed I/O shield, BIOS Flash button, EZ Debug LEDs, ARGB/RGB headers |
Ideally Best For
- High-end gaming and VR setups using Intel Core processors
- Professional content creators and video editors need fast memory/storage
- DIY builders and custom PC integrators wanting future-ready tech
- Workstations requiring robust networking and expansion
- Aesthetics are built with ARGB lighting and streamlined assembly
Buy MSI PRO Z790‑S WiFi ATX Motherboard LGA 1700 DDR5 | PCIe 5.0 GPU Slot, Dual M.2 Gen4 Online Today.
