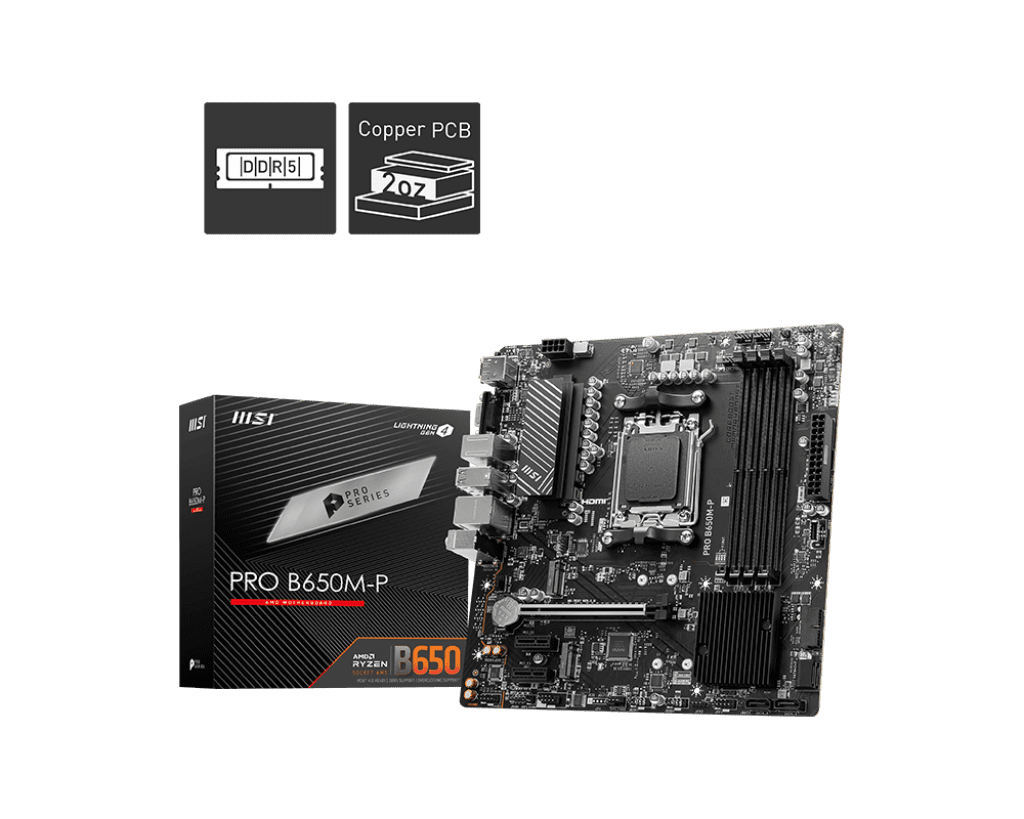

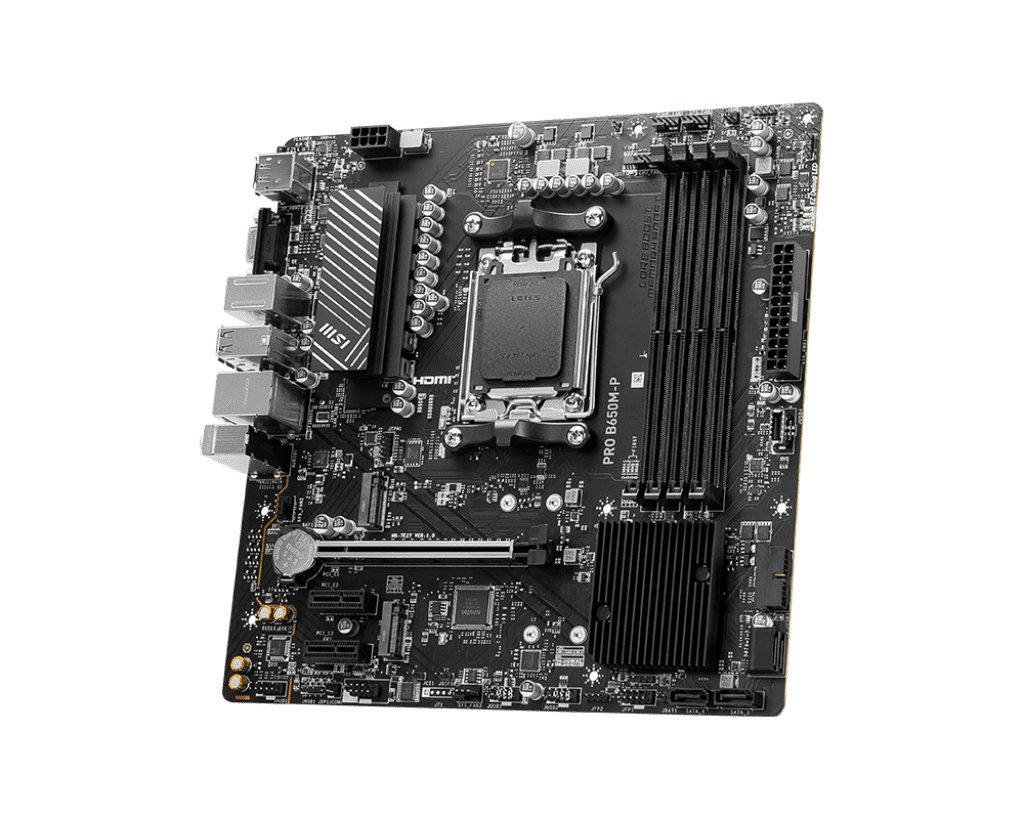

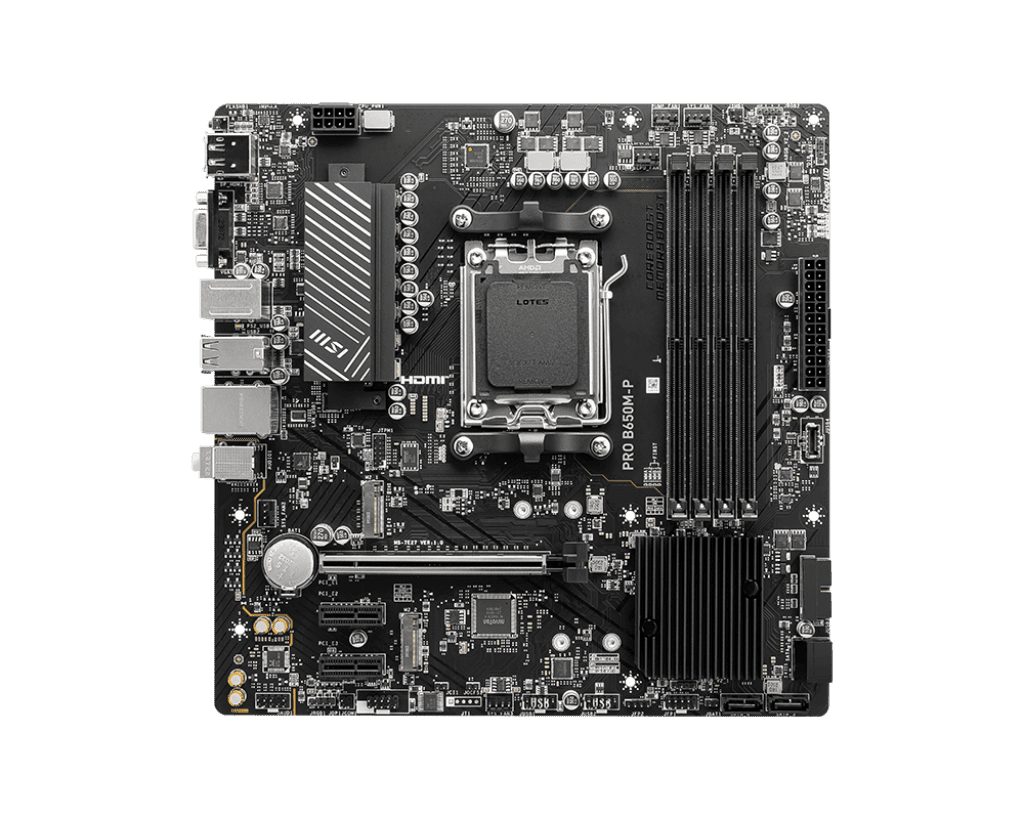

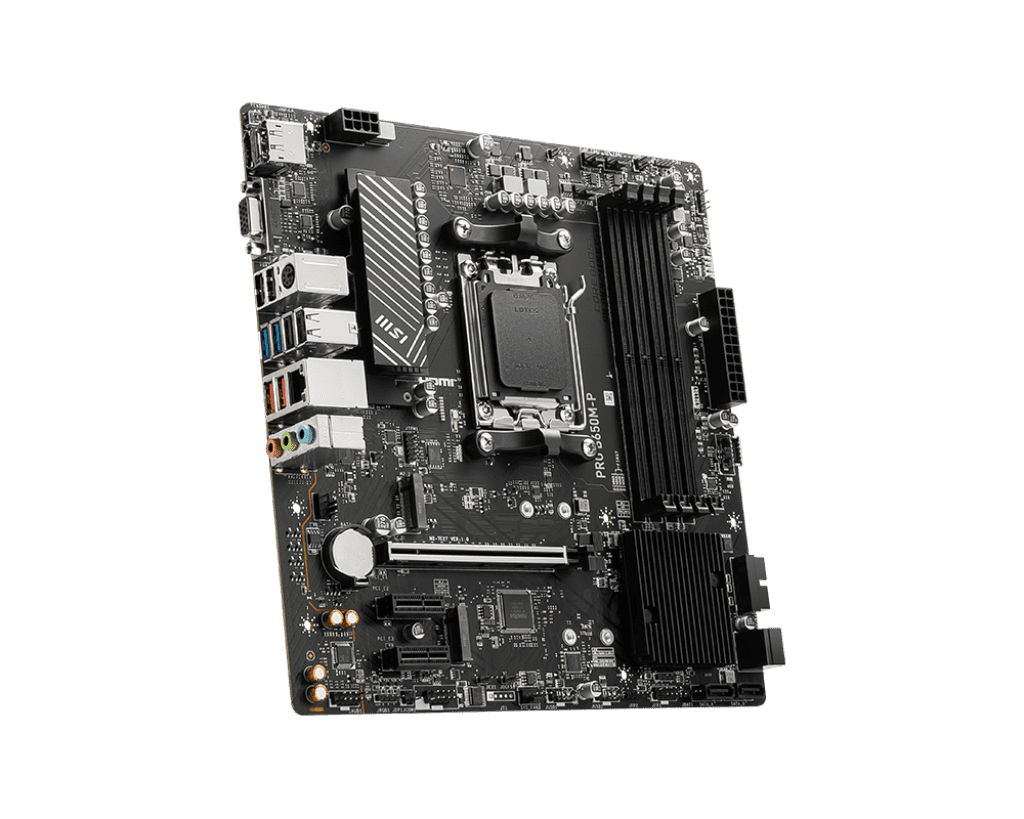

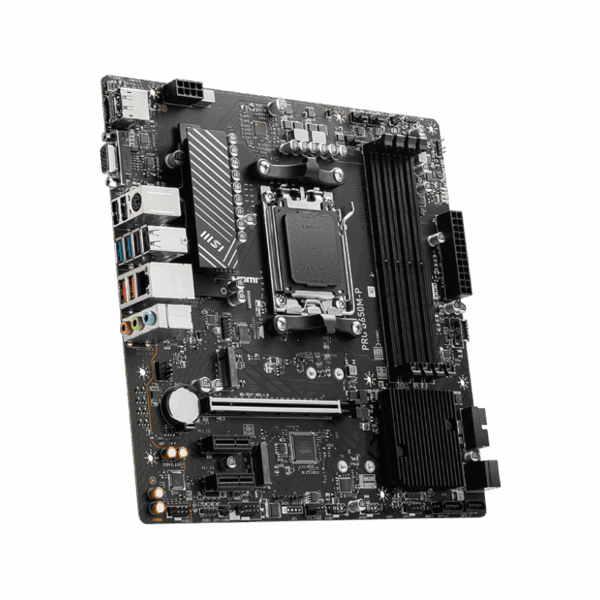

About MSI PRO B650M‑P Micro‑ATX Motherboard
For AMD Ryzen processors in the 7000, 8000, and even upcoming 9000 series, the MSI PRO B650M‑P is a micro-ATX motherboard that offers dependability, contemporary performance, and features that are ready for the future. Its space-saving form factor, PCIe Gen4 connectivity, dual M.2 slots, and support for DDR5 memory are all features of the B650 chipset. The board has four DDR5 DIMM slots and can accommodate up to 256 GB of high-speed memory, with overclocking capabilities of up to 7200 MHz. It’s perfect for media work, development, multitasking, and mid-range gaming systems.

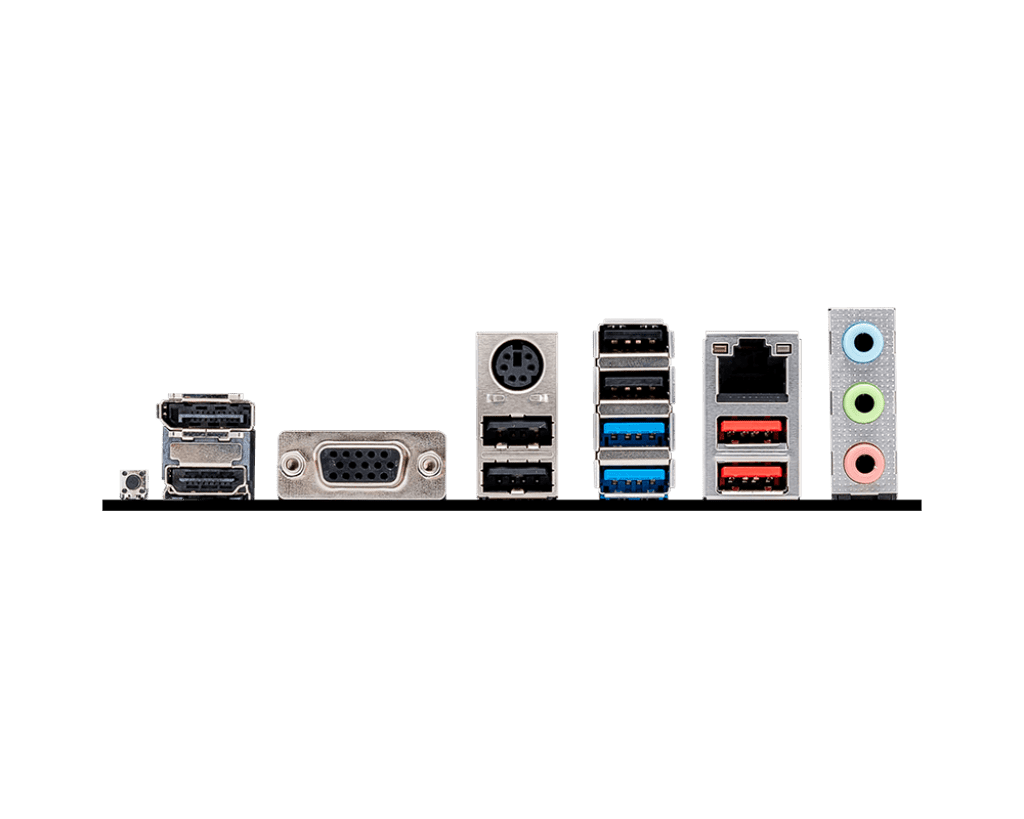

The board has two PCIe 3.0 x1 slots for extra peripherals and a PCIe 4.0 x16 Steel Armor slot for installing a GPU for expansion. Two PCIe 4.0 x4 M are used to handle storage effectively.RAID configurations are supported by four SATA 6Gb/s ports and two slots, one of which has a heatsink. Realtek 2.5G LAN provides connectivity, guaranteeing dependable and quick internet access. USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0, HDMI 2.1, DisplayPort 1.4, and VGA are all included in the rear I/O for flexible display options.
With a respectable thermal design, the 6 2 1 phase VRM configuration is optimised for CPUs up to 105W. To make setup and updates easier for builders, MSI comes with EZ Debug LEDs, a Flash BIOS button, and an I/O shield pre-installed.
Features of the MSI PRO B650M‑P Micro‑ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | AMD B650 / AM5 |
| CPU Compatibility | Ryzen 7000 / 8000 / 9000 Series |
| Form Factor | Micro‑ATX (mATX) |
| Memory Support | 4× DDR5 DIMM, up to 256 GB, OC up to 7200 MHz |
| Power Design | 6 2 1 VRM with Core Boost |
| PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor), 2× PCIe 3.0 x1 |
| M.2 Storage | 2× PCIe 4.0 x4 NVMe (1 with heatsink) |
| SATA Ports | 4× SATA 6 Gb/s, RAID 0/1/10 support |
| Networking | Realtek 2.5G LAN |
| USB Connectivity | USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0, front-panel USB-C |
| Display Outputs | HDMI 2.1, DisplayPort 1.4, VGA |
| Audio Codec | Realtek ALC897, 7.1-channel HD Audio with PCB isolation |
| Builder Tools | Pre-installed I/O shield, Flash BIOS button, EZ Debug LEDs |
| RGB/LED Header | 1× RGB LED header (ARGB compatible) |
Ideally Best For
- Value-driven compact PC builders using Ryzen 5 or 7 processors
- Home or office desktops requiring solid AM5 performance
- Entry-level creators and coders needing fast memory and dual M.2
- DIY system builders looking for ease of setup and BIOS updates
- Micro‑ATX gaming builds with basic cooling requirements
Buy MSI PRO B650M‑P Micro‑ATX Motherboard AM5 DDR5 | PCIe 4.0 M.2 x2, 2.5G LAN Online Today.
