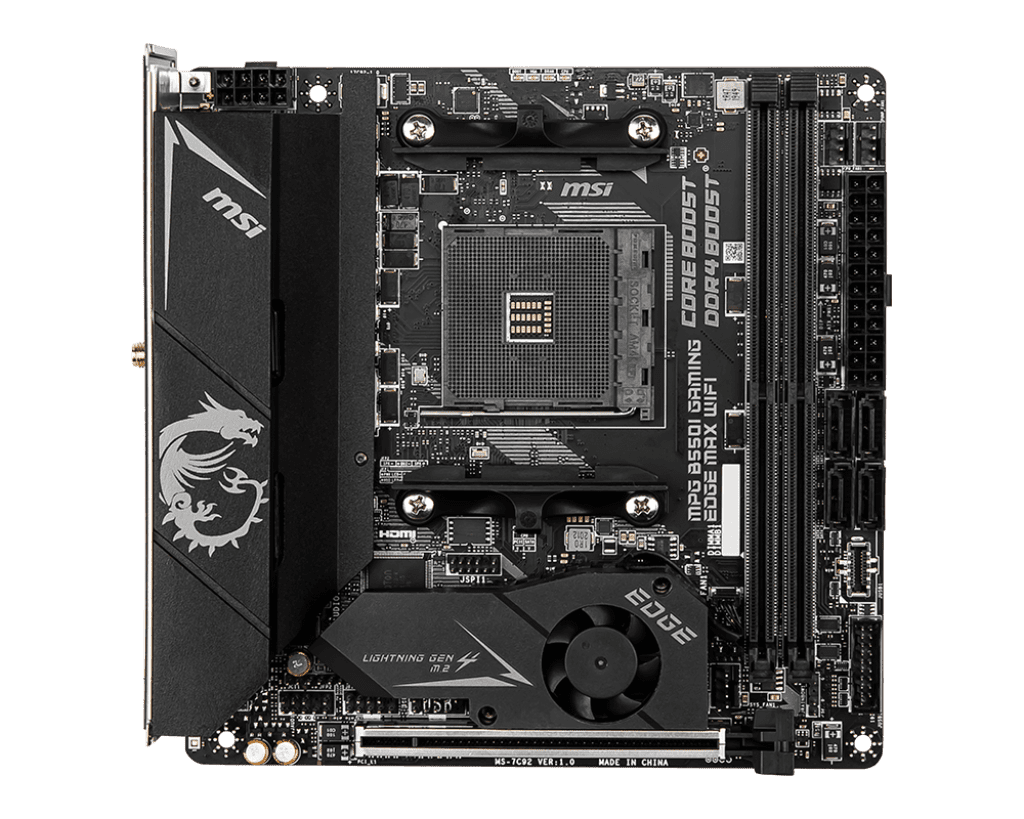

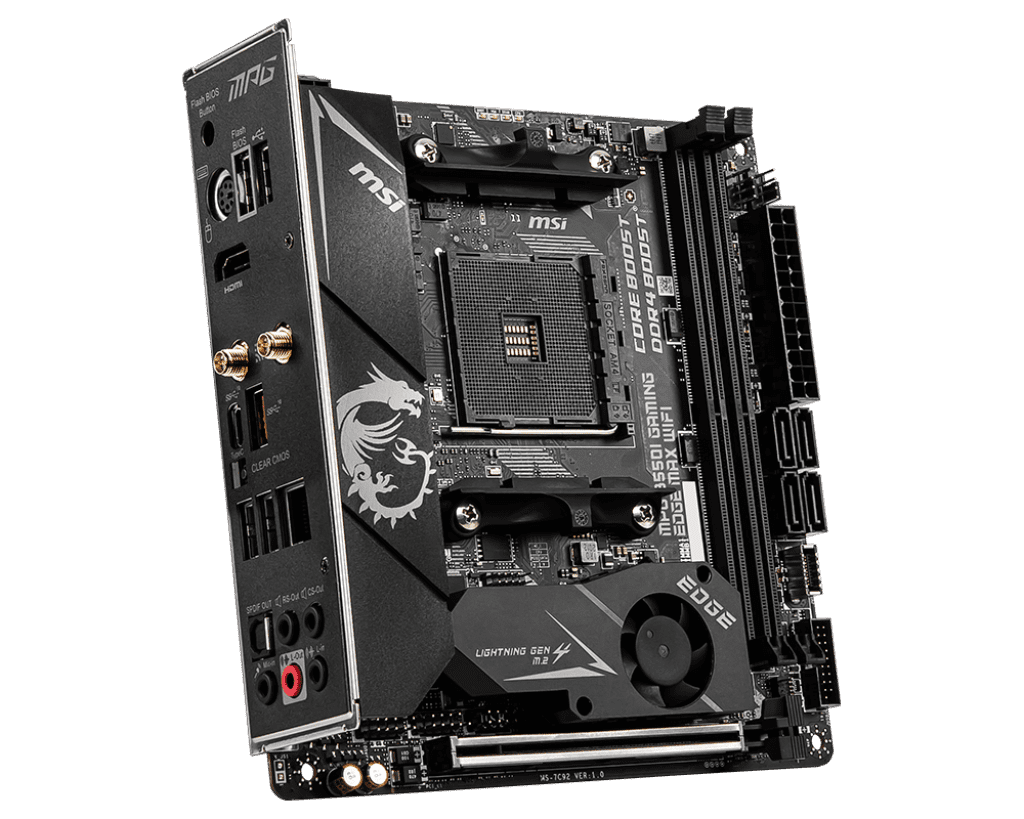

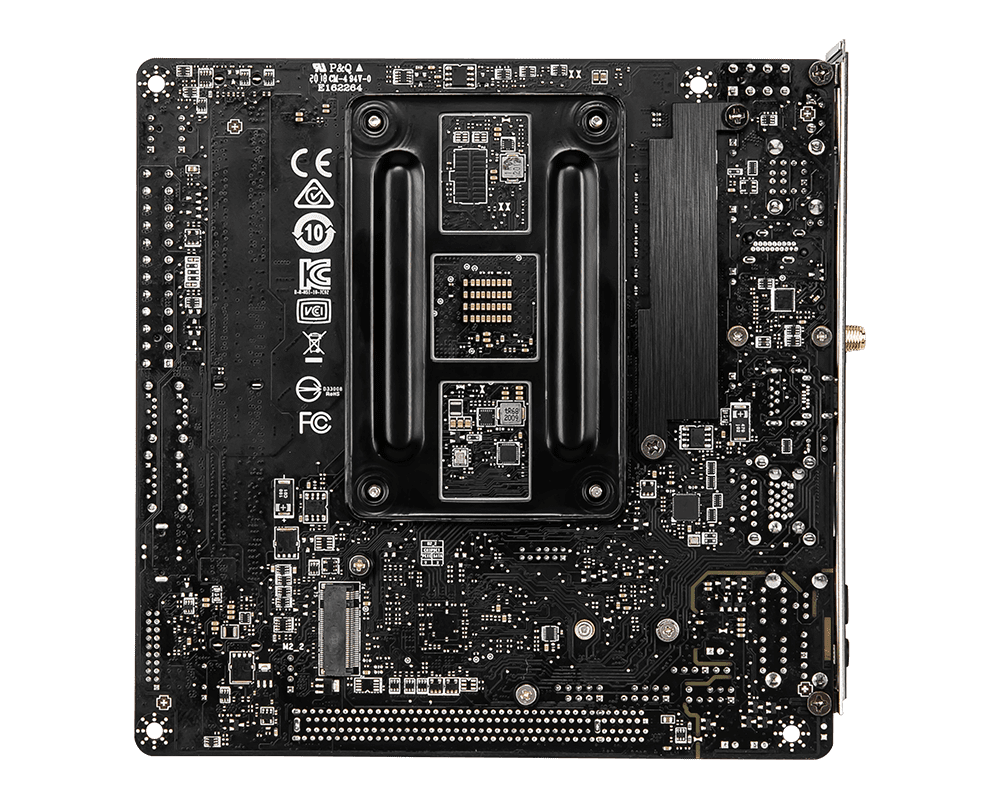

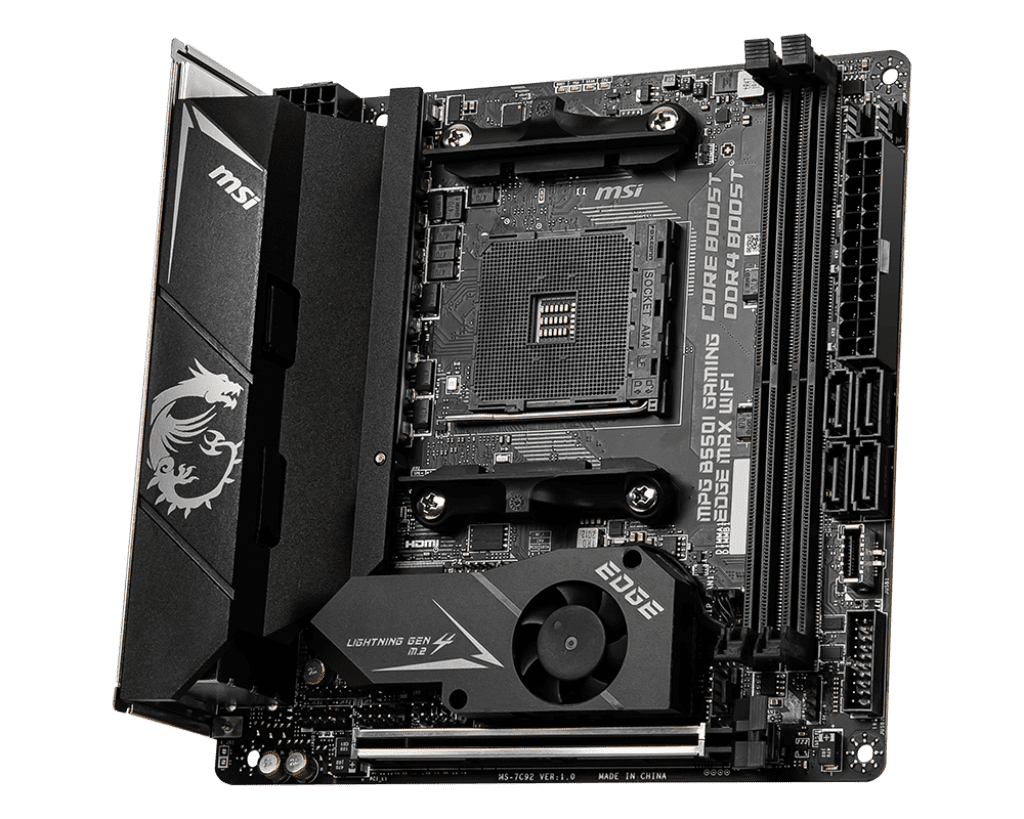

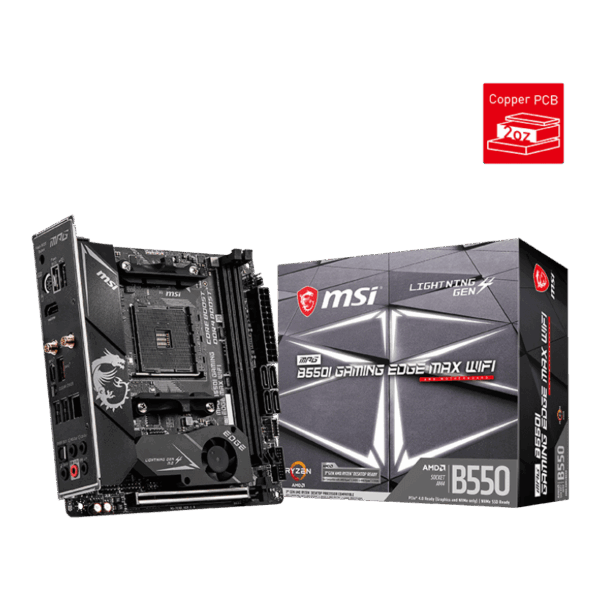

About MSI MPG B550I Gaming Edge Max WiFi Mini‑ITX Motherboard
The MSI MPG B550I Gaming Edge Max WiFi delivers flagship-level performance in a compact Mini-ITX layout, ideal for powerful, space-saving builds. It supports Ryzen 3000 and 5000 series CPUs and includes key features for gamers and creators. Equipped with 2× DDR4 DIMM slots supporting up to 64 GB of RAM, the board offers overclocking support up to 5100 MHz, enabling fast multitasking and smooth gameplay. The compact yet efficient 8 2 1 VRM design ensures clean power delivery under load and during overclocking.
Graphics are supported through a PCIe 4.0 x16 slot, allowing full compatibility with modern GPUs. Storage is provided via dual M.2 slots (one Gen4 x4 with heatsink, one Gen3 x4), plus 4× SATA 6 Gb/s connectors for additional drive options. Wireless connectivity is top-tier with Wi‑Fi 6E and Bluetooth 5.2, perfect for low-latency gaming and wireless peripherals. Wired performance is covered by 2.5G LAN for stable, high-speed networking. Onboard USB options include USB 3.2 Gen2 Type‑C and multiple Gen2/Gen1 and USB 2.0 ports.
Despite its small size, the board includes enhanced cooling features: chipset and VRM heatsinks, M.2 Shield Frozr, and military-grade PCB durability. It also comes with a pre-installed I/O shield, EZ Debug LEDs, and reinforced slots for added resilience. RGB lighting is supported through headers compatible with Mystic Light and ARGB setups, enabling visual customization in compact builds.
Features of the MSI MPG B550I Gaming Edge Max WiFi Mini‑ITX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | AMD B550 / AM4 |
| CPU Compatibility | Ryzen 3000 & 5000 Series |
| Form Factor | Mini‑ITX (170 × 170 mm) |
| Memory Support | 2× DDR4 DIMM, up to 64 GB, 5100 MHz (OC) |
| VRM Design | 8 2 1 digital VRM |
| PCIe Slot | 1× PCIe 4.0 x16 (Steel Armor) |
| M.2 Slots | 2× M.2 (1× Gen4 x4 w/ heatsink, 1× Gen3 x4) |
| SATA Ports | 4× SATA 6 Gb/s |
| Networking | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.2 |

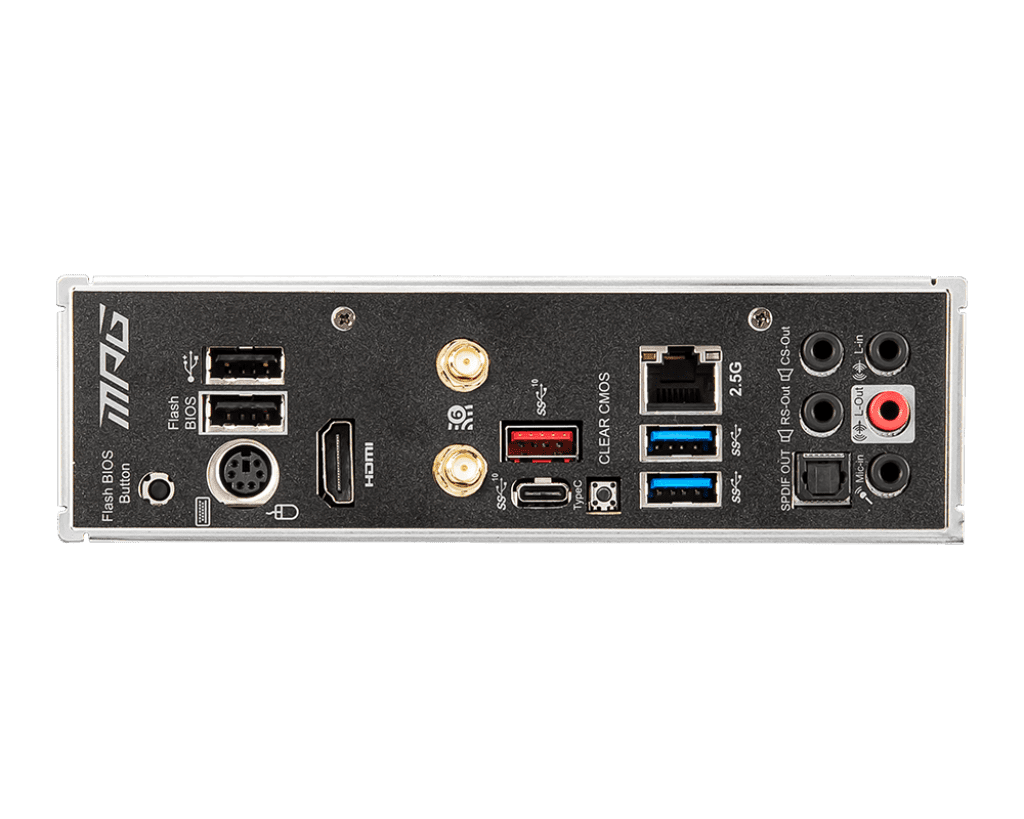

| USB Ports | USB 3.2 Gen2 Type‑C, Gen2/Gen1, USB 2.0 |
| Audio | 7.1 HD audio via Realtek codec |
| Cooling | VRM heatsinks, M.2 Shield Frozr, compact PCB |
| Build Tools | Pre-installed I/O shield, EZ Debug LEDs, reinforced slots |
Ideally Best For
Mini‑ITX gaming rigs with Ryzen CPUs
Space‑efficient streaming builds need fast memory and connectivity
Portable performance systems with a small footprint
DIY builders who want platform compatibility and wireless networking
Enthusiasts seeking powerful hardware in compact cases
Buy MSI MPG B550I Gaming Edge Max WiFi Mini‑ITX Motherboard AM4 DDR4 | PCIe 4.0, Dual M.2, Wi‑Fi 6E Online Today.
