MSI 100R Pano Cabinet

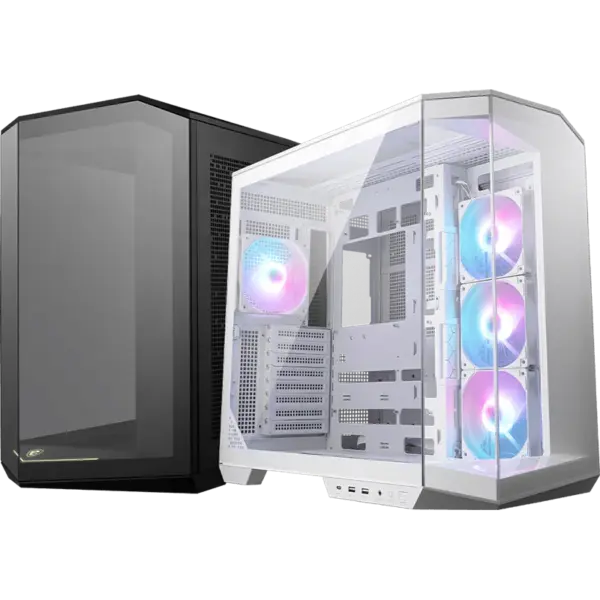

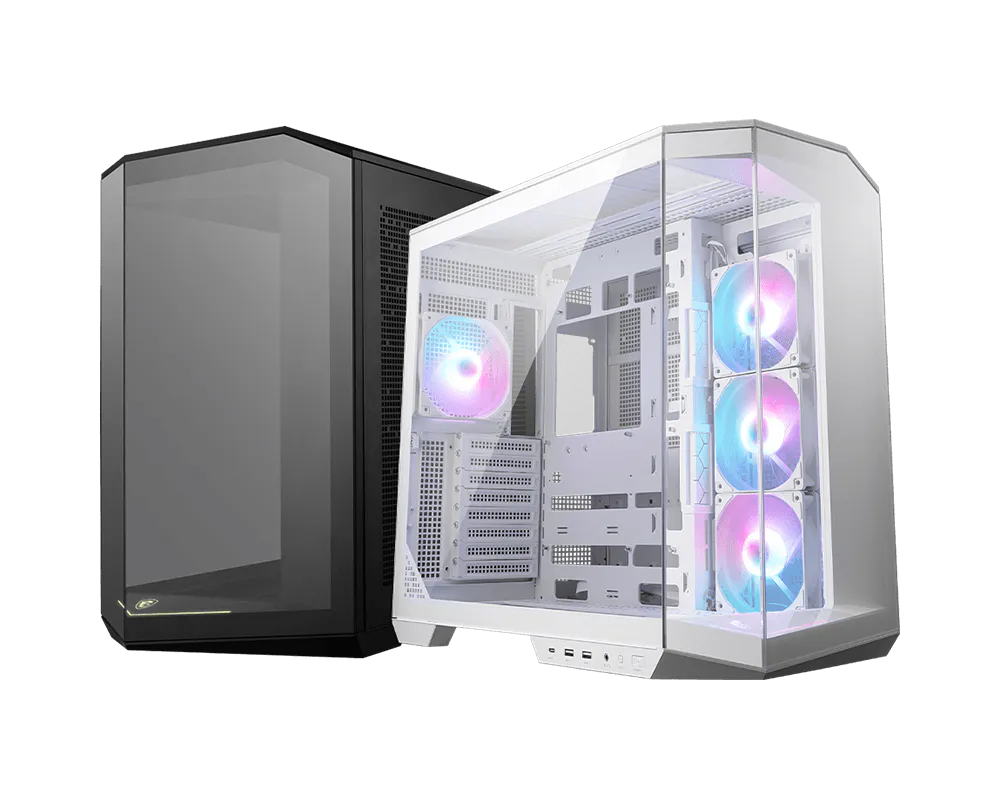

The MSI MAG Pano 100R PZ Cabinet is a modern panoramic mid-tower cabinet built to meet the needs of enthusiasts, gamers, and professional PC builders.

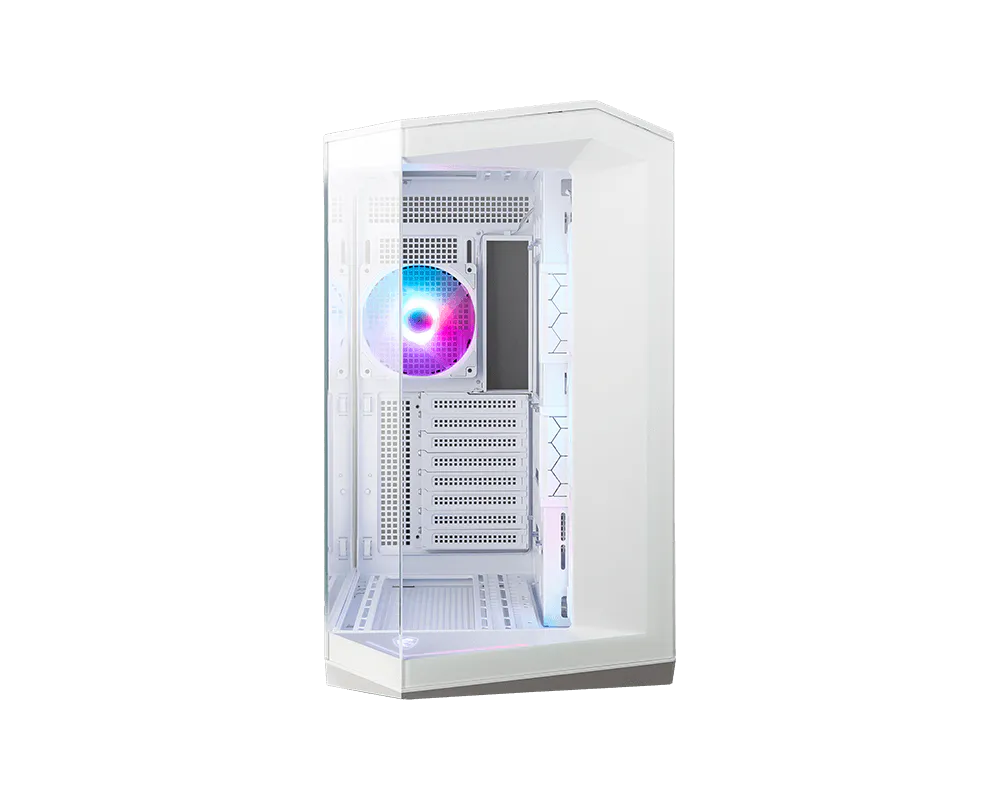

Designed with a 270-degree tempered glass panel, the cabinet provides a panoramic view of internal components, making it ideal for showcase builds with RGB lighting and premium hardware.

The wrap-around glass design enhances aesthetics while maintaining strong structural durability for long-term usage.

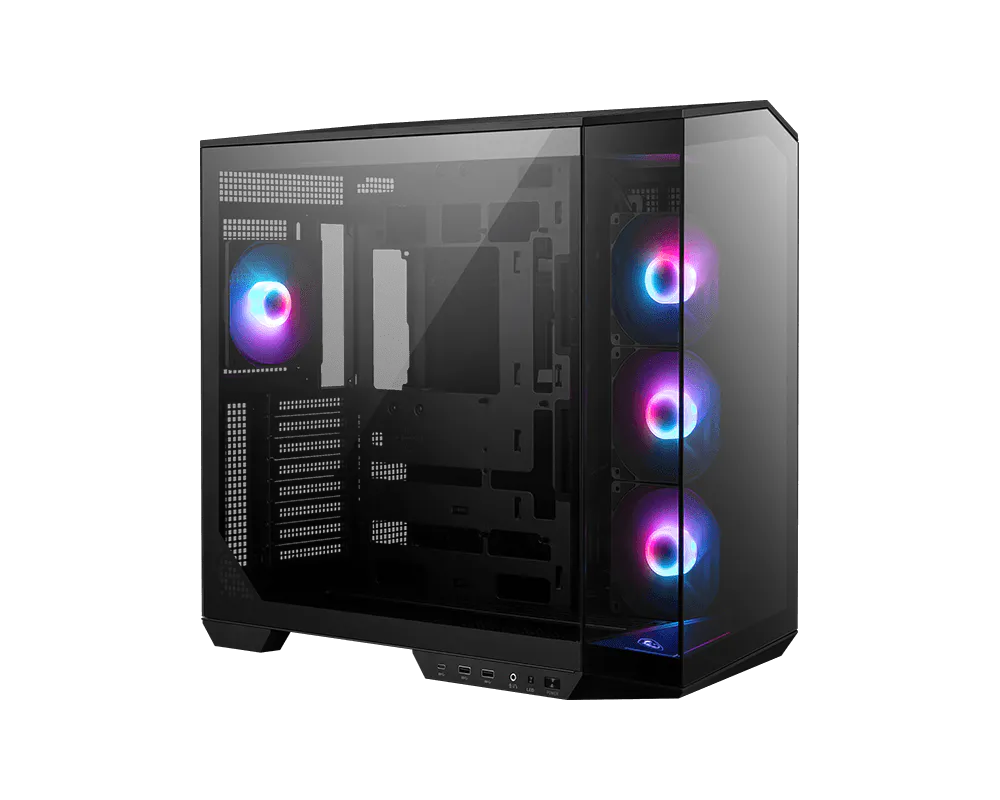

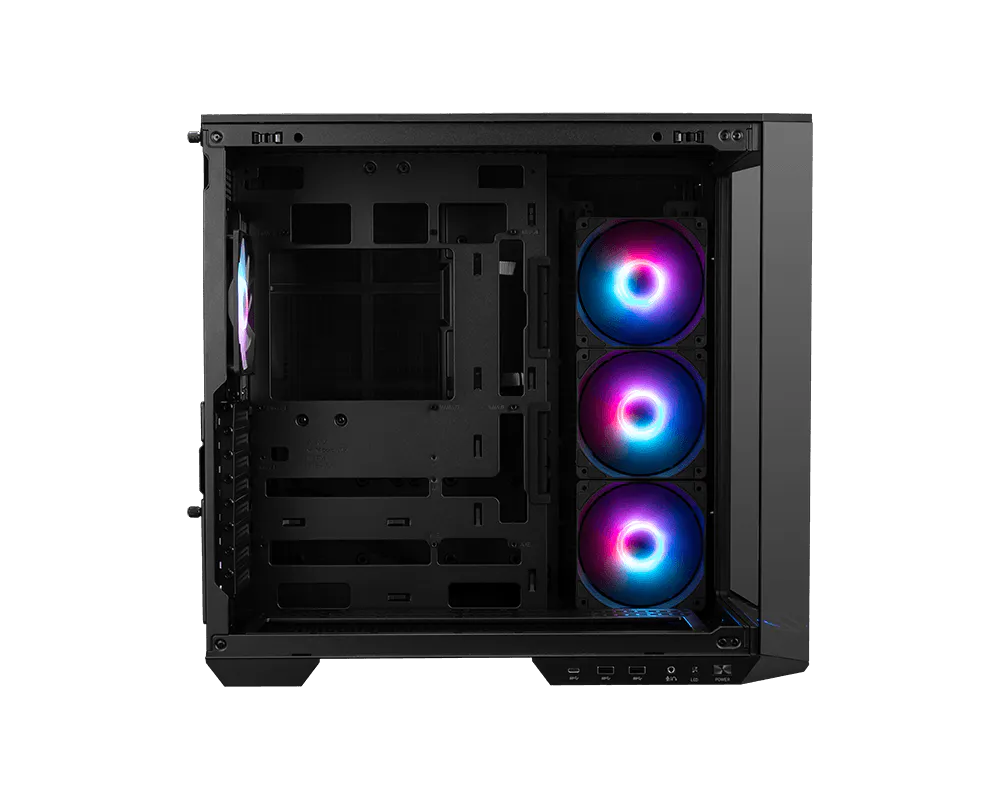

The cabinet comes pre-installed with four ARGB fans, including three reverse-blade fans positioned on the side and one rear exhaust fan.

This configuration ensures optimal airflow and balanced cooling performance right out of the box.

Additionally, the MSI Pano Series Desktop Cabinet supports up to ten fans, allowing users to expand cooling performance based on their requirements.

The included ARGB controller hub provides convenient lighting control and compatibility with motherboard RGB software, making it easy to customize lighting effects.

Cooling flexibility is one of the strongest aspects of the MSI MAG Pano 100R PZ Cabinet.

The MSI Dual Chamber Fan Cabinet supports multiple 360mm radiators across the top, side, and bottom, making it suitable for custom liquid cooling loops and high-performance AIO solutions.

This makes the MSI Pano Series Desktop Cabinet an ideal desktop cabinet for high-end gaming systems, workstation builds, and content creation setups requiring efficient thermal performance.

The MSI MAG Pano 100R PZ Cabinet also provides excellent hardware compatibility.

MSI MAG Pano 100R PZ Cabinet supports graphics cards up to 400mm in length and CPU coolers up to 166mm in height.

The MSI mATX Desktop Cabinet  supports ATX power supplies up to 200mm, ensuring compatibility with high-wattage PSUs.

Additionally, the cabinet includes eight expansion slots, allowing for vertical GPU installation and additional expansion cards.

Storage flexibility is another highlight of the cabinet.

Users can install up to three 2.5-inch SSDs and two 3.5-inch drives, allowing flexible storage configurations.

The MSI Pano Series Desktop Cabinet also includes removable dust filters at the top, side, and bottom to maintain clean airflow and reduce dust accumulation.

The front I/O panel features modern connectivity options including a USB 20Gbps Type-C port, two USB Type-A ports, audio combo jack, and LED control button.

Combined with its dual-chamber layout and cable management support, the MSI MAG Pano 100R PZ Cabinet delivers both performance and aesthetics, making it an excellent choice for high-end PC builds.
