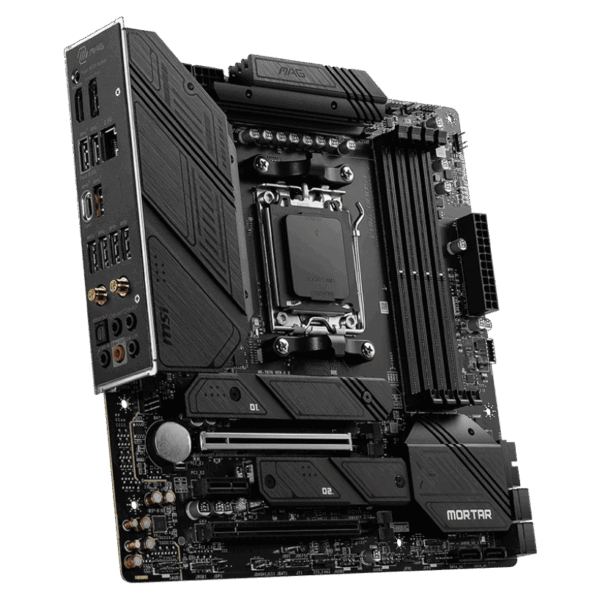

MSI MAG B650M Mortar WiFi Motherboard 25,346.40
Description

About MSI MAG B650M Mortar WiFi Motherboard

Specification Description
Chipset AMD B650
CPU Support Supports AMD Ryzen™ 8000/7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Onboard Graphics 1x HDMI™
1x DisplayPort
Storage 2x M.2
6x SATA 6G
LAN Realtek® RTL8125B 2.5Gbps LAN
Audio Realtek® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Slot 2x PCI-E x16 slot
1x PCI-E x1 slot
Raid Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Wireless LAN AMD Wi-Fi 6E
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/5GHz or 6GHz* bands
Supports 802.11 a/b/g/n/ac/ax
Supports Bluetooth® 5.3**
Internal IO Various connectors including power connectors, fan connectors, front panel connectors, RGB LED connectors, etc.
LED Feature 4x EZ Debug LED
Back Panel Ports DisplayPort 1.4, 2.5G LAN Port, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 1 5Gbps Type-A, Wi-Fi / Bluetooth Antenna
HD Audio Connectors, Flash BIOS Button, HDMI™ 2.1 Port, USB 3.2 Gen 2×2 20Gbps Type-C, Optical S/PDIF OUT
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX, 243.84mm x 243.84mm

About MSI B650 Series Motherboard
