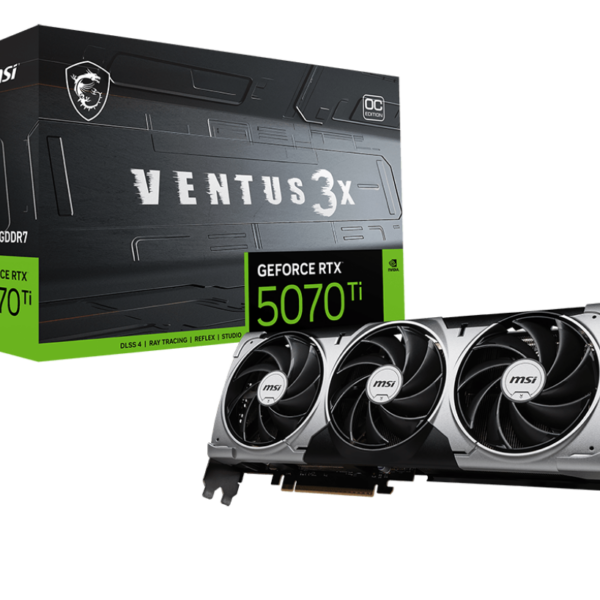

MSI GeForce RTX 5070 Ti VENTUS 3X OC 16GB GDDR7 GPU

MSI GeForce RTX 5070 Ti VENTUS 3X OC 16GB GDDR7 GPU

Next-Generation Blackwell Performance: The RTX 5000 series completely redefines enthusiast PC gaming. Built on the NVIDIA Blackwell architecture, the RTX 5070 Ti features upgraded 5th-generation Tensor Cores and 4th-generation Ray Tracing Cores. This allows you to experience stunning, cinematic lighting and shadows in modern AAA titles without sacrificing your frame rate. It is also fully armed with NVIDIA DLSS 4, utilizing AI-driven Multi Frame Generation to drastically boost FPS in the most demanding titles, ensuring a buttery-smooth experience on high-refresh-rate monitors.

Ultra-Fast GDDR7 Memory: Memory speed is the ultimate bottleneck in modern, open-world games, and the RTX 5070 Ti shatters that limitation. It is equipped with 16GB of the brand-new GDDR7 memory standard. Operating at an incredible 28 Gbps on a 256-bit bus, this graphics card boasts an immense memory bandwidth of 896 GB/s. This guarantees that enormous, high-resolution textures load instantly, providing a seamless and stutter-free experience whether you are exploring massive digital worlds or rendering complex 3D video projects.

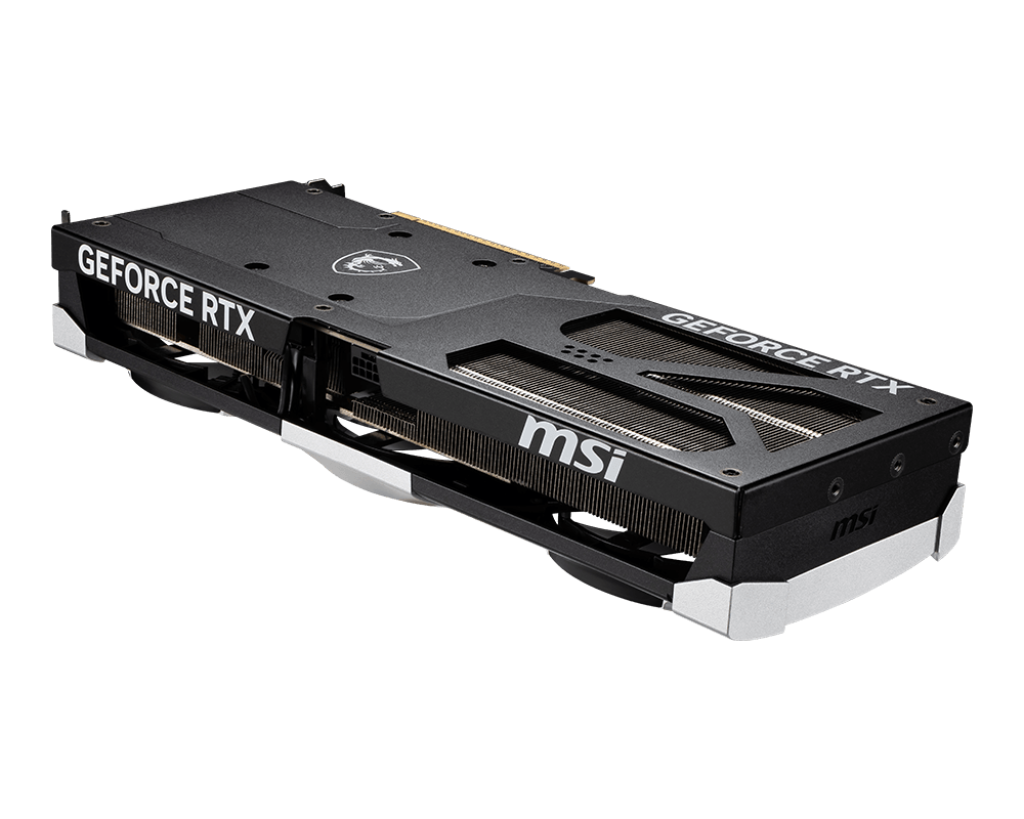

Efficient, No-Nonsense Triple-Fan Cooling: The VENTUS line is designed for builders who want premium cooling without paying extra for RGB light shows. It features a robust triple-fan thermal design powered by MSI’s TORX Fan 5.0, where fan blades are linked by ring arcs to stabilize and force high-pressure airflow directly into the heatsink. Heat from the GPU and GDDR7 memory is instantly captured by a solid nickel-plated copper baseplate and distributed through precision-machined Core Pipes. When you are just browsing the web, the Zero Frozr technology completely stops the fans, ensuring a silent 0dB desktop environment.

Key Features

• NVIDIA Blackwell Architecture: Delivers a massive generational leap in raw performance, ray tracing, and AI-accelerated graphics.
• DLSS 4 Technology: Utilizes 5th-Gen Tensor Cores for AI Multi Frame Generation, dramatically improving frame rates in supported games.
• 16GB GDDR7 Memory: The newest, ultra-fast memory standard running at 28 Gbps ensures rapid asset loading and smooth 4K gameplay.
• SFF-Ready Design: At just 303mm long and strictly 2.5-slots thick, this enthusiast card is officially compatible with a wide range of Small Form Factor PC cases.

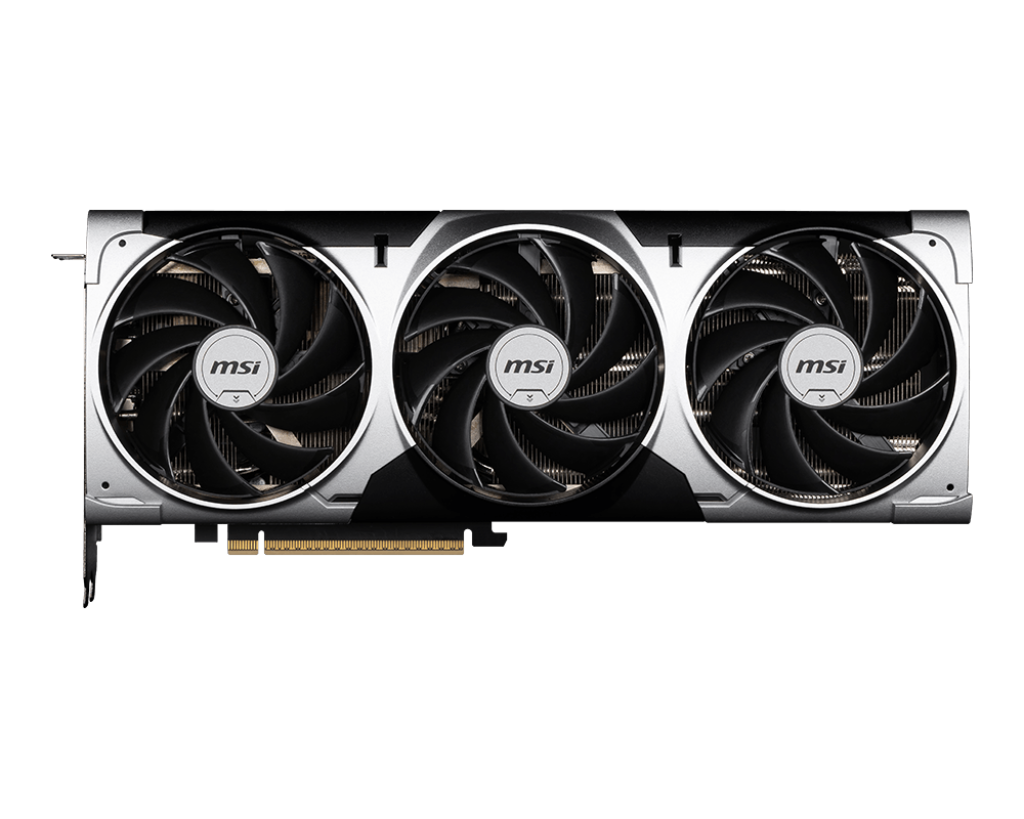

• TORX Fan 5.0 Cooling: Three linked-blade fans deliver exceptional, high-pressure thermal dissipation to keep boost clocks stable.
• DisplayPort 2.1b: Next-generation display outputs natively support incredibly high resolutions and refresh rates (up to 4K at 480Hz).

Specifications of MSI GeForce RTX 5070 Ti VENTUS 3X OC 16GB GDDR7 GPU

Who It’s For

• High-End 1440p and 4K Gamers: The perfect engine for players who want to max out graphics settings in the newest, most demanding AAA titles while maintaining incredibly high, stable frame rates.
• Stealth PC Builders: Gamers who prefer a clean, professional, blackout aesthetic. The VENTUS series features a sleek, silver-and-black design entirely free of distracting RGB lighting.
• Creative Professionals: Video editors and 3D animators who need the massive 16GB VRAM buffer and dual AV1 encoders to drastically speed up their rendering and export workflows.

Comparison: MSI RTX 5070 Ti VENTUS 3X OC vs. MSI RTX 5070 Ti GAMING X TRIO

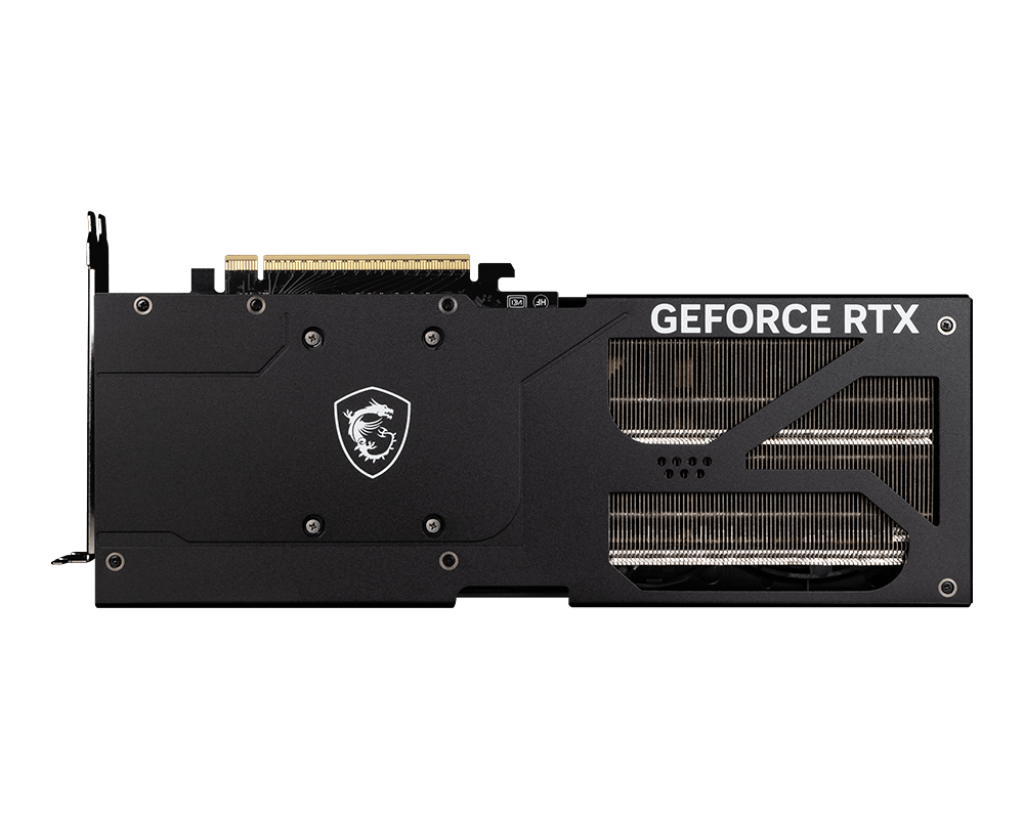

When shopping for MSI graphics cards, you will often choose between the VENTUS and the GAMING X series. The core performance between these two cards is extremely similar-both feature the same Blackwell chip and 16GB of GDDR7 memory. The VENTUS 3X focuses strictly on the “essentials”: it provides excellent triple-fan cooling and a durable metal backplate at a more competitive price point, but it completely lacks RGB lighting. The GAMING X TRIO is the premium tier, offering a physically larger, slightly quieter cooling heatsink, higher factory overclocks, and vibrant, customizable ARGB lighting. If you want the absolute best value and a stealthy look, choose the VENTUS. If you want maximum visual flair for a glass showcase PC, go with the GAMING X.

Frequently Asked Questions

1. Do I need a new power supply with the special 16-pin cable to use this card? The RTX 5070 Ti utilizes the modern 16-pin (12V-2×6) power connection. It is highly recommended to use a modern ATX 3.0 or ATX 3.1 power supply that natively includes this cable. However, if you have an older, high-quality 750W power supply, you can use the adapter cable (usually included in the box) to convert standard 8-pin PCIe cables into the new 16-pin standard.
2. Will this graphics card fit in a smaller Micro-ATX case? Yes. Despite having three fans, the MSI VENTUS 3X is specifically engineered as an “SFF-Ready Enthusiast” card. It measures only 303mm in length and is under 50mm thick (2.5 slots). This ensures it fits comfortably into 99% of standard Mid-Tower cases, Micro-ATX cases, and many Mini-ITX chassis.
3. Does this card support PCIe 4.0 motherboards? Yes. While the card utilizes the cutting-edge PCIe 5.0 interface for maximum theoretical bandwidth, it is completely backward compatible. You can install this card into a PCIe 4.0 or even a PCIe 3.0 motherboard. The performance drop for gaming on a PCIe 4.0 slot is practically unnoticeable.

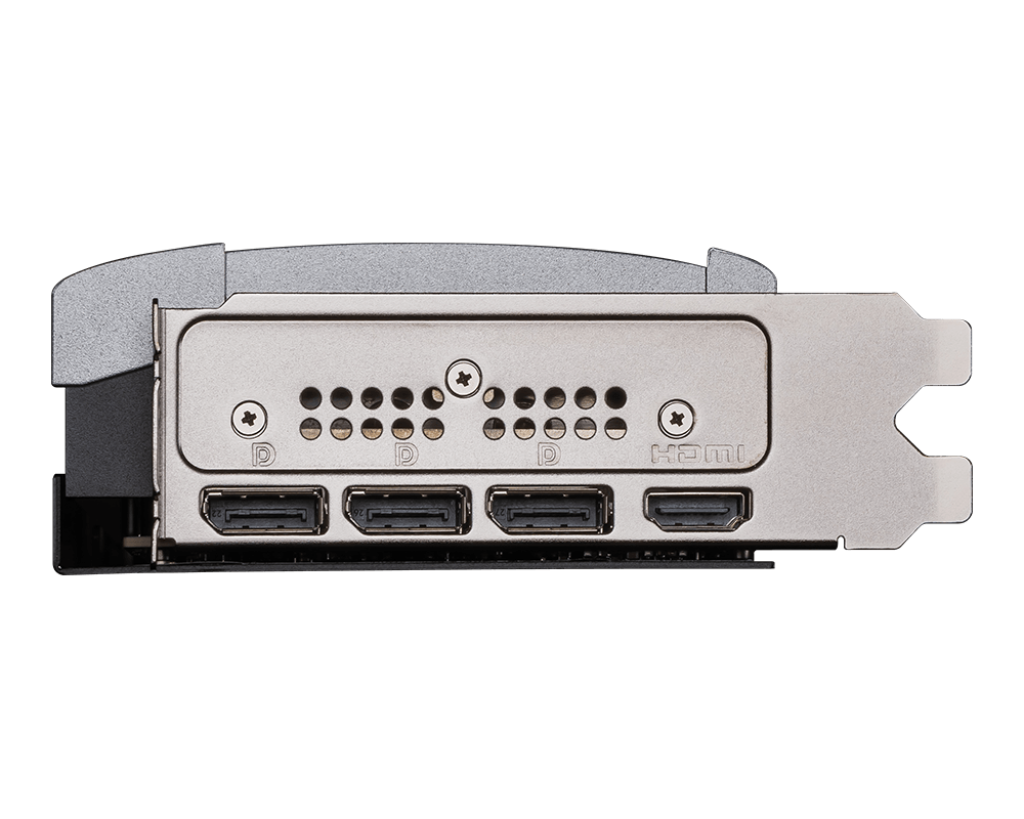

4. Can I run four monitors simultaneously? Absolutely. The card features three DisplayPort 2.1b ports and one HDMI 2.1b port, allowing you to run up to four high-resolution monitors simultaneously for extreme productivity, streaming, or an immersive multi-screen flight simulator setup.
