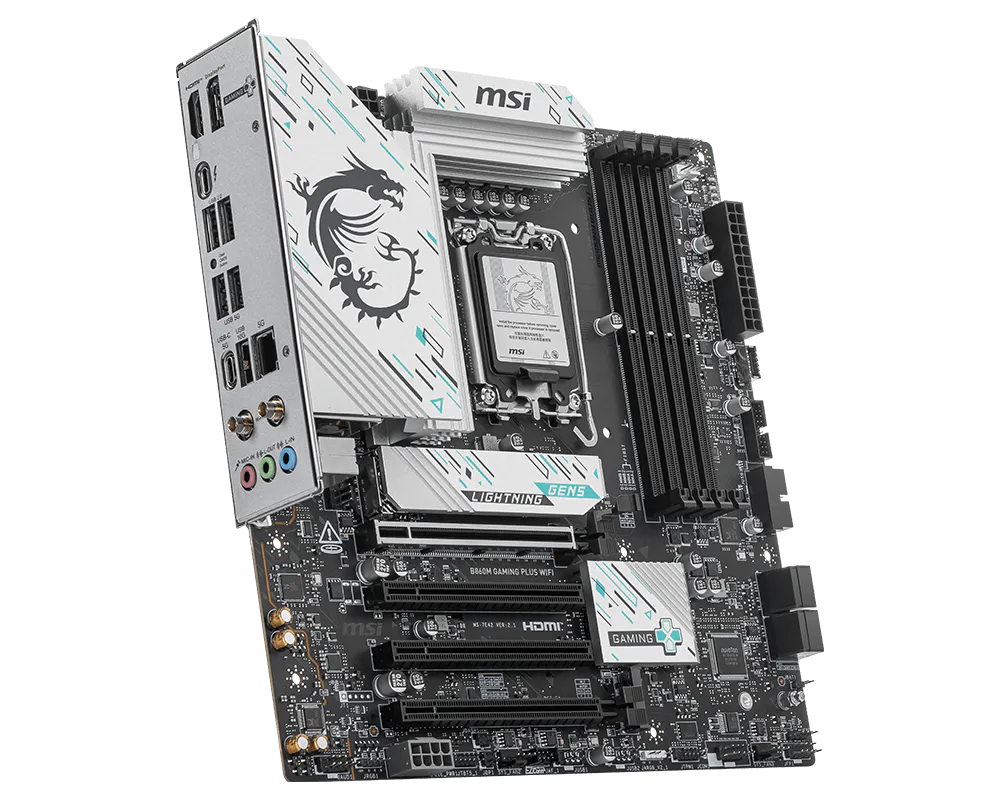

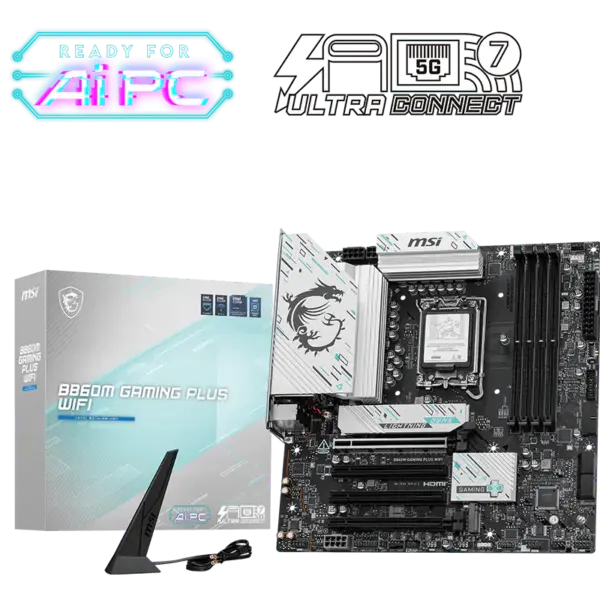

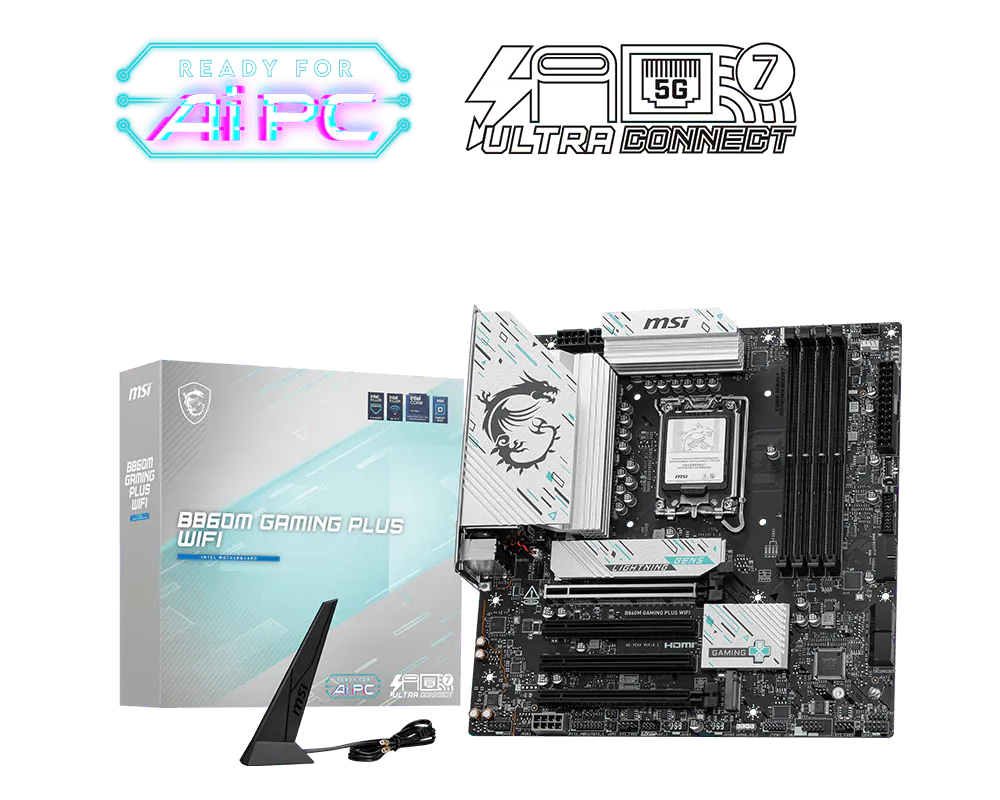

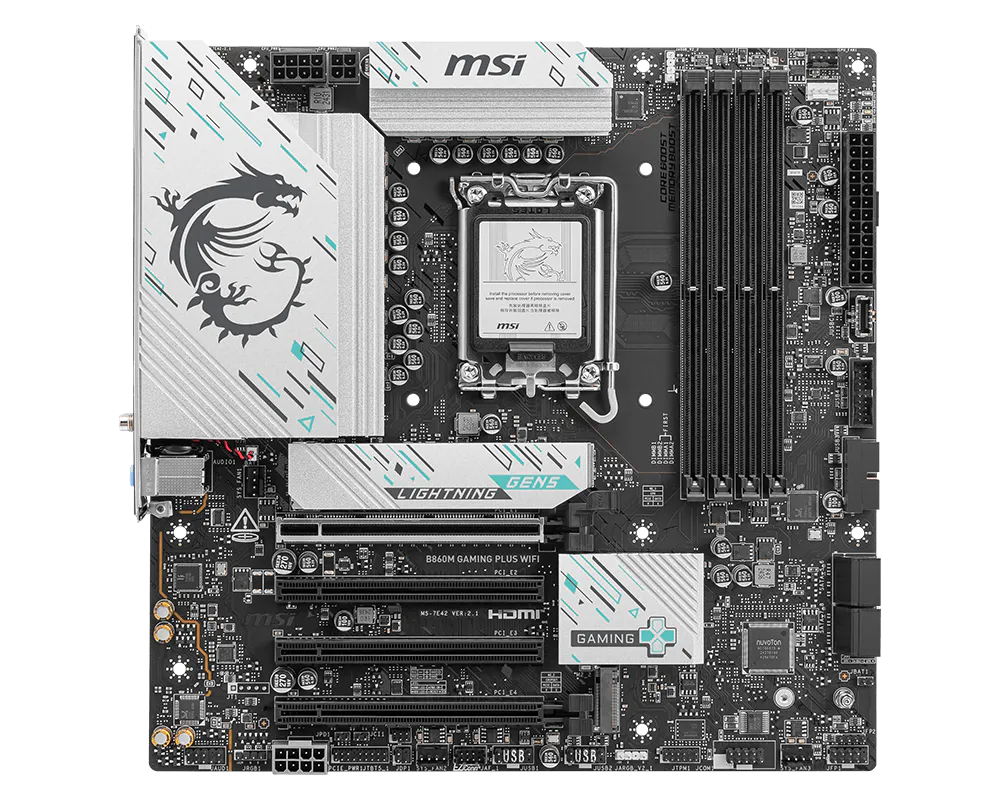

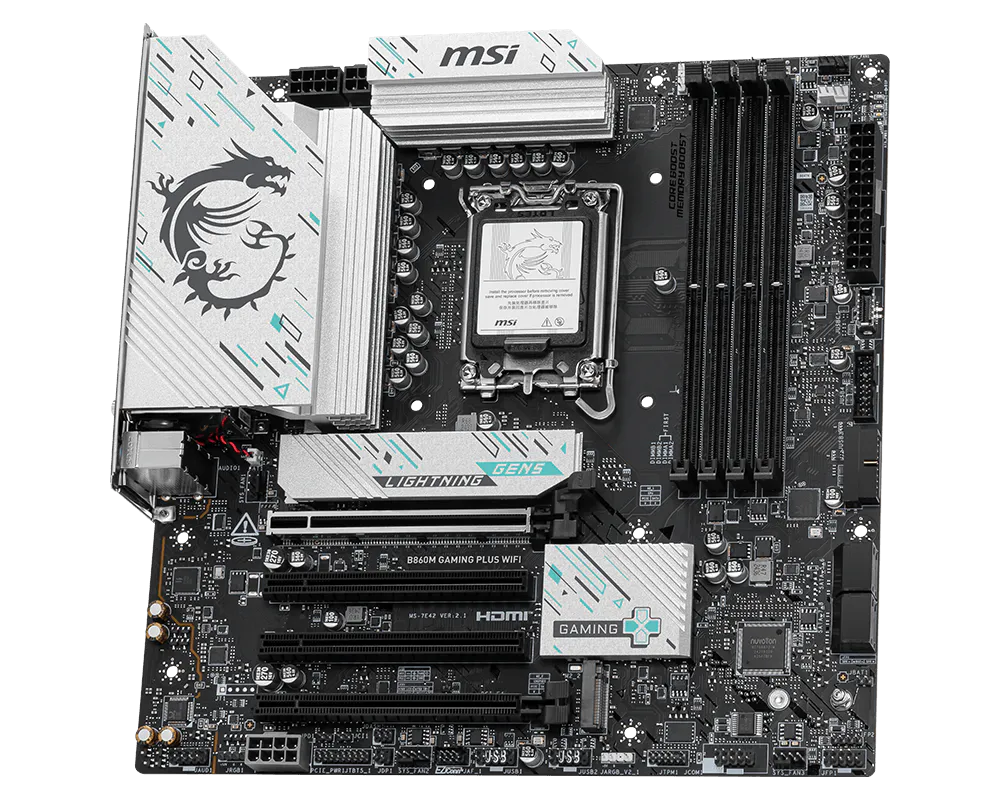

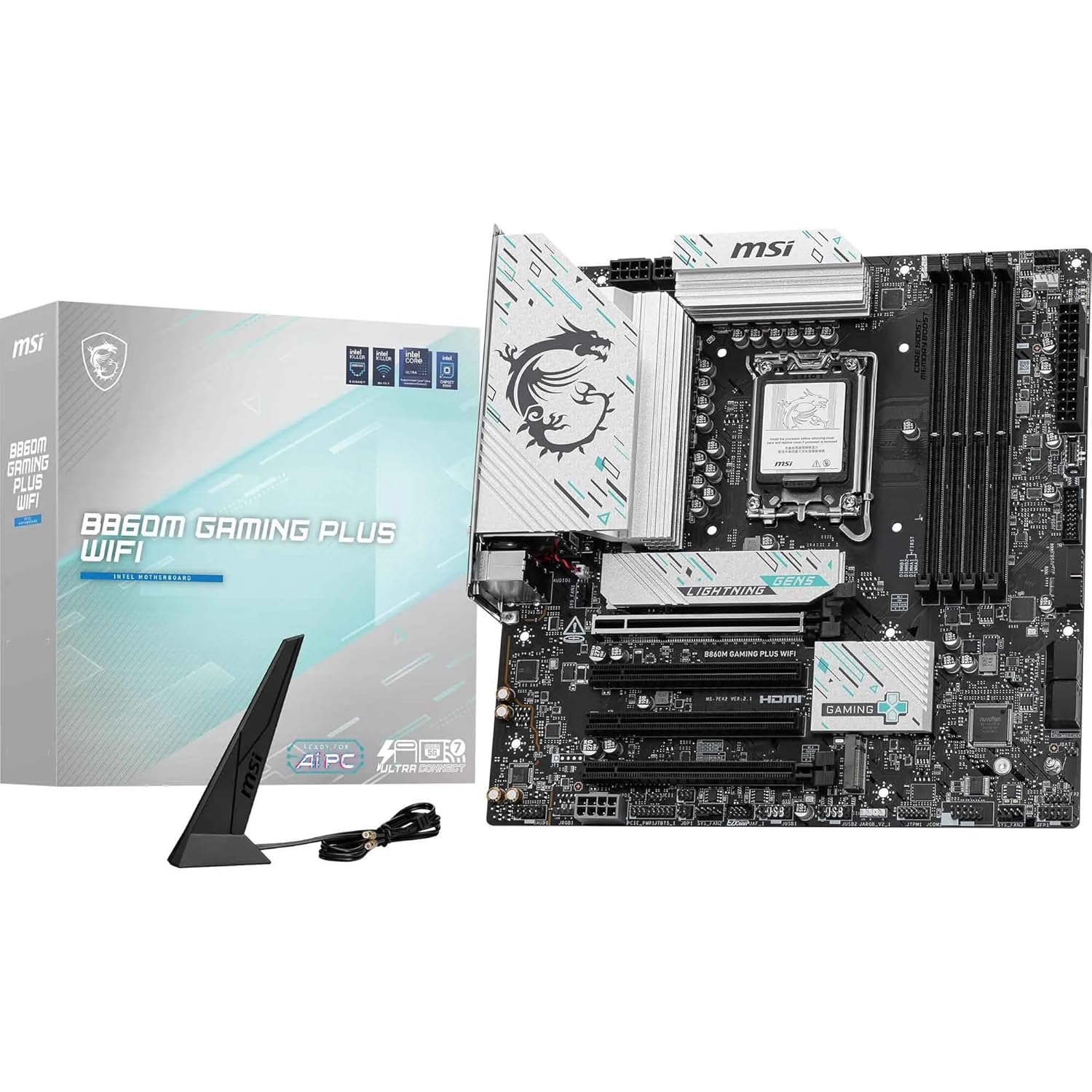

About MSI B860M Gaming Plus WiFi Motherboard
Built on the Intel B860 chipset, it combines reliable performance, advanced connectivity, and next-generation expansion capabilities for gamers, creators, and PC enthusiasts.
With support for high-speed DDR5 memory, PCIe 5.0 graphics, Wi-Fi 7, Bluetooth 5.4, and 5GbE LAN, it delivers a fast and responsive computing experience.
Multiple M.2 slots, Thunderbolt 4 support, robust power delivery, and efficient thermal solutions make it an excellent choice for building a modern, high-performance desktop system.
| Category | Specification |
|---|---|
| Product Name | MSI B860M Gaming Plus WiFi Motherboard |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
| Compatible Processors | Intel Core Ultra Series 2 Desktop Processors |
| Memory Slots | 4× DDR5 DIMM |
| Maximum Memory | 256GB |
| Memory Speed | DDR5 4800–6400 MT/s (JEDEC), Up to 8800+ MT/s (OC) |
| Memory Technology | Dual Channel, Intel XMP 3.0, CUDIMM Support |
| PCIe x16 Slot | 1× PCIe 5.0 x16 |
| Additional PCIe Slot | 1× PCIe 4.0 x4 |
| M.2 Slots | 3× M.2 NVMe |
| Primary M.2 | PCIe 5.0 x4 |
| Additional M.2 Slots | PCIe 4.0 x4 |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Graphics Outputs | 1× HDMI 2.1, 1× DisplayPort 1.4 |
| Thunderbolt | 1× Thunderbolt 4 (USB Type-C, 40Gbps) |

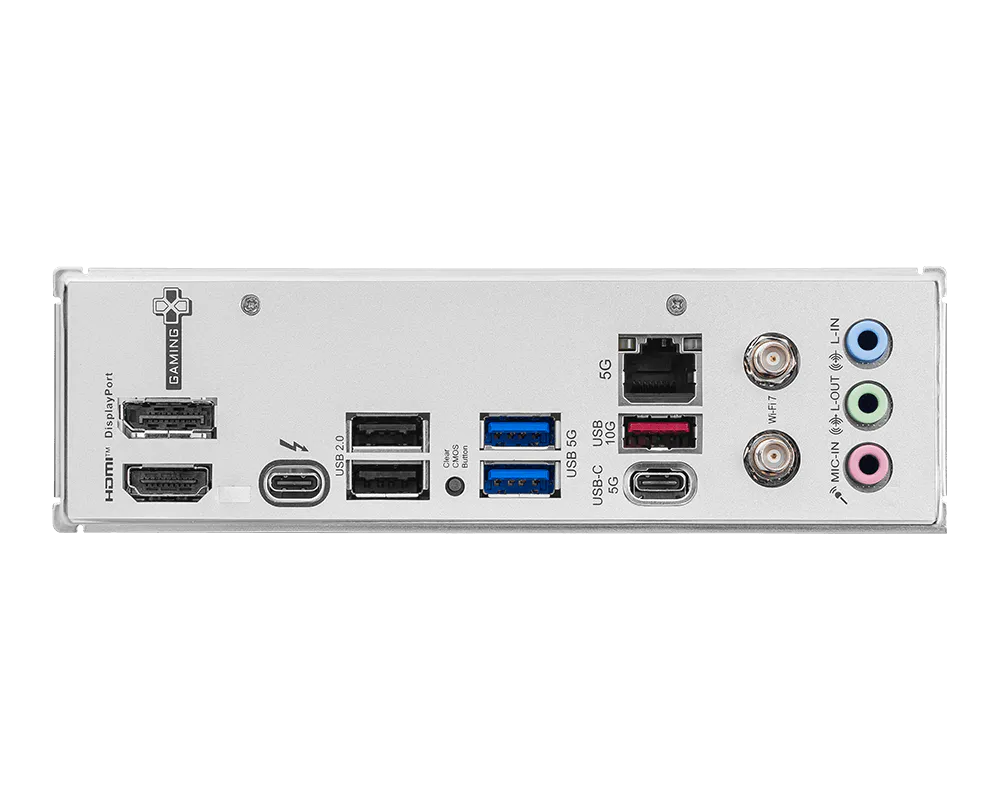

| Rear USB Ports | USB 20Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, USB 5Gbps Type-C, USB 2.0 |
| Front USB Headers | USB 10Gbps Type-C, USB 5Gbps Type-A, USB 2.0 |
| LAN | Realtek 5GbE Ethernet |
| Wireless Connectivity | Intel Killer BE1750x Wi-Fi 7 |
