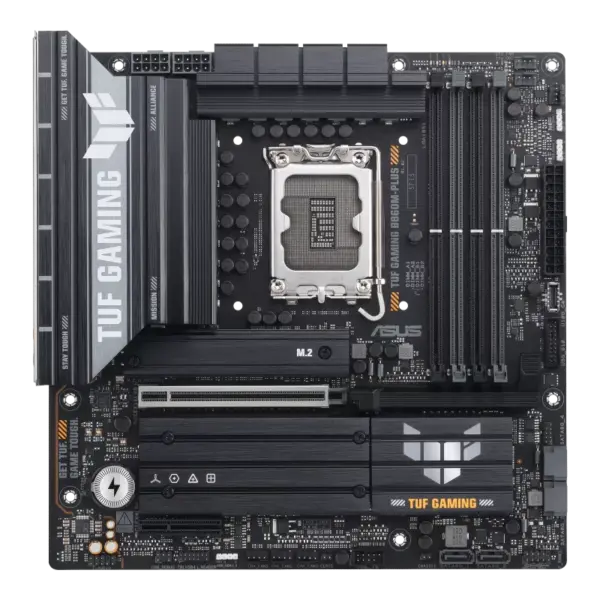

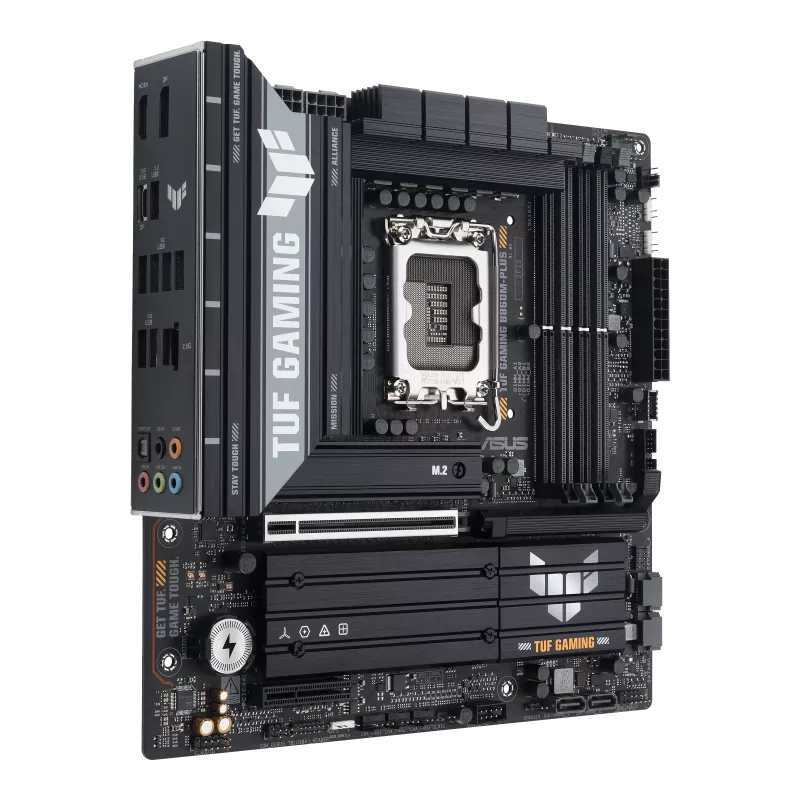

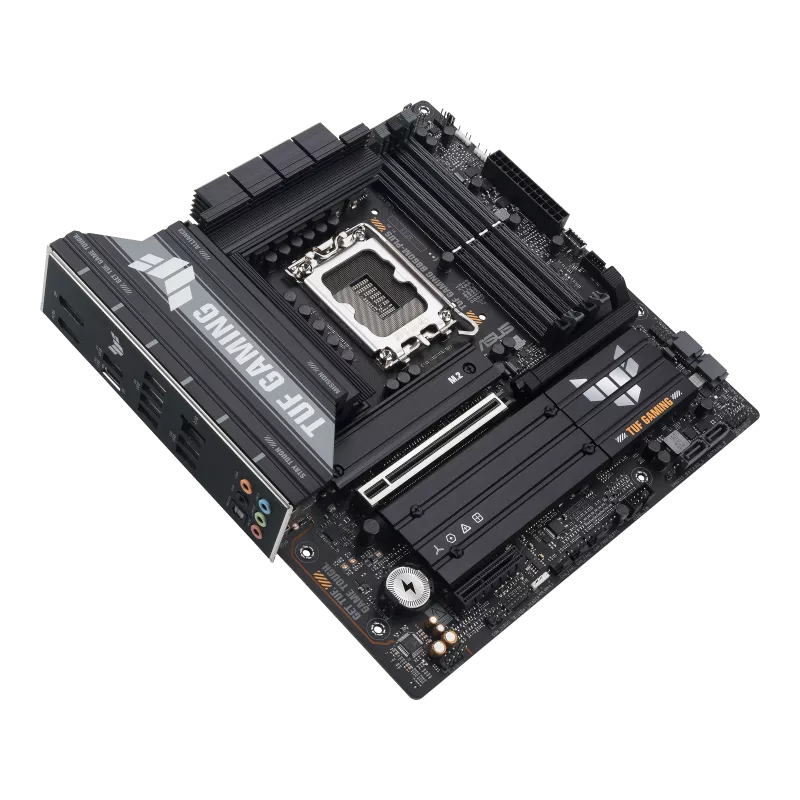

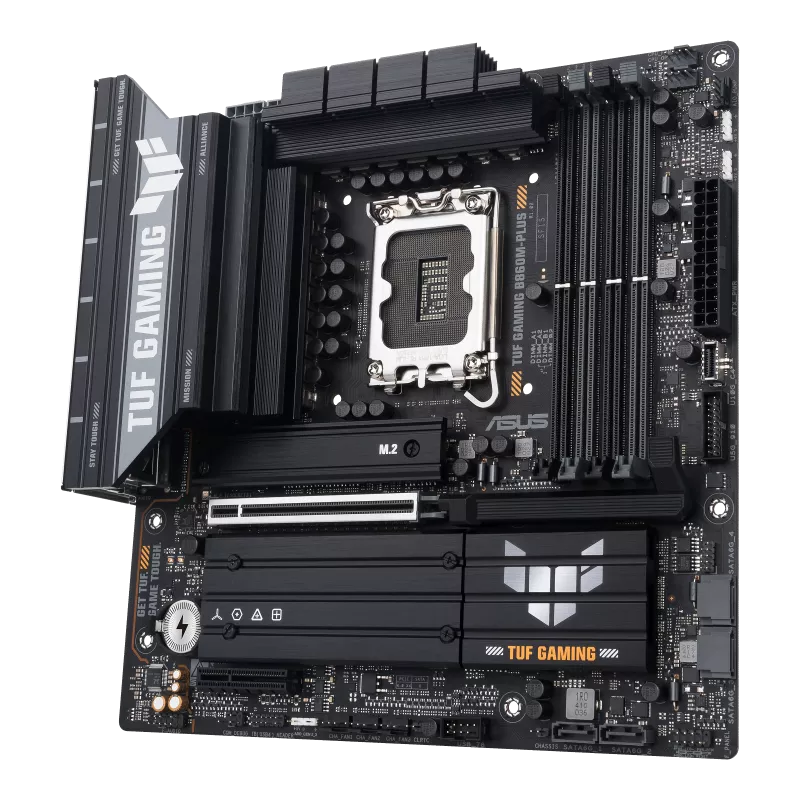

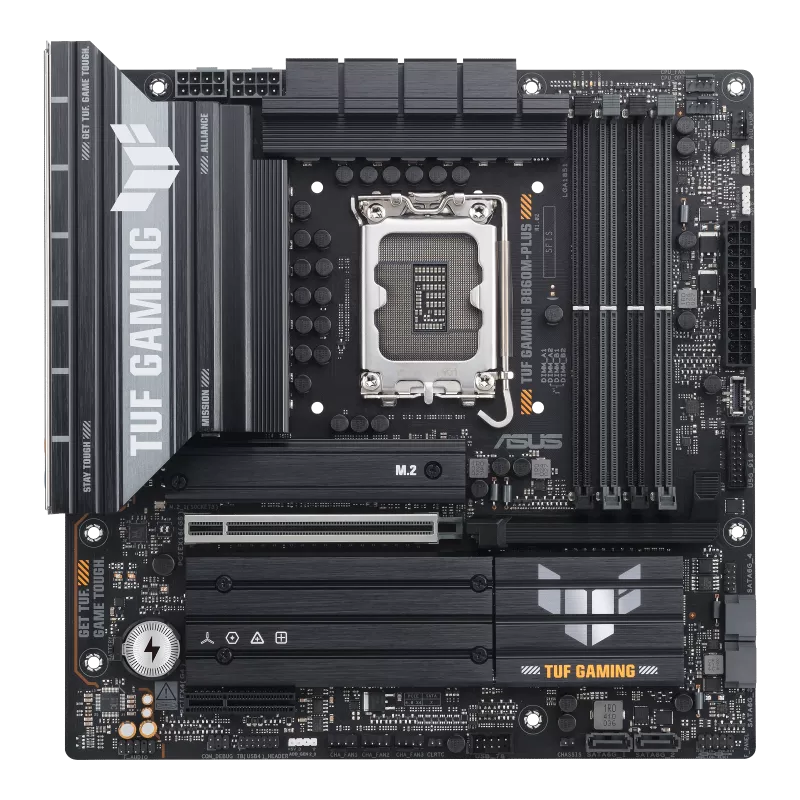

About Asus TUF Gaming B860M-Plus Motherboard
Featuring the Intel B860 chipset and LGA1851 socket, the Asus TUF Gaming B860M-Plus Motherboard supports Intel Core Ultra Processors (Series 2) and advanced connectivity technologies.
The Asus TUF Gaming Series Desktop Motherboard offers four DDR5 DIMM slots support up to 256GB of memory, with speeds reaching 8800+ MT/s through overclocking.
For graphics, the Asus TUF Gaming mATX Intel Motherboard provides a PCIe 5.0 x16 slot, while three M.2 slots offer fast storage options, including PCIe 5.0 x4 connectivity.

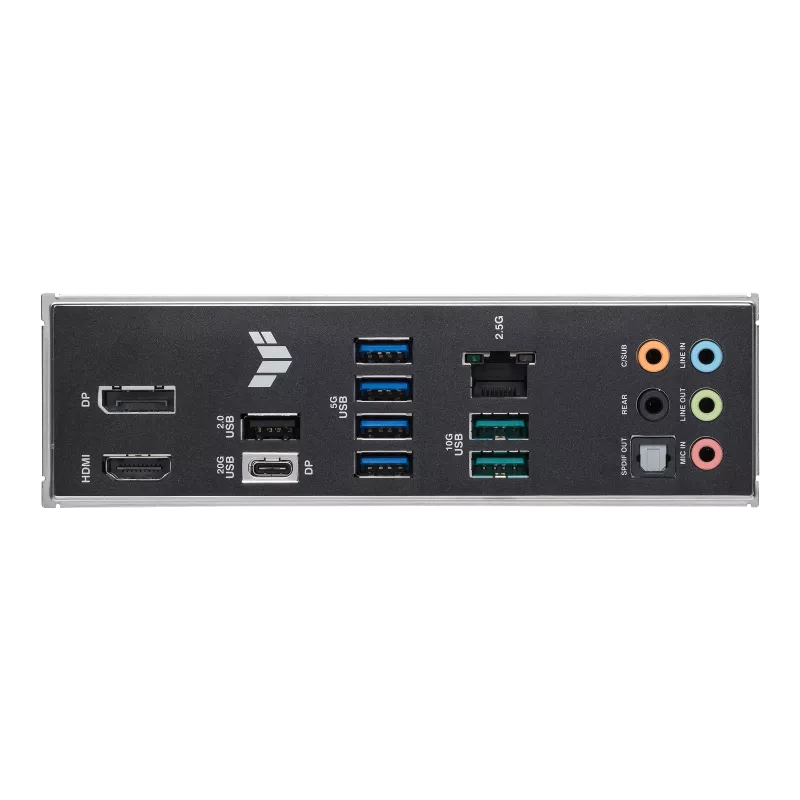

Realtek 2.5Gb Ethernet enables high-speed wired networking, while multiple USB ports provide flexible peripheral connectivity.
DisplayPort, HDMI, and USB Type-C DisplayPort output support modern display setups.
Built with TUF protection features, VRM heatsinks, SafeSlot, TUF LANGuard, and ESD Guards, the Asus TUF Gaming mATX Intel Motherboard is engineered for dependable operation.
Q-Latch, Q-Release, Q-LED, Q-DIMM, and Aura Sync further enhance building, maintenance, and customization.
| Specification | Details |
|---|---|
| Product Name | ASUS TUF Gaming B860M-PLUS |
| Series | TUF Gaming |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 × 24.4 cm / 9.6 × 9.6 inches |
| CPU Socket | Intel LGA1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| CPU Technology | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0 |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Memory Architecture | Dual Channel |
| Maximum Speed | Up to DDR5-8800+ MT/s (OC) |
| Memory Support | Non-ECC, Unbuffered, CUDIMM |
| Memory Features | Intel XMP, ASUS AEMP III, DIMM Fit |
| Graphics Slot | 1 × PCIe 5.0 x16 |
| Additional Expansion | 1 × PCIe 4.0 x4 |
| M.2 Slots | 3 × M.2 Key M |
| M.2_1 | 2280, PCIe 5.0 x4 |
| M.2_2 | 2242/2260/2280, PCIe 4.0 x4 |
| M.2_3 | 2280, PCIe 4.0 x4 |
| SATA | 4 × SATA 6Gb/s |
| SATA RAID | RAID 0/1/5/10 |
| Ethernet | Realtek 2.5Gb Ethernet |
