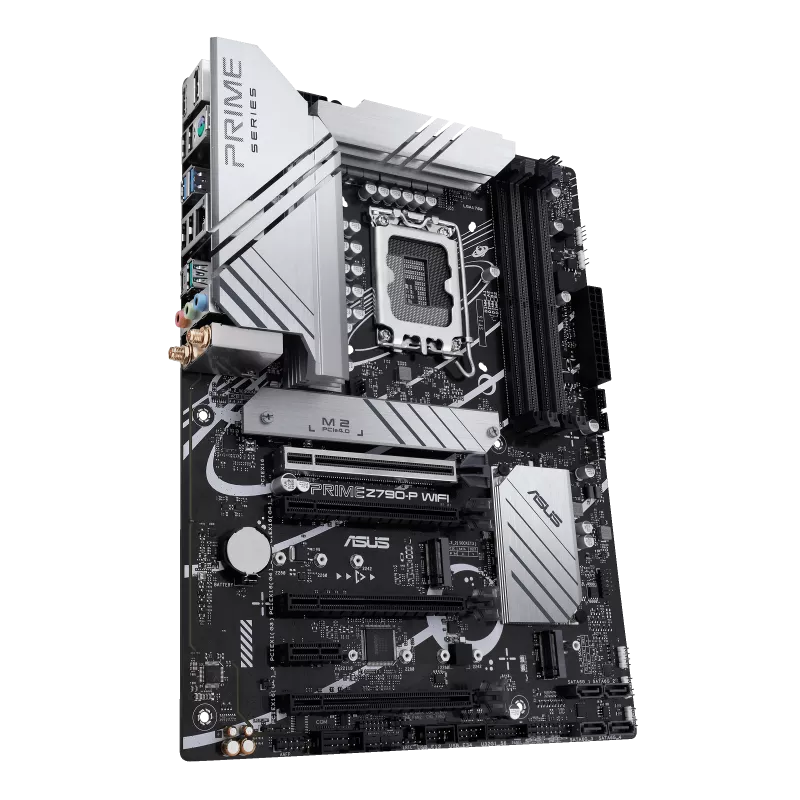

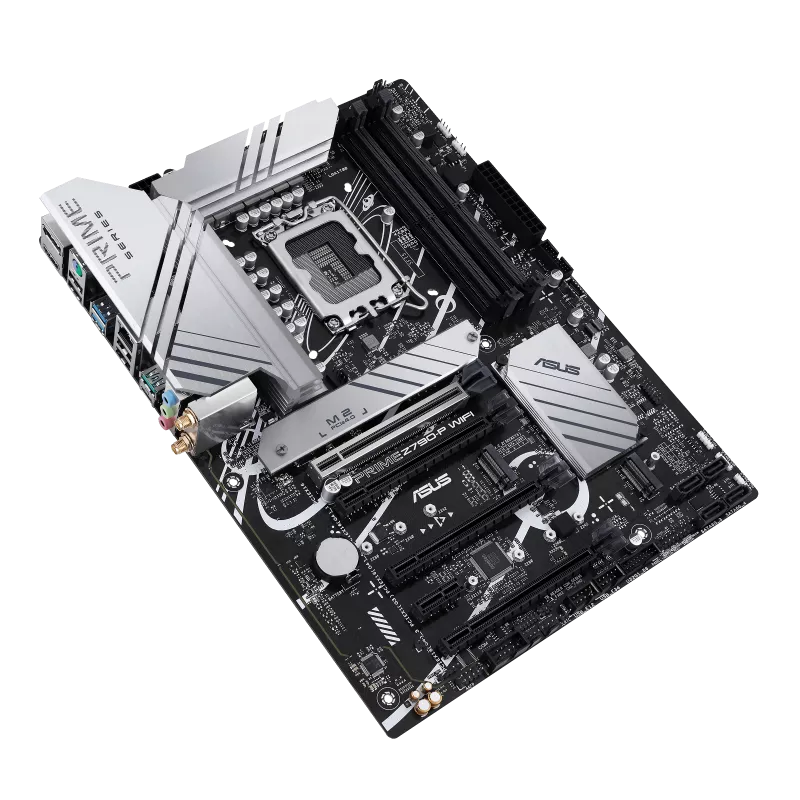

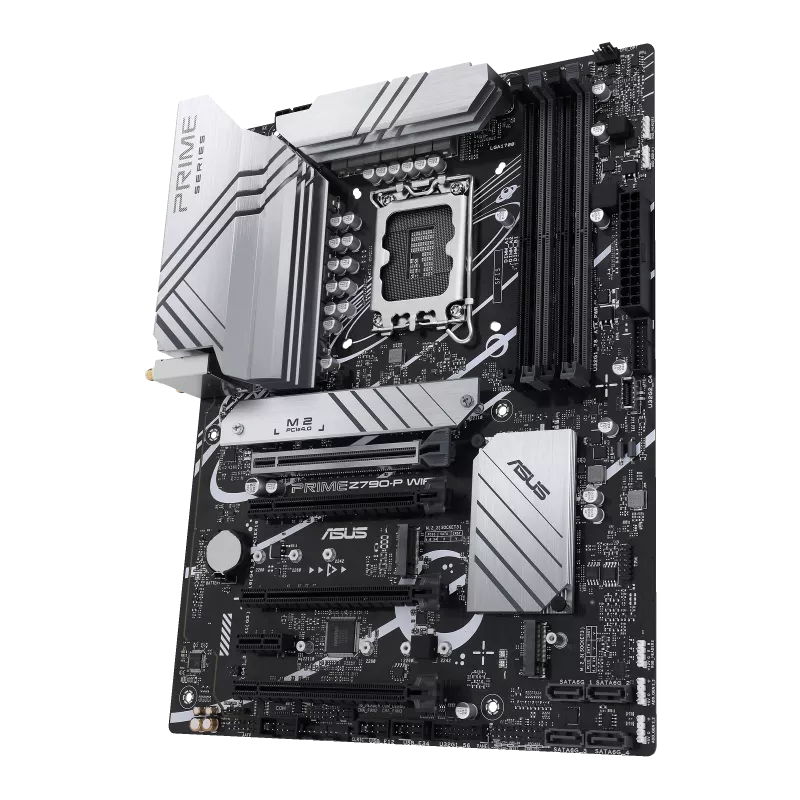

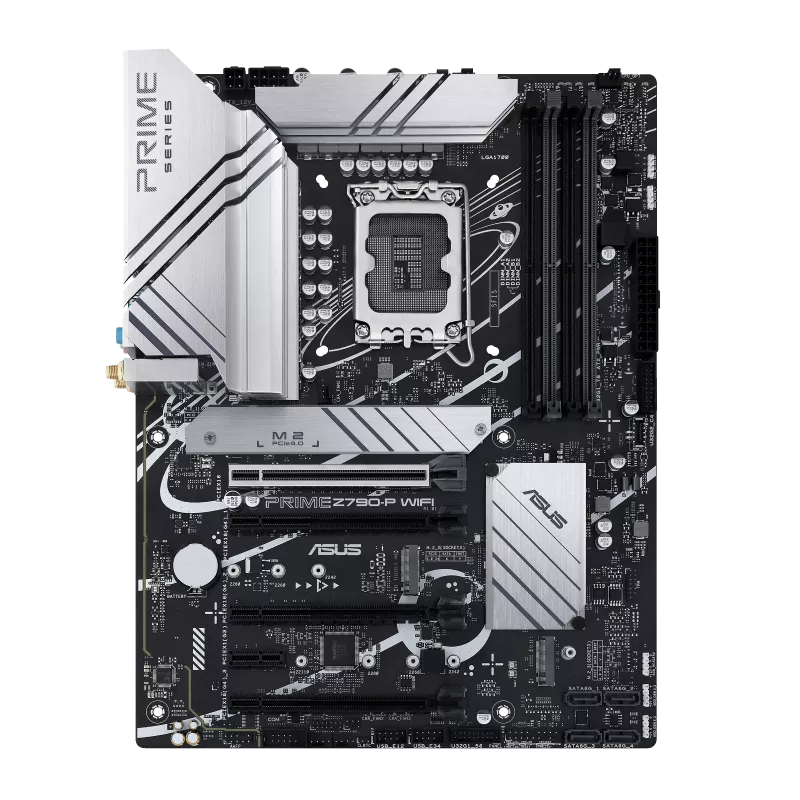

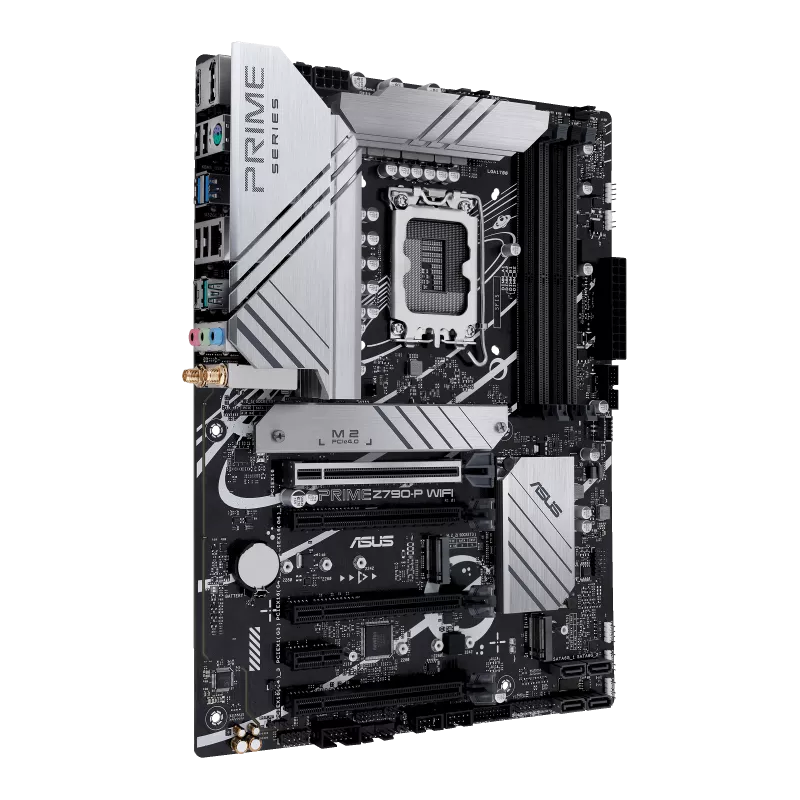

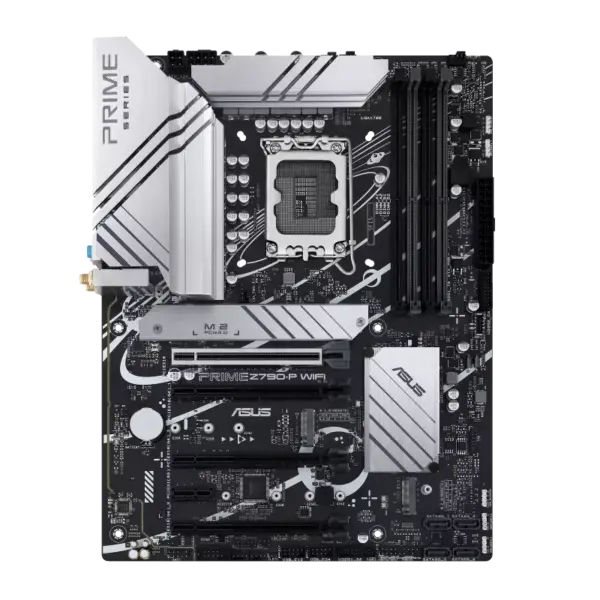

About Asus Prime Z790-P WiFi CSM Motherboard
Featuring the Intel Z790 chipset and LGA1700 socket, it supports Intel Core 14th, 13th and 12th Gen processors along with Pentium Gold and Celeron CPUs.
Four DDR5 DIMM slots support up to 192GB of memory, with speeds reaching 7200+ MT/s through overclocking.
For graphics and expansion, the motherboard includes a PCIe 5.0 x16 slot alongside additional PCIe slots.
Storage flexibility comes from three M.2 slots and four SATA 6Gb/s ports.
Networking is handled by Wi-Fi 6 and Realtek 2.5Gb Ethernet, while Bluetooth 5.2 adds convenient wireless connectivity.
USB 3.2 Gen 2×2 Type-C, comprehensive cooling controls, ASUS 5X Protection III and Aura Sync support further enhance the platform.
As a CSM motherboard, it also provides features suited to stable business and managed PC environments.
| Specification | Details |
|---|---|
| Product Name | ASUS Prime Z790-P WiFi CSM |
| CPU Socket | Intel LGA1700 |
| CPU Support | Intel Core 14th, 13th & 12th Gen, Pentium Gold and Celeron processors |
| Chipset | Intel Z790 |
| Power Design | 14+1+1 power stages, including 14 × 50A and 1 × 60A stages |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | Up to 192GB |
| Memory Speed | DDR5 7200+ (OC) |
| Memory Architecture | Dual Channel |
| Memory Features | Intel XMP, ASUS AEMP II, OptiMem II |

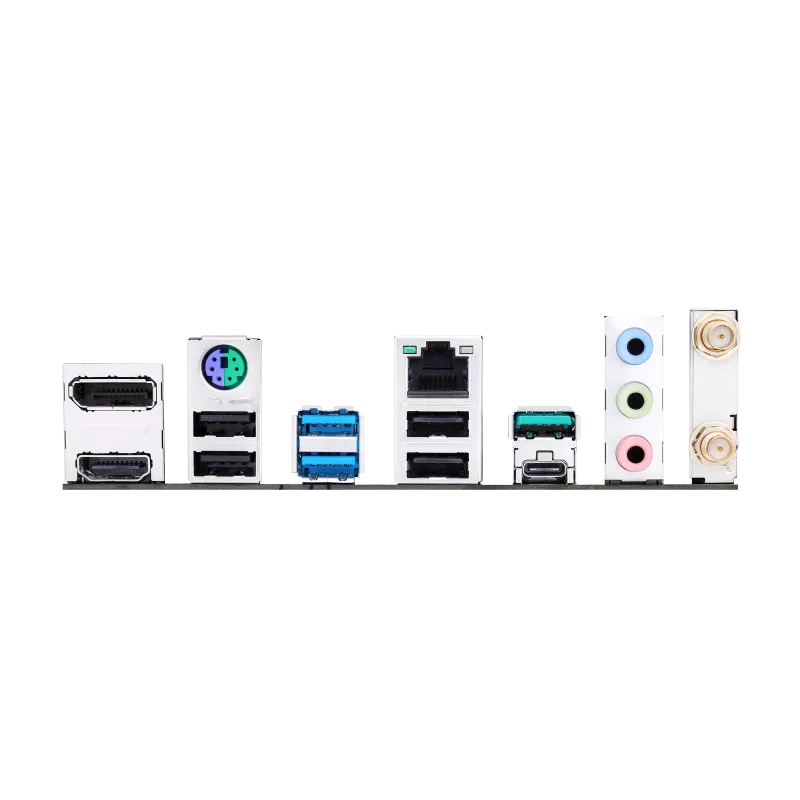

| Graphics Outputs | 1 × DisplayPort, 1 × HDMI |
| DisplayPort | Up to 4K @ 60Hz |
| HDMI | Up to 4K @ 60Hz |
| Primary Expansion Slot | 1 × PCIe 5.0 x16 SafeSlot Core+ |
| Additional Expansion | 3 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
| M.2 Slots | 3 × M.2 |
| M.2_1 | PCIe 4.0 x4, 2242/2260/2280/22110 |
| M.2_2 | PCIe 4.0 x4, 2242/2260/2280 |
| M.2_3 | PCIe 4.0 x4 & SATA, 2242/2260/2280/22110 |
| SATA | 4 × SATA 6Gb/s |
