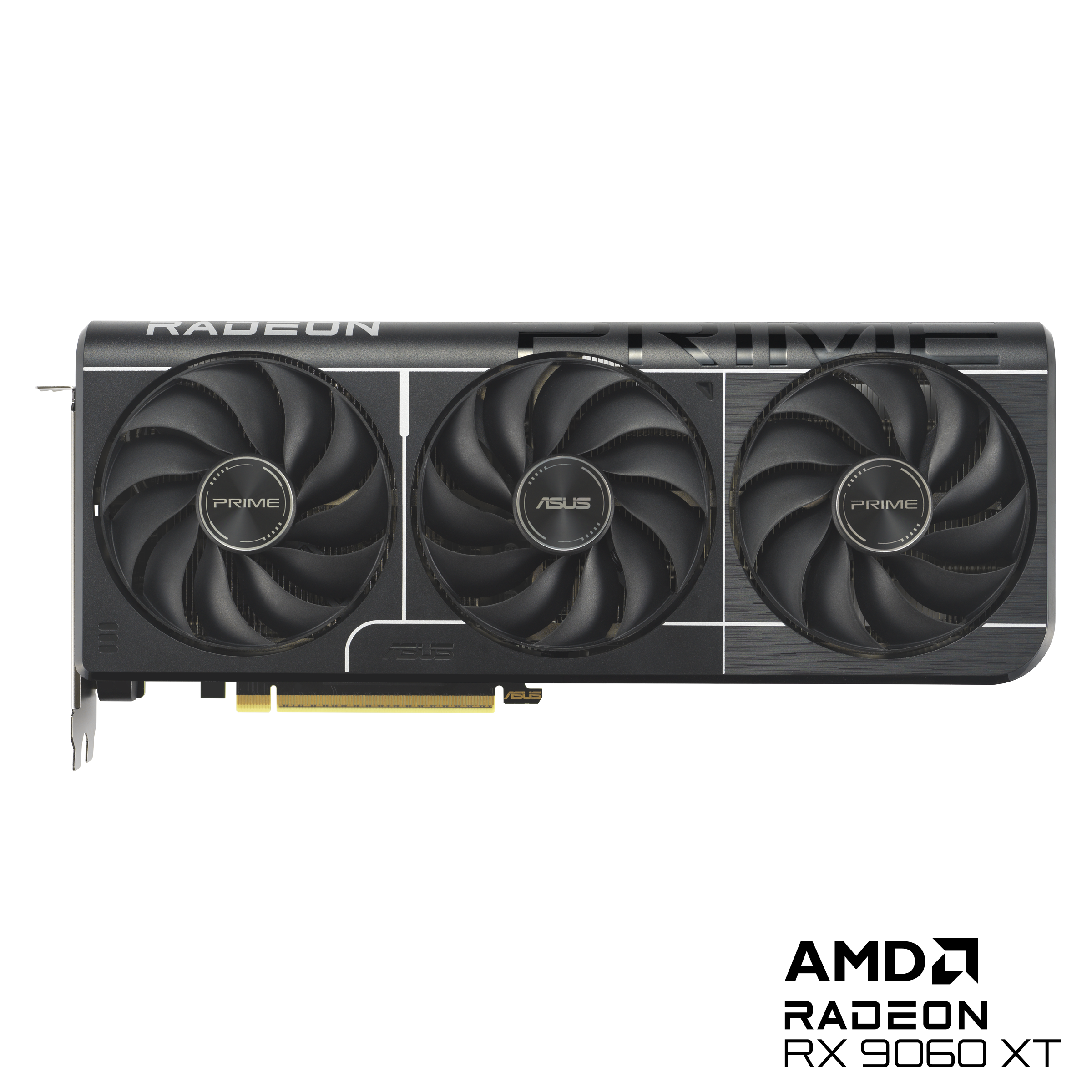

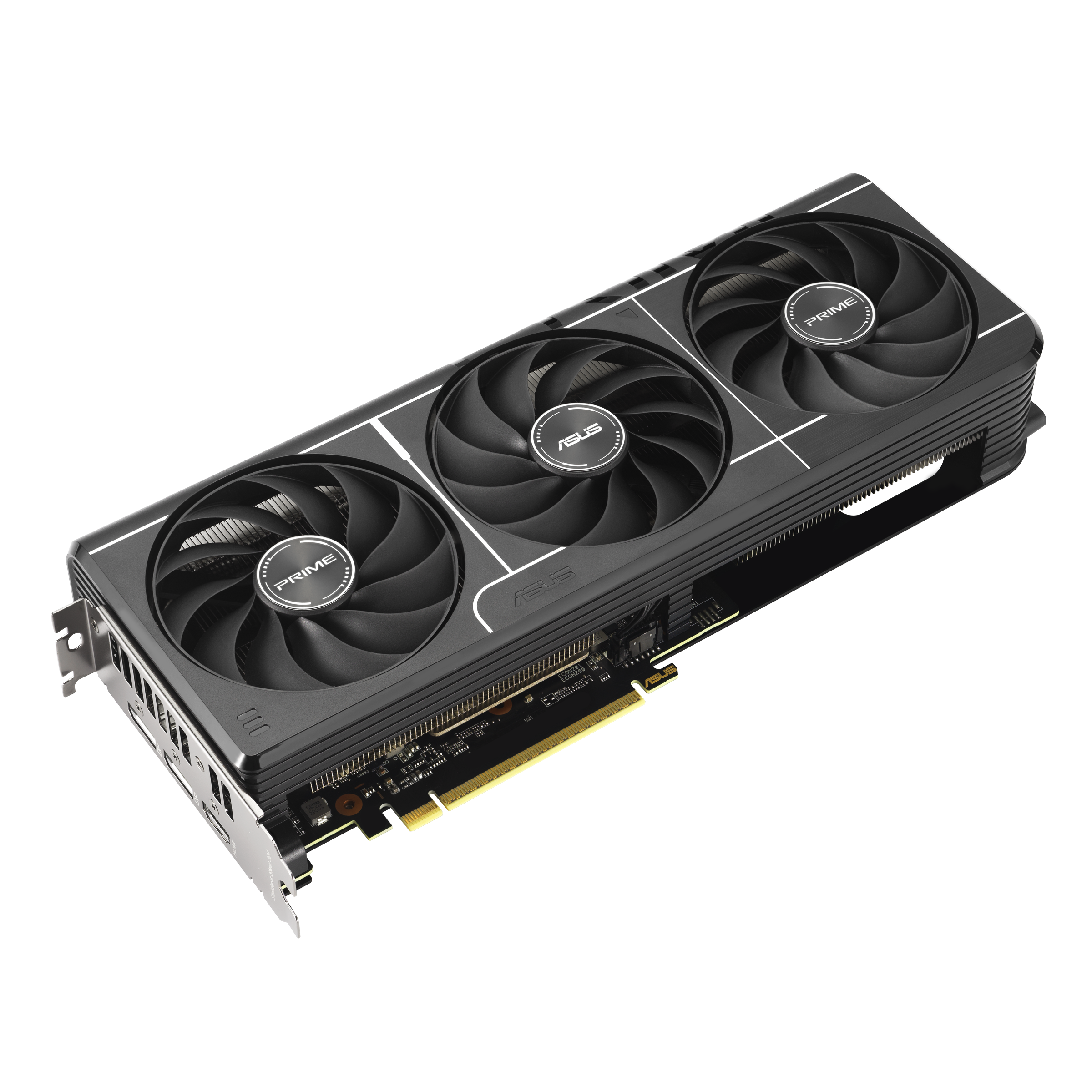

About ASUS Prime Radeon RX 9060 XT OC Edition 16 GB GDDR6
The ASUS Prime RX 9060 XT OC Edition, which is powered by AMD’s most recent RDNA 4 architecture and the Navi 48 GPU, is intended for balanced 1440p and high-performance 1080p gaming. This card offers next-generation capabilities without breaking the bank thanks to its 2048 stream processors and fast 16GB GDDR6 memory that is clocked at 20 Gbps on a 128-bit bus.

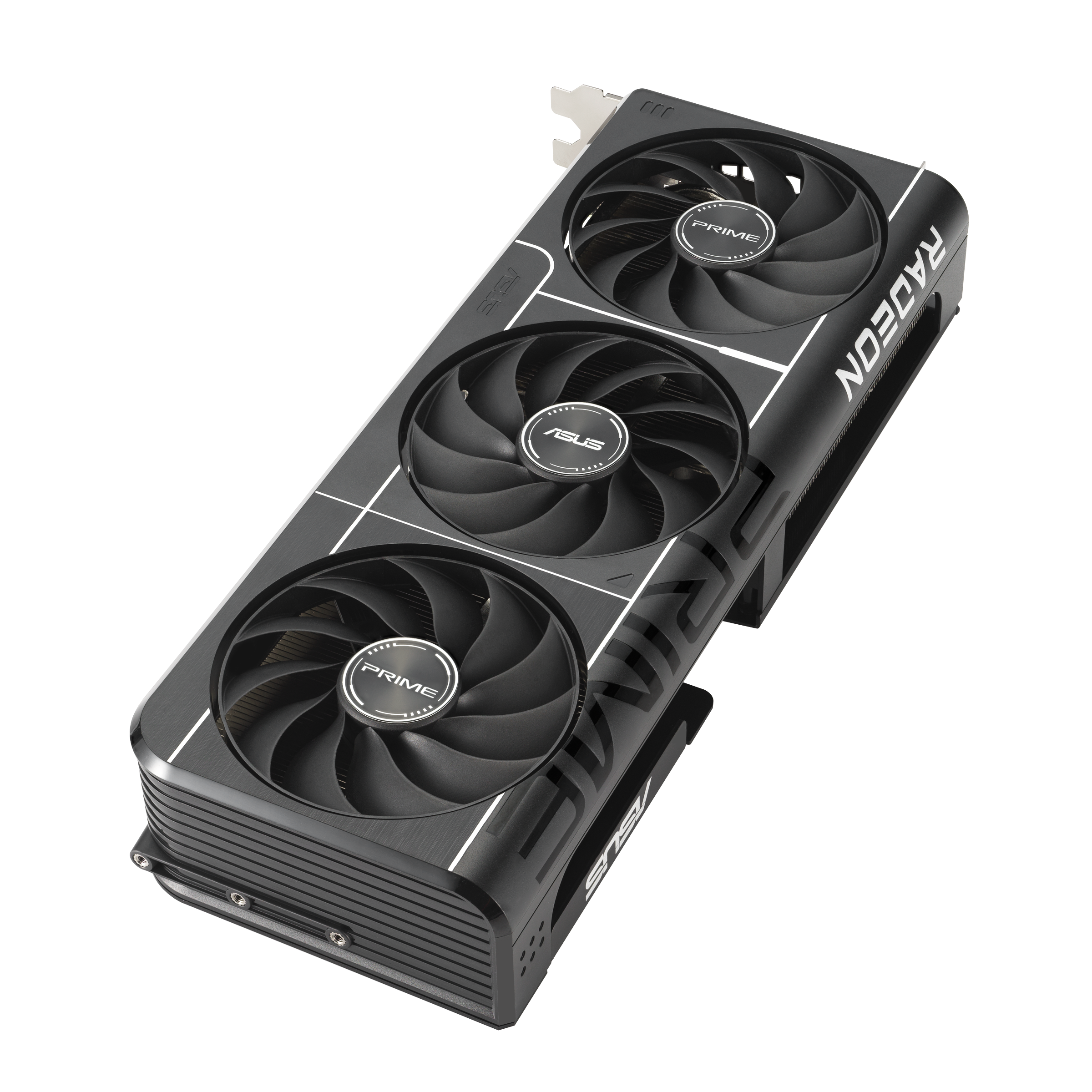

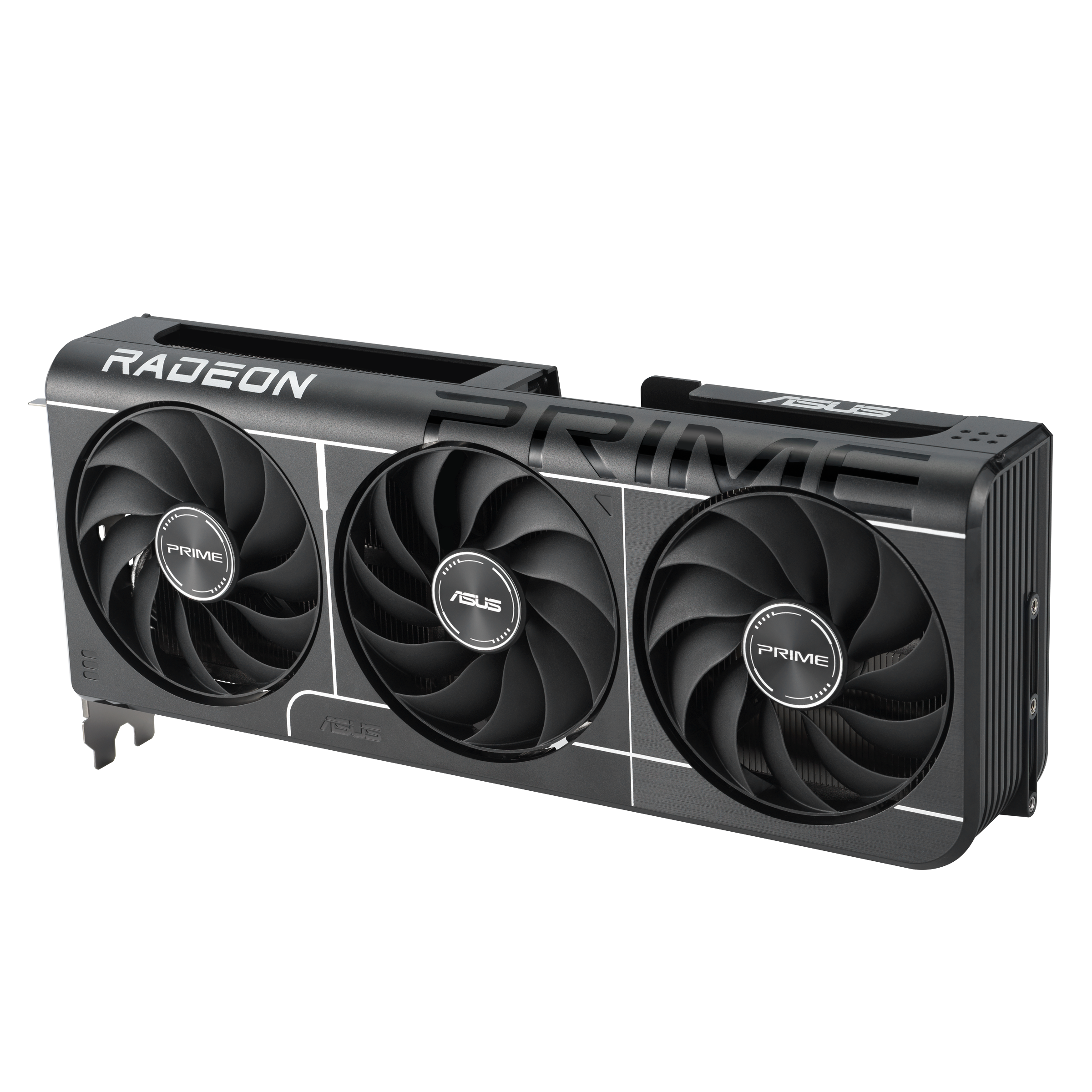

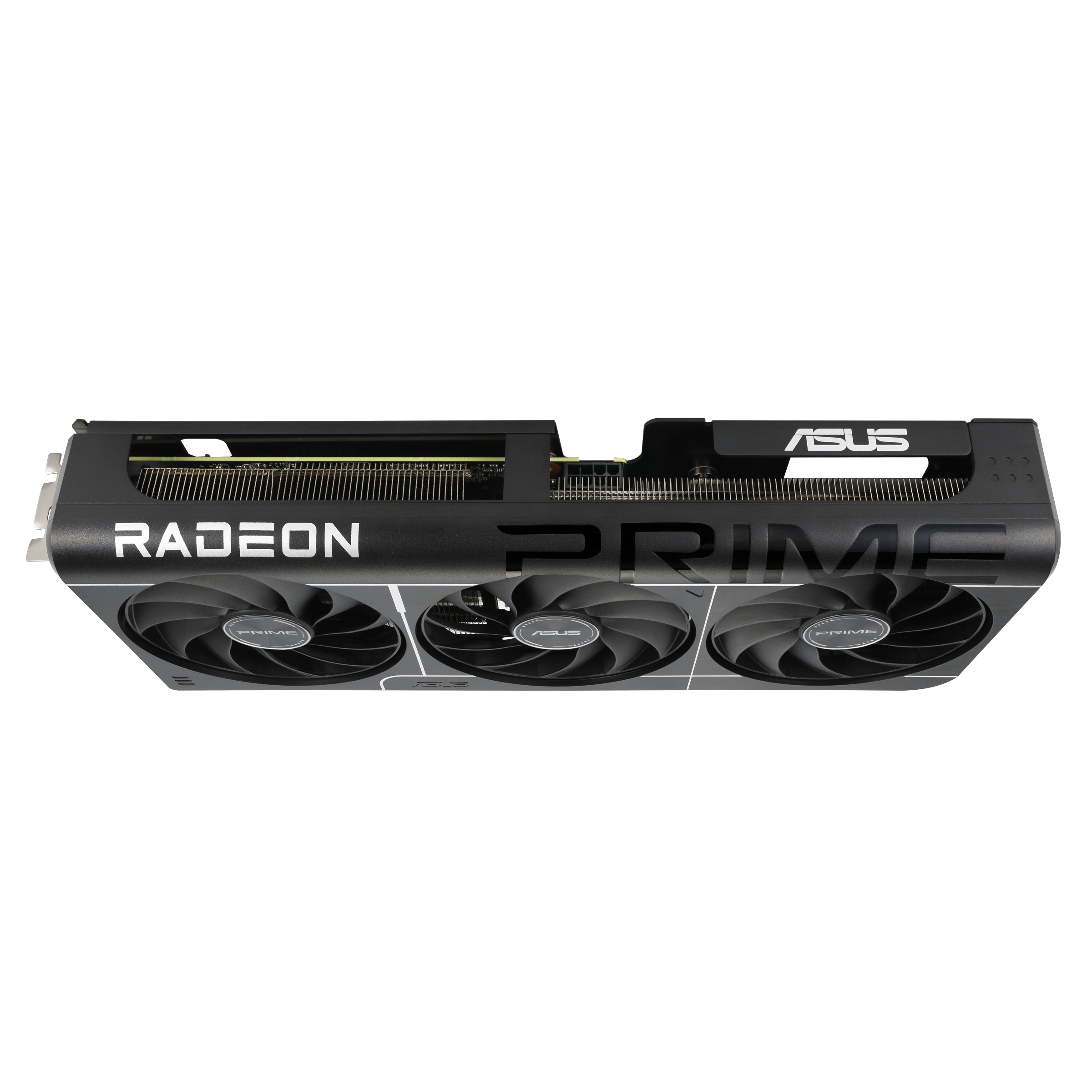

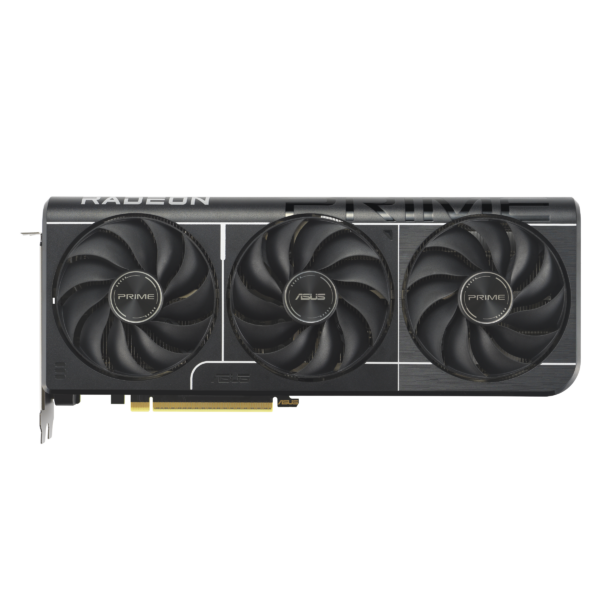

The boost clock can reach up to 3330 MHz in OC mode, while the default game clock is approximately 2760 MHz. It has a MaxContact GPU base for superior heat transfer, dual-ball bearings, a vented metal backplate, phase-change thermal pads, and a triple-fan Axial-tech cooling system. When the GPU is cool, 0 dB technology keeps everything quiet.
Users can switch between Quiet and Performance modes with dual BIOS. The card is made with a reinforced shroud and Auto-Extreme manufacturing, making it both performance-focused and long-lasting. A 550-W PSU is advised, and a single 8-pin power connector is needed.
Features of ASUS Prime Radeon RX 9060 XT OC Edition 16 GB GDDR6
| Specification | Details |
|---|---|
| GPU Architecture | AMD RDNA 4 (Navi 48) |
| Stream Processors | 2048 SPs |
| Game Clock | Up to 2760 MHz |
| Boost Clock | Up to 3330 MHz (OC Mode) |
| Memory | 16 GB GDDR6 @ 20 Gbps, 128-bit |
| PCIe Interface | PCIe 5.0 x16 |

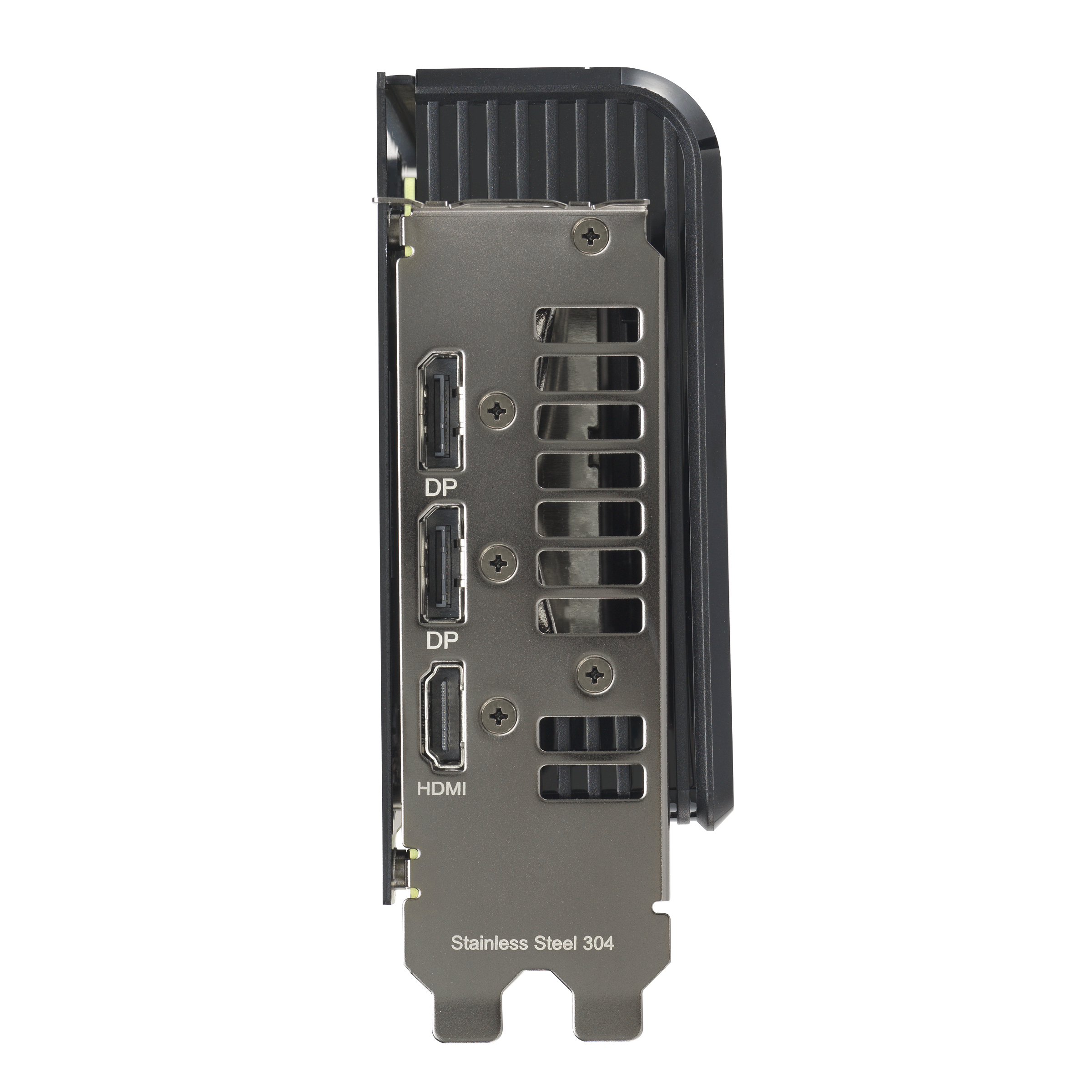

| Display Outputs | 2× DisplayPort 2.1a, 1× HDMI 2.1b |
| Cooling Design | Triple Axial-tech fans, vapour chamber, 0 dB idle |
| Bearings | Dual-ball |
| Backplate | Vented metal backplate |
| BIOS Modes | Dual BIOS – Quiet / Performance |
| Power Connector | 1×8-pin PCIe |
| Typical Power Draw | ~155 W |
| Recommended PSU | 550 W |
| Dimensions | ~304 × 126 × 50 mm (2.5-slot) |
| Warranty | 3 years |
Ideal For
- Gamers who want ultra settings at 1080p and smooth 1440p experiences.
- Content creators and modders who need more VRAM for assets and timelines.
- Builders are prioritising quiet performance, modern looks, and efficient cooling.
- Those upgrading from RX 6000 or RTX 30-series without overspending.
