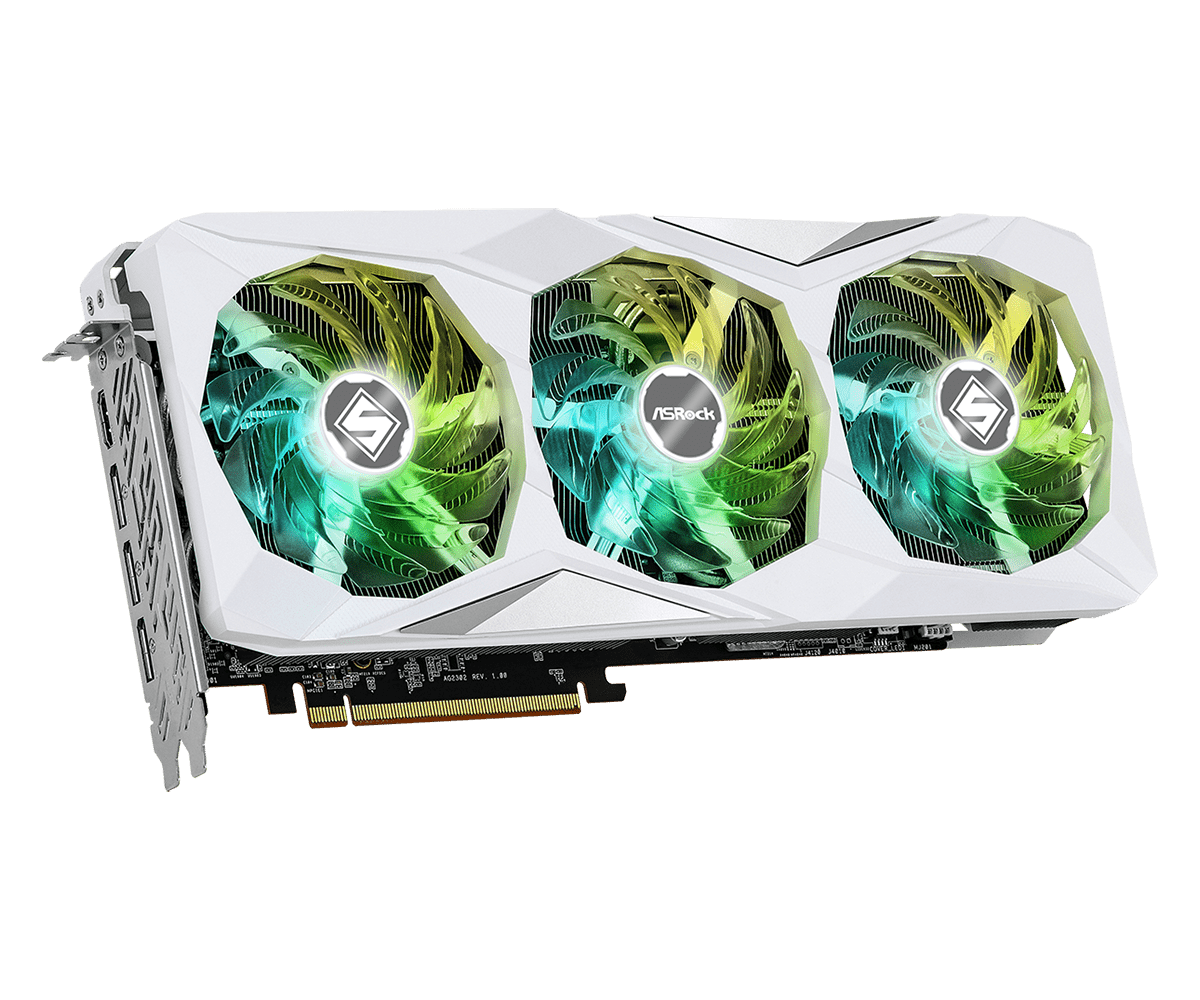

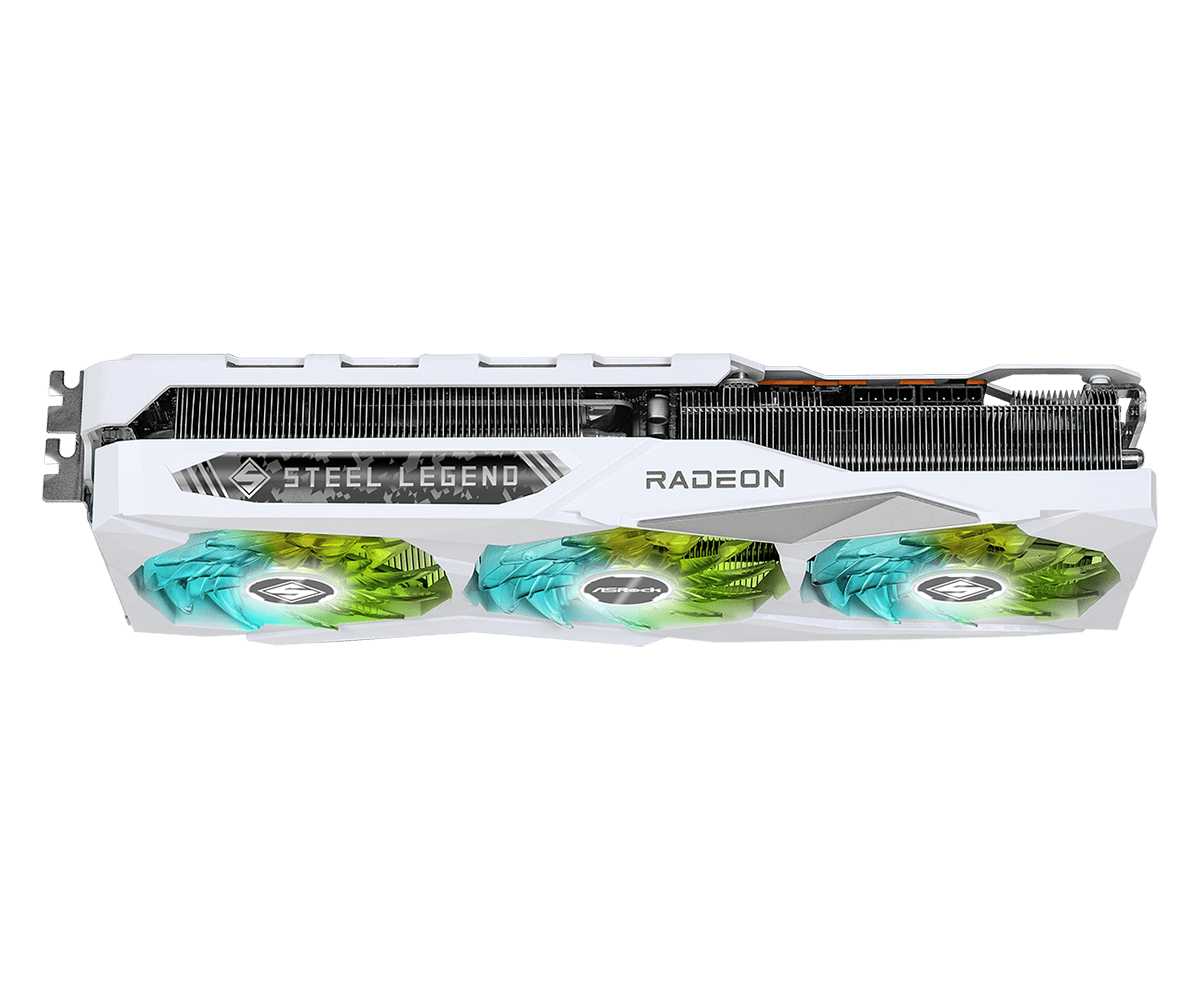

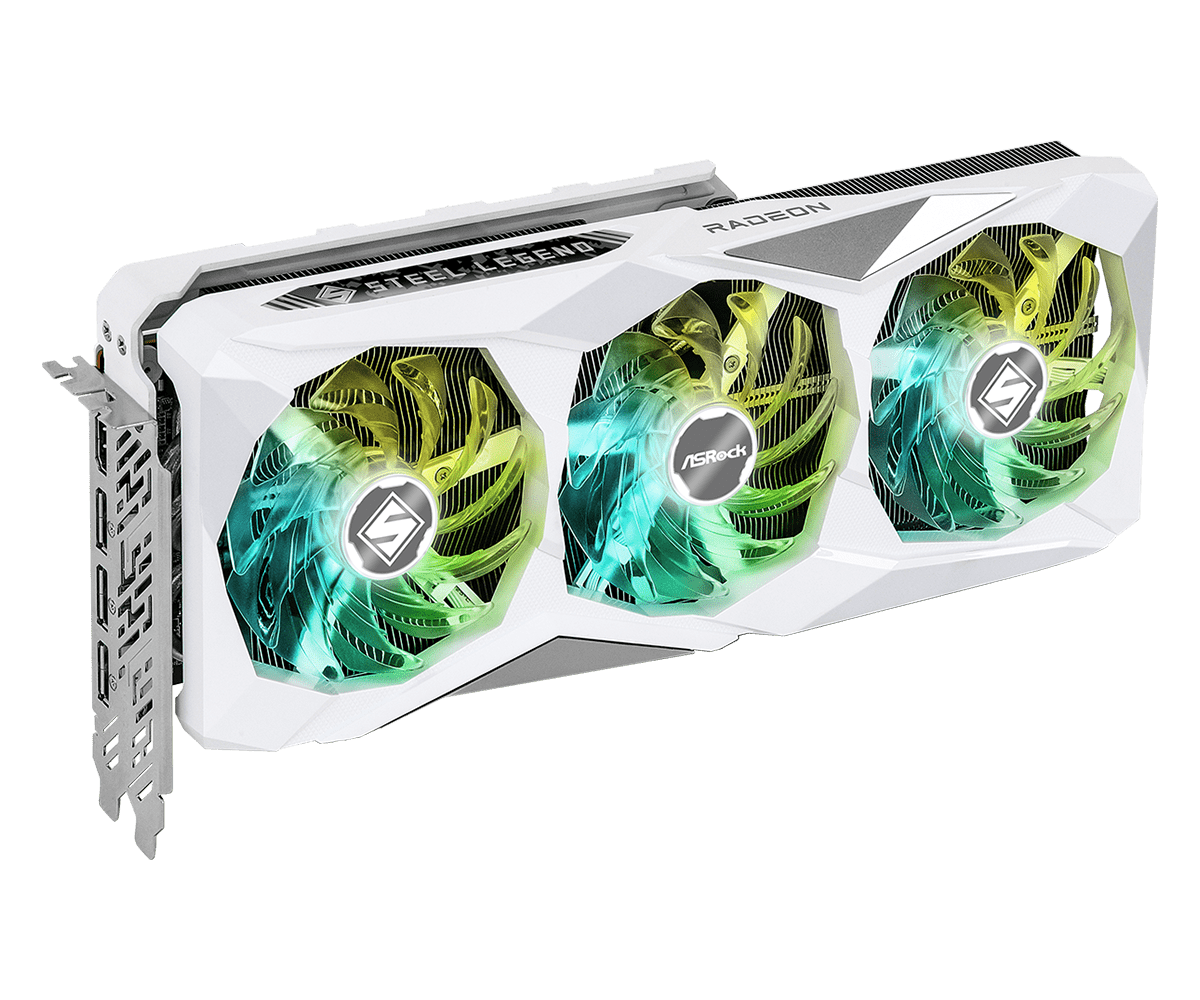

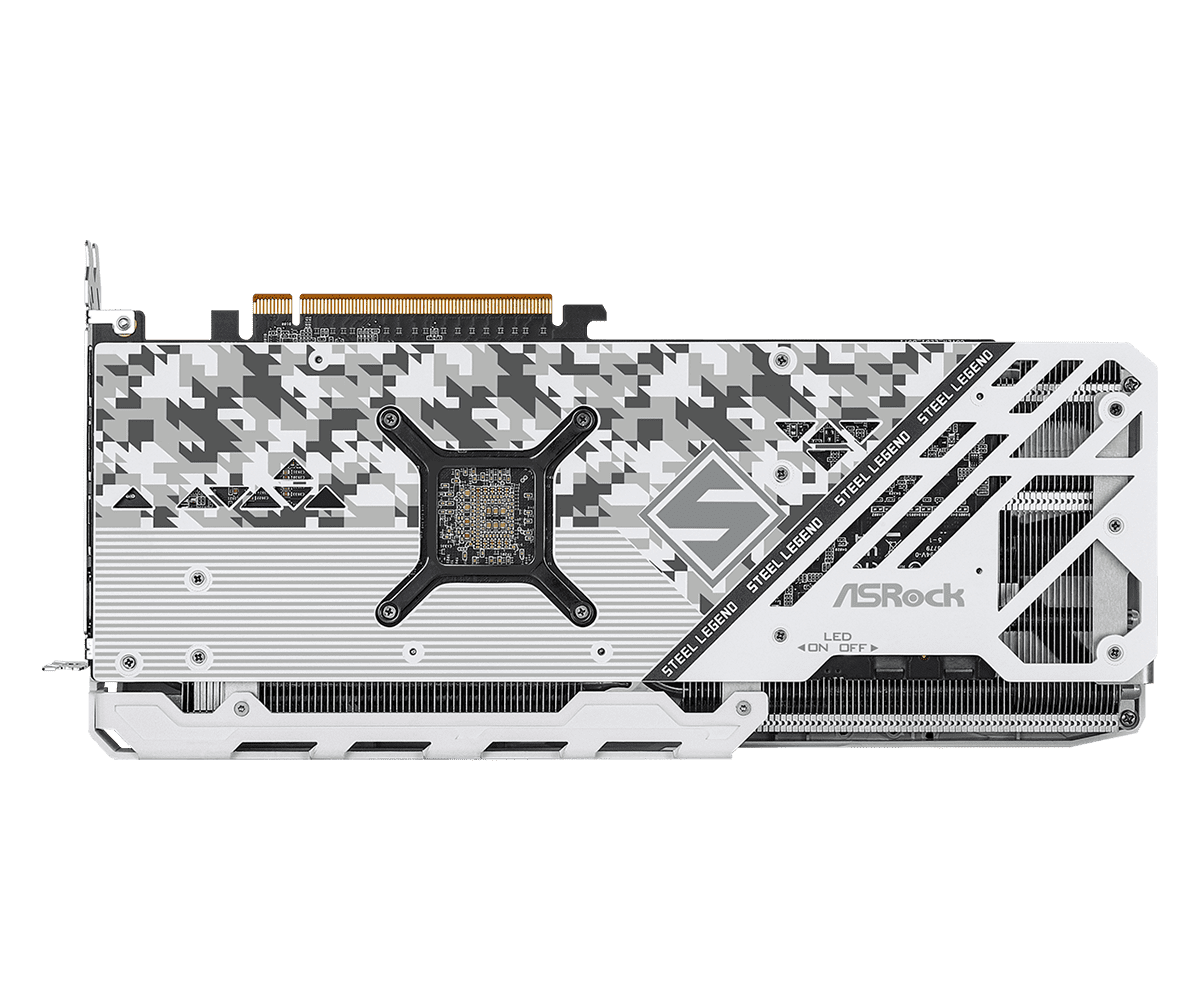

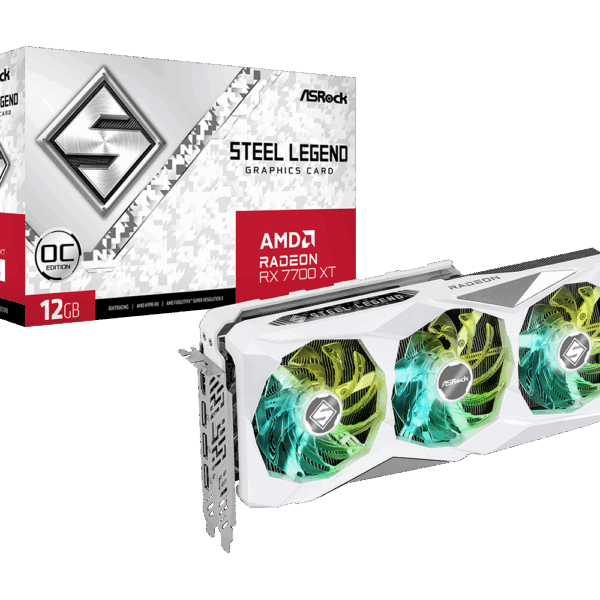

About ASRock Radeon RX 7700 XT Steel Legend OC 12 GB GDDR6
For gamers and creators looking for exceptional performance and exceptional build quality, ASRock has released the Radeon RX7700 XT Steel Legend OC 12 GB. Constructed using AMD’s RDNA 3 architecture, which has 54 compute units and 3456 stream processors, and supported by a 12 GB GDDR6 memory on a 192-bit bus with a 48 MB Infinity Cache, it produces smooth, high-quality images at 1440p and even 4K content.
High frames per second and fluid rendering are guaranteed by the factory-overclocked boost clock, which can reach 2599 MHz (2276 MHz game clock). Heatpipes, air-deflecting fins, a reinforced metal backplate, and a striped-axial triple fan arrangement all contribute to effective cooling performance. ARGB lighting can be disabled using an onboard switch or synchronised using Polychrome SYNC.
With PCIe 4.0 x16, DirectX 12 Ultimate, and Radeon RX 7000 RT/AI architecture, it supports high-resolution with 3× DisplayPort 2.1 and 1× HDMI 2.1. It is powered by 2× 8-pin connectors. For the best headroom, ASRock suggests a 750 W PSU.
Features of ASRock Radeon RX 7700 XT Steel Legend OC 12 GB GDDR6
| Specification | Details |
|---|---|
| GPU Architecture | AMD RDNA 3 (Navi 32), 54 CUs, 3456 SPs |
| Game Clock / Boost Clock | 2276 MHz / up to 2599 MHz |
| Memory | 12 GB GDDR6 @18 Gbps, 192-bit |
| Infinity Cache | 48 MB |
| PCIe Interface | PCIe 4.0 ×16 |
| Display Outputs | 3× DisplayPort 2.1, 1× HDMI 2.1 |
| Power Connectors | 2×8-pin PCIe |
| Typical Board Power (TDP) | ~245 W |
| Recommended PSU | 750 W |
| Cooling Features | Triple striped-axial fans, heatpipes, metal backplate, 0 dB idle mode |
| Dimensions | 304 × 131 × 56 mm (2.8-slot) |
| Weight | ~1.24 kg |
| RGB/Miscellaneous Features | Polychrome SYNC, ARGB switch, reinforced metal frame, air-deflecting fin |
| Warranty | 3 years (varies by region) |
Best For
- High-refresh 1440p gamers targeting smooth frame rates
- Creators using 12 GB VRAM for editing/rendering workloads
- Users are building silent yet powerful PCs, thanks to 0 dB idle and triple fan design
- Aesthetic builds with ARGB and Steel Legend metal styling
- Future-ready systems leveraging DP 2.1, HDMI 2.1, and PCIe 4.0
Buy ASRock Radeon RX 7700 XT Steel Legend OC 12 GB GDDR6 Triple‑Fan | 2.6 GHz Boost Online Today.
