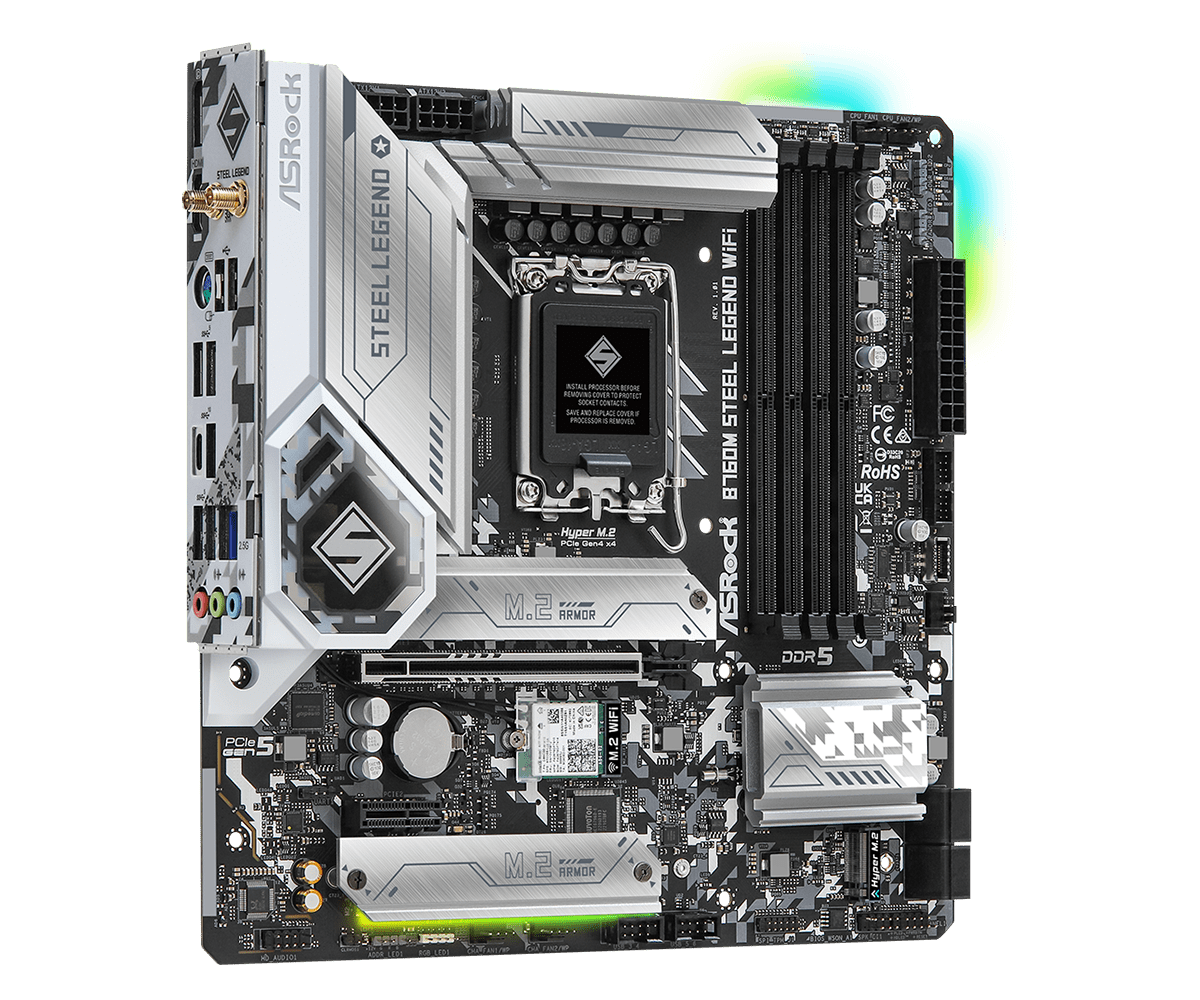

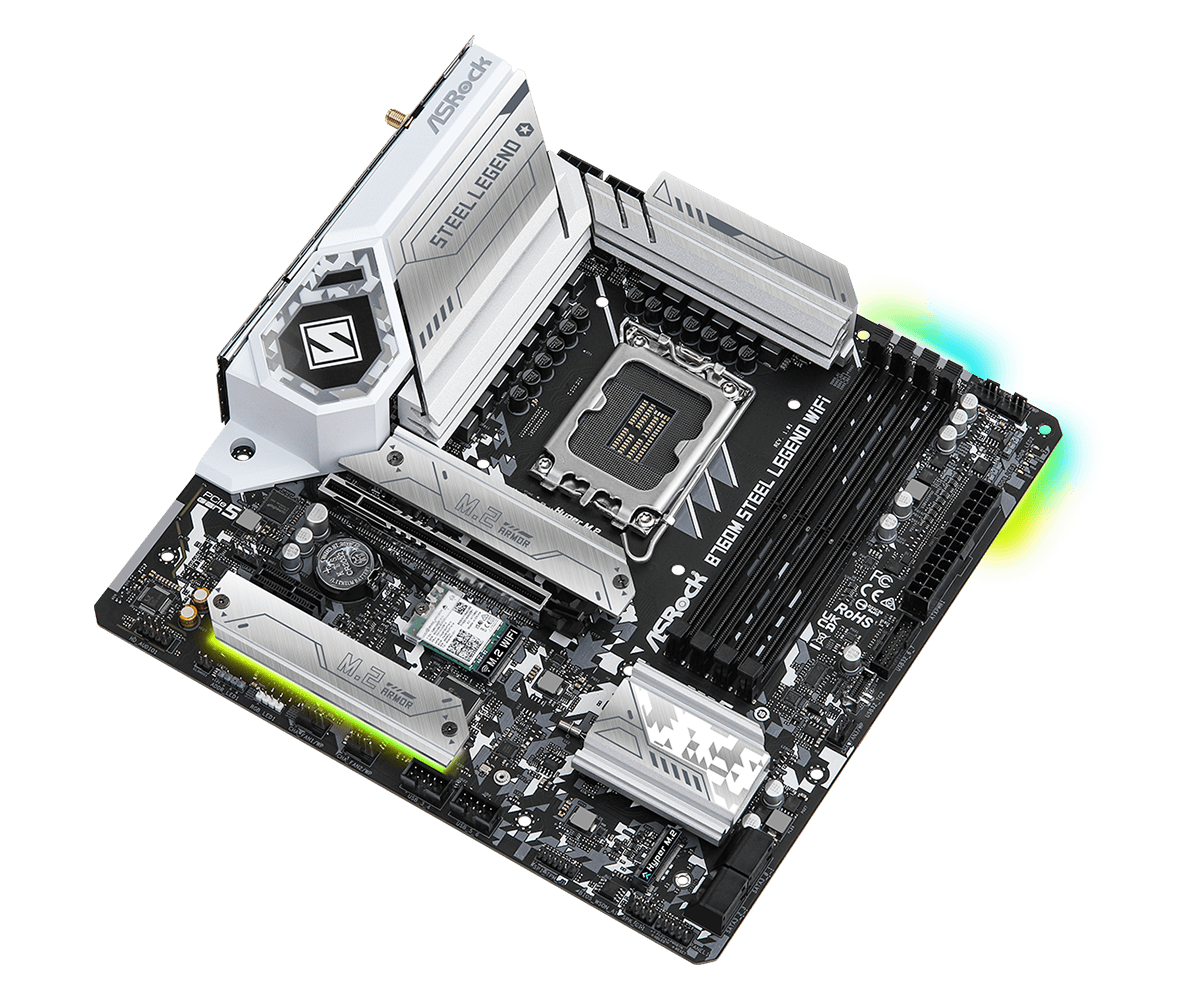

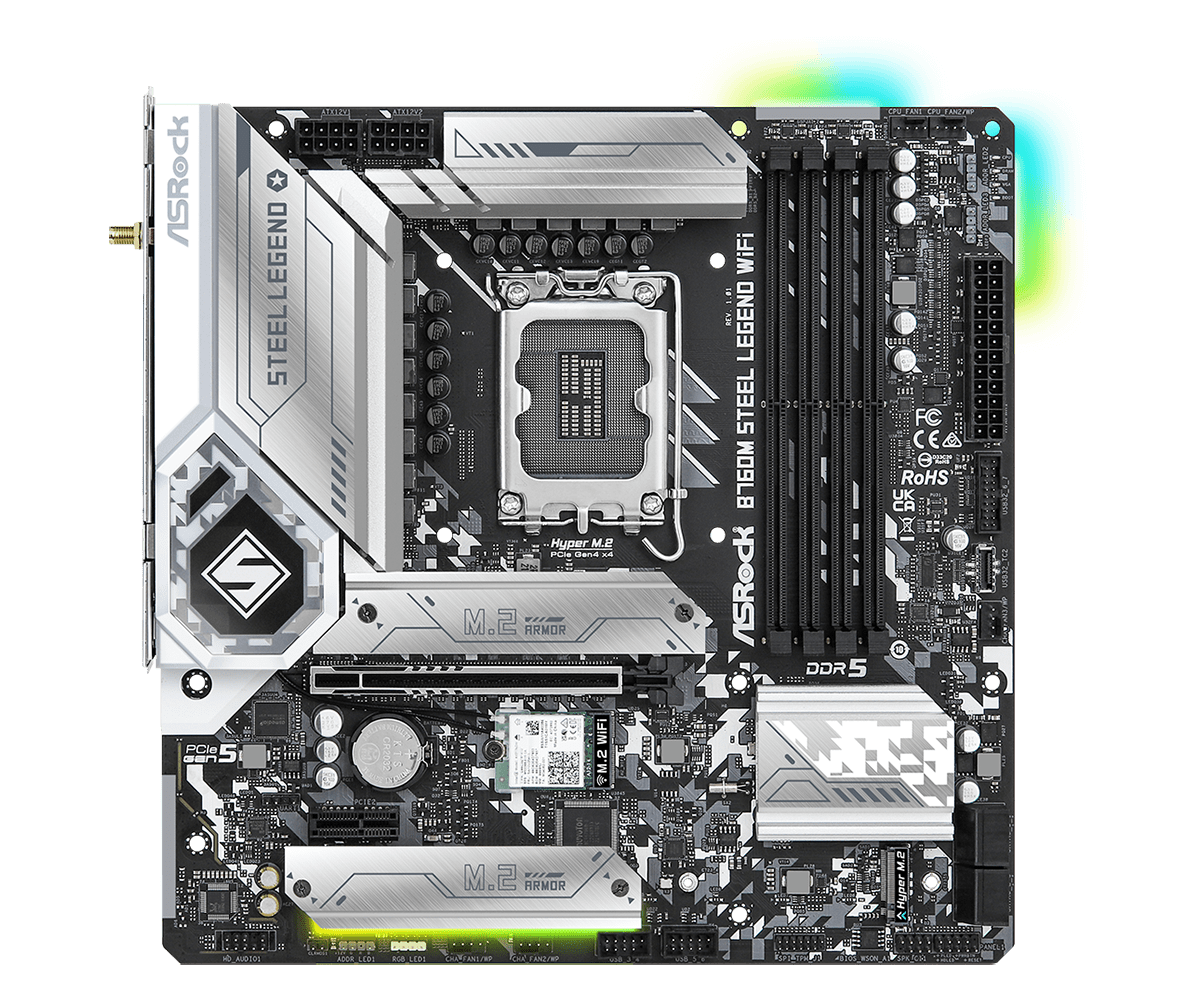

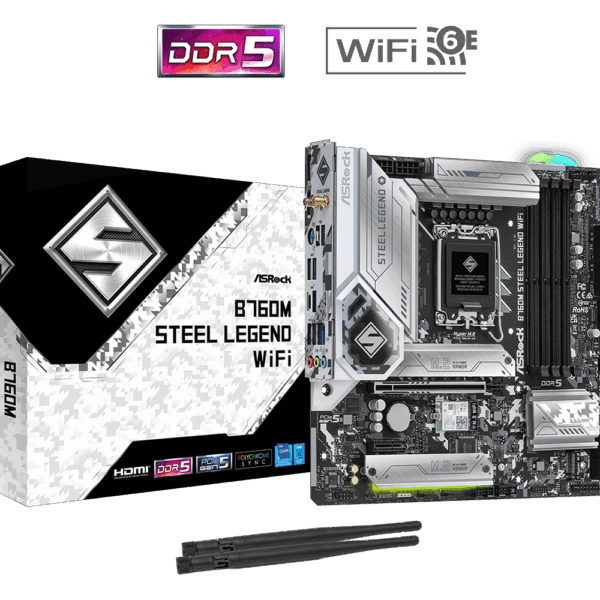

About ASRock B760M Steel Legend WiFi Micro‑ATX LGA1700 Motherboard
The B760M Steel Legend WiFi is compatible with Intel 12th, 13th, and 14th Gen Core processors and is designed for LGA 1700. Stable power delivery even under prolonged load is provided by its 12 1 1 Dr. MOS VRM design with premium 50 A power stages.
Four DDR5 slots with a maximum capacity of 128 GB and a frequency of 7200 MHz (OC) are supported. Top-tier speeds are achieved with dual-channel configurations that fully support XMP.
With three Hyper M.2 (PCIe 4.0 x4) sockets, four SATA3 ports, and 1× PCIe 5.0 x16 and 1× PCIe 4.0 x1 expansion, it offers exceptional expandability for its size. DisplayPort, eDP, and HDMI are examples of graphics outputs.

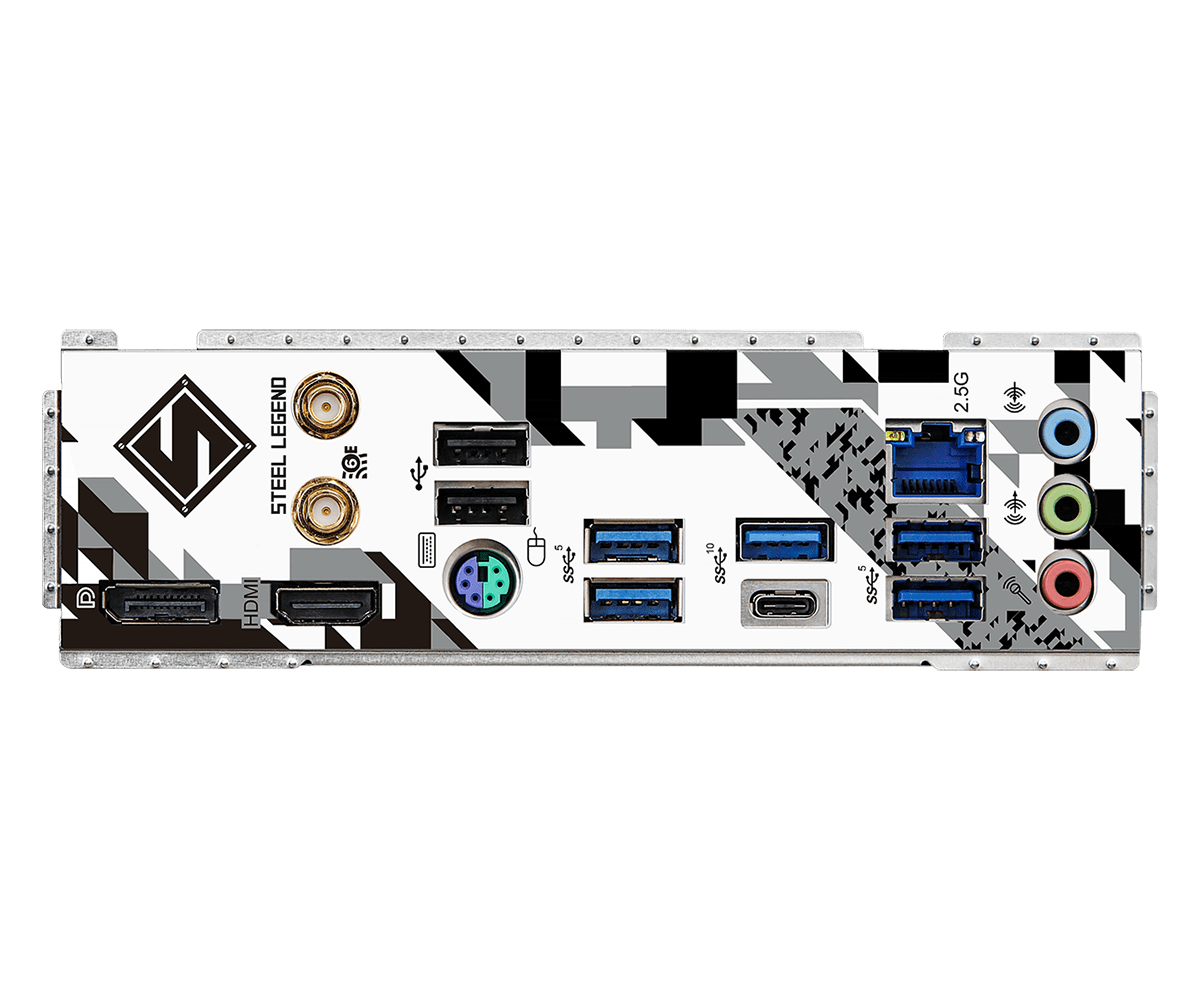

With a Realtek Dragon 2.5 GbE LAN and an onboard Wi-Fi 6E Bluetooth 5.3 module, along with external antennas, networking is extensive. Realtek ALC897 7.1-channel audio with Nahimic enhancements is used. Ideal for both modern and legacy devices, I/O connectivity features front-panel USB-C 3.2 Gen2, rear USB-C/A Gen2, Gen1 Type-A ports, and legacy USB2 headers.
Features of ASRock B760M Steel Legend WiFi Micro‑ATX LGA1700 Motherboard
| Spec | Details |
|---|---|
| Socket / Chipset | LGA 1700 / Intel B760 |
| CPU Compatibility | 12th–14th Gen Intel Core |
| VRM | 12 1 1 Dr. MOS (50 A) |
| Memory | 4× DDR5, up to 7200 MHz OC, 128 GB total |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x1 |
| M.2 Slots | 3× PCIe 4.0 x4 |
| SATA Ports | 4× SATA3 6 Gb/s |
| LAN/Wi‑Fi/Bluetooth | Dragon RTL8125BG 2.5 GbE, Wi‑Fi 6E, BT 5.3 |
| Audio | Realtek ALC897, Nahimic 7.1-channel |
| USB | 1 front USB 3.2 Gen2‑C, 1 rear Gen2‑C, 1 rear Gen2‑A, 6 Gen1, 6× USB2 headers |
| Graphics Outputs | HDMI 2.1, DisplayPort 1.4, eDP |
| Form Factor | Micro‑ATX (244 × 244 mm) |
| Warranty | 3 years (region-dependent) |
Ideally Best For
Compact Micro‑ATX gaming or productivity builds featuring 13th–14th gen Intel CPUs.
Users wanting PCIe 5 GPU future-proofing and multiple high-speed NVMe slots.
Builders seeking fast networking with integrated 2.5 GbE and Wi‑Fi 6E.
Enthusiasts who want DDR5 OC support up to 7200 MHz in a smaller form factor.
Buy ASRock B760M Steel Legend WiFi Micro‑ATX LGA1700 Motherboard DDR5‑7200 OC | PCIe 5.0 Wi‑Fi 6E Online Today.
