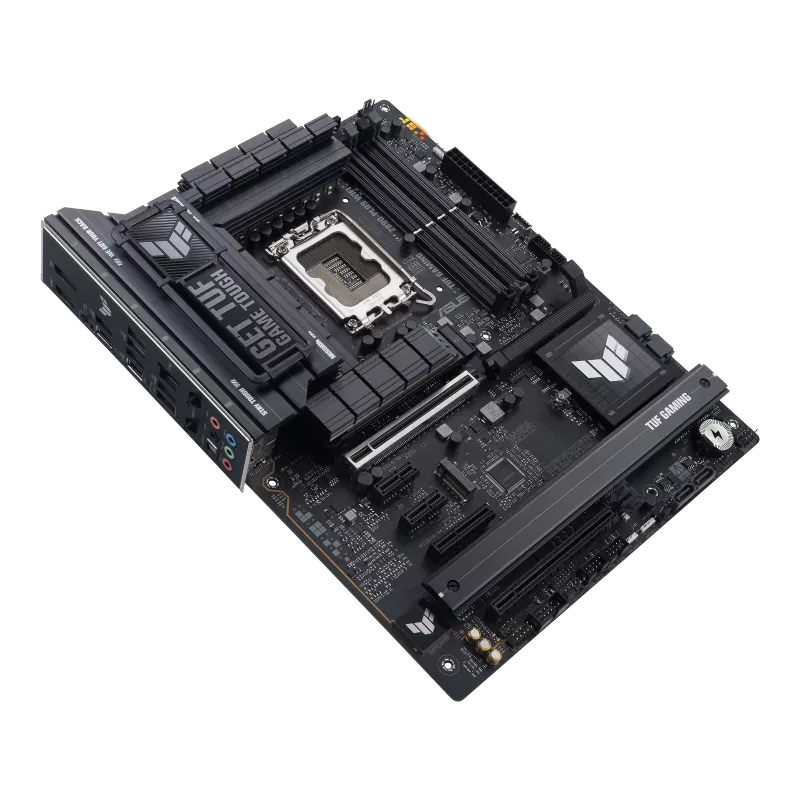

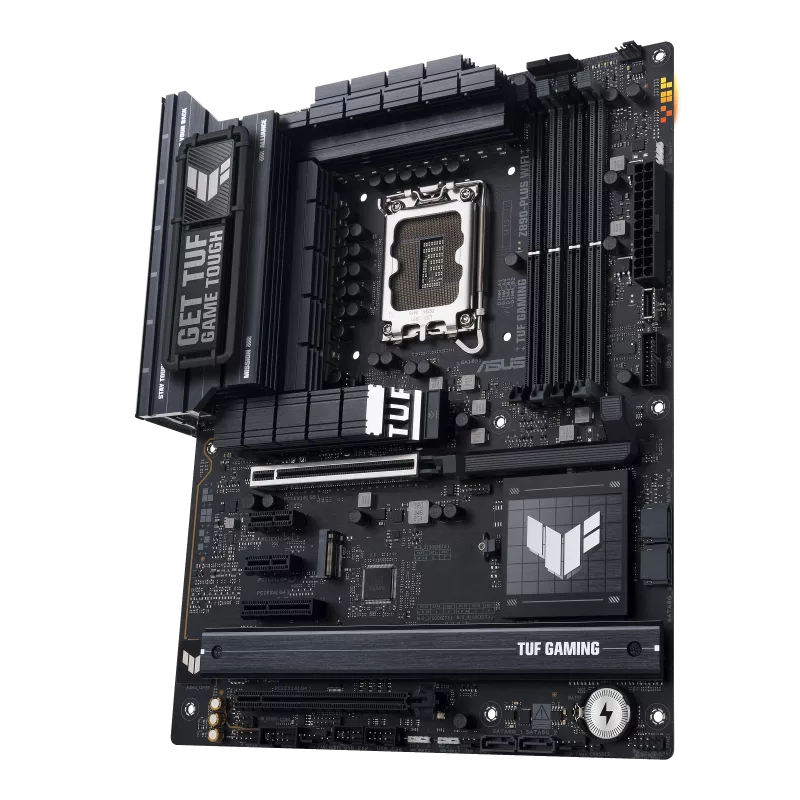

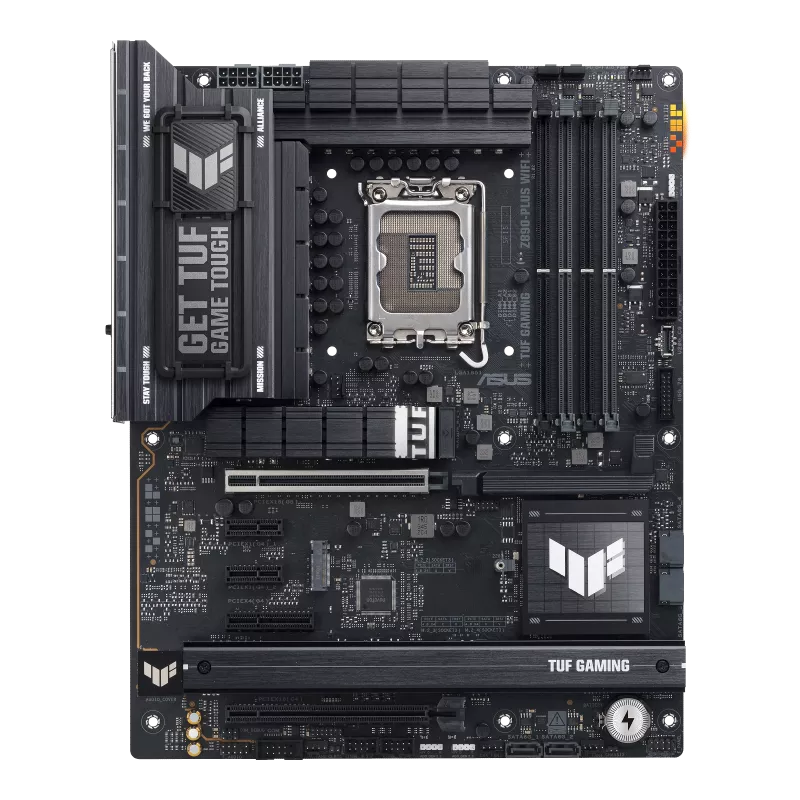

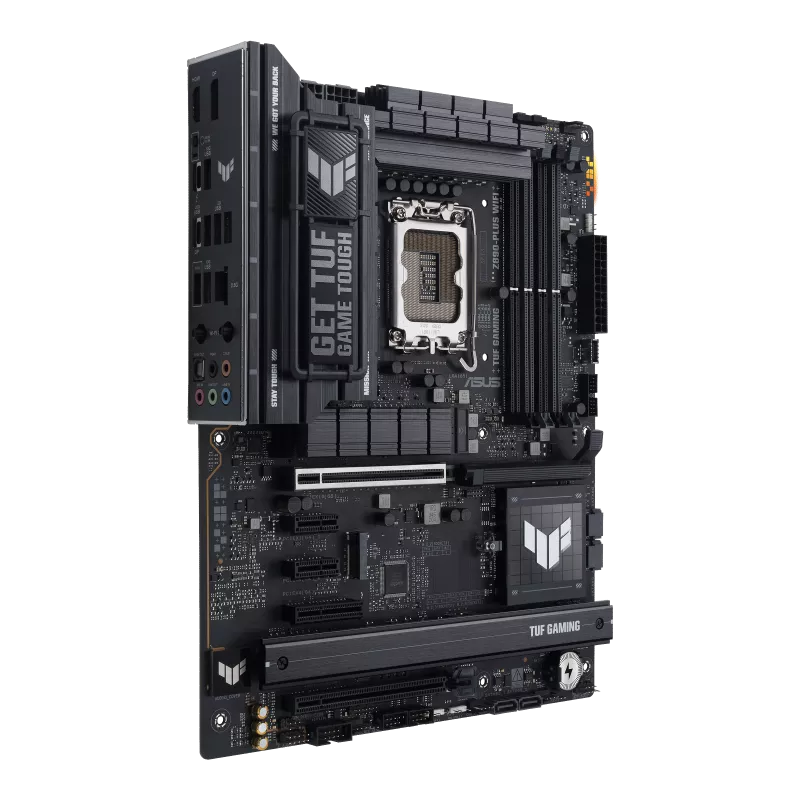

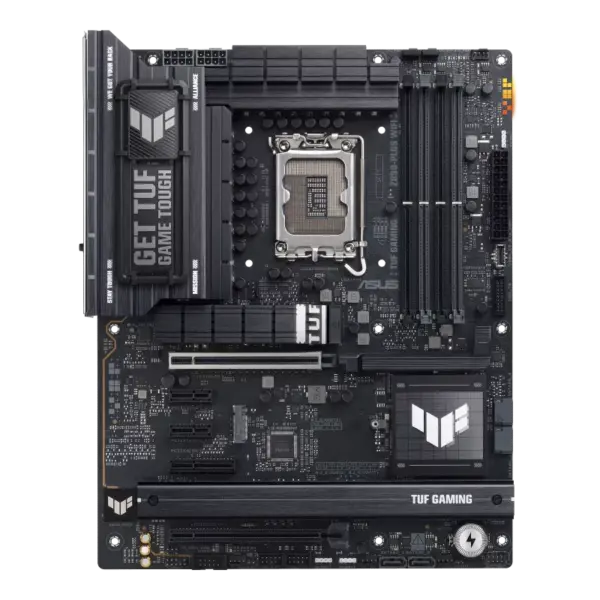

About ASUS TUF Gaming Z890-Plus WiFi Motherboard
Built on the Intel Z890 chipset with an LGA1851 socket, the Asus TUF Gaming Series Motherboard supports Intel Core Ultra Processors (Series 2) and DDR5 memory with speeds up to 9066+ MT/s (OC).
The Asus TUF Gaming Series Motherboard offers a 16+1+2+1 80A DrMOS power design and enlarged VRM heatsinks help provide stable operation during demanding workloads.
The Asus TUF Gaming WiFi Motherboard features a PCIe 5.0 x16 slot for next-generation graphics cards and four M.2 slots for versatile storage expansion.

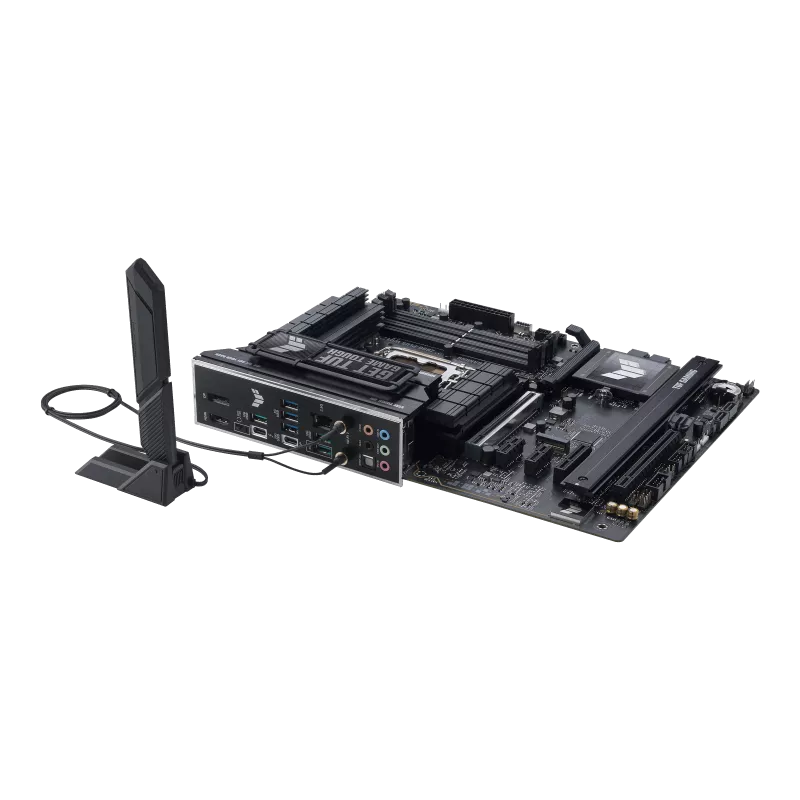

Wi-Fi 7 and Intel 2.5Gb Ethernet deliver fast networking, while Thunderbolt 4 and USB 20Gbps provide high-speed connectivity for compatible devices.
Gaming audio is handled by the Realtek ALC1220P codec with DTS Audio Processing.
With BIOS FlashBack, M.2 Q-Latch, PCIe Slot Q-Release, SafeSlot and Aura Sync, it offers practical DIY features alongside customizable lighting.
| Specification | Details |
|---|---|
| Model | TUF GAMING Z890-PLUS WIFI |
| Chipset | Intel Z890 |
| Form Factor | ATX, 30.5 × 24.4 cm |
| CPU Socket | Intel LGA1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| CPU Features | Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 |
| Power Stages | 16+1+2+1 80A DrMOS |
| Power Connectors | 1 × 24-pin Main Power + 2 × 8-pin +12V CPU |
| PCB | 8-layer PCB design |
| Memory Slots | 4 × DIMM |
| Memory Type | DDR5 |
| Memory Architecture | Dual Channel |
| Maximum Memory | Up to 256GB |
| Memory Speed | Up to 9066+ MT/s (OC) |
| Memory Support | Non-ECC, Un-buffered, CUDIMM |
| Memory Technologies | DIMM Fit, ASUS AEMP III, Intel XMP |

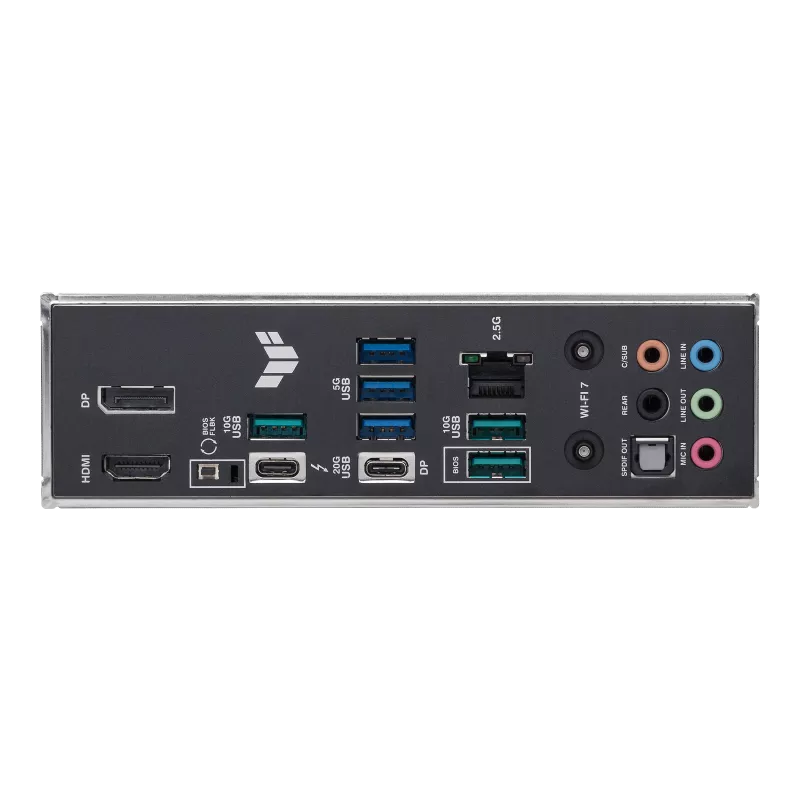

| Graphics | 1 × DisplayPort 1.4, up to 4K@60Hz |
| Graphics | 1 × HDMI 2.1, up to 4K@60Hz |
| Thunderbolt Video | 1 × Thunderbolt 4 USB Type-C with DisplayPort and Thunderbolt video support |
