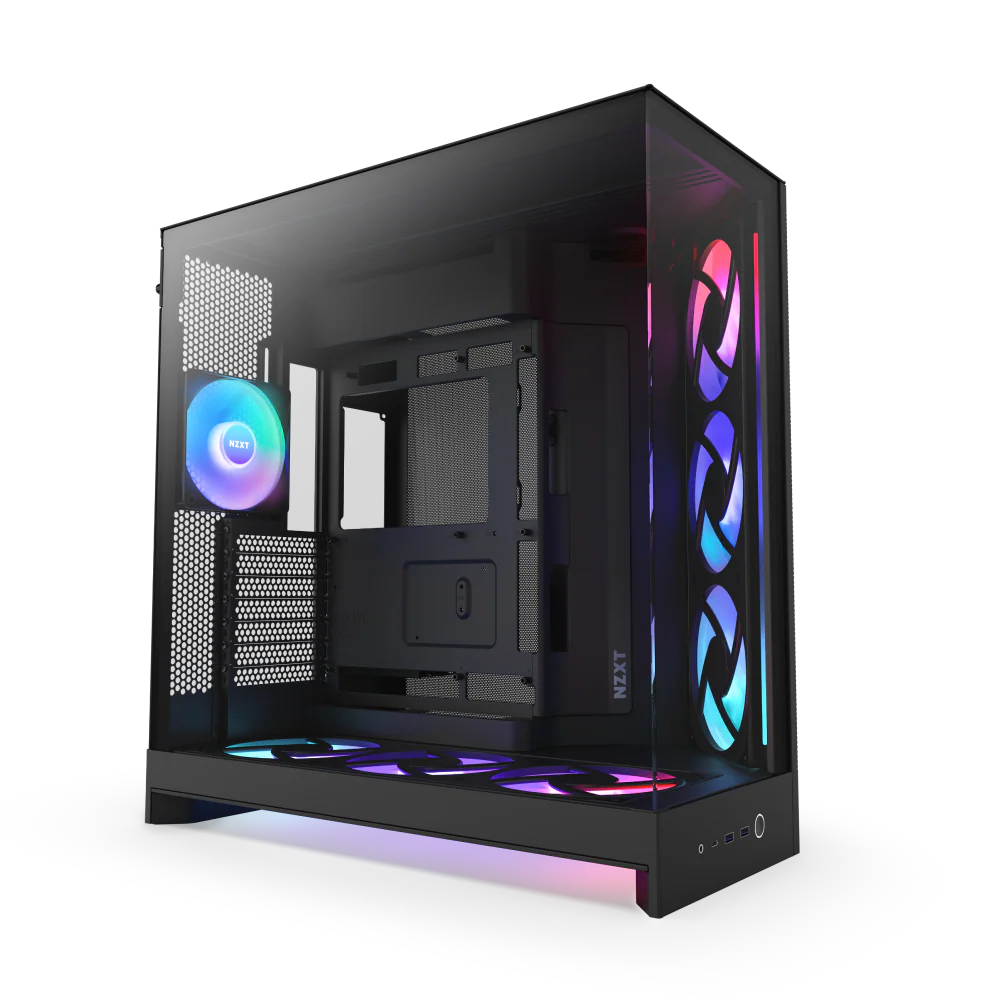

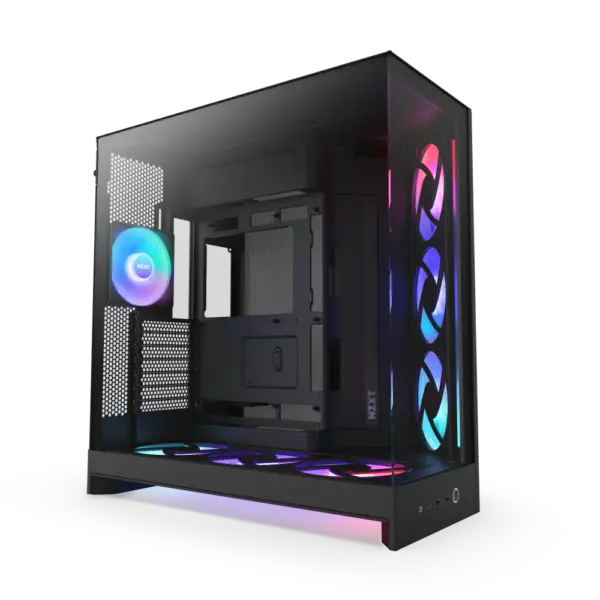

About NZXT Chassis H9 Flow RGB Plus Black Case
| Category | Specification Details |
|---|---|
| General | Dual-Chamber Mid-Tower ATX Case |
| Model Number | CM-H92FB-P1 (Black) |
| Materials | SGCC Steel, Tinted Tempered Glass |
| Dimensions & Weight | Height: 506 mm; Width: 315 mm; Depth: 481 mm; Volume: 76.7 L; Weight: ~13.4 kg |
| Motherboard Support | E-ATX (up to 277 mm), ATX, mATX, Mini-ITX |
| Drive Bays | 2.5″: 4+2; 3.5″: 2 |
| Expansion Slots | Standard: 7 |
| Front I/O Ports | 2 × USB 3.2 Type-A, 1 × USB 3.2 Gen2×2 Type-C, 1 × Headset Jack |
| Cooling Support | Up to 10 fans: Front/Right: 3×120/140 mm (2 × F420 RGB Core included) Top: 3×120/140 mm Bottom: 3×120/140 mm (1 × F420 RGB Core included) Rear: 1 × 120 mm (1 × F120 RGB Core included) |
| Radiator Support | Front/Right: up to 420 mm Top: up to 420 mm Bottom: up to 360 mm Rear: 120 mm |
| Clearance | CPU Cooler Height: 165 mm GPU Length: up to 459 mm (with <56 mm fan thickness) |
| Fan Specs (Included) | F420 RGB Core: ~2,000 RPM, ~98.6 CFM airflow, 34.5 dBA noise F120 RGB Core (CV): ~1,300 RPM, ~55.2 CFM airflow, 26.1 dBA noise |
| Control Hub | NZXT Control Hub included: multiple NZXT 8-pin fan and RGB channels supported |
| Back-Connect Support | ASUS BTF and MSI Project Zero compatible (ATX only) |
| Warranty | 2 years |

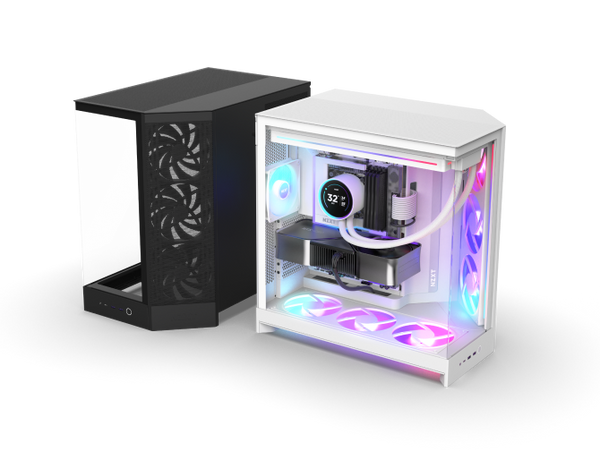

At its core, the NZXT Black Desktop Mid Tower Chassis embraces a dual-chamber layout, separating the main components — such as GPU, CPU, and cooling — from the power supply and storage compartments.
This architectural choice not only enhances thermal performance but also leads to cleaner internal routing, drastically simplifying cable management and improving airflow efficiency.
Airflow performance is at the forefront of the NZXT Black Desktop Mid Tower Chassis’s design philosophy.

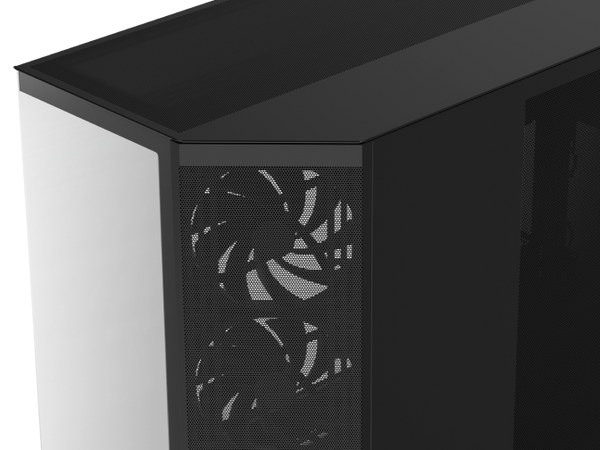

Perforated steel panels and airflow-centric fan placements ensure uninterrupted intake and exhaust pathways, keeping vital components cool under heavy loads.
The NZXT Flow RGB Series Desktop Cabinet can support up to ten fans in total, including pre-installed NZXT F420 RGB Core and F120 RGB Core units that provide a balance of high airflow and stunning lighting.
Plus, the support for large radiators — up to 420 mm on the top or front-right panel — gives builders the freedom to install robust liquid cooling systems without compromise.
The cohesive aesthetic continues with panoramic wraparound tempered glass panels, offering a wide viewing angle of your internal components and RGB lighting.
Whether you’re showcasing high-end graphics cards, custom cooling loops, or memory modules with synchronized lighting, the NZXT Black Desktop Mid Tower Chassis provides a gallery-worthy backdrop for every build.
Functionality meets versatility with comprehensive hardware support.
The NZXT Black Desktop Mid Tower Chassis accommodates a wide range of motherboard sizes — including E-ATX, ATX, mATX, and mini-ITX — making it adaptable to different build goals, from powerhouse gaming rigs to content creation systems.

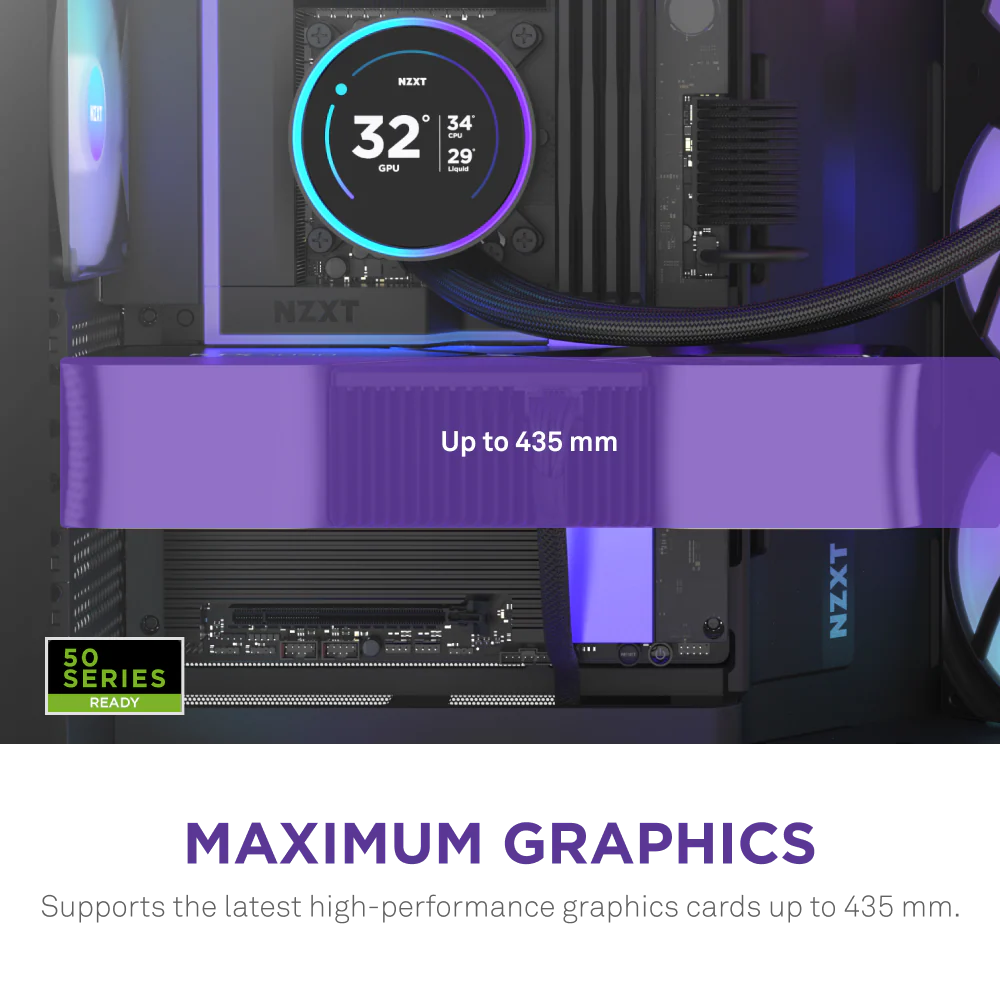

Long GPUs up to 459 mm and tall CPU coolers up to 165 mm are fully supported, ensuring compatibility with even the largest components.
Connectivity is modern and convenient, with front I/O including USB 3.2 Type-A, USB 3.2 Gen2×2 Type-C, and a headset jack to keep essential peripherals close at hand.
The inclusion of the NZXT Control Hub in the NZXT Black Dual Chamber Mid Tower Cabinet further enhances the build experience, consolidating fan and RGB control into a single unit that simplifies system tuning and synchronization.
Attention to detail is evident throughout the case’s design — extra-wide cable channels, built-in Velcro straps, and multiple tie-down points make cable routing intuitive and efficient, giving your build a professional finish.
Additionally, support for back-connect motherboards like ASUS BTF and MSI Project Zero opens up next-level cable-free aesthetics for compatible setups.
The NZXT H9 Flow RGB Plus Black Case delivers a perfect blend of form, function, and performance.
Its robust airflow capabilities, dual-chamber design, expansive cooling support, and visual appeal make it an outstanding choice for anyone looking to build a premium PC with efficiency and style.
