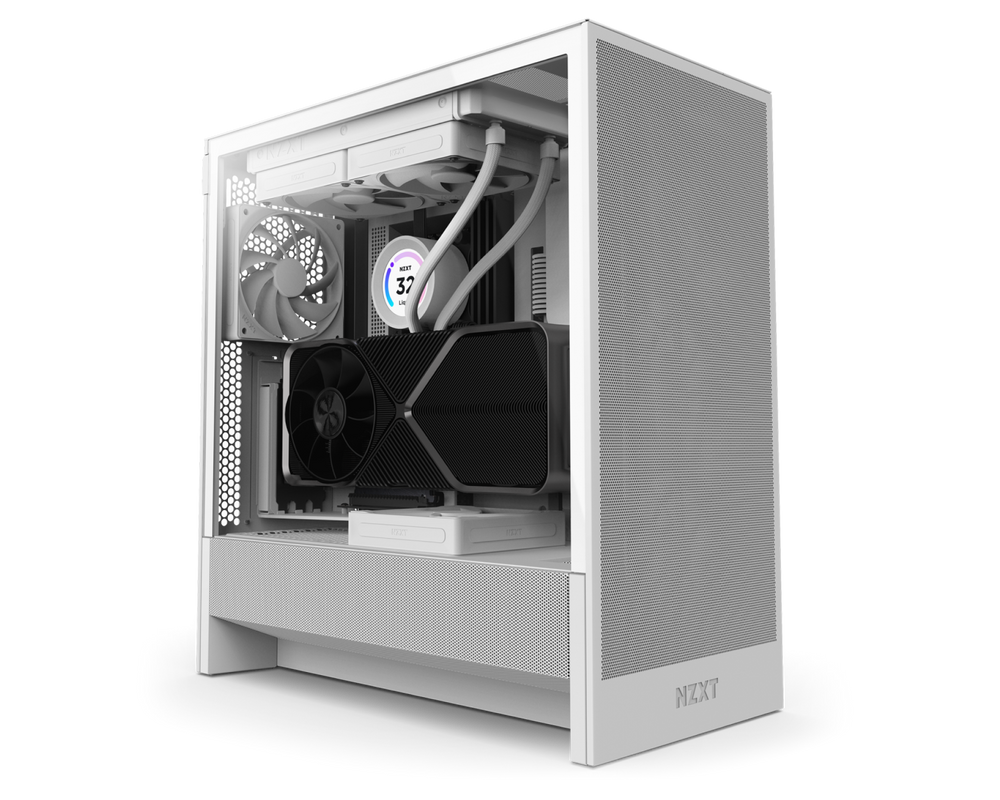

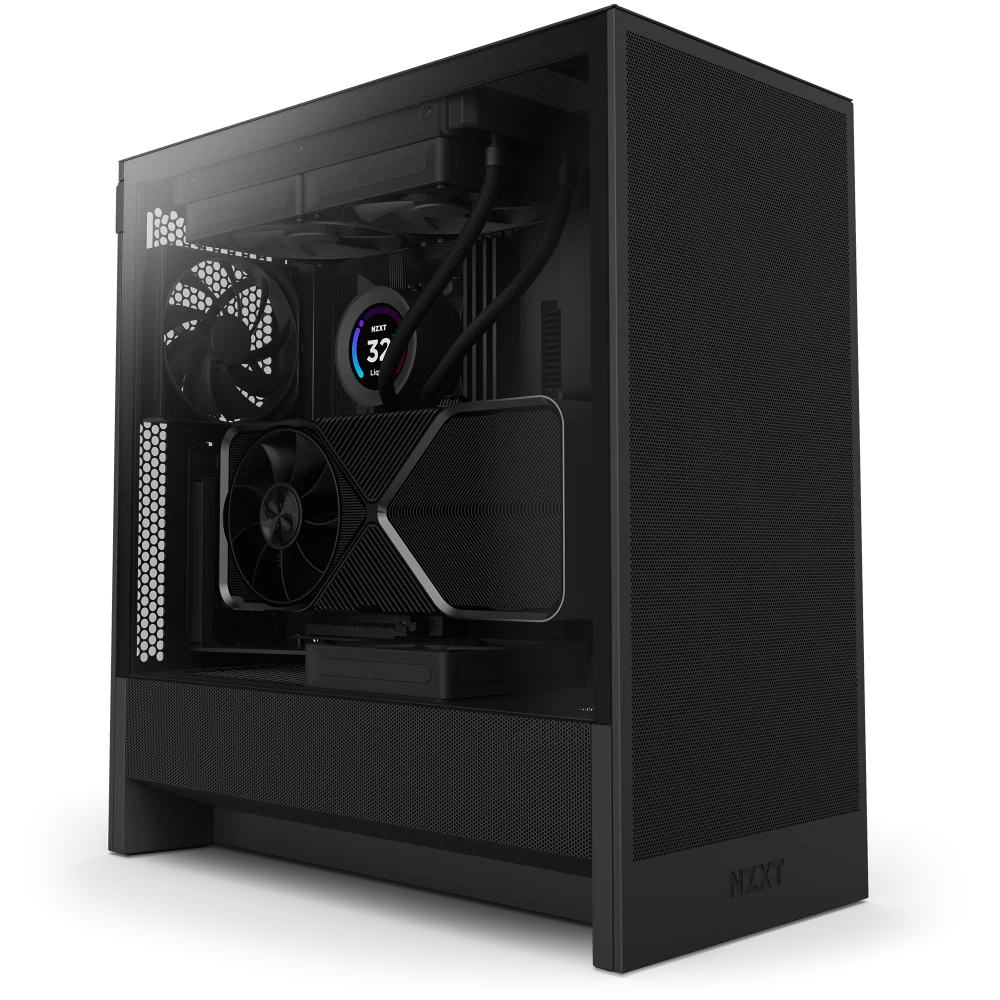

About NZXT Chassis H5 Flow mATX Cabinet
| Category | Specification Details |
|---|---|
| Product Name | NZXT Chassis H5 Flow |
| Case Type | Compact Mid-Tower |
| Form Factor Support | Mini-ITX, Micro-ATX, ATX |
| Material | SGCC Steel, Tempered Glass |
| Front Panel Design | High-performance mesh airflow panel |
| Side Panel | Tempered glass with single-screw access |
| Included Fans | 2 × 120 mm (1 rear, 1 bottom angled) |
| Fan Support (Front) | 2 × 120 mm / 2 × 140 mm |
| Fan Support (Top) | 2 × 120 mm |
| Fan Support (Rear) | 1 × 120 mm |
| Radiator Support (Front) | Up to 280 mm |
| Radiator Support (Top) | Up to 240 mm |
| GPU Clearance | Up to 365 mm |
| CPU Cooler Height | Up to 165 mm |
| PSU Length Clearance | Up to 180 mm |
| Storage Bays | 2 × 3.5″ HDD, 2 × 2.5″ SSD |
| Expansion Slots | 7 |
| Front I/O Ports | USB-C, USB-A, Audio Combo |
| Cable Management | Integrated channels & straps |
| Bottom Fan Design | Dedicated angled airflow fan |

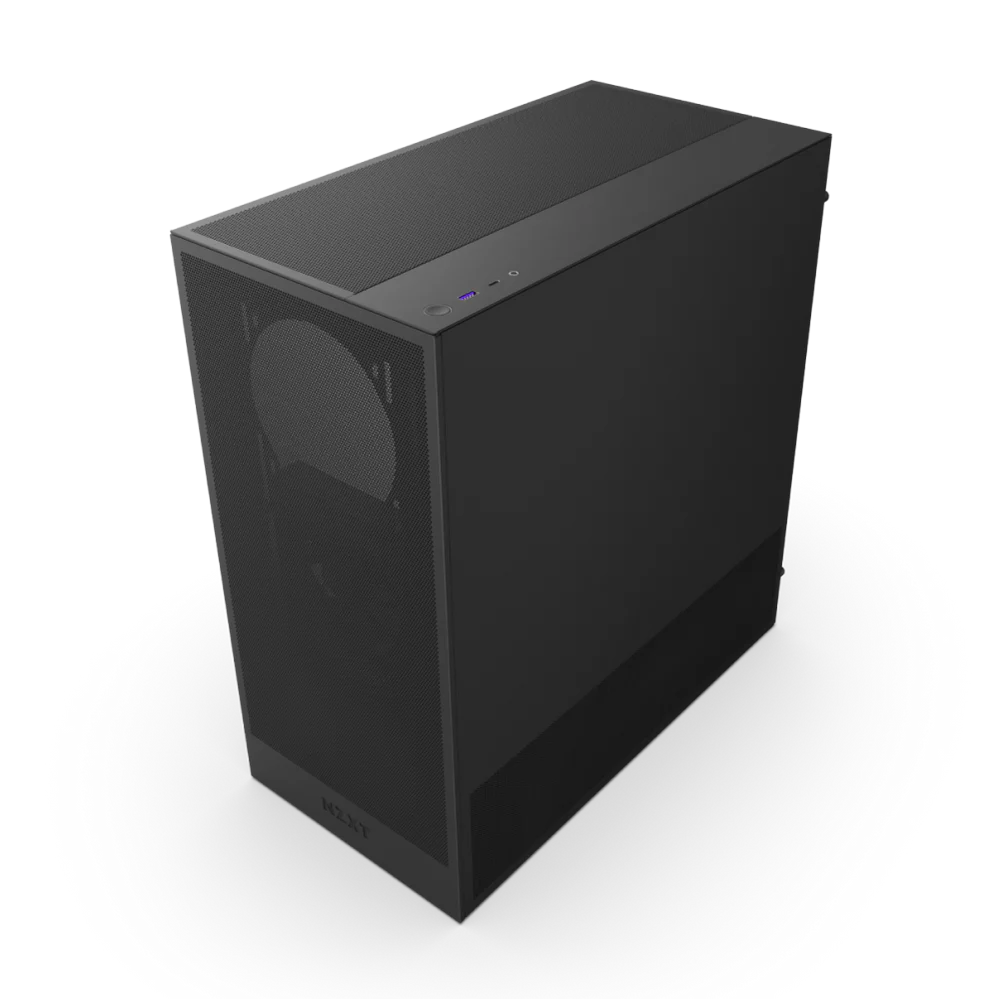

At the core of the NZXT Chassis H5 Flow mATX Cabinets design is its high-airflow mesh front panel, which allows unrestricted intake of cool air.
This ensures stable thermal performance even during demanding gaming sessions or productivity workloads.
Unlike closed-front designs, the mesh construction improves cooling efficiency while preserving NZXT’s clean and understated design language.
The result is a case that performs as well as it looks.

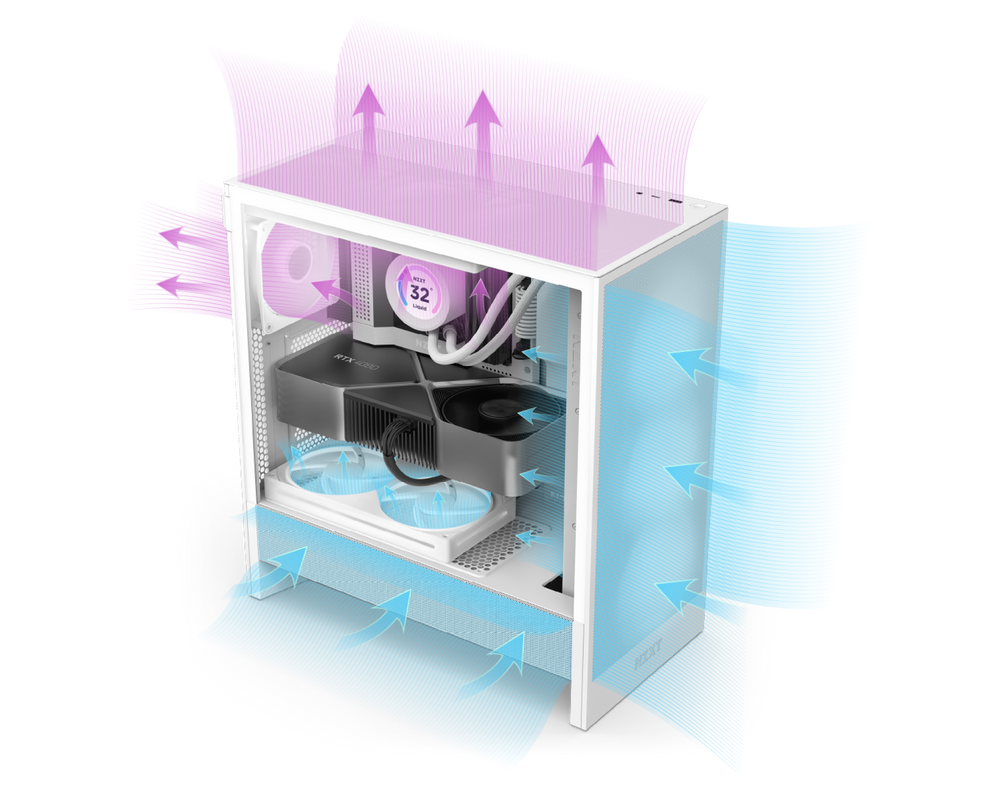

One of the most distinctive features of the NZXT Chassis H5 Flow mATX Cabinet is its dedicated angled bottom fan.
This fan is strategically positioned to channel airflow directly toward the graphics card, an area that often generates the most heat.
By prioritizing GPU cooling, the chassis helps maintain consistent frame rates and long-term component reliability.
This thoughtful airflow innovation sets the H5 Flow apart from conventional mid-tower cases.
Despite its compact mid-tower form, the H5 Flow offers impressive internal compatibility.
It supports Mini-ITX, Micro-ATX, and ATX motherboards, making it suitable for a wide range of system builds.
There is ample clearance for modern high-end components, including graphics cards up to 365 mm in length and CPU coolers up to 165 mm in height.
Builders can confidently install powerful hardware without compromise.
Cooling flexibility is another highlight of the H5 Flow chassis.

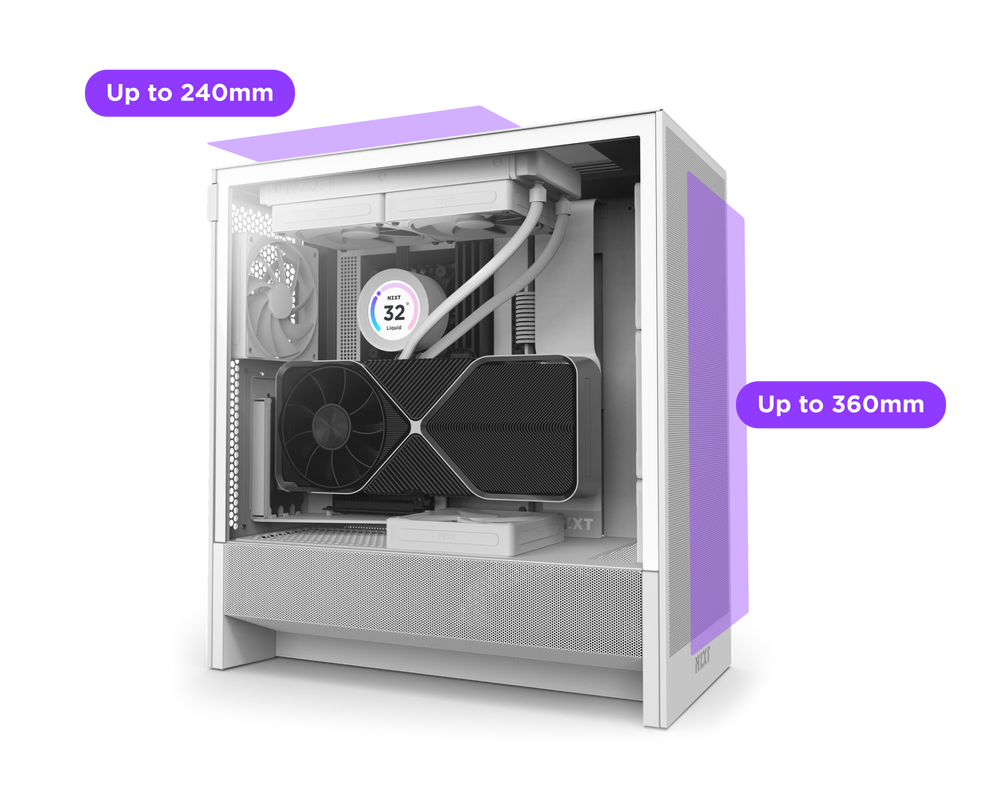

It supports multiple fan placements and radiator sizes, including front radiators up to 280 mm and top radiators up to 240 mm.
Whether using high-performance air cooling or an all-in-one liquid cooling solution, the case adapts easily to different thermal strategies.
Pre-installed fans provide a strong airflow baseline right out of the box.

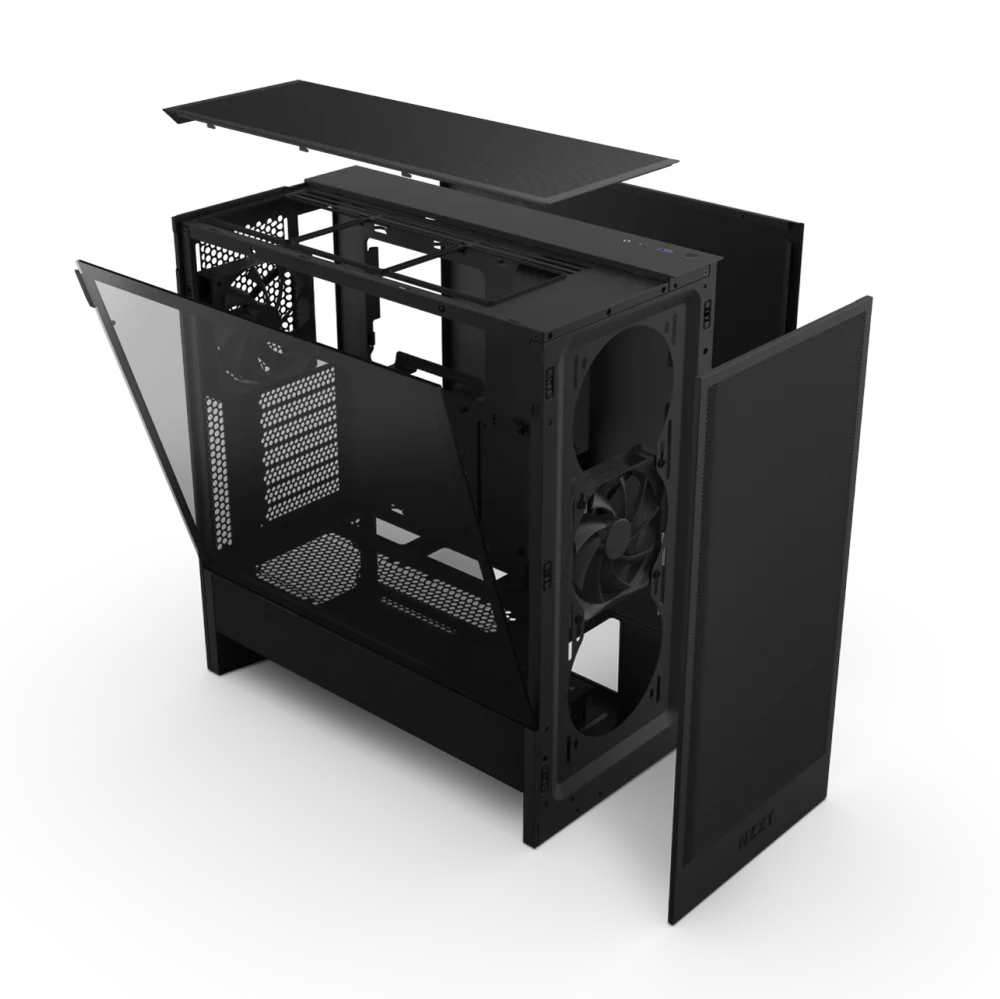

The interior layout is designed for efficiency and ease of assembly.
NZXT’s integrated cable management system includes built-in channels and reusable straps that simplify routing and organization.
This not only improves airflow but also creates a clean, professional interior appearance.
Storage support includes dedicated mounts for both 3.5-inch hard drives and 2.5-inch solid-state drives, ensuring flexible storage configurations.

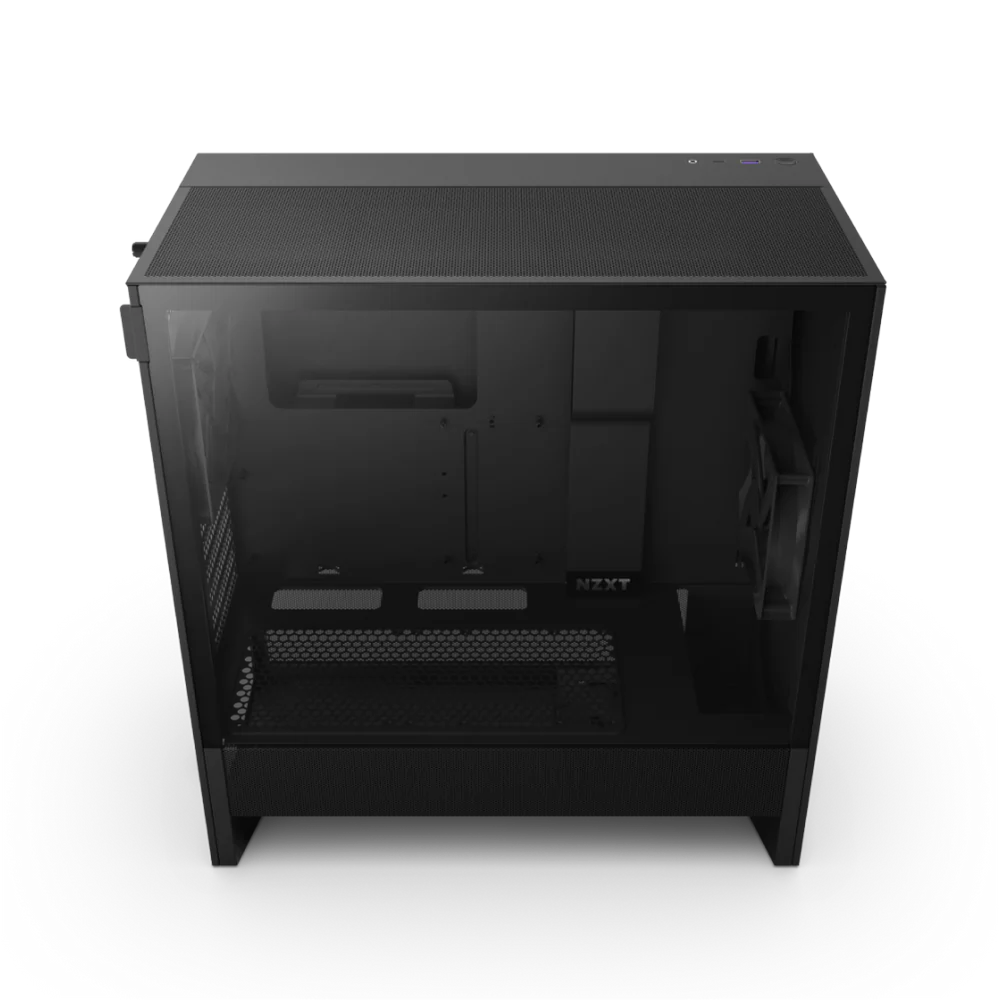

Externally, the tempered glass side panel offers a clear view of internal components, making it ideal for showcasing RGB lighting or custom builds.
The front I/O panel includes modern connectivity options such as USB-C and USB-A ports, ensuring convenient access for everyday peripherals.
The NZXT Chassis H5 Flow mATX Cabinet is a well-engineered solution for builders seeking reliable airflow, intelligent design, and modern aesthetics.
With its unique GPU-focused cooling, versatile compatibility, and clean internal layout, it provides a solid platform for powerful and visually refined PC builds.
