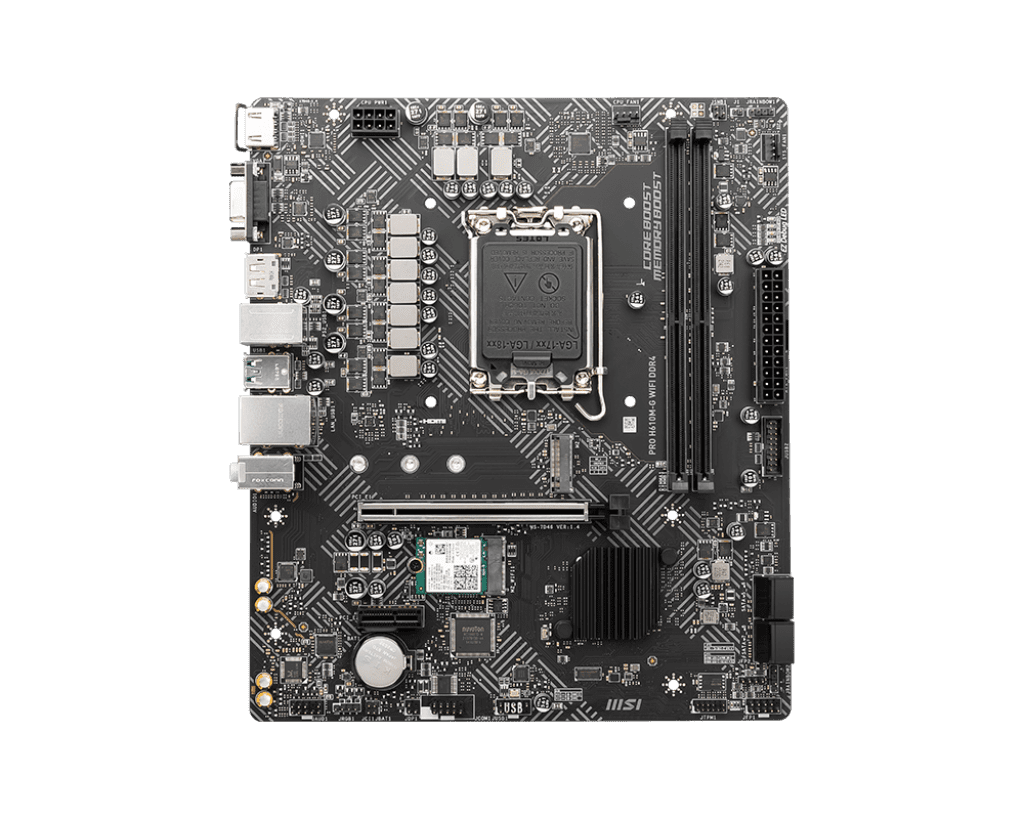

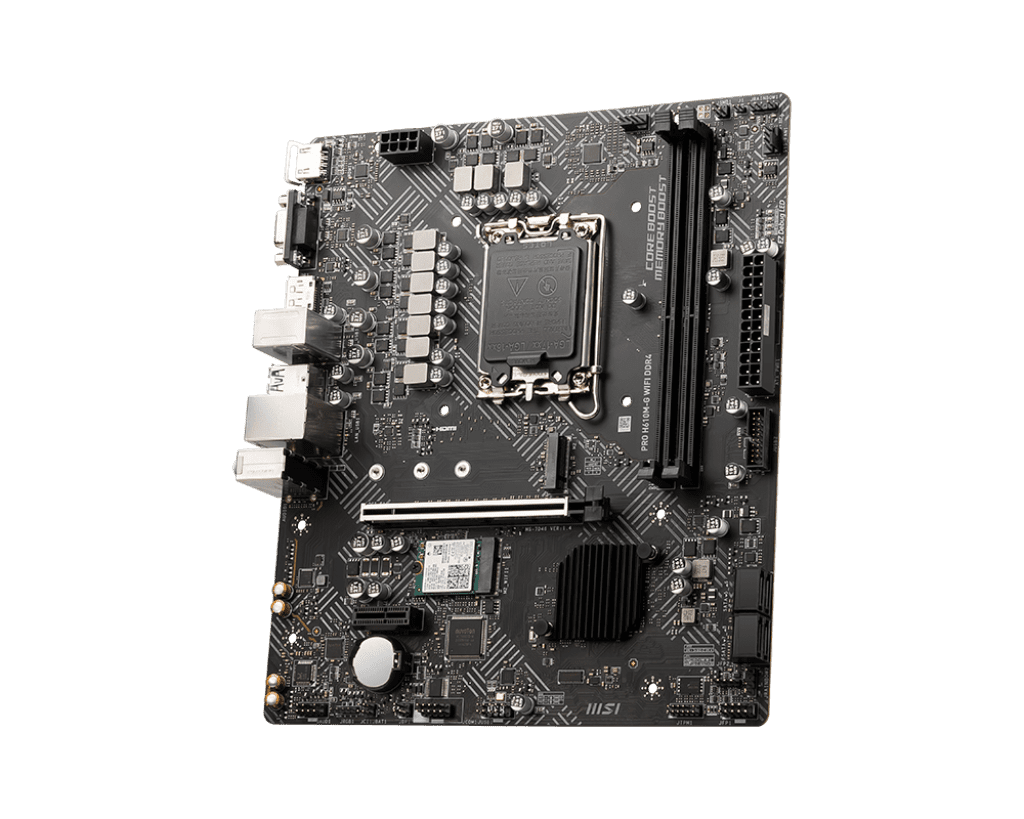

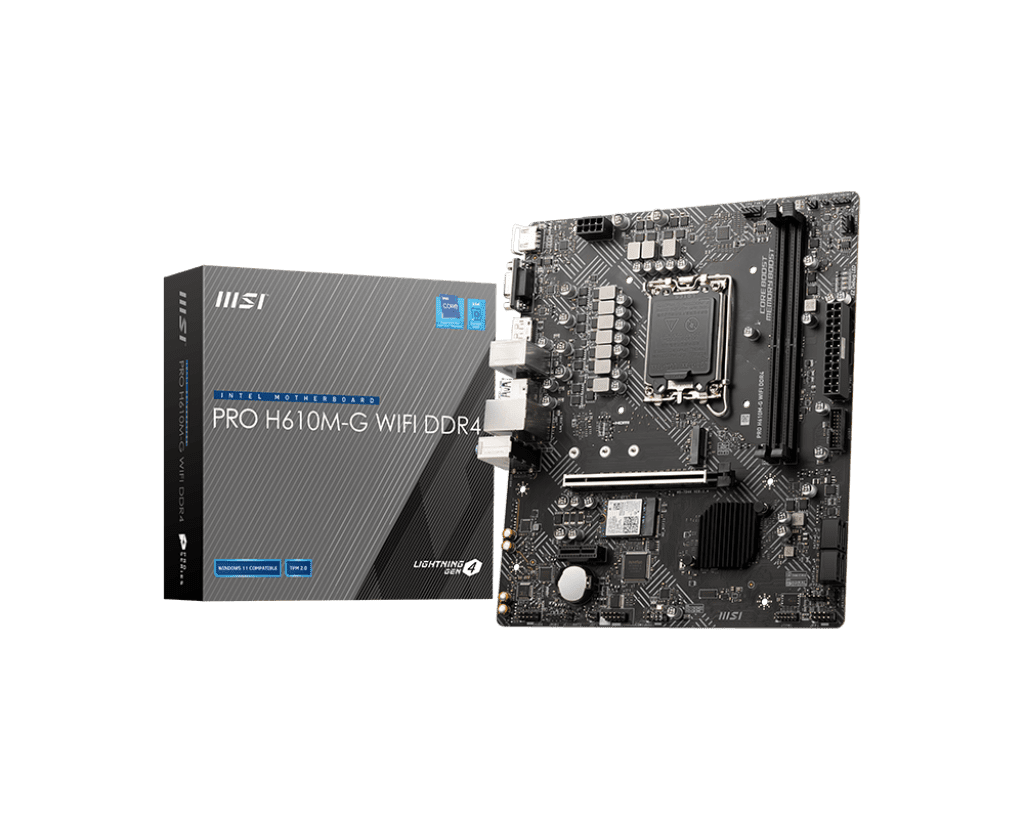

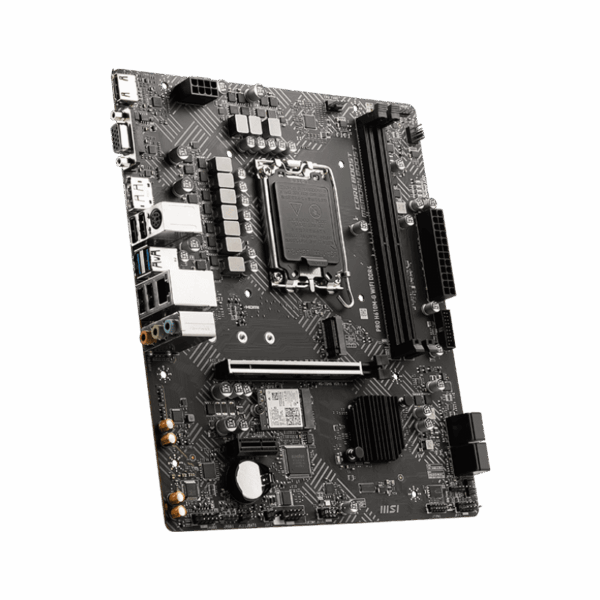

About MSI PRO H610M‑G WiFi DDR4 Micro‑ATX Motherboard
An effective and small motherboard, the MSI PRO H610M‑G WiFi DDR4 is made for builders who desire basic contemporary features at a reasonable cost. It is compatible with Intel’s 12th, 13th, and 14th generation processors that use the H610 chipset and LGA 1700 socket. With speeds up to 3200 MHz and support for up to 64 GB DDR4 RAM through two DIMM slots, this board is appropriate for light productivity, multitasking, and daily tasks.
A PCIe 3.0 x1 slot is perfect for expansion cards like sound cards or Wi-Fi adapters, while a reinforced PCIe 4.0 x16 slot offers a sturdy base for graphics cards. A PCIe 3.0 x4 M.2 slot for fast NVMe SSDs and four SATA 6 Gb/s ports for extra drives provide storage flexibility.
For flexible connectivity, networking is managed through integrated Intel Wi-Fi 5, Bluetooth 4.2, and 1G LAN. Additionally, it has DisplayPort, VGA, and HDMI outputs for support of multiple monitors. A pre-installed I/O shield, EZ Debug LEDs, and integrated 7.1-channel HD audio improve user experience and installation simplicity.
Features of the MSI PRO H610M‑G WiFi DDR4 Micro‑ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel H610 / LGA 1700 |
| CPU Support | 12th–14th Gen Intel Core, Pentium Gold, Celeron |
| Form Factor | Micro‑ATX |
| Memory Support | 2× DDR4 DIMM, up to 64 GB, 2133–3200 MHz |
| Expansion Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| Storage Options | 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s |
| Wireless | Intel Wi‑Fi 5, Bluetooth 4.2 |
| LAN | Intel Gigabit LAN |
| Display Outputs | HDMI 2.1, DisplayPort 1.4, VGA |
| Audio | Realtek ALC897, 7.1‑channel HD Audio |

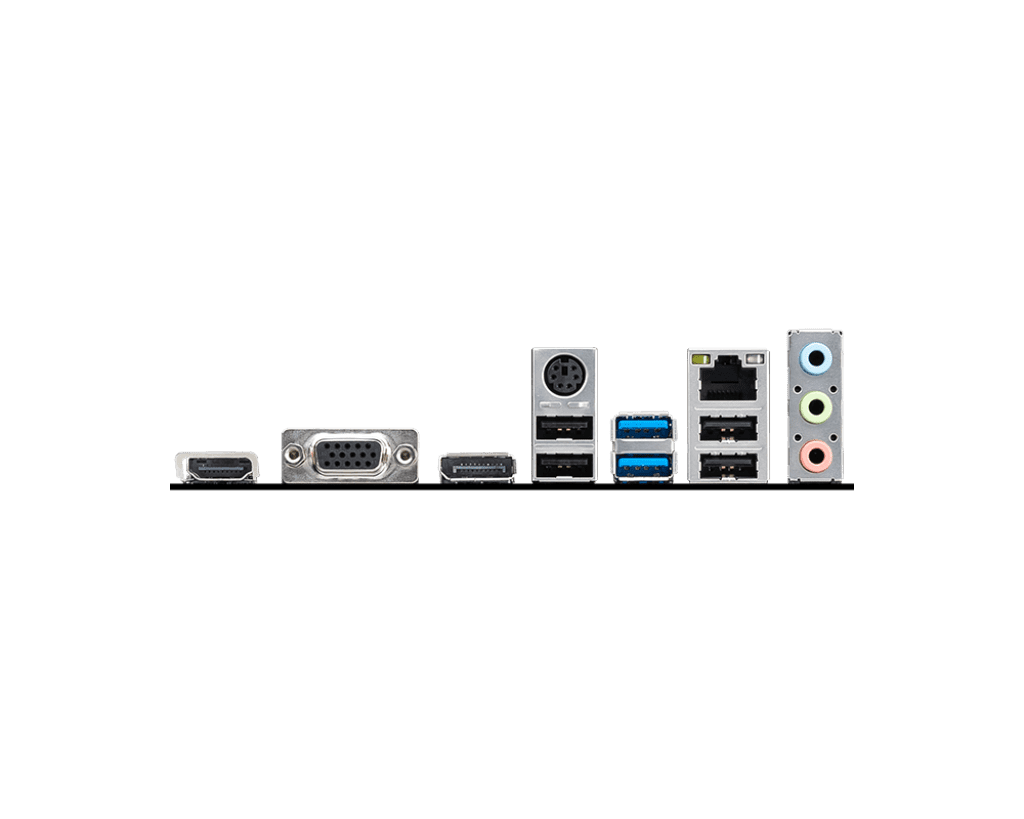

| Rear I/O Ports | USB 3.2 Gen1, USB 2.0, LAN, Audio, Video Out |
| Internal Headers | USB, RGB, CPU/Chassis Fan, TPM, COM |
| Build Tools | Pre-installed I/O shield, BIOS Flash, Debug LEDs |
Ideally Best For
- Budget home or office PC builds
- Everyday computing and productivity setups
- Entry-level gaming rigs with single-GPU setups
- Small form-factor systems with wireless networking
- Builders seeking reliable DDR4 support in a compact board
