MSI MPG Z790 Edge WiFi DDR5 ATX Motherboard LGA 1700 DDR5 | PCIe 5.0 x16, Dual M.2 Gen4
Original price was: ₹40,368.00.₹39,415.00Current price is: ₹39,415.00.
MSI PRO B760M‑E DDR4 Micro‑ATX Motherboard LGA 1700 DDR4 | PCIe 4.0 M.2, 2.5G LAN
Original price was: ₹9,541.00.₹9,316.00Current price is: ₹9,316.00.
-2%
MSI PRO B760M‑P DDR5 Micro‑ATX Motherboard LGA 1700 DDR5 | PCIe 4.0 M.2, 2.5G LAN
MSI PRO B760M‑P DDR5 Micro‑ATX Compact, high-performance micro‑ATX motherboard built for Intel 12th–14th Gen platforms with fast DDR5 memory, PCIe 4.0 NVMe storage, and 2.5G LAN—ideal for gaming, productive workflows, and compact PC builds.
Original price was: ₹12,232.00.₹11,943.00Current price is: ₹11,943.00.
12
People watching this product now!
Payment Methods:
Description
About MSI PRO B760M‑P DDR5 Micro‑ATX Motherboard
For desktop upgrades or new builds based on Intel’s LGA 1700 platform, the MSI PRO B760M‑P DDR5 offers crucial contemporary features in a compact form factor. With support for the newest 12th, 13th, and 14th Gen Core processors and DDR5 memory up to 6800 MHz, it provides responsive performance for gaming, content creation, and multitasking.
This board guarantees dependable power delivery under extended workloads thanks to its 10 1 phase VRM design and heatsinks. A reinforced PCIe 4.0 x16 slot for graphics cards, a PCIe 3.0 x1 slot for peripherals, and a fast PCIe 4.0 x4 M.2 slot with thermal protection for NVMe SSDs all provide strong support for expansion. Four SATA 6 Gb/s ports allow for the installation of additional drives, making them perfect for backup or large storage.

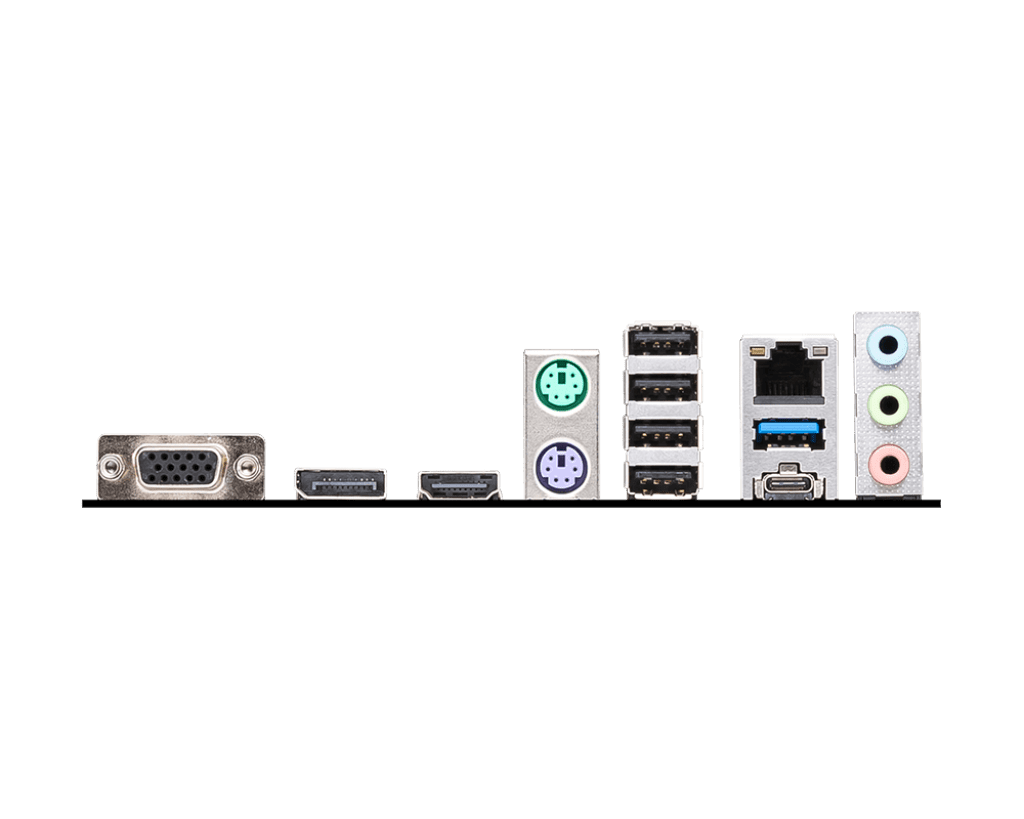

The rear I/O offers contemporary connectivity, including USB 3.2 Gen2 Type-C, USB 3.2 Gen1 Type-A, and USB 2.0, and the 2.5G LAN meets networking needs. For clear visual output, display options support DisplayPort 1.4 and HDMI 2.1. A 7.1-channel surround sound system powered by a high-definition Realtek codec handles audio. Features like the BIOS Flash button, EZ Debug LEDs, pre-installed I/O shield, and an ARGB header for optional case lighting configurations will be appreciated by builders.
Features of the MSI PRO B760M‑P DDR5 Micro‑ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel B760 / LGA 1700 |
| CPU Support | Intel 12th–14th Gen Core Pentium/Celeron |
| Form Factor | Micro‑ATX |
| Memory Support | 4× DDR5 DIMM, up to 128 GB, OC up to 6800 MHz |
| Power Design | 10 1 phase VRM with heatsinks |
| PCIe Slots | 1× PCIe 4.0 x16 (steel-reinforced), 1× PCIe 3.0 x1 |
| M.2 Storage | 1× PCIe 4.0 x4 NVMe with heatsink |
| SATA Ports | 4× SATA III 6 Gb/s |
| Networking | 2.5G LAN |
| USB Connectivity | USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | Realtek HD 7.1-channel |
| Build Tools | Pre-installed I/O shield, BIOS Flash, Debug LEDs, ARGB header |
Ideally Best For
- Compact gaming systems powered by Intel Core CPUs
- Home office and productivity PCs require fast memory and storage
- DIY mini-ATX builders seeking modern features in small chassis
- Value-focused setups wanting DDR5 and PCIe 4.0 performance
- Case modders and lighting enthusiasts utilising ARGB support
Buy MSI PRO B760M‑P DDR5 Micro‑ATX Motherboard LGA 1700 DDR5 | PCIe 4.0 M.2, 2.5G LAN Online Today.
