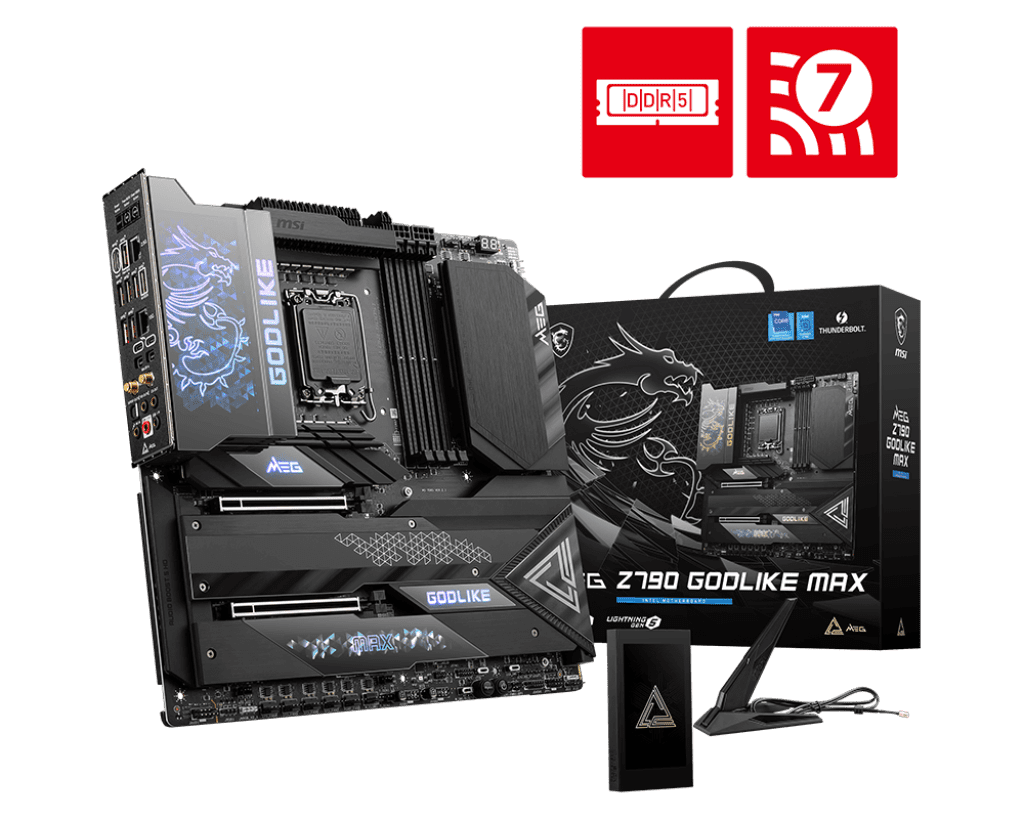

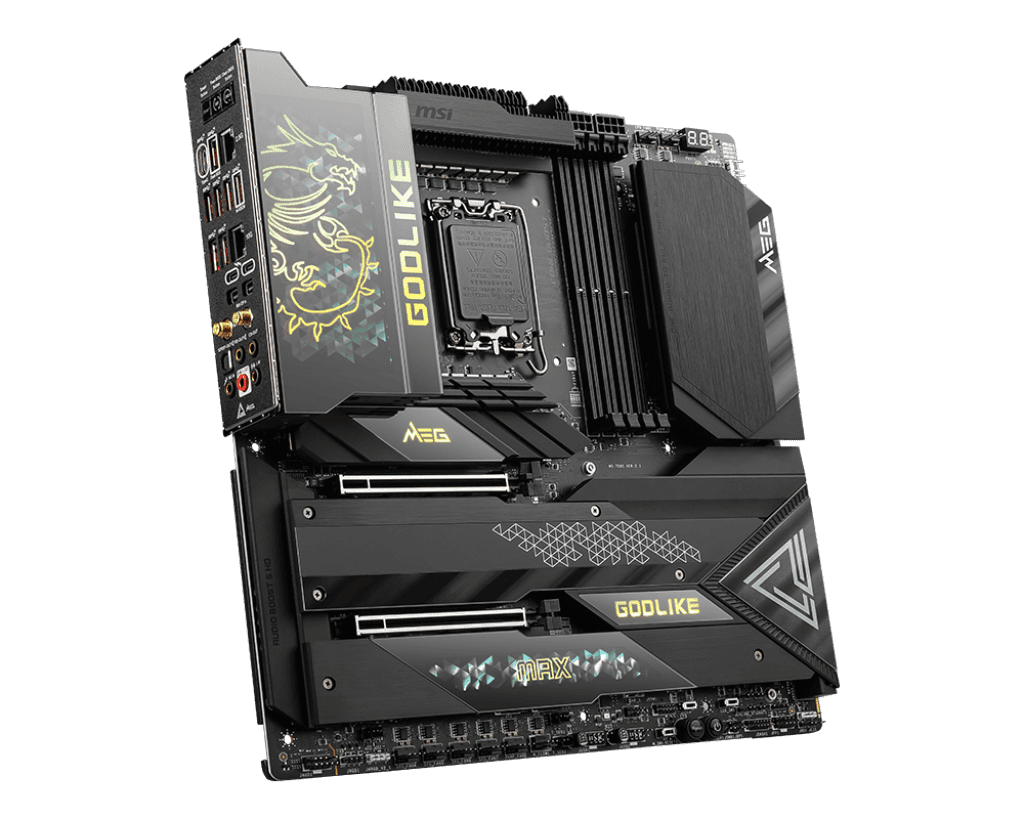

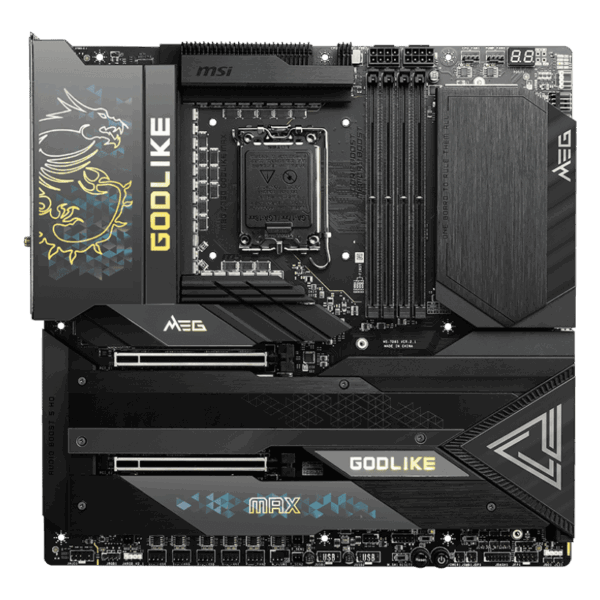

About MSI MEG Z790 Godlike Max ATX Motherboard
Designed for high-end builders and performance enthusiasts, the MSI MEG Z790 Godlike Max is the epitome of Intel motherboard engineering. It fully supports Intel’s 12th, 13th, and 14th Gen Core processors and is built on the high-end Z790 chipset and LGA 1700 socket. With DDR5 support up to 8000+ MHz (OC) across four DIMM slots, you can boost memory performance. Full bandwidth expansion cards or multi-GPU configurations are made possible by dual reinforced PCIe 5.0 x16 slots. With four Gen4 x4 M, storage is explosive. Two slots, each with its own heatsink, and additional drive support via add-on modules.
With 10G LAN, Wi-Fi 6E, and Bluetooth 5.3 for blazingly fast and reliable connectivity, networking is at the top. USB 3.2 Gen2x2 Type-C, numerous Gen2/Gen1 ports, and even USB-C for front-panel integration with 60W Power Delivery are advantageous for external devices. With a 24+2+2 phase VRM, thick 8-layer copper-rich PCB, heat-pipe VRM heatsinks, and sophisticated thermal solutions made for aggressive overclocking, power delivery is uncompromising. Temperatures, voltages, and custom GIFs can all be seen on the integrated mini OLED display.
High-end parts and premium caps provide excellent audio performance. With extra features like EZ Debug LEDs, a Flash BIOS Button, and Q-Connector support, this board is ideal for both professional builders and do-it-yourselfers. The ultimate ATX motherboard, the MEG Z790 Godlike Max, is designed to surpass expectations in gaming, overclocking, and content creation. It is compatible with DDR5 RAM, PCIe 5.0 GPUs, next-generation CPUs, and more.
Features of the MSI MEG Z790 Godlike Max ATX Motherboard
Feature | Specification |
---|---|
Chipset / Socket | Intel Z790 / LGA 1700 |
CPU Support | Intel 12th–14th Gen Core, Pentium, Celeron |
Form Factor | ATX |
Memory Support | 4× DDR5 DIMM, up to 128 GB, up to 8000+ MHz (OC) |
Power/V-RAM Design | 24+2+2 phase VRM, high-current MOSFETs, thick copper PCB |
PCIe Expansion | 2× PCIe 5.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
M.2 Storage | 4× Gen4 x4 M.2 (w/ heatsinks, EZ-Clips), support for add-on M.2 expansion board |
SATA Ports | 6× SATA 6 Gb/s |
Networking | 10G LAN, Wi‑Fi 6E, Bluetooth 5.3 |

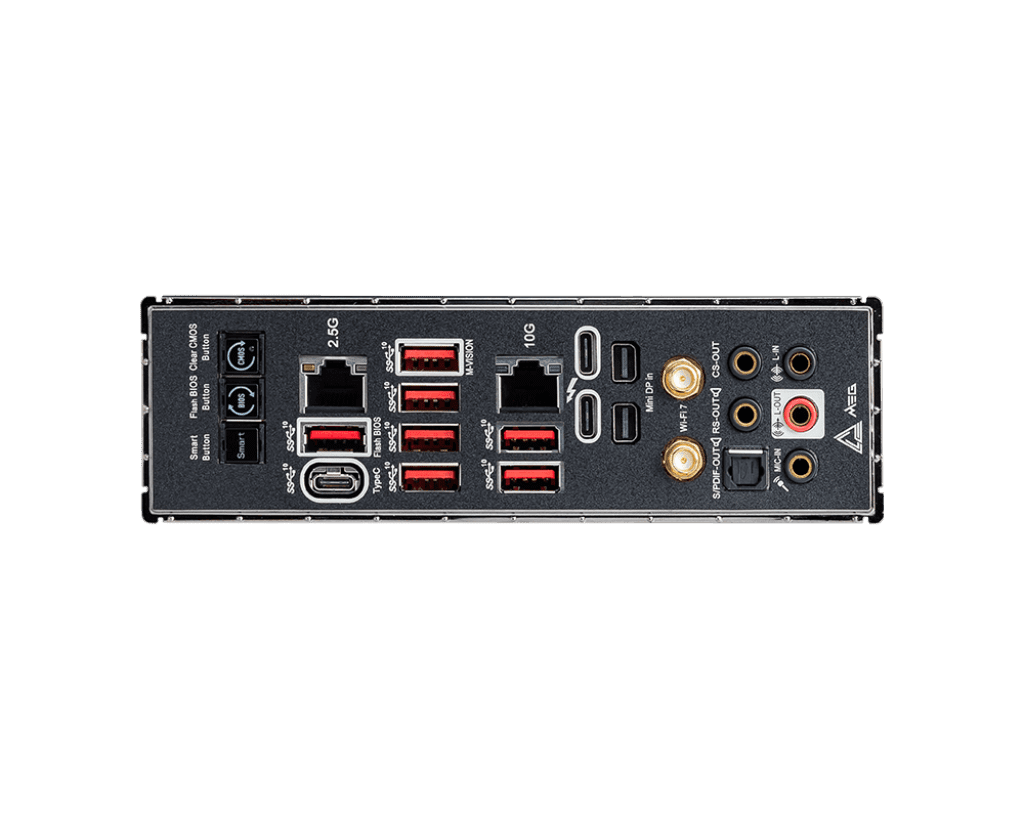

USB Connectivity | USB 3.2 Gen2x2 Type-C, Gen2/Gen1, front-panel USB-C PD support |
Audio | Premium high-fidelity audio with top-tier capacitors |
Cooling & PCB | Heat-pipe VRM heatsinks, stacked fins, 8-layer PCB |
Extras & Build Tools | Mini OLED panel, Flash BIOS Button, EZ Debug LEDs, Q-Connector, pre-installed I/O shield |
Ideally Best For
-
Extreme overclockers pushing CPUs, RAM, and GPUs to limits
-
Benchmarkers & speed demons who need best-in-class DDR5 and PCIe 5.0
-
Pro content creators needing multi-GPU setups, massive storage, and pro audio
-
Enthusiast gamers who demand bleeding-edge performance and flashy features
-
Luxury PC builders are looking for premium engineering, aesthetics, and functionality
Buy MSI MEG Z790 Godlike Max ATX Motherboard Intel LGA 1700 DDR5 | Dual PCIe 5.0 x16, Quad M.2 Gen4 Online Today.
