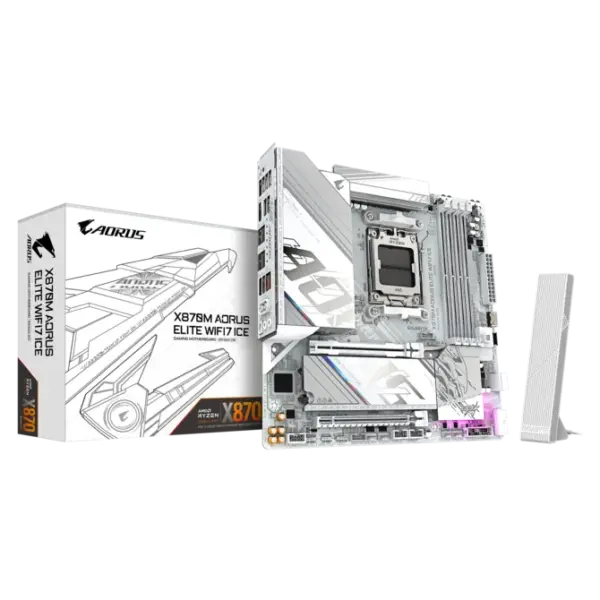

About Gigabyte X870M Aorus Elite WiFi7 ICE Motherboard
| Category | Specification Details |
|---|---|
| General | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 series CPUs |
| Form Factor | micro-ATX |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM slots, Dual Channel, AMD EXPO™ support |
| Memory OC | DDR5 OC up to 8200 MT/s |
| VRM / Power | 14+2+2 Twin Digital VRM design, 7+7 phases parallel power |
| PCIe Expansion | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4 |
| M.2 Storage | 2× M.2 slots (1× PCIe 5.0, 1× PCIe 4.0) |
| SATA | 2× SATA 6 Gb/s connectors |
| USB Ports | 2× USB4 Type-C, 2× USB 3.2 Gen 2, 4× USB 3.2 Gen 1, 4× USB 2.0 |
| Video Outputs | 1× HDMI |
| Networking | Wi-Fi 7 with Directional Ultra-high Gain Antenna, 2.5 GbE LAN |
| Audio | 8-Channel HD Audio with high-end capacitors |
| Thermal Features | VRM Thermal Armor Advanced with 5 W/mk thermal pad, M.2 Thermal Guard Ext. |
| Cooling Support | Smart Fan 6 with 6× PWM/DC headers, Dual Fan Curve |
| DIY / Build Support | EZ-Latch PCIe/M.2, WIFI EZ-Plug, EZ-Debug Zone, Q-Flash Plus |
| RGB | 1× RGB LED Header, 3× ARGB LED Headers |
| Special Modes | X3D Turbo Mode, D5 Bionic Corsa for enhanced memory performance |
| BIOS / Software | User-friendly BIOS with multi-theme UI and advanced tuning options |
Key feature about the Gigabyte X870M Aorus Elite WiFi7 ICE Motherboard
AMD AM5 Platform Support: This motherboard fully supports AMD Ryzen™ 9000, 8000, and 7000 series CPUs, providing a robust foundation for gaming and professional workloads while ensuring longevity and broad compatibility with modern processor architectures.
Twin Digital VRM Design: Featuring a 14+2+2 phase Twin Digital VRM layout with premium components and multiple power phases, the board delivers clean, stable power to the CPU and memory — essential for overclocking and high-performance tasks.
High-Speed DDR5 Support: With four DDR5 DIMM slots supporting up to extreme overclocked frequencies (up to 8200 MT/s), the motherboard taps into next-generation memory performance for fast system responsiveness and improved multitasking capabilities.
Dual M.2 Storage: Equipped with two M.2 slots — including a PCIe 5.0 x4 Gen5 slot — the board enables ultra-fast NVMe SSD installations, offering blazing storage speeds for game load times and content creation workflows.
PCIe Expansion Flexibility: A PCIe 5.0 x16 slot with reinforced PCIe UD Slot X and an additional PCIe 4.0 x4 slot provide ample connectivity for high-end graphics cards and expansion cards, catering to diverse hardware needs.
Integrated Wi-Fi 7 Technology: Latest-generation Wi-Fi 7 wireless connectivity supports higher throughput, multi-link operation, and deterministic low latency, ideal for competitive gaming, 4K streaming, and large file transfers over wireless networks.
2.5 GbE LAN Networking: The dedicated 2.5 GbE LAN port ensures stable and accelerated wired networking connectivity, reducing bottlenecks during large data transfers, online gaming, and local server access.
Dual USB4 Type-C Ports: Two USB4 Type-C ports support high-bandwidth data transfer and DisplayPort-Alt Mode, enabling flexible connectivity for cutting-edge peripherals and high-resolution external displays.
Comprehensive Rear USB Set: A robust array of USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports ensure broad compatibility with keyboards, mice, storage devices, and other peripherals.
Premium Audio Solution: 8-Channel HD audio with high-end capacitors delivers immersive sound reproduction for gamers and creators while preserving clarity and audio fidelity.
Advanced Thermal Design: VRM Thermal Armor Advanced and extended thermal guards help maintain optimum heat dissipation even under sustained load, keeping performance consistent under heavy workloads.
Smart Fan 6 Cooling Control: Six PWM/DC fan headers with dual fan curve modes allow fine-tuning of cooling performance, delivering whisper-quiet operation under light loads or aggressive cooling for hotter conditions.
EZ-Latch Installation: EZ-Latch designs for PCIe and M.2 slots make hardware installation and removal fast, secure, and tool-free, greatly simplifying DIY builds and maintenance.
Wi-Fi EZ-Plug Design: The integrated Wi-Fi EZ-Plug simplifies antenna installation so users can position external antennas cleanly and securely without cable clutter.
EZ-Debug Zone: Onboard debug LEDs and multi-key help quickly diagnose boot issues or component faults, speeding up troubleshooting during builds.
Q-Flash Plus Support: With Q-Flash Plus, users can update BIOS without a CPU or memory installed — particularly useful for updating to support newer Ryzen processors.
Sensor Panel Link: The onboard Sensor Panel Link via HDMI aids advanced system monitoring or external display integration during setup or testing.
User-Friendly BIOS: A multi-theme BIOS with intuitive options for fan control, performance tuning, and Q-Flash updates simplifies system customization for both novice and experienced users.
RGB Fusion Support: Multiple RGB and ARGB headers allow synchronized lighting with compatible components, giving builders creative freedom with aesthetic customization.
X3D Turbo Mode: One-click activation of X3D Turbo Mode enables optimized gaming performance, harnessing BIOS-level tuning to boost frame rates and reduce latency.
