About Deepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan
| Specification | Value / Description |
|---|---|
| Model / Package | FD14 ARGB WH ‒ 3-in-1 (three fans) |
| Color | White |
| Fan Dimensions | 140 × 140 × 25 mm (L × W × H) |
| Net Weight | 588 g (for the 3-pack) |
| Rotation Speed | 400 ~ 1,650 RPM ±10% |
| Airflow | 82.53 CFM |
| Static Pressure | 1.96 mmAq |
| Noise Level | ≤ 25.2 dB(A) |
| Connector (Power) | 4-pin PWM |
| Bearing Type | Hydro (hydraulic) bearing |
| Rated Voltage (Fan) | 12 V DC |
| Rated Current (Fan) | 0.17 A |
| Power Consumption (Fan) | 2.04 W |
| LED Type | Addressable RGB (ARGB) |
| LED Connector | 3-pin (+5V-D-G) for ARGB header |
| LED Rated Voltage | 5 V DC |
| LED Power Consumption | 1.05 W |
| Vibration Reduction | Full-coverage rubber pads on all corners for reduced vibration |
| Frame / Blade Material | Frame: enhanced composite (PBT + fiberglass), Blades: polycarbonate |
| Warranty | 3 years limited (FD-series) |
| Part Number (P/N) | R-FD14-WHAPN3-G |
Deepcool FD Series White Desktop Cooler Fan: Design & Construction
At the heart of the Deepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan lies a thoughtfully designed frame made from enhanced composite materials.
Deepcool uses a mix of PBT (polybutylene terephthalate) and fiberglass to ensure stiffness, strength, and dimensional consistency.
The fan blades are crafted from polycarbonate, a choice that maintains structural stability and supports smooth, reliable rotations even at higher speeds.
Deepcool FD Series White Desktop Cooler Fan: Intelligent Cabling

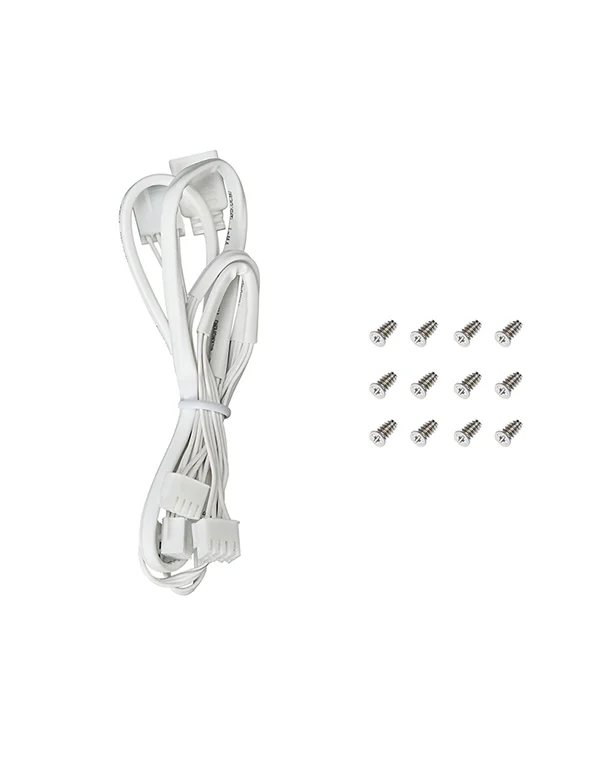

One of the most user-friendly design aspects is the daisy-chain 8-pin connector system.
Rather than having multiple messy cables running through the case, each of the three fans in the pack can be chained together using a single 8-pin block-style connector.
This reduces cable clutter dramatically, making for a cleaner build and easier installation.
Deepcool FD Series White Desktop Cooler Fan: Cooling Performance
Performance-wise, these fans are built to be effective without being obtrusive.
They spin in a wide range from 400 RPM at idle (or low load) up to 1,650 RPM under demand.
This range gives you flexibility — quiet operation when you’re not stressing your system, and strong airflow when you’re gaming or doing heavy tasks.
The Deepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan deliver around 82.53 CFM of air movement and a static pressure of 1.96 mmAq, making them capable of pushing air through restrictive environments like radiators, dense filters, or tight case layouts.
Deepcool White ARGB Desktop Fan: Acoustics & Vibration Control
Despite their airflow capabilities, the Deepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan remain impressively quiet.
Their noise output tops out at just 25.2 dB(A), which is ideal for users who want performance without constant fan roar.
To further minimize vibration and potential rattling, Deepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan includes full-coverage rubber pads in all four corners of each fan frame.
This helps absorb shock from uneven mounting or chassis resonance — contributing to a smoother acoustic profile.
Deepcool White 3 in 1 Desktop Fan: Lighting & Synchronization

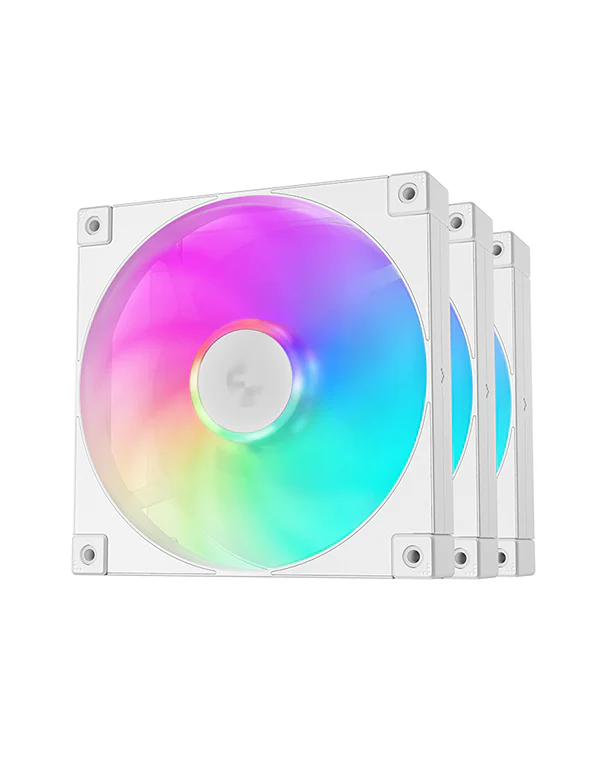

The ARGB lighting is a key highlight.
Each fan features six individual addressable LEDs around the hub, enabling rich, dynamic lighting effects.
These can be synchronized with motherboard software via standard 3-pin ARGB headers (+5V-D-G), giving you the freedom to create synchronized lighting patterns across your build.
Whether you want subtle ambient glow or bold color transitions, theDeepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan offers the flexibility to match your aesthetic.
Deepcool FD14 White ARGB 3-in-1 Desktop: Reliability & Power
Under the hood, these fans use a hydraulic (hydro) bearing, known for durability and quiet operation.
The rated voltage is 12 V DC, with a current draw of 0.17 A per fan, translating to a power consumption of just about 2.04 W.
The LEDs draw 5 V and consume only about 1.05 W.
These efficient numbers ensure that your motherboard or fan controller isn’t overburdened with excessive power demand even with all three fans running.
Deepcool FD14 White ARGB 3-in-1 Desktop: Build-Friendly & Long-Lasting
Installation is straightforward, thanks to the daisy-chain connector system and sturdy construction.
The frame materials are chosen to resist wear and deformation over long use, and the hydro bearing adds to longevity.
To back this up, Deepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan provides a 3-year limited warranty on these fans, giving you peace of mind.
Deepcool FD14 White ARGB 3-in-1 Desktop: Ideal Use Cases
-
Perfect for white- or light-themed PC builds where aesthetics matter
-
Great for radiator or case cooling, due to its static pressure and airflow balance
-
Suited for quiet systems, like home offices or workstations, thanks to low noise levels
-
Useful in multi-fan setups, because of its daisy-chained connector design
The Deepcool FD14 White ARGB 3-in-1 Desktop Cooler Fan offer an excellent mix of design, performance, and usability.
Whether you’re building a sleek white rig or need reliable, efficient airflow with customizable RGB, these fans are a very compelling choice.
