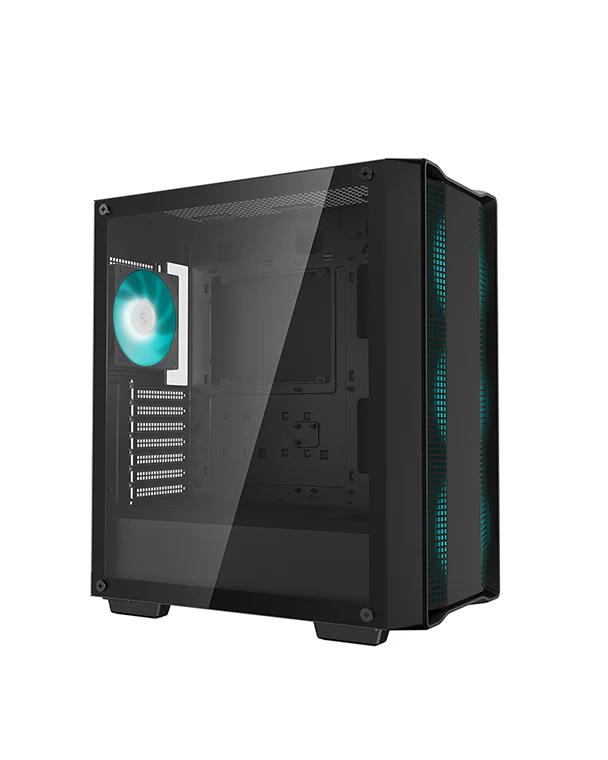

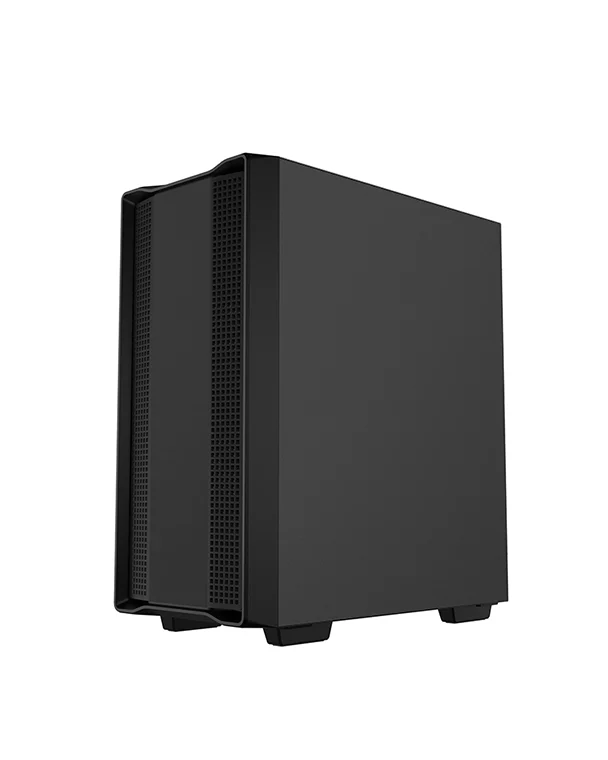

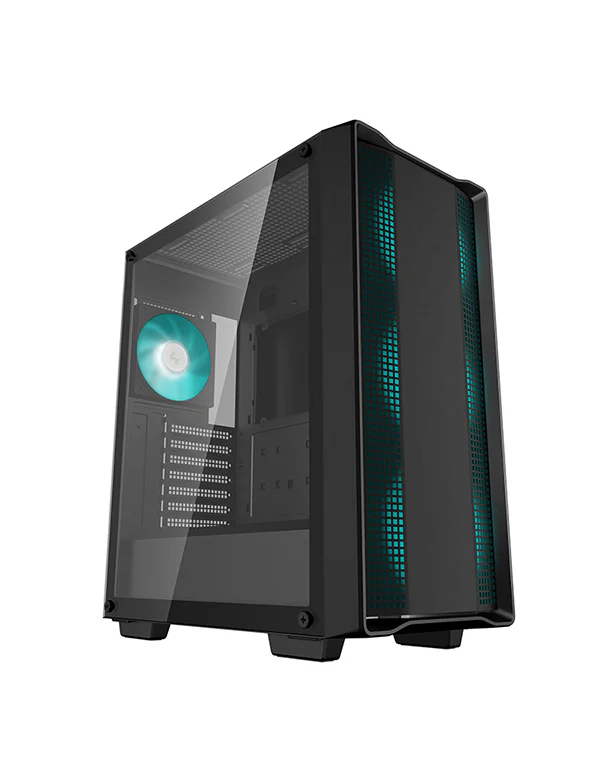

About Deepcool CC560 WO V2 Mid Tower Cabinet
| Category | Specification |
|---|---|
| Product Dimensions | 432 × 215 × 483 mm (L × W × H) |
| Net Weight | 7.2 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Compatibility | Mini-ITX, Micro-ATX, ATX |
| Front I/O Ports | USB 3.0 × 1, USB 2.0 × 1, Audio (combo) |
| 3.5″ Drive Bays | 2 (in removable cage) |
| 2.5″ Drive Bays | 2 + 1 (backplate) |
| Expansion Slots | 7 |
| Pre-installed Fans | 3 × 120 mm LED (front) + 1 × 120 mm LED (rear) |
| Fan Support | Front: 3 × 120 mm / 3 × 140 mm Top: 2 × 120 mm / 2 × 140 mm Rear: 1 × 120 mm PSU Shroud Area: 2 × 120 mm |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360 mm Top: 120 / 140 / 240 mm Rear: 120 mm |
| CPU Cooler Height Clearance | 165 mm |
| GPU Length Limit | 370 mm |
| PSU Compatibility / Length Limit | ATX PS2 (max length 170 mm) |
With external dimensions of 432 × 215 × 483 mm and a net weight of about 7.2 kg, it occupies a typical mid-tower footprint while offering plenty of internal space.
The Deepcool CC560 WO V2 Mid Tower Cabinet is constructed using a combination of ABS plastic, SPCC steel, and features a tempered glass side panel to allow users to display internal lighting and components.
Inside, Deepcool CC560 WO V2 Mid Tower Cabinet supports motherboard formats from Mini-ITX to ATX.
Deepcool ships the case with four 120 mm LED fans pre-installed (three in the front for intake, one in the rear for exhaust), giving you basic cooling from the start.
The front panel allows large ventilation, and the top panel supports additional fan or radiator placement.
The Deepcool CC560 WO V2 Mid Tower Cabinet offers excellent cooling flexibility—front radiator support up to 360 mm, top up to 240 mm, rear up to 120 mm.
The Deepcool CC560 WO V2 Mid Tower Cabinet also accommodates CPU coolers up to 165 mm tall and GPUs up to 370 mm in length, with PSU support up to 170 mm.
For storage, there are two 3.5″ drive bays (in a removable cage) and multiple 2.5″ SSD slots.

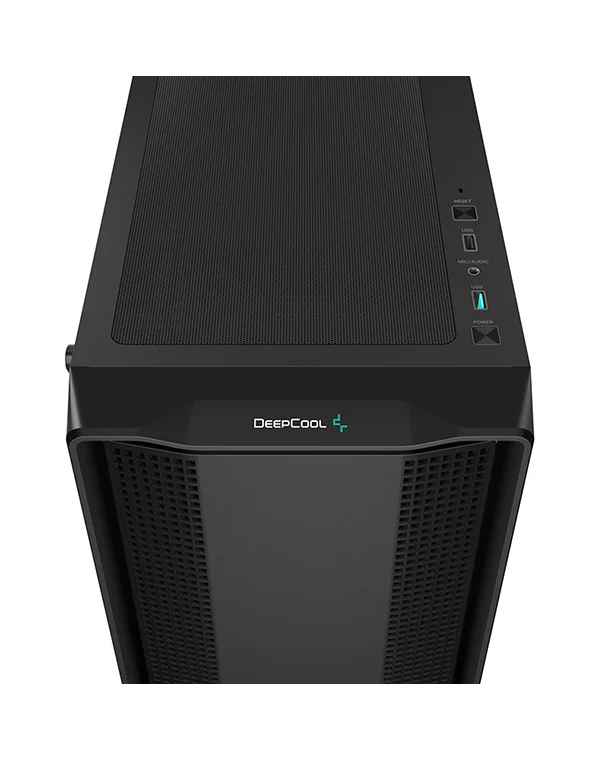

Cable routing behind the motherboard tray ensures a cleaner build. The front I/O includes a USB 3.0 port, a USB 2.0 port, and a combo audio jack.
Overall, the Deepcool CC560 WO V2 Mid Tower Cabinet is well suited for users seeking a mid-tower case with strong airflow, visual appeal, and flexibility without overcomplicating the build process.
