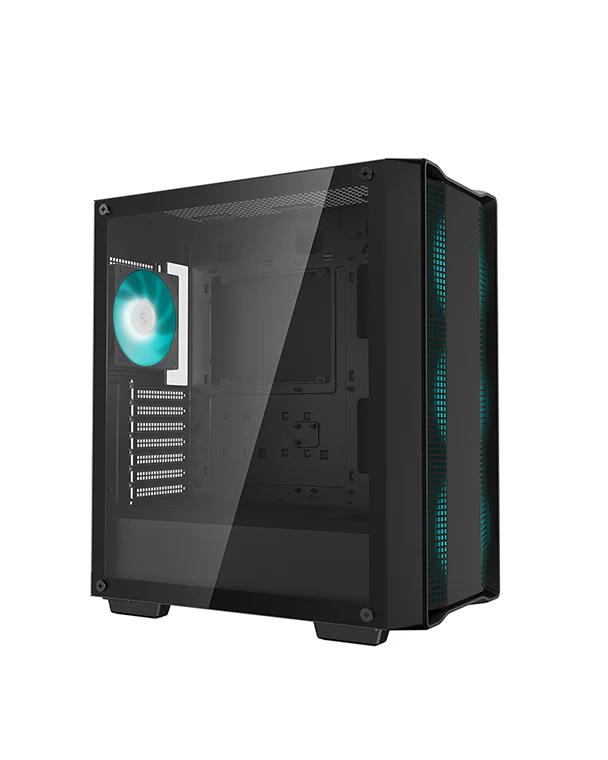

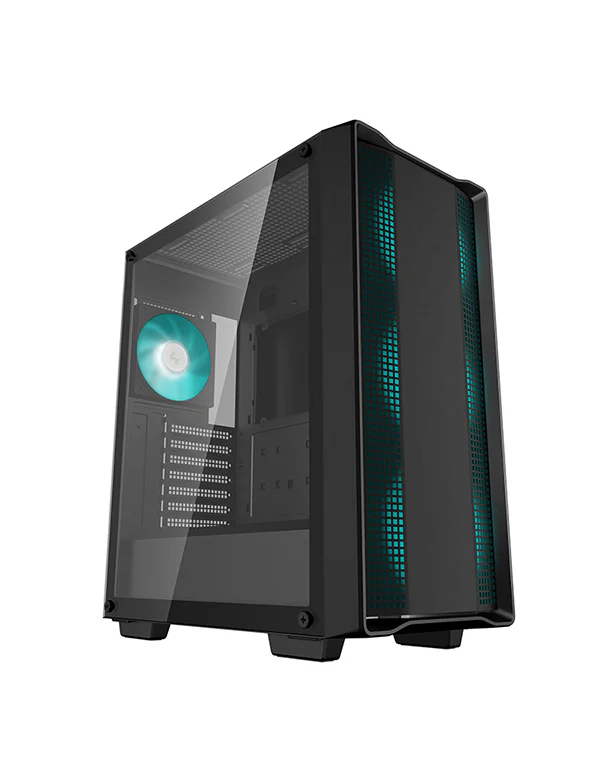

Deepcool CC560 WO V2 Mid Tower Cabinet with USB 2.0 and USB 3.0 Ports Compatible with Gaming Console (Black)

The Deepcool CC560 WO V2 Mid Tower Cabinet is a mid-tower ATX chassis designed to deliver a balance of aesthetics, cooling performance, and expandability for gaming and enthusiast PC builds.

Specification Detail
Dimensions (L × W × H) 432 × 215 × 483 mm
Net Weight 7.2 kg
Motherboard Support Mini-ITX / Micro-ATX / ATX
CPU Cooler Height Limit 165 mm
GPU Maximum Length 370 mm

About the item:

  • Pre-installed LED Fans — Comes with four 120 mm LED fans (three front + one rear) to provide airflow and out-of-box cooling.

  • Strong Airflow & Cooling Flexibility — Supports multiple fans and large radiators: up to 360 mm in front, 240 mm on top, and 120 mm at rear.

  • Tempered Glass Side Panel — Offers a full-length transparent side panel to showcase internal hardware.

  • PSU Shroud with Fan Support — The power supply area is shrouded, and additional fans can be mounted in that region to ventilate GPU/PSU zones.

  • Versatile Storage & Cable Layout — Supports 2 × 3.5″ drives and multiple 2.5″ drives, with a removable cage and cable management clearance behind the motherboard tray.

3,599.00

20 People watching this product now!

Payment Methods:

avika retails payment methods we have

Description

About Deepcool CC560 WO V2 Mid Tower Cabinet

Category Specification
Product Dimensions 432 × 215 × 483 mm (L × W × H)
Net Weight 7.2 kg
Materials ABS + SPCC + Tempered Glass
Motherboard Compatibility Mini-ITX, Micro-ATX, ATX
Front I/O Ports USB 3.0 × 1, USB 2.0 × 1, Audio (combo)
3.5″ Drive Bays 2 (in removable cage)
2.5″ Drive Bays 2 + 1 (backplate)
Expansion Slots 7
Pre-installed Fans 3 × 120 mm LED (front) + 1 × 120 mm LED (rear)
Fan Support Front: 3 × 120 mm / 3 × 140 mm
Top: 2 × 120 mm / 2 × 140 mm
Rear: 1 × 120 mm
PSU Shroud Area: 2 × 120 mm
Radiator Support Front: 120 / 140 / 240 / 280 / 360 mm
Top: 120 / 140 / 240 mm
Rear: 120 mm
CPU Cooler Height Clearance 165 mm
GPU Length Limit 370 mm
PSU Compatibility / Length Limit ATX PS2 (max length 170 mm)

With external dimensions of 432 × 215 × 483 mm and a net weight of about 7.2 kg, it occupies a typical mid-tower footprint while offering plenty of internal space.

The Deepcool CC560 WO V2 Mid Tower Cabinet is constructed using a combination of ABS plastic, SPCC steel, and features a tempered glass side panel to allow users to display internal lighting and components.

Inside, Deepcool CC560 WO V2 Mid Tower Cabinet supports motherboard formats from Mini-ITX to ATX.

Deepcool ships the case with four 120 mm LED fans pre-installed (three in the front for intake, one in the rear for exhaust), giving you basic cooling from the start.

The front panel allows large ventilation, and the top panel supports additional fan or radiator placement.

The Deepcool CC560 WO V2 Mid Tower Cabinet offers excellent cooling flexibility—front radiator support up to 360 mm, top up to 240 mm, rear up to 120 mm.

The Deepcool CC560 WO V2 Mid Tower Cabinet also accommodates CPU coolers up to 165 mm tall and GPUs up to 370 mm in length, with PSU support up to 170 mm.

For storage, there are two 3.5″ drive bays (in a removable cage) and multiple 2.5″ SSD slots.

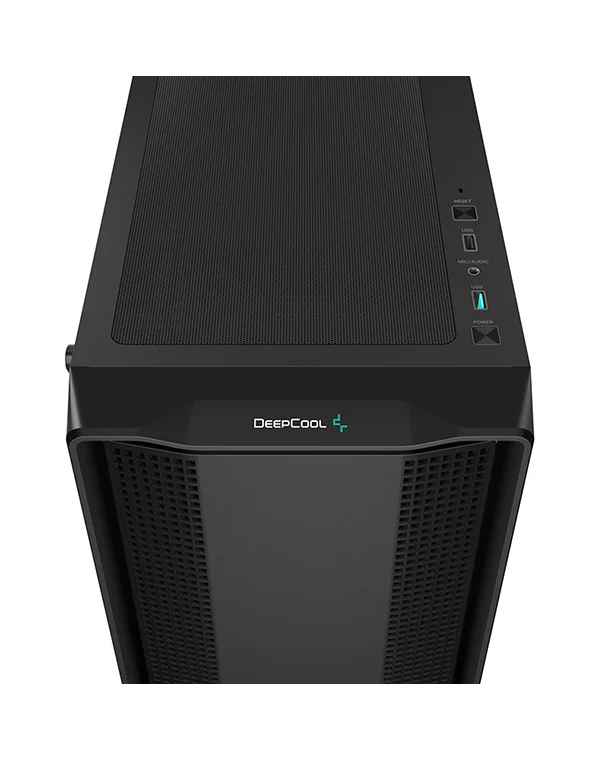

Cable routing behind the motherboard tray ensures a cleaner build. The front I/O includes a USB 3.0 port, a USB 2.0 port, and a combo audio jack.

Overall, the Deepcool CC560 WO V2 Mid Tower Cabinet is well suited for users seeking a mid-tower case with strong airflow, visual appeal, and flexibility without overcomplicating the build process.
