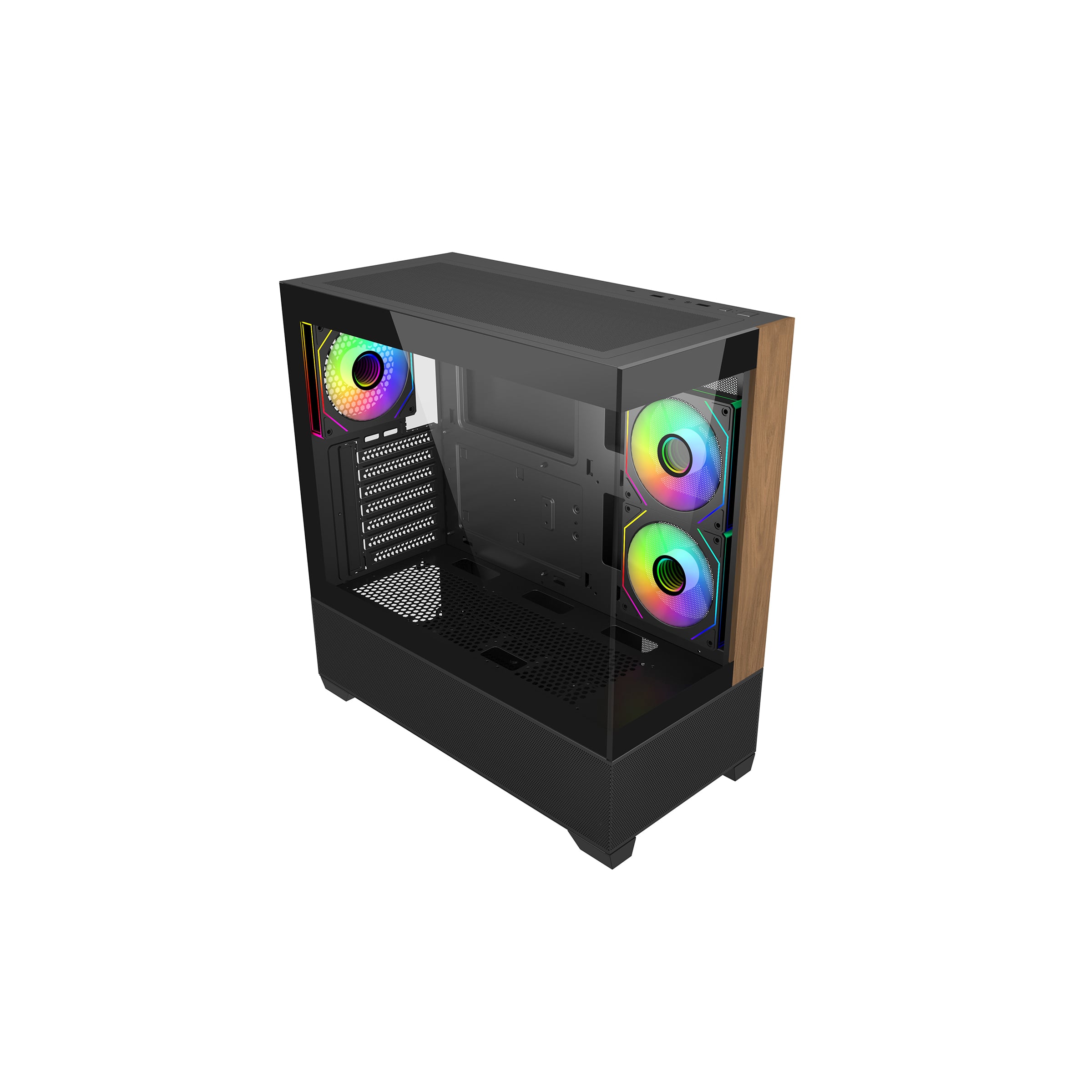

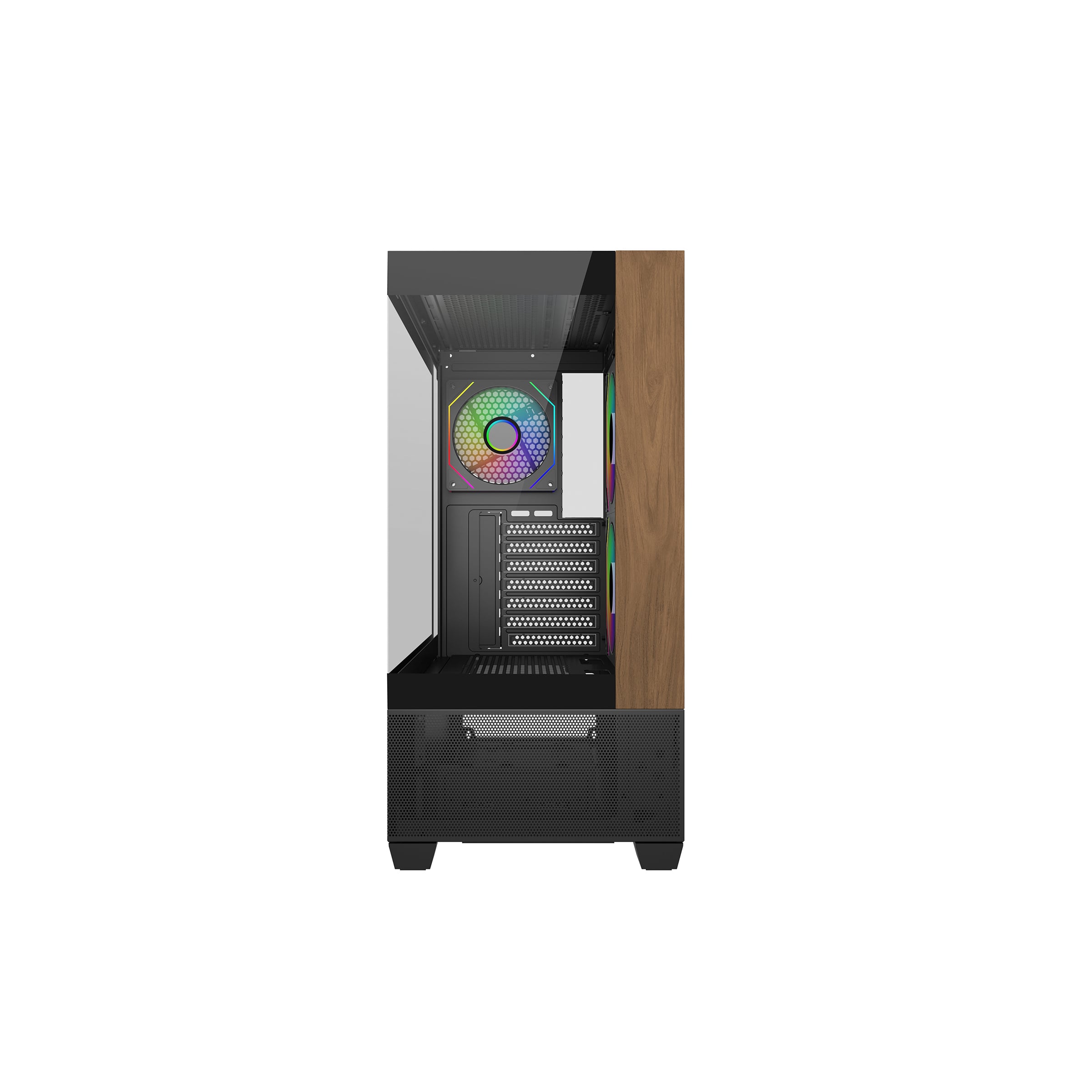

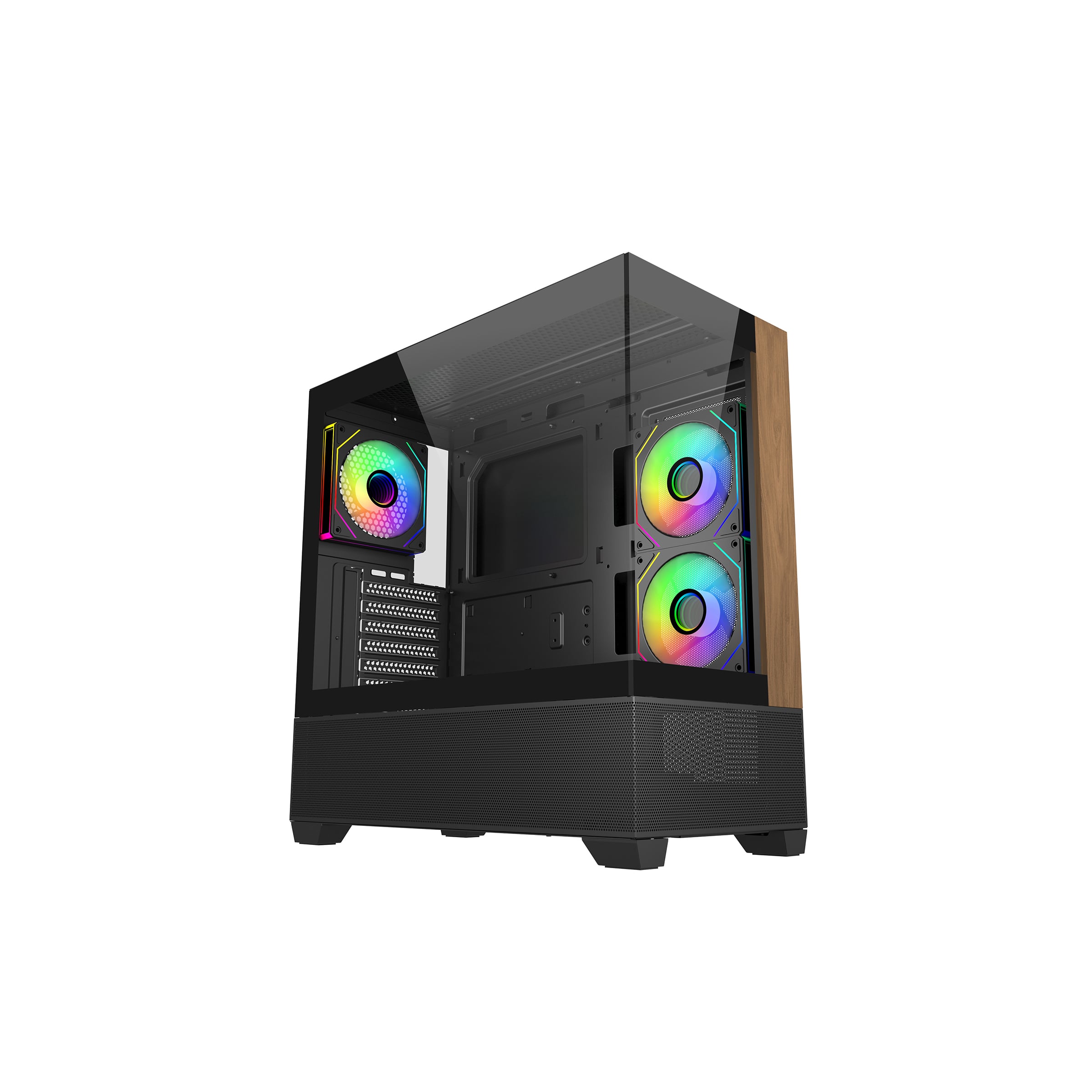

About Cooler Master Elite 690 Wood Mid Tower
Featuring a real wood front accent, dual tempered glass panels, and a panoramic 270-degree viewing design, it provides an elegant showcase for high-end gaming or workstation builds.
Its optimized vertical airflow layout supports up to ten cooling fans and multiple radiator configurations for efficient thermal management.
The spacious interior accommodates ATX, Micro-ATX, and Mini-ITX motherboards, large graphics cards, and tall CPU coolers.
With modern front I/O connectivity, ample cable management space, and versatile hardware compatibility, it is built for both performance and visual appeal.
| Feature | Specification |
|---|---|
| Product Name | Cooler Master Elite 690 Wood Mid Tower |
| Case Type | Mid Tower |
| Series | Elite Series |
| Model | E690-KHNN-S00 (Black), E690-WHNN-S00 (White) |
| Dimensions | 434 × 218 × 454 mm (Including Protrusions) |
| Volume | 42.93 Litres |
| Materials | Steel, Tempered Glass, Real Wood |
| Motherboard Compatibility | Mini-ITX, Micro-ATX, ATX |
| Expansion Slots | 7 |
| 3.5-inch Drive Bays | 1 (Expandable to 2) |
| 2.5-inch Drive Bays | 1 (Expandable to 2) |
| Pre-installed Rear Fan | 1 × 120mm ARGB PWM |
| Pre-installed Side Fans | 2 × 120mm ARGB PWM Reverse Fans |
| Maximum Fan Support | Up to 10 Fans |
| Top Fan Support | 3 × 120mm or 2 × 140mm |
| Side Fan Support | 2 × 120mm |
| Bottom Fan Support | 3 × 120mm |
| Rear Fan Support | 1 × 120mm |
| Color | Black |
