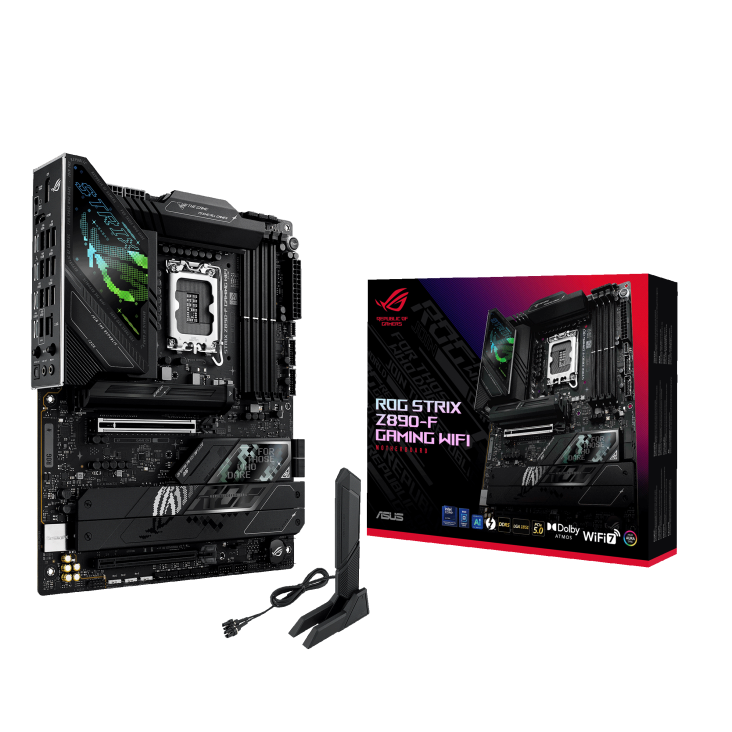

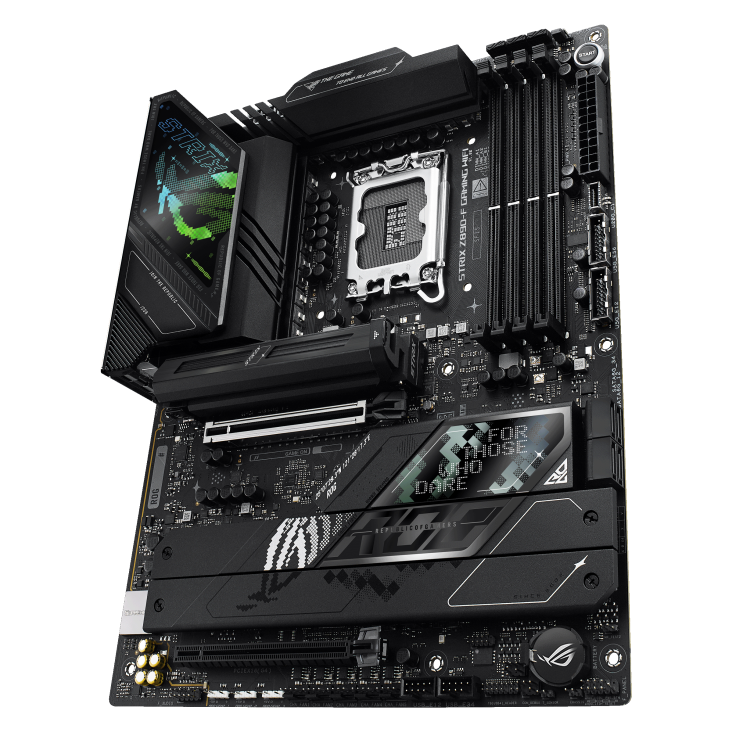

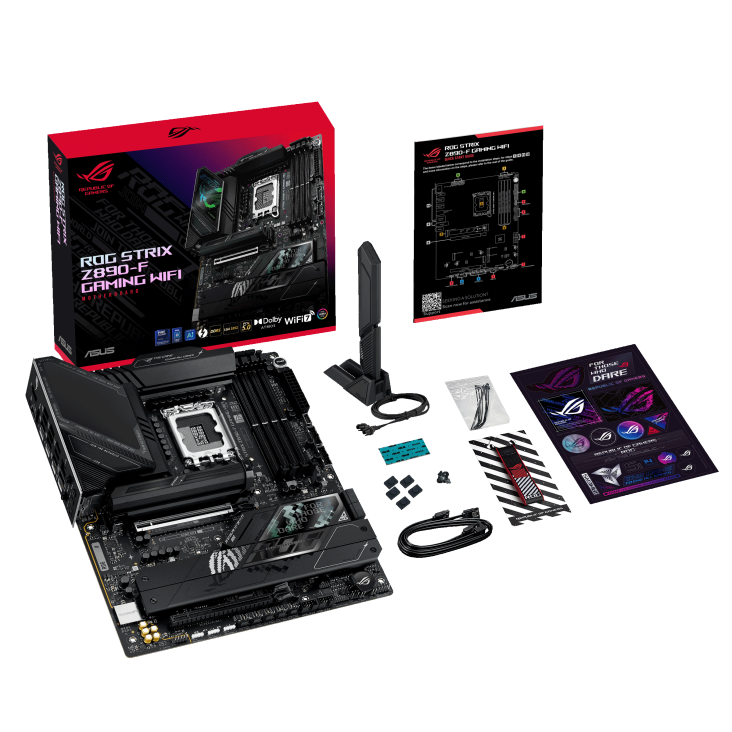

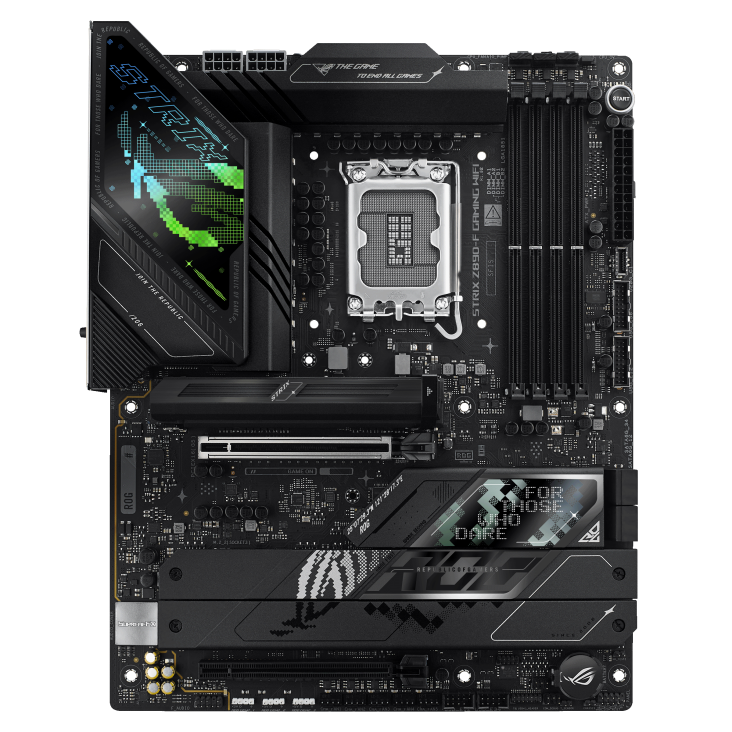

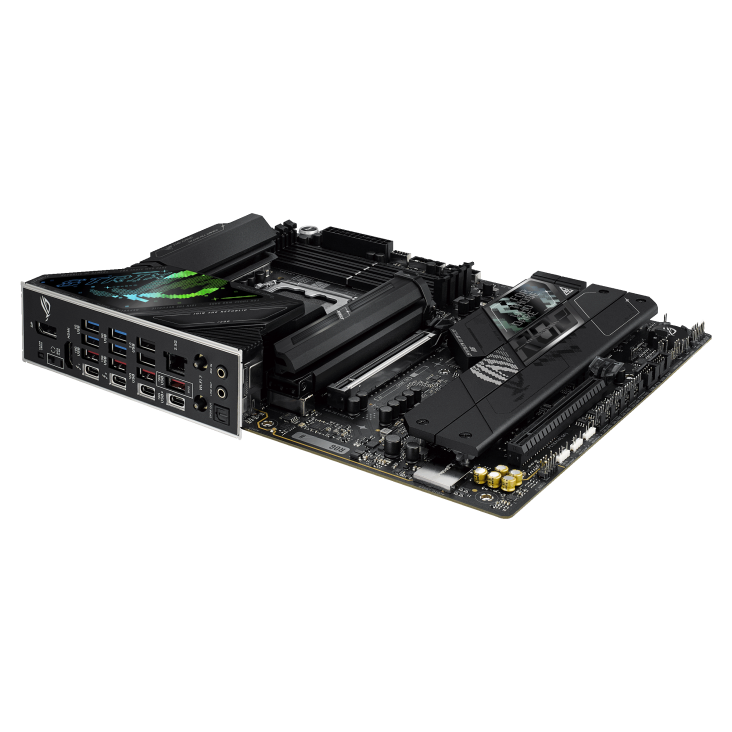

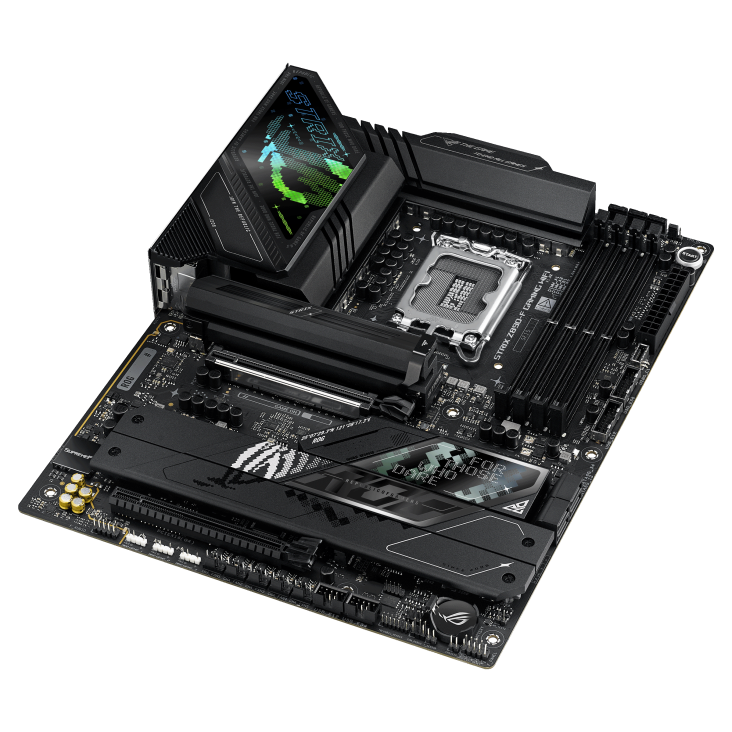

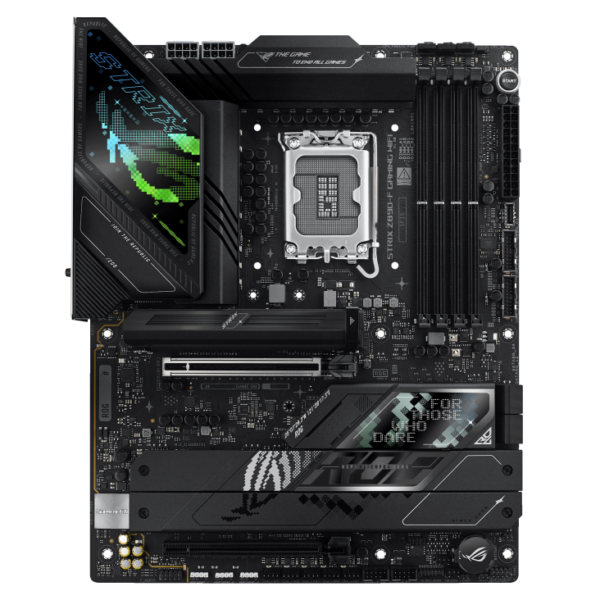

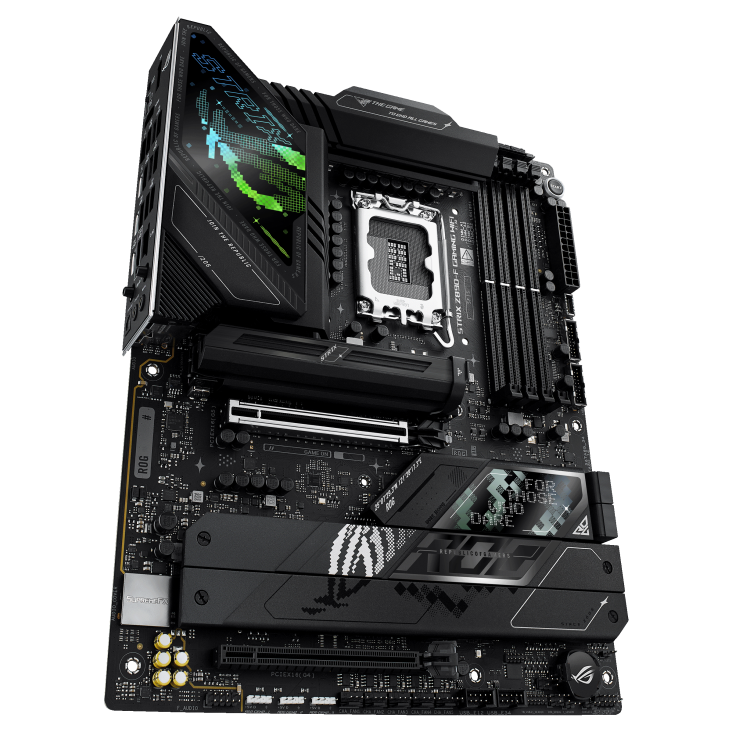

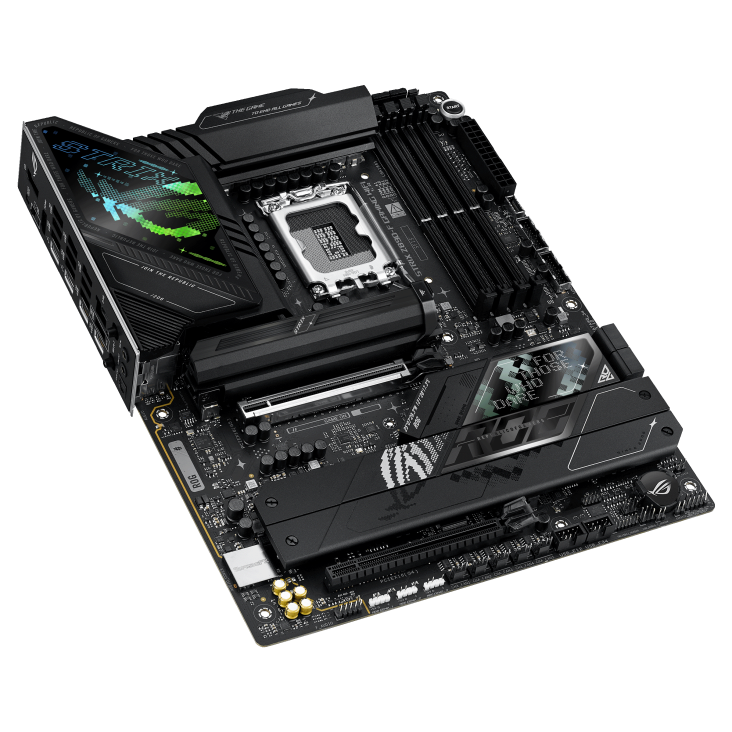

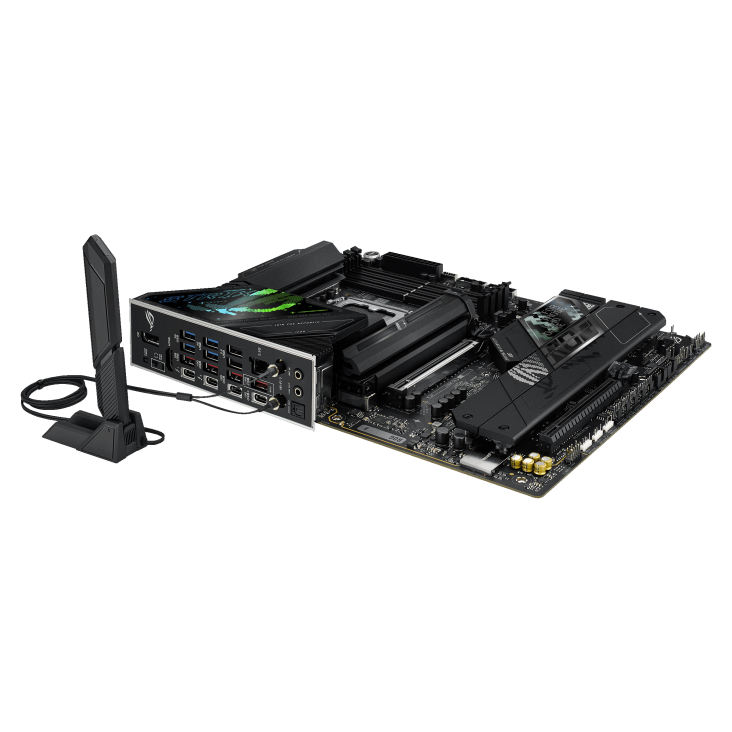

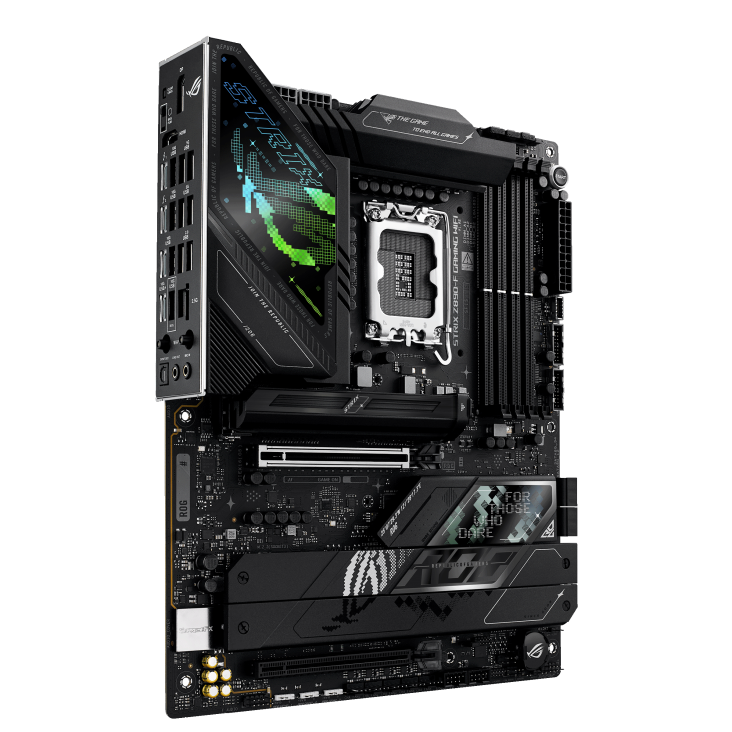

About Asus ROG STRIX Z890-F Gaming WiFi Motherboard
Built on the Intel Z890 platform with an LGA1851 socket, it is designed for Intel Core Ultra Processors (Series 2) and demanding gaming, creation, and AI workloads.
Its robust 16+1+2+2 power-stage design delivers dependable power, while advanced thermal solutions help maintain stable performance.
Four DDR5 DIMM slots support high-speed memory, with ASUS AEMP III, DIMM Flex, and DIMM Fit technologies for easier tuning.
Five M.2 slots, including PCIe 5.0 support, provide versatile high-speed storage options.
WiFi 7 and Intel 2.5Gb Ethernet deliver fast networking, while dual Thunderbolt 4 ports expand connectivity.
SupremeFX audio and Polymo Lighting add immersive sound and customizable style, making this motherboard a powerful foundation for premium gaming and advanced desktop builds.
| Specification | Details |
|---|---|
| Product | ROG STRIX Z890-F GAMING WIFI |
| Platform | Intel |
| Chipset | Intel Z890 |
| CPU Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | ATX |
| Power Stages | 16(110A) + 1(90A) + 2(90A) + 2(80A) |
| Power Connectors | 2 × 8-pin +12V CPU, 24-pin Main Power |
| Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum Memory | 256GB |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to 9066+ MT/s (OC) |
| Memory Features | XMP, DIMM Flex, DIMM Fit, AEMP III |
| Graphics Slot | 1 × PCIe 5.0 x16 SafeSlot |
| Additional Expansion | 1 × PCIe 4.0 x16 (x4) |
| M.2 Slots | 5 × M.2 |
| M.2_1 | PCIe 5.0 x4 |
| M.2_2 | PCIe 4.0 x4 |
| M.2_3 | PCIe 4.0 x4 |
| M.2_4 | PCIe 4.0 x4 |
| M.2_5 | PCIe 4.0 x4 & SATA |
| SATA Ports | 4 × SATA 6Gb/s |
| Ethernet | Intel 2.5Gb Ethernet |
| Wireless | WiFi 7, 2×2 802.11be |
| WiFi Bands | 2.4GHz / 5GHz / 6GHz |
| WiFi Bandwidth | Up to 320MHz |
| Bluetooth | Bluetooth 5.4 |

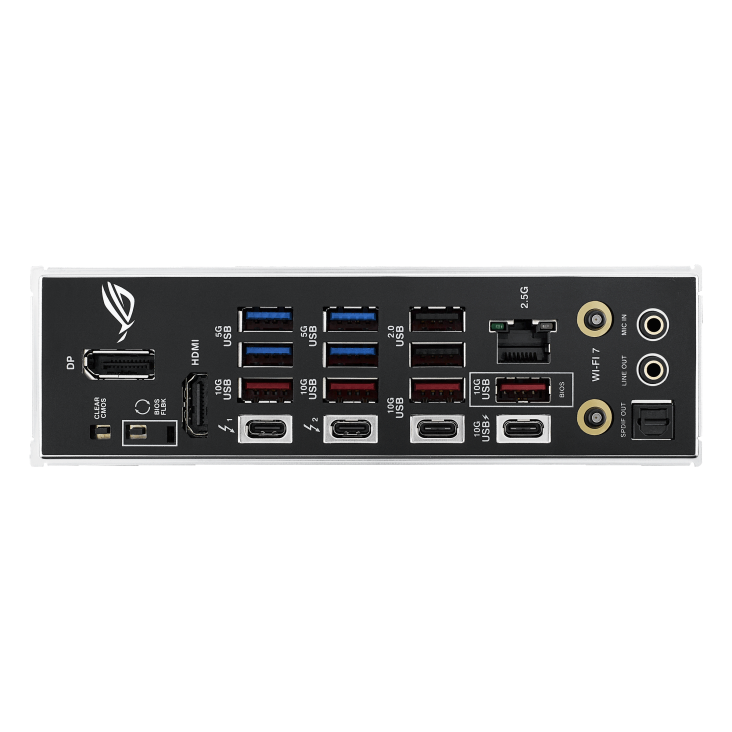

| Thunderbolt | 2 × Thunderbolt 4 |
| USB 10Gbps | 6 ports |
| USB 5Gbps | 4 ports |
| USB 2.0 | 2 ports |
| USB Type-C | USB 10Gbps Type-C with up to 30W PD |
| Internal USB | USB 20Gbps connector, USB 5Gbps and USB 2.0 headers |
| Display Outputs | DisplayPort 1.4, HDMI 2.1 |
| Audio Codec | ROG SupremeFX ALC4080 |
| Audio Amplifier | Savitech SV3H712 |
| Audio Support | Dolby Atmos |
| Audio Features | 120dB SNR stereo playback, 110dB SNR recording |
| Cooling | VRM heatsink array, M.2 heatsinks, chipset heatsink |
| Fan Headers | 1 × CPU, 1 × CPU OPT, 1 × AIO Pump, 5 × Chassis |
| RGB | 3 × Addressable Gen2 headers |
| Lighting | Polymo Lighting, Aura Sync |
| DIY Features | PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide |
| BIOS Features | BIOS FlashBack, Clear CMOS, BIOS Q-Dashboard, Q-LED |
| AI Features | NPU Boost, AI Overclocking, AI Cooling II, AI Networking II, AI Advisor |
| Networking Features | ASUS WiFi Q-Antenna, ASUS LANGuard |
| I/O Shield | Pre-mounted |
