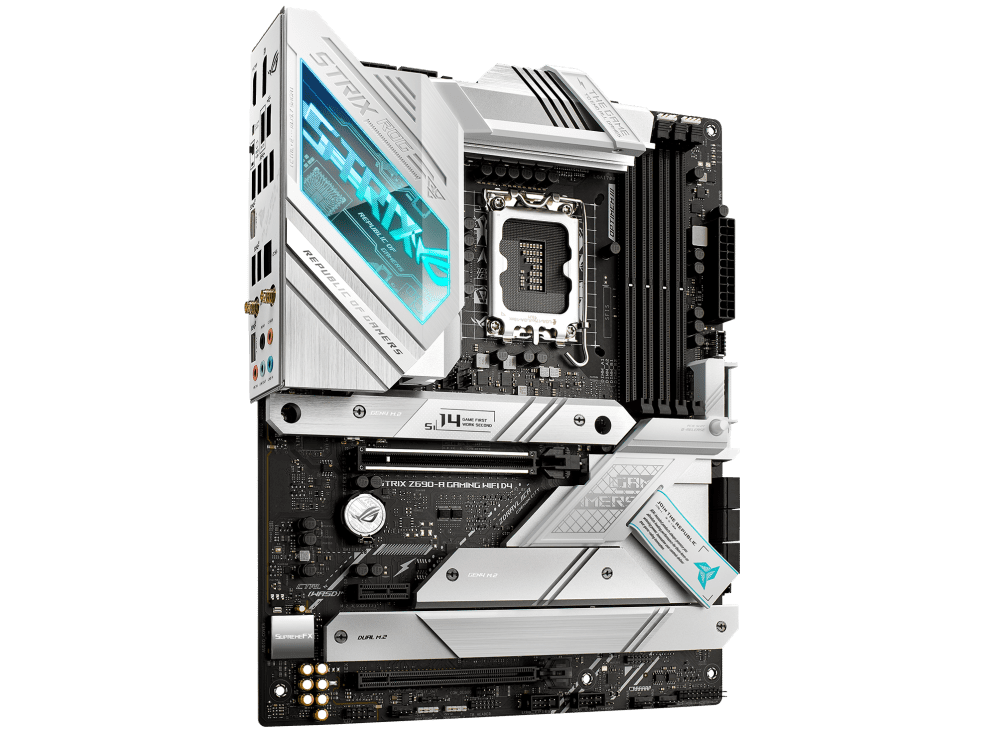

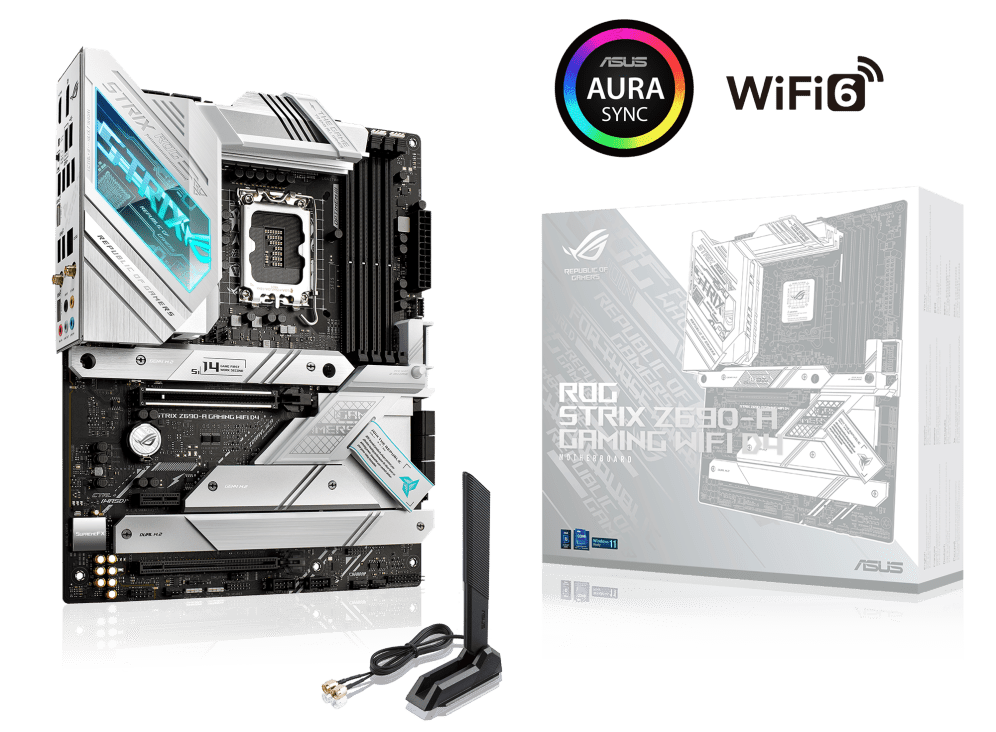

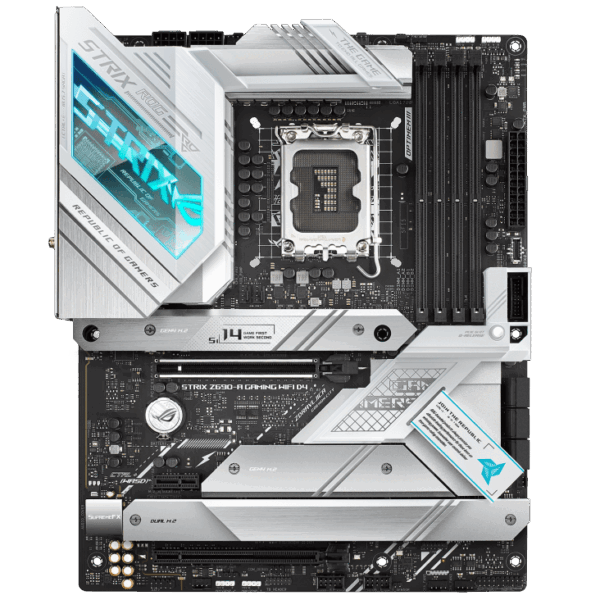

About ASUS ROG Strix Z690-A Gaming WiFi D4 Intel ATX Motherboard

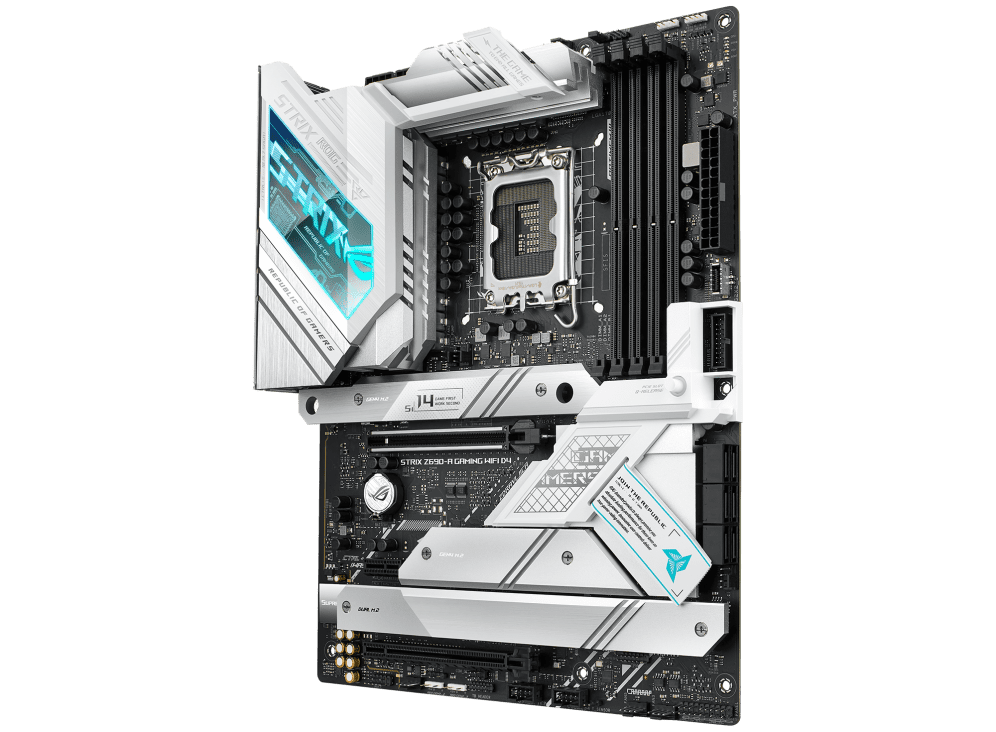

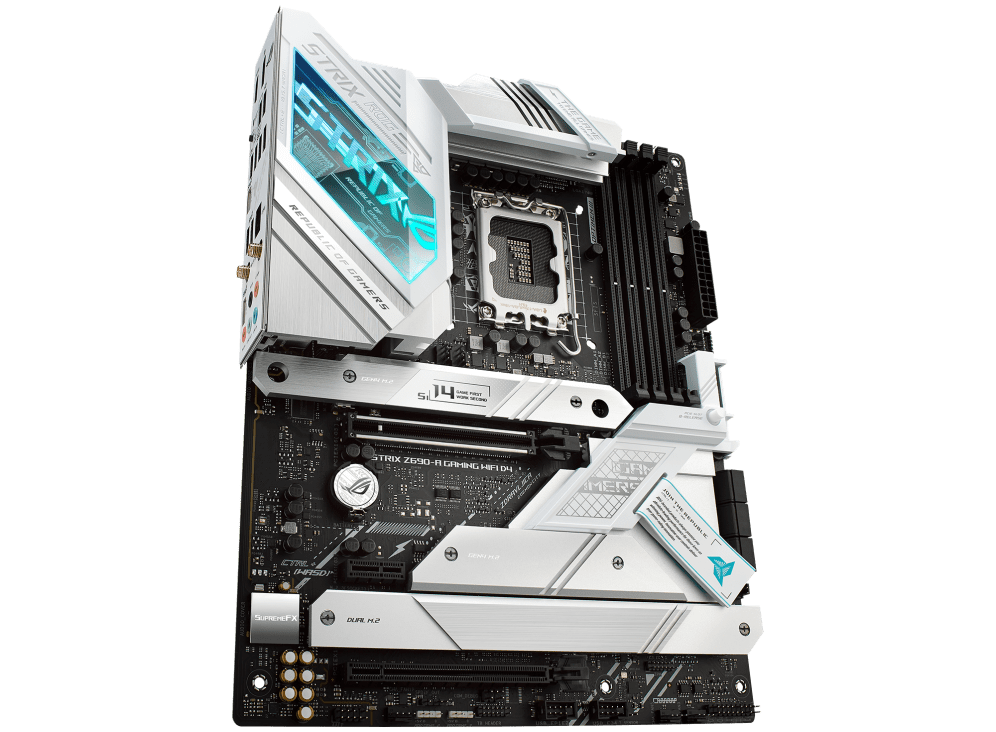

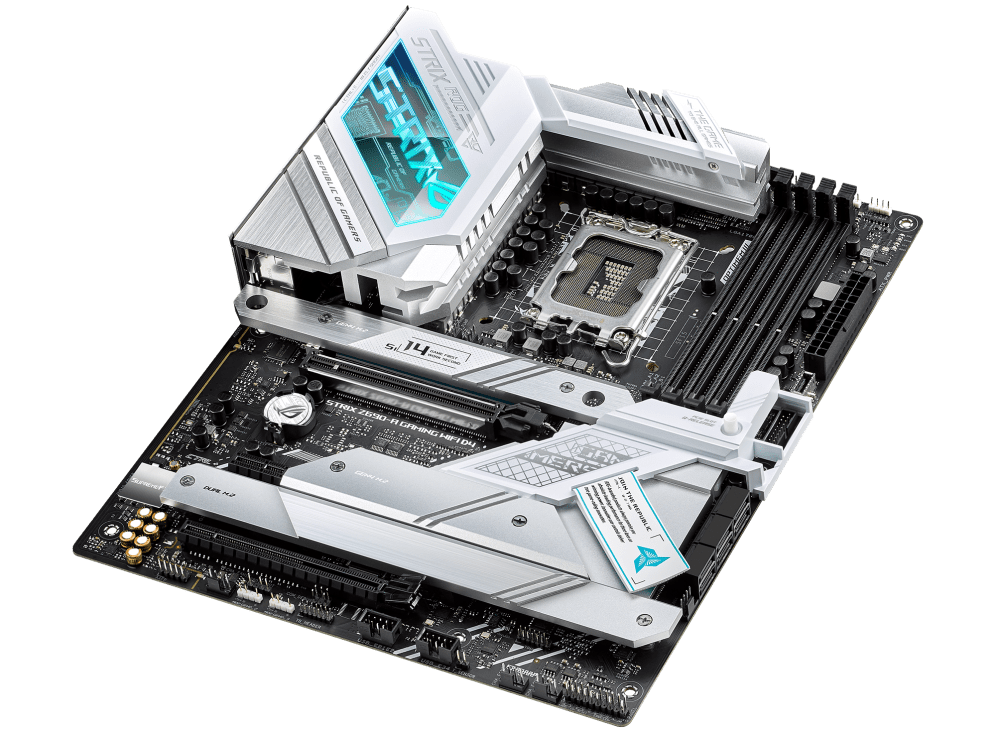

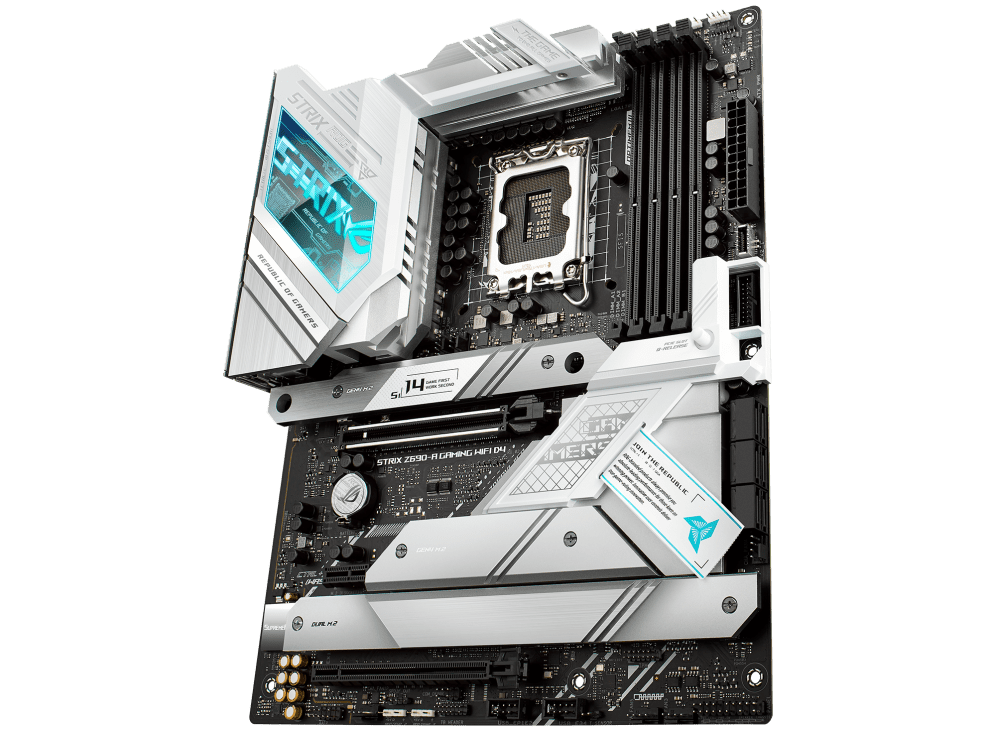

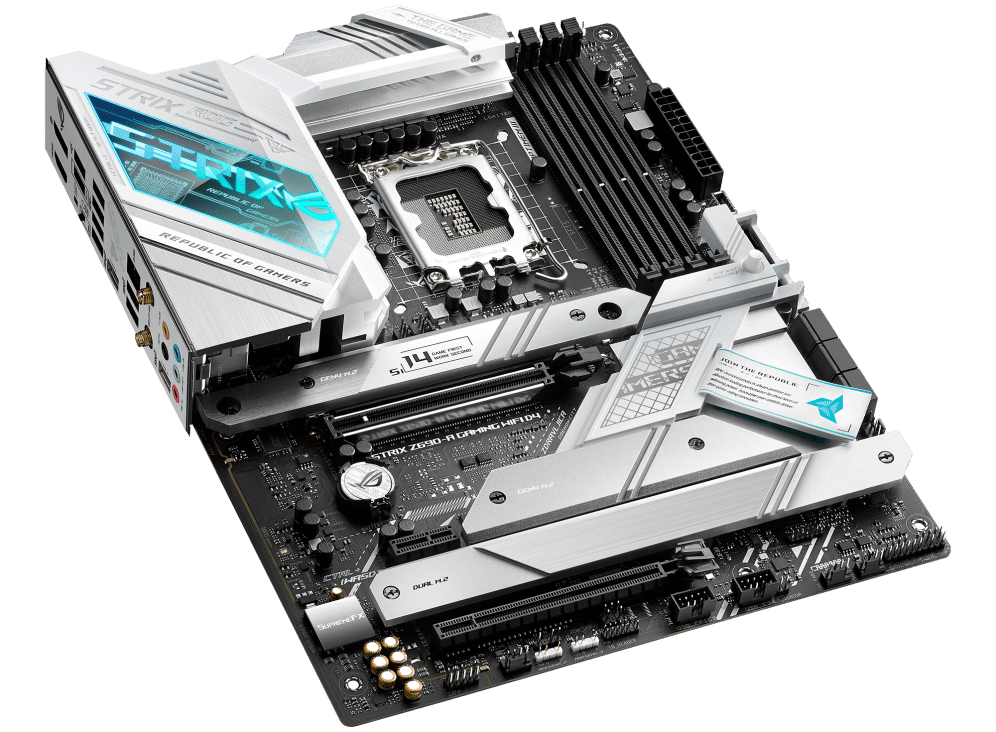

With Intel’s LGA1700 platform, the ASUS ROG Strix Z690-A Gaming WiFi D4 offers gamers, creators, and power users next-generation connectivity and top performance. With a robust 16 1 DrMOS power stage VRM design, ProCool II connectors, and premium alloy chokes, it supports Intel Core, Pentium Gold, and Celeron processors from the 12th and 13th generations.
Although it is built on the cutting-edge Z690 chipset, it fully supports DDR4 memory up to 5333 MHz (OC), making it perfect for users who want the fastest possible speed without switching to DDR5. The board has four onboard M.2 slots (one PCIe 4.0 x4, three PCIe 3.0) for lightning-fast storage configurations, as well as a PCIe 5.0 x16 slot for next-generation GPUs. For long-term performance, integrated heatsinks are included with every M.2 slot.

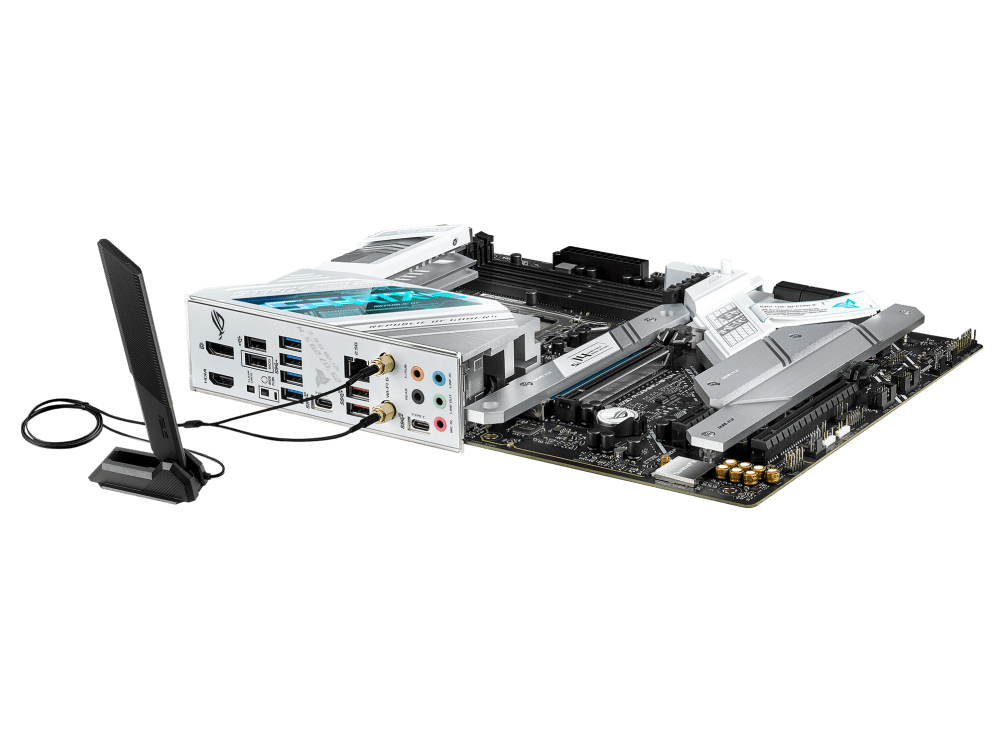

Intel Wi-Fi 6 and Intel 2.5Gb Ethernet handle both wired and wireless networking, providing users with quick, dependable connections for multitasking, gaming, and streaming. With USB 3.2 Gen 2×2 Type-C, several Gen 2 ports, and headers for Thunderbolt 4 support (through an add-on card), the USB selection is extensive.
The motherboard’s intelligent features, which automatically adjust performance and acoustics, include AI Cooling II, AI Overclocking, AI Noise Cancelation, and HDMI 2.1 and DisplayPort 1.4 for creators. The board’s reinforced PCIe slots, adjustable RGB zones (through Aura Sync), and Strix silver-white look finish a design intended to be both visually striking and performance-driven.
Features of ASUS ROG Strix Z690-A Gaming WiFi D4 Intel ATX Motherboard
| Feature | Details |
|---|---|
| CPU Socket | Intel LGA1700 |
| Chipset | Intel Z690 |
| CPU Support | 12th & 13th Gen Intel Core, Pentium Gold, Celeron |
| Form Factor | ATX (305 × 244 mm) |
| Power Delivery | 16 1 Power Stages, ProCool II, Digi VRM |
| Memory Support | 4× DDR4 DIMMs, up to 5333 MHz (OC), max 128GB |
| PCIe Slots | 1× PCIe 5.0 x16 (GPU), 1× PCIe 3.0 x16, 2× PCIe 3.0 x1 |
| M.2 Slots | 4× (1× PCIe 4.0 x4, 3× PCIe 3.0 x4), all with heatsinks |
| SATA Ports | 6× SATA 6Gb/s |
| Networking | Intel Wi-Fi 6, Intel 2.5Gb Ethernet |

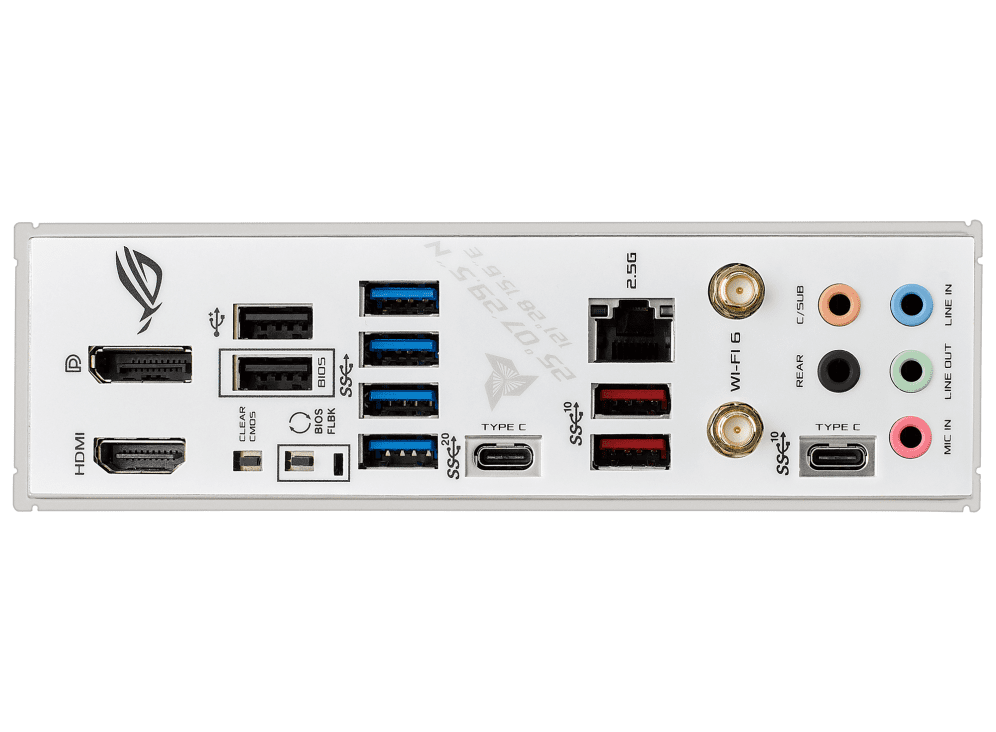

| USB Ports (Rear I/O) | USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, Gen 1 ports |
| USB Headers (Front) | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C |
| Audio | ROG SupremeFX 7.1 with ALC4080, DTS Sound Unbound |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 (for iGPU support) |
| RGB & Lighting | Aura Sync RGB, Gen 2 ARGB headers |
| Special Features | AI Overclocking, AI Cooling II, BIOS FlashBack, Q-LED |
| Thunderbolt Support | Thunderbolt 4 header (card required) |
| Software Features | Armoury Crate, Fan Xpert 4, RAMCache III |
| Warranty | 3 Years (region-specific) |
Ideally Best For
- Enthusiast Gamers and Streamers: Offers everything needed to power high-end GPUs, fast NVMe storage, stable RAM overclocks, and ultra-smooth networking for performance-focused gameplay and streaming.
- Content Creators and Professionals: With multiple M.2 slots, Thunderbolt support, AI Noise Cancellation, and stable DDR4 performance, it’s ideal for video editors, 3D artists, and music producers.
- PC Builders Avoiding DDR5: Perfect for those who want to stick with DDR4 without compromising on CPU performance, PCIe 5.0 GPU support, or advanced I/O.
- Future-Proofed Intel Upgrades: Designed to handle both 12th and 13th Gen CPUs and upcoming BIOS updates, keeping the build relevant for years.
- Design-Conscious Builders: The white-and-silver styling, RGB support, and premium layout make it a visual centrepiece in themed or open-case builds.
Buy ASUS ROG Strix Z690-A Gaming WiFi D4 Intel ATX Motherboard with DDR4 & PCIe 5.0 Online Today.
