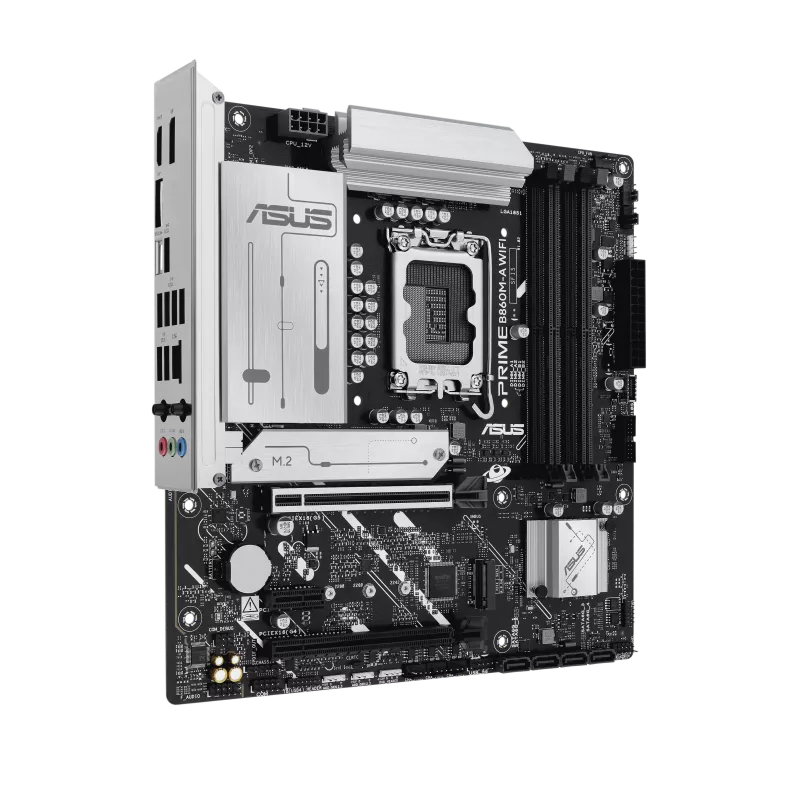

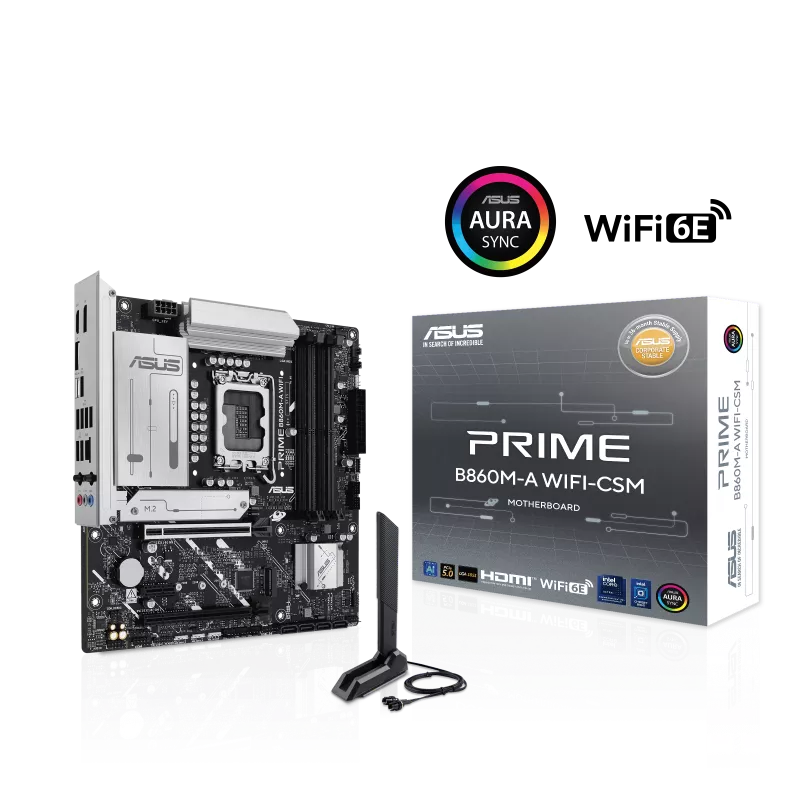

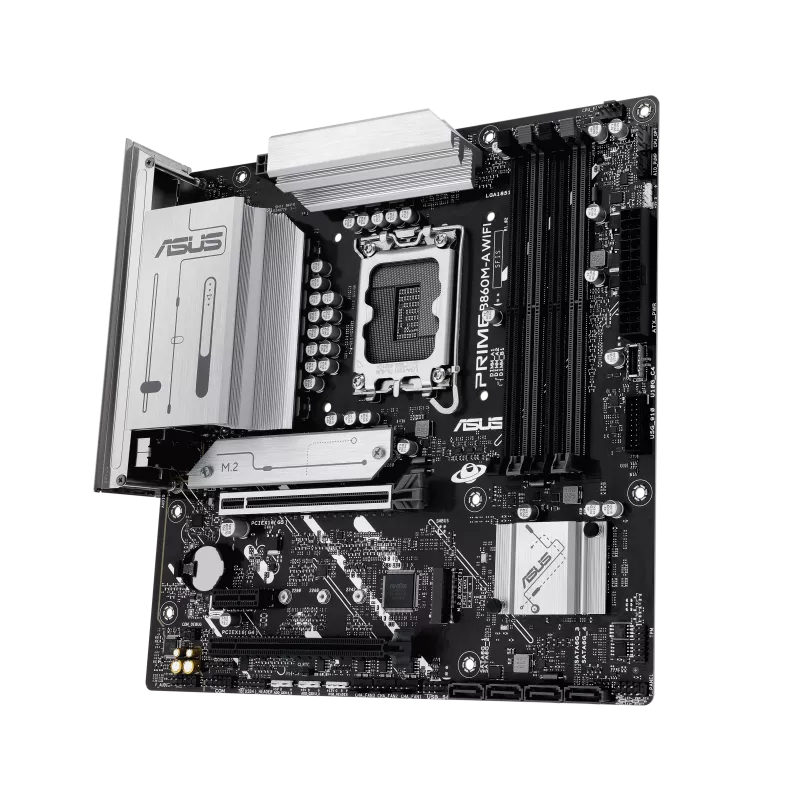

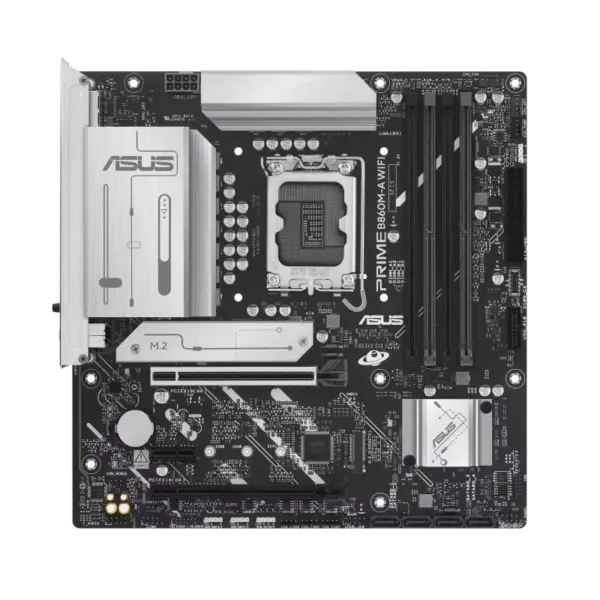

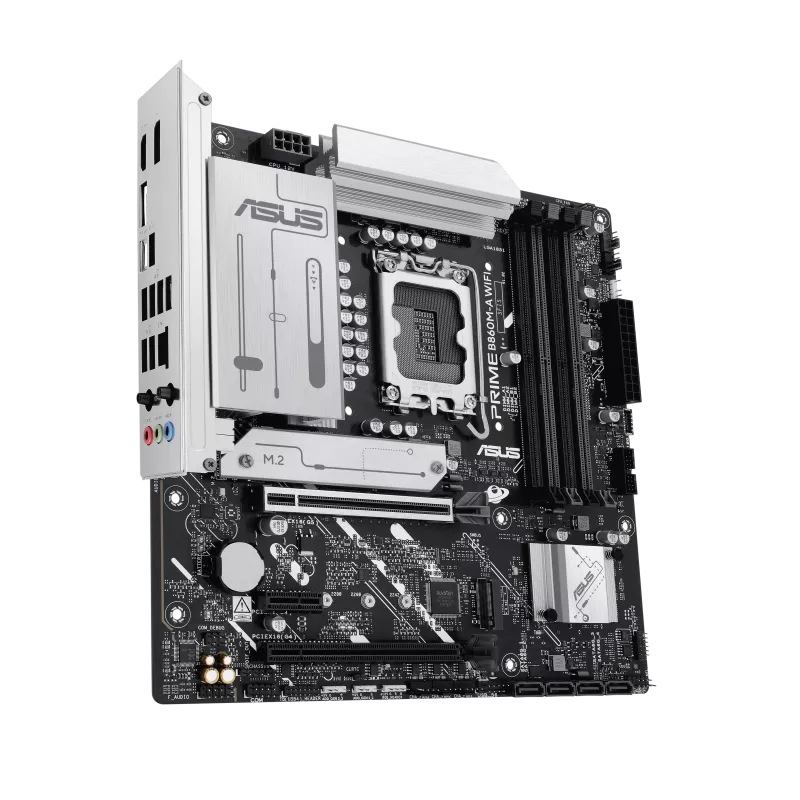

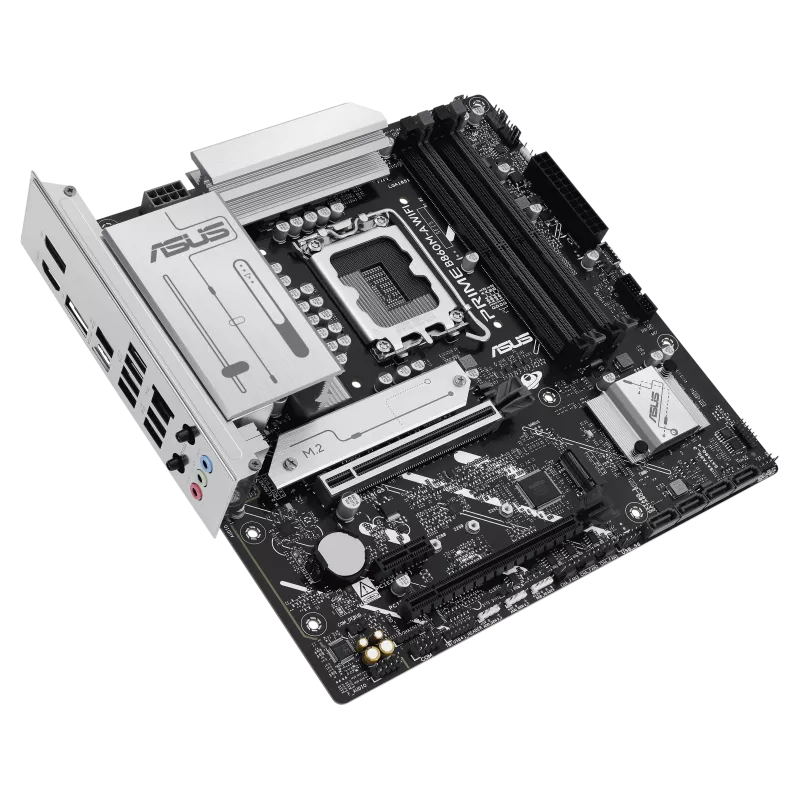

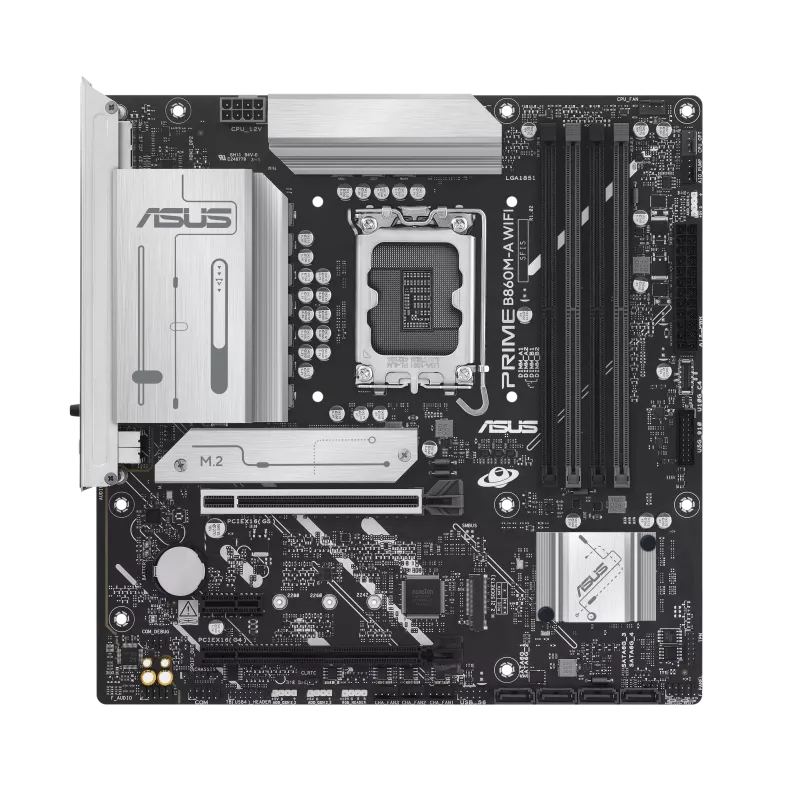

About Asus Prime B860M-A WiFi CSM Motherboard
Built around the Intel B860 chipset and LGA1851 socket, the Asus Prime Series Desktop Motherboard combines reliable power delivery with flexible connectivity and expansion options.
Four DDR5 DIMM slots support up to 256GB of memory, while ASUS AEMP III and DIMM Fit technologies help optimize memory performance.
Storage options include two M.2 slots, with PCIe 5.0 x4 support on the primary slot, alongside four SATA 6Gb/s ports.

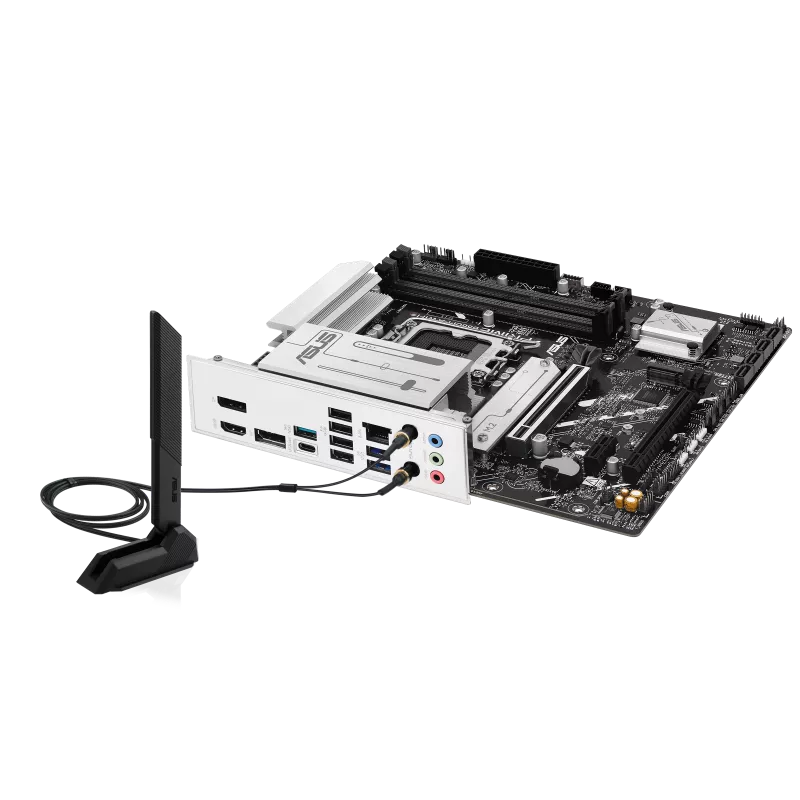

For high-speed connectivity, the Asus Prime Intel Series Motherboard features WiFi 6E, Bluetooth 5.3 and 2.5Gb Ethernet.
A PCIe 5.0 x16 SafeSlot provides a strong foundation for graphics expansion.

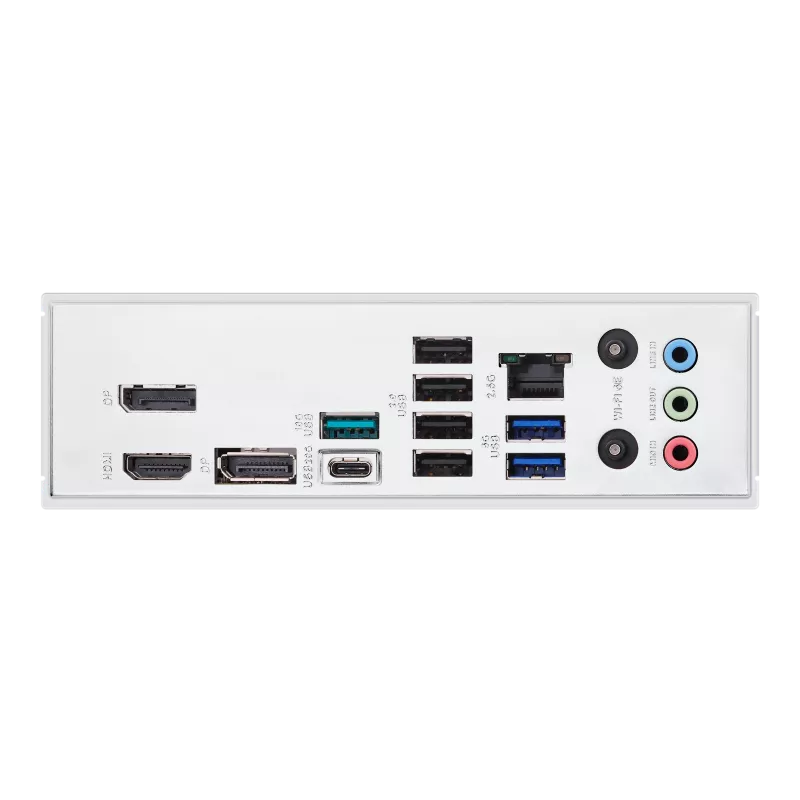

Additional features include USB 20Gbps Type-C, comprehensive cooling headers, Aura Sync lighting and ASUS EZ DIY technologies.
Its Corporate Stable Model support also makes the Asus Prime DDR5 Desktop Motherboard suitable for business-focused deployments requiring streamlined management and dependable platform availability.
| Specification | Details |
|---|---|
| Model | ASUS Prime B860M-A WiFi CSM |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 × 24.4 cm |
| CPU Socket | LGA1851 |
| CPU Compatibility | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| VRM Power Design | 7(80A) + 1(80A) + 1(80A) + 1(80A) power stages |
| VRM Cooling | Enlarged VRM heatsinks |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | Up to 256GB |
| Memory Architecture | Dual-channel |
| Memory Speed | Up to 8666+ MT/s (OC) |
| Memory Features | Intel XMP, ASUS AEMP III, DIMM Fit |
| Primary Expansion Slot | 1 × PCIe 5.0 x16, supports x16 mode |
| Secondary Expansion Slot | 1 × PCIe 4.0 x16, supports x4 mode |
| Additional Expansion | 1 × PCIe 4.0 x1 |
| M.2 Slots | 2 × M.2 Key M |
