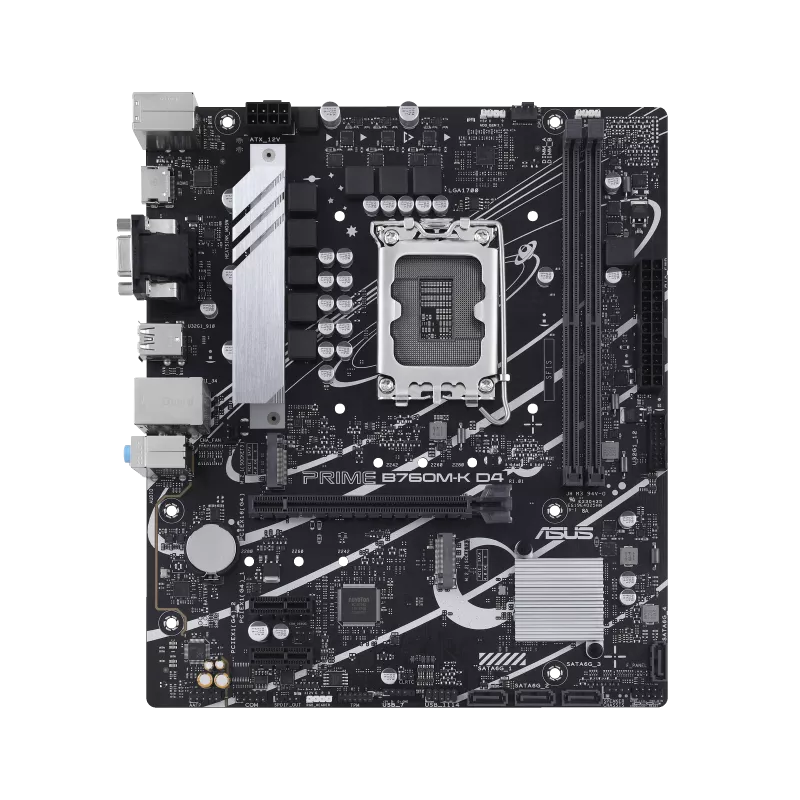

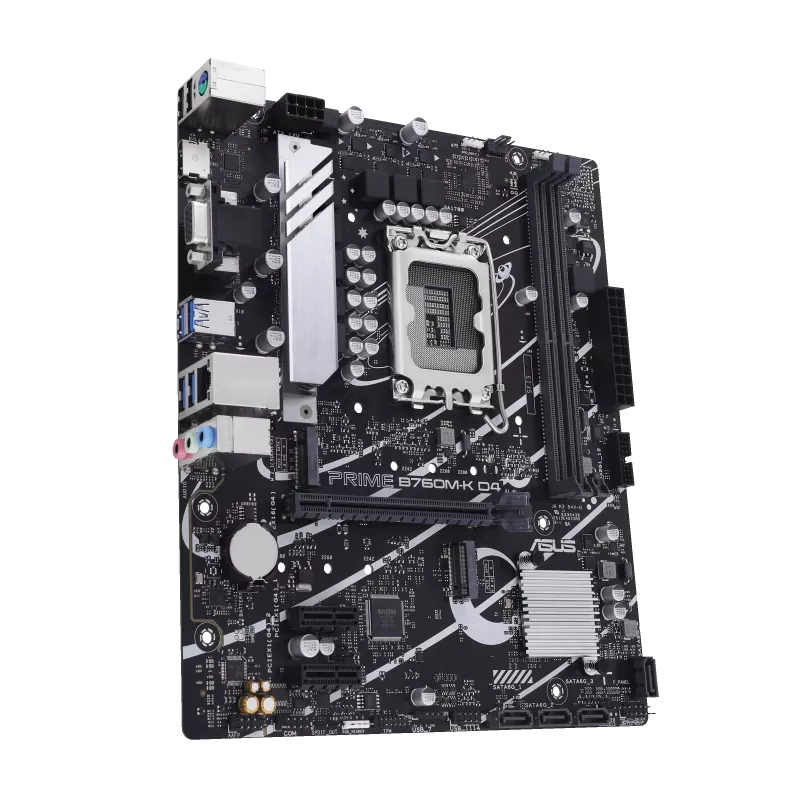

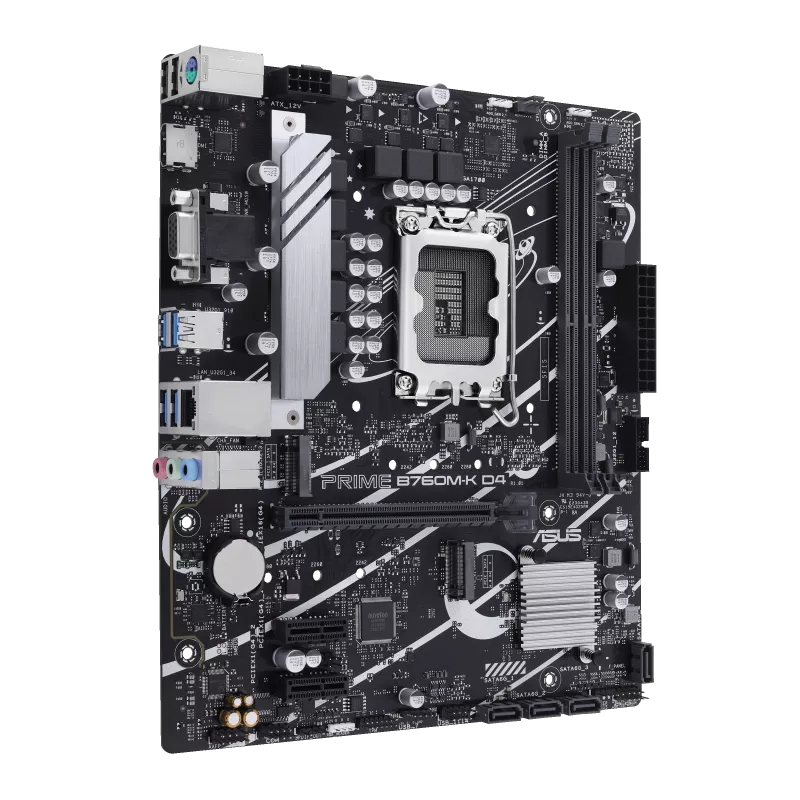

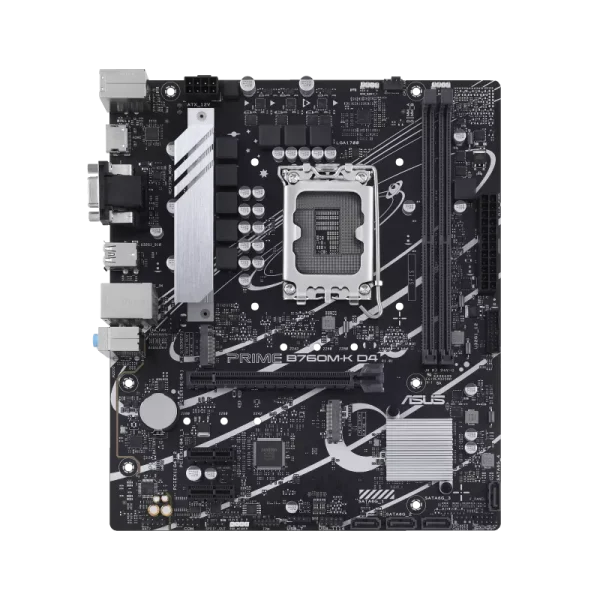

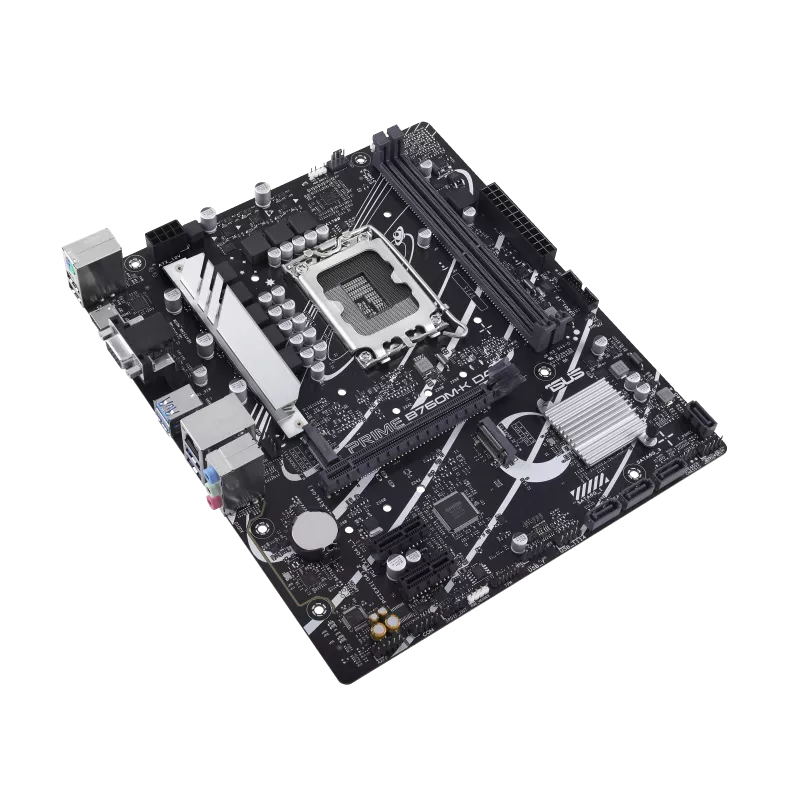

About Asus PRIME B760-M K D4 Motherboard
Built around the Intel B760 chipset and LGA1700 socket, it supports Intel Core 14th, 13th, and 12th Gen processors, along with compatible Pentium Gold and Celeron processors.
The Asus Prime D4 Series Motherboard offers two DDR4 DIMM slots that supports up to 64GB of RAM memory and high overclocked speeds, helping to deliver responsive multitasking and smooth system performance.
Storage flexibility comes from two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, while the PCIe 4.0 x16 slot accommodates a dedicated graphics card.
Realtek 2.5Gb Ethernet provides fast wired networking for gaming and large file transfers.

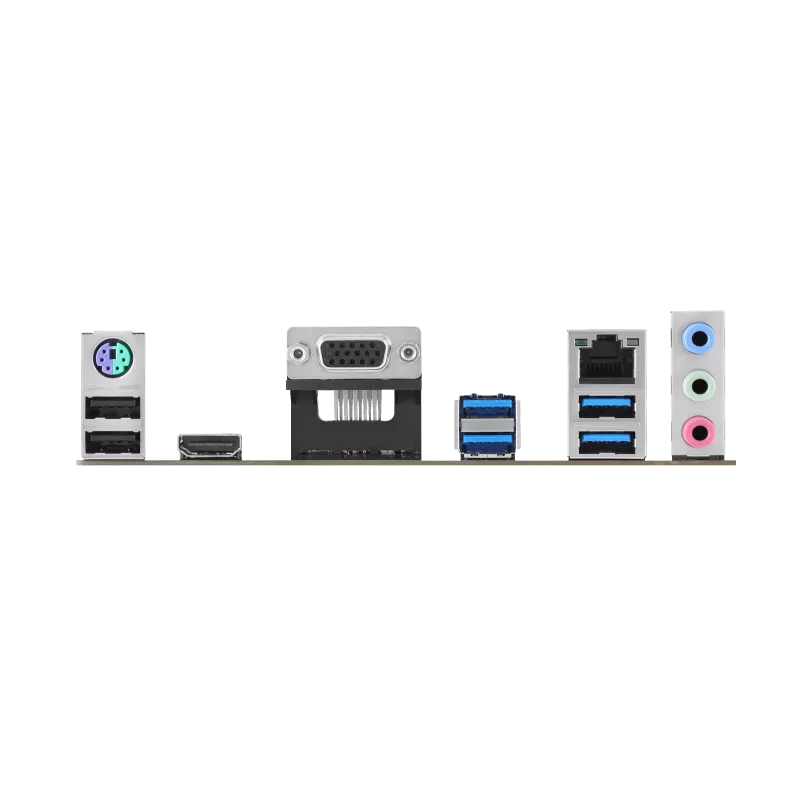

The Asus Intel Powered Desktop Motherboard also features USB 3.2 Gen 1 connectivity, HDMI and VGA display outputs, Realtek 7.1-channel audio, comprehensive cooling controls, and ASUS Aura Sync RGB support.
Its practical design makes it a versatile foundation for powerful, space-conscious PC builds.
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | PRIME B760M-K D4 |
| Motherboard Series | ASUS Prime |
| Form Factor | Micro-ATX |
| CPU Socket | Intel LGA1700 |
| Chipset | Intel B760 |
| CPU Compatibility | Intel Core 14th, 13th and 12th Gen processors, Pentium Gold and Celeron processors |
| CPU Features | Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 support |
| Memory Type | DDR4 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 64GB |
| Memory Architecture | Dual Channel |
| Memory Support | DDR4 up to 5333 MT/s (OC), depending on configuration |
| Memory Technology | Intel XMP |
| Primary Expansion Slot | 1 × PCIe 4.0 x16 |
| Additional Expansion | 2 × PCIe 4.0 x1 |
