ASRock Radeon RX 7800 XT Steel Legend OC | 16GB GDDR6 White GPU

ASRock Radeon RX 7800 XT Steel Legend OC | 16GB GDDR6 White GPU

Modern gaming workloads are placing immense stress on graphics memory, with many high-fidelity titles rapidly exceeding standard 8GB and 12GB frame buffers at high resolutions. The ASRock Steel Legend OC addresses this hardware bottleneck directly by providing a massive 16GB of GDDR6 memory running across a wide 256-bit bus. This massive bandwidth ensures that demanding high-resolution texture packs, deep ray-tracing calculations, and heavy multi-monitor streaming environments operate without stuttering or memory overflow.

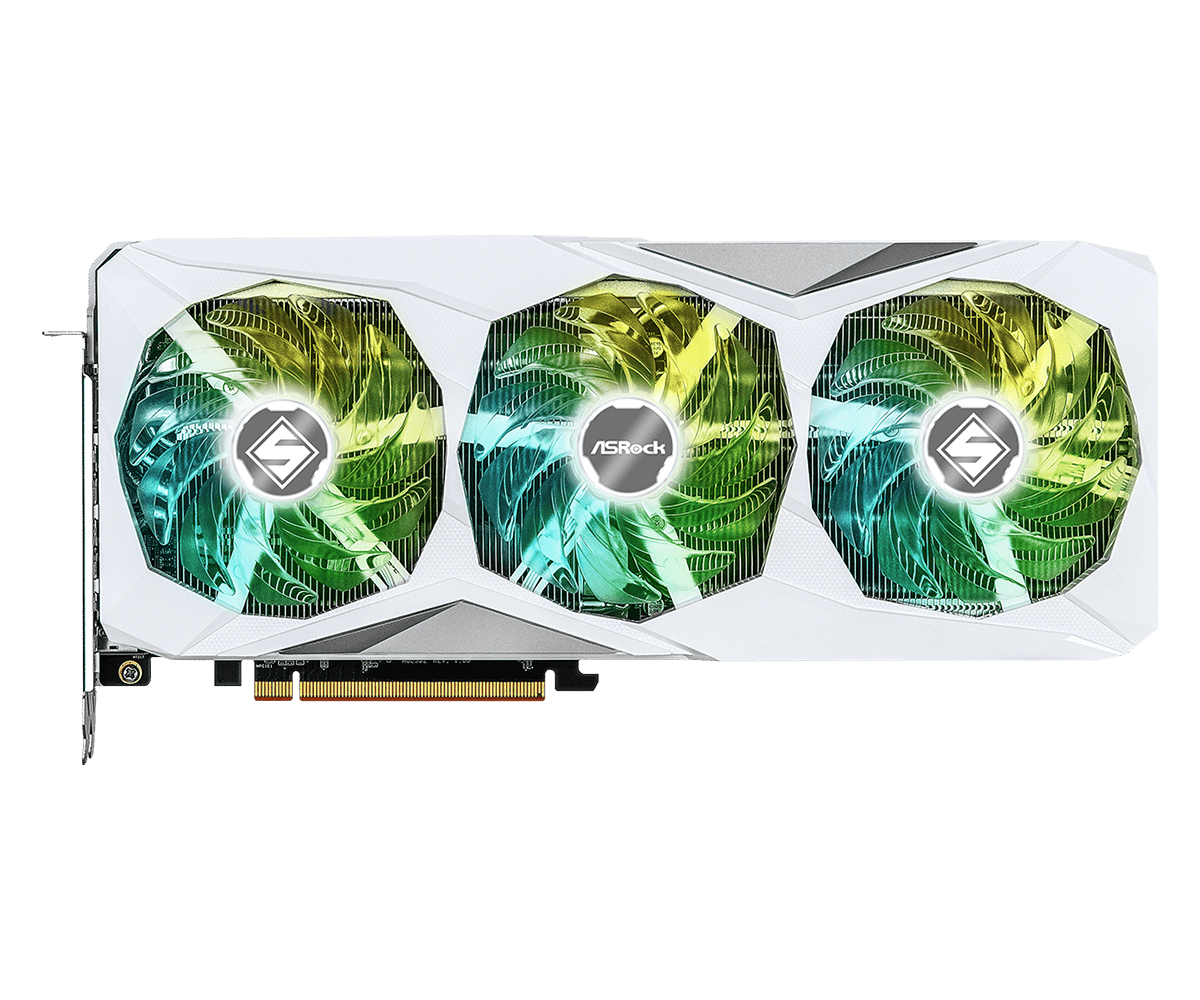

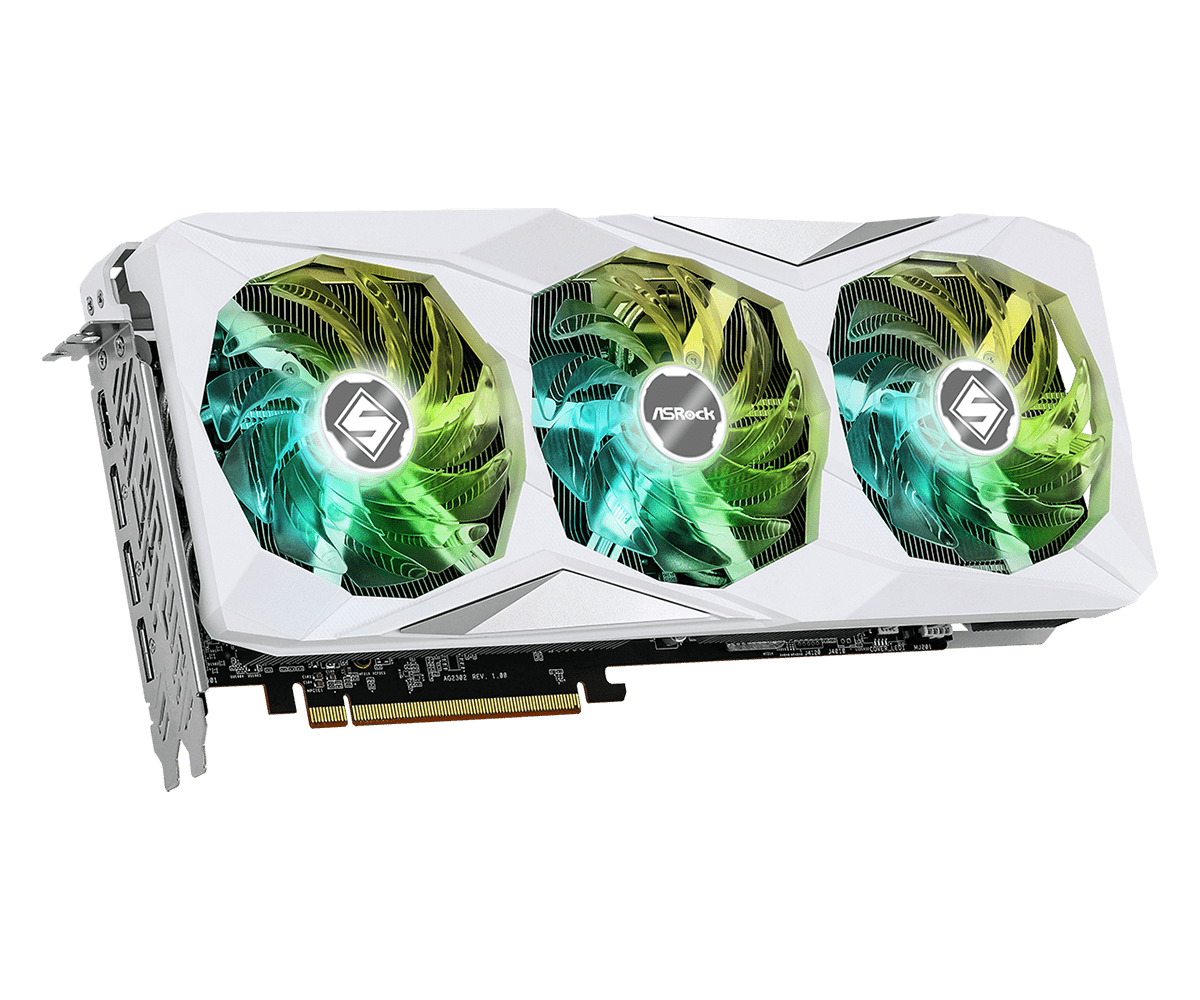

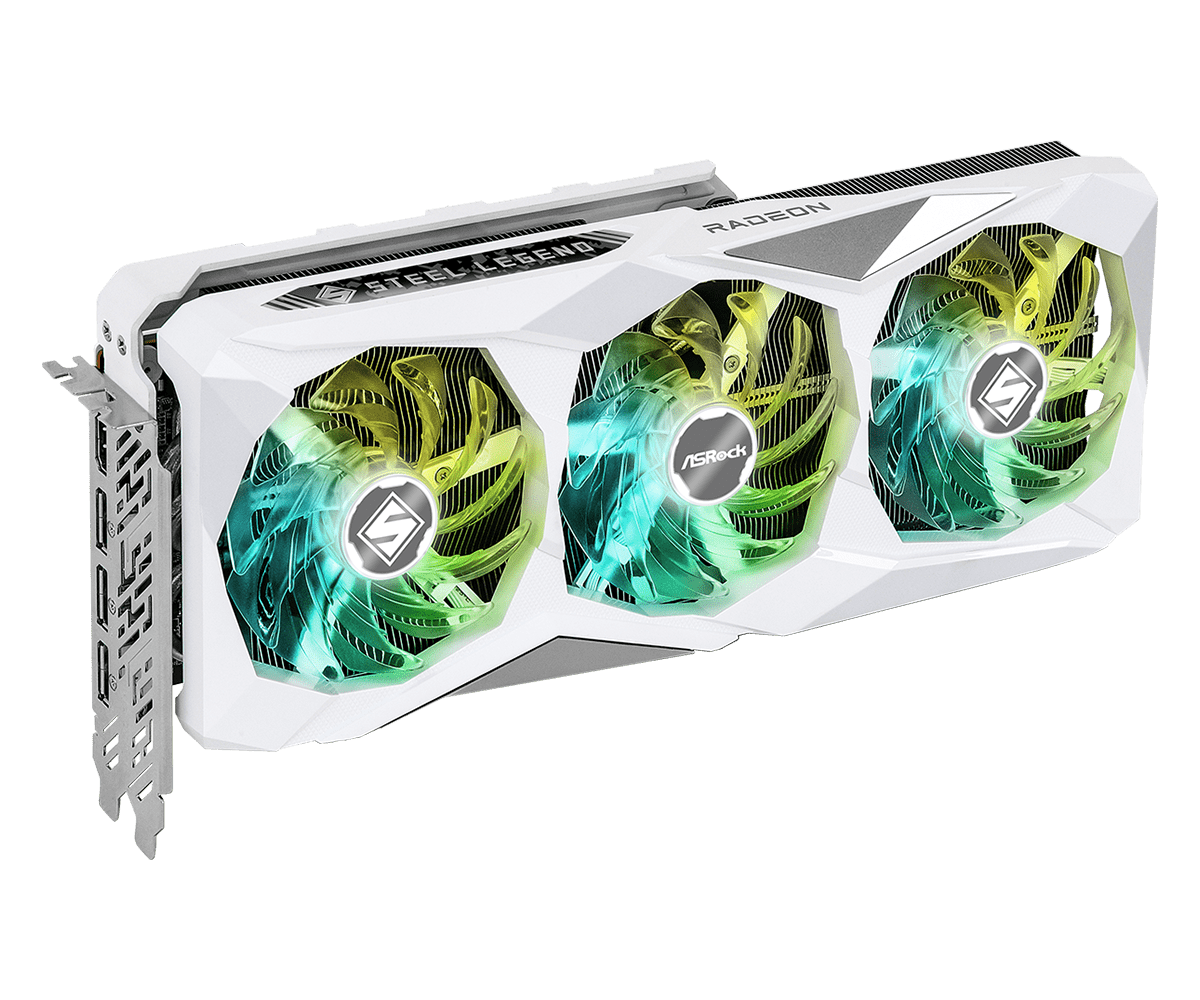

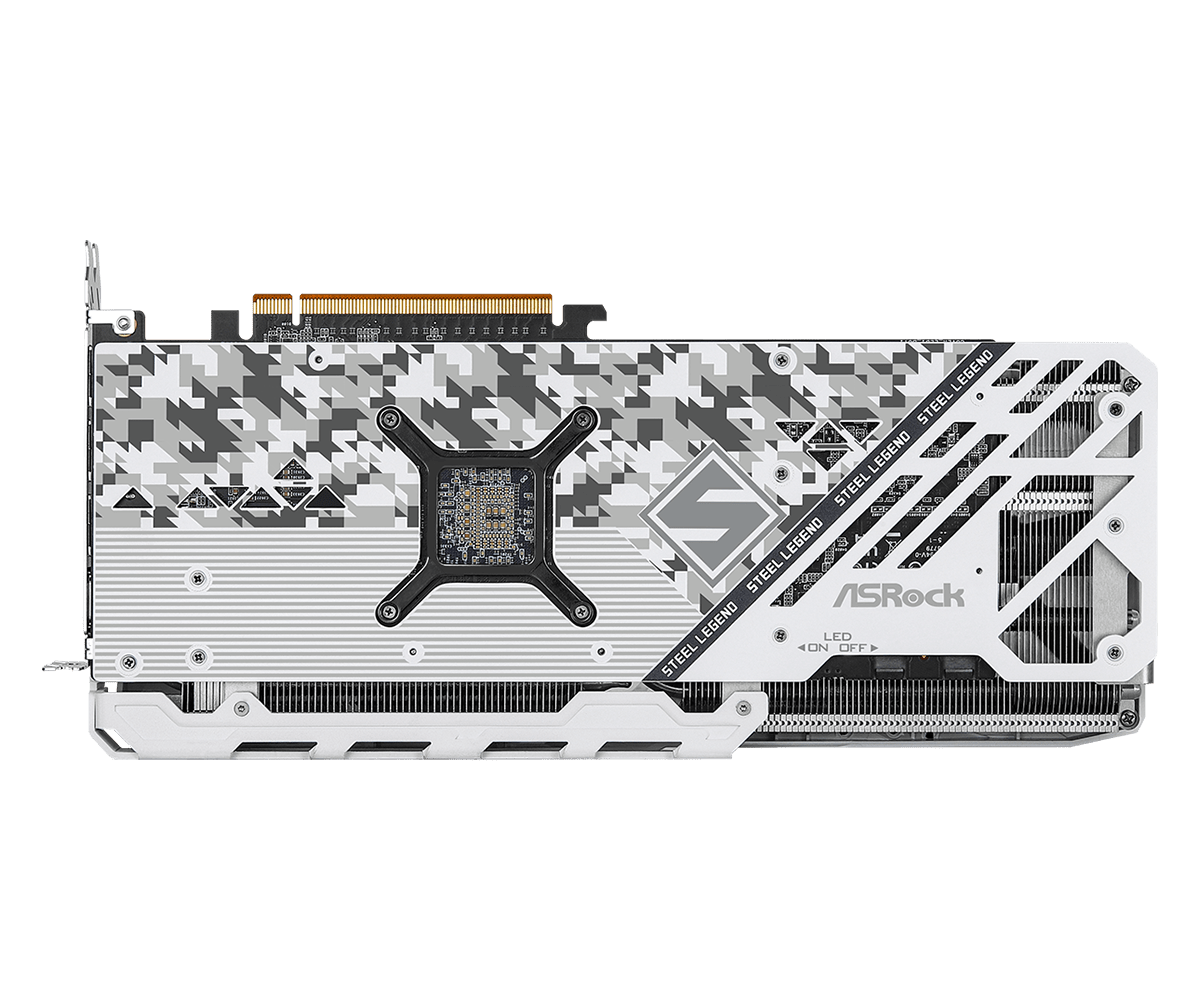

Structurally, the Steel Legend OC is engineered to avoid the thermal throttling and physical sagging common in heavy graphics cards. It utilizes an elite triple-fan cooling layout featuring specialized Striped Axial Fans and Air Deflecting Fins to push positive air pressure directly through its high-density nickel-plated copper baseplate. The entire PCB is protected by a premium reinforced metal structural frame and a solid, stylized metal backplate that prevents physical bending over time. Buyers choose this specific variant when they want elite AMD rasterization performance packaged in a beautiful white aesthetic, prioritizing low operating temperatures and out-of-the-box factory overclocking over standard reference models.

KEY FEATURES

• Aggressive Factory Overclock: Pushes the base RDNA 3 compute units to a rapid Game Clock of 2213 MHz and a maximum Boost Clock up to 2520 MHz, giving builders an immediate out-of-the-box frame rate advantage over standard base models.
• Massive 16GB GDDR6 VRAM: Future-proofs your desktop setup by offering plenty of memory capacity. This large buffer is critical for maxing out visual settings in open-world titles, handling ultra-high 1440p refresh rates, and managing complex 3D rendering workloads.
• Advanced Triple-Fan Cooling: Utilizes a custom active cooling solution with three Striped Axial Fans and consolidated ultra-fit heatpipes. It supports 0dB Silent Cooling technology, allowing the fans to stop spinning completely during light web browsing or desktop tasks for absolute silence.
• Next-Gen DisplayPort 2.1: Equipped with three advanced DisplayPort 2.1 ports alongside one HDMI 2.1 port, unlocking massive bandwidth to support next-generation ultra-high refresh rate gaming monitors and ultimate 8K visual outputs.
• Polychrome SYNC ARGB Lighting: Features integrated multi-color LED illumination along the fans and frame. Includes an onboard physical LED switch to easily turn off lighting, or syncs seamlessly with compatible motherboards to create custom, brilliant visual effects.

PERFORMANCE & USAGE

In a live gaming environment, the Steel Legend OC excels as a dominant 1440p powerhouse. In demanding modern games like Cyberpunk 2077 or Starfield, the raw rasterization strength of the 3840 stream processors easily pushes high frame rates. When paired with AMD’s upscaling technologies like FidelityFX Super Resolution (FSR 3) and built-in frame generation, the card easily handles smooth transitions into immersive 4K gaming. Content creators also benefit heavily from the integrated hardware AV1 encoders, which drastically improve live streaming visual clarity via OBS Studio without taxing the primary processor.

Building with this card requires some physical planning due to its robust size. Measuring 304 × 131 × 56 mm and taking up a 2.8-slot physical footprint, builders must ensure their mid-tower chassis has adequate clearance away from front-mounted liquid coolers or hard drive cages. Power delivery relies on two standard 8-pin PCIe connectors, drawing up to 263W under full load. Pairing the setup with a high-quality, reliable 750W to 800W power supply is highly recommended to safely manage transient power demands.

TARGET AUDIENCE: Enthusiast PC builders, competitive high-refresh-rate gamers, and live streamers. It is tailored specifically for users assembling high-airflow white gaming setups who want to maximize their dollar-to-frame value, avoiding the extreme price premiums of competing green-team alternatives while securing plenty of long-term memory bandwidth.

COMPARISON INSIGHTS

When compared to AMD’s reference RX 7800 XT design, the ASRock Steel Legend OC offers significantly lower operating hotspot temperatures and noticeable acoustic improvements due to its massive aftermarket triple-fan cooling block. The reference card can run warm and loud under heavy torture tests, whereas the Steel Legend maintains excellent thermal transfer.

Against its primary direct competitor, the Nvidia GeForce RTX 4070, the Steel Legend holds a massive hardware advantage in raw rasterization performance and memory capacity (16GB vs 12GB). While the RTX 4070 remains superior in heavy ray-tracing calculations and pure power efficiency, the RX 7800 XT is vastly more cost-effective for pure frame rates in traditional gaming, making it the smarter financial choice for long-term 1440p longevity.

EXPERT RECOMMENDATION

The ASRock Radeon RX 7800 XT Steel Legend OC is a masterful execution of mid-to-high-end graphics hardware. By combining a generous factory overclock, exceptional structural reinforcement, and an elite white aesthetic, it delivers outstanding real-world value. It does not suffer from the restrictive memory limits that plague competing options in this price bracket. If your goal is to build an exceptionally stable, cool-running gaming desktop that absolutely dominates 1440p displays for the next several years, this graphics card is a highly rational, reliable investment.

FAQ

1. Does this graphics card require the new 16-pin (12VHPWR) power connector? No. The ASRock Steel Legend OC relies entirely on two traditional 8-pin PCIe power connectors, making it highly compatible with standard, existing power supplies without requiring specialized adapters.
2. Can I turn off the RGB lighting completely? Absolutely. In addition to software controls via ASRock Polychrome SYNC, the graphics card features a highly convenient physical onboard LED switch that allows you to shut off the illumination instantly at the hardware level.
3. Will this graphics card fit inside a Micro-ATX case? While it fits the standard PCIe slots of a Micro-ATX motherboard, its overall length of 304mm and 2.8-slot thickness mean you must carefully measure your case’s internal clearance. It may block lower PCIe slots or collide with drive cages in highly compact mini-towers.
4. Does the card come with a physical GPU support bracket in the box? No, the retail box typically includes the graphics card and a quick installation guide. However, its specialized reinforced metal frame is highly rigid and designed specifically to resist sagging on its own.
5. Is 16GB of VRAM necessary for gaming? Yes, it is rapidly becoming the recommended standard for high-end longevity. Modern games utilize massive texture pools that easily fill up smaller 8GB buffers, causing stuttering and dropped frames. Having 16GB ensures smooth, consistent performance as visual fidelity continues to evolve.
