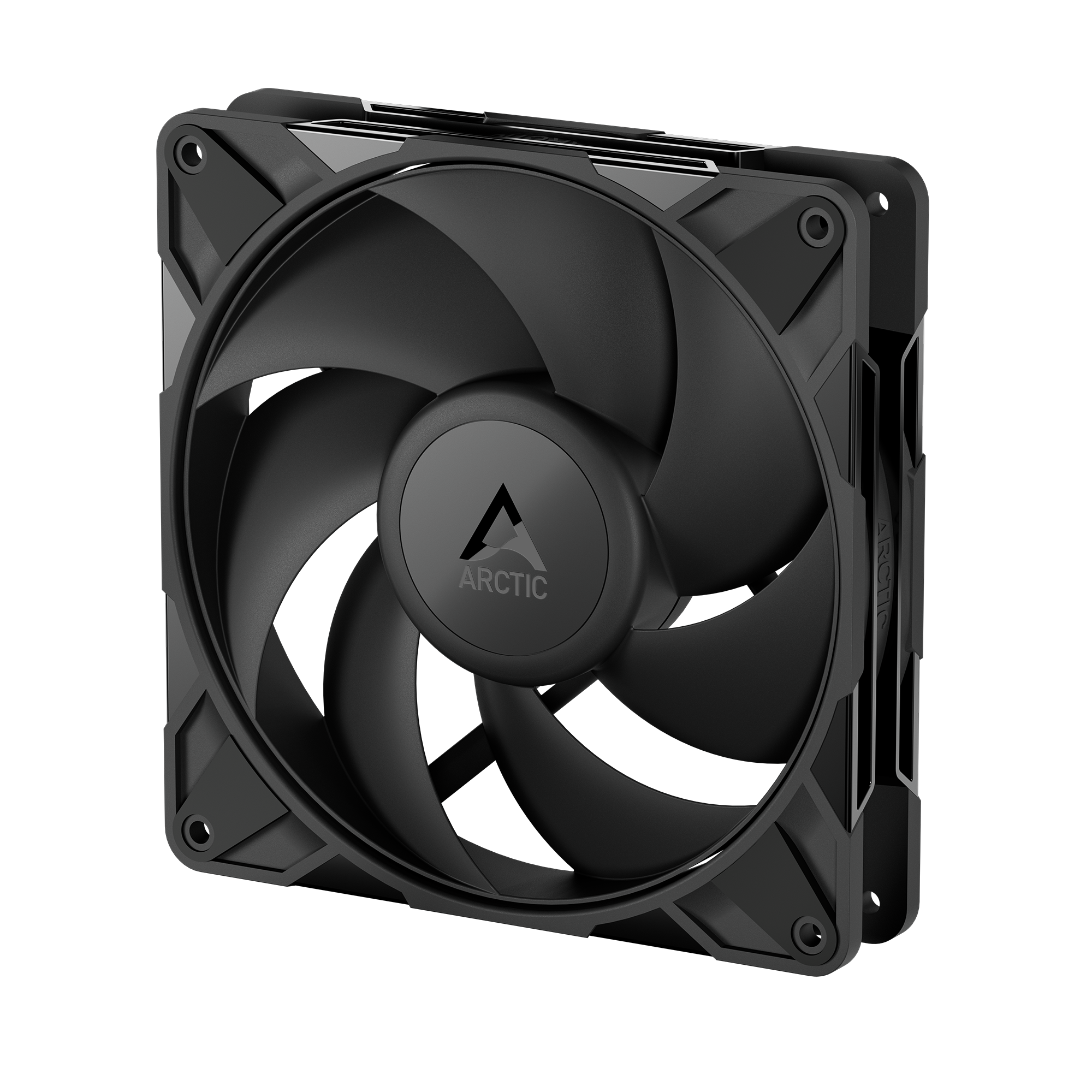

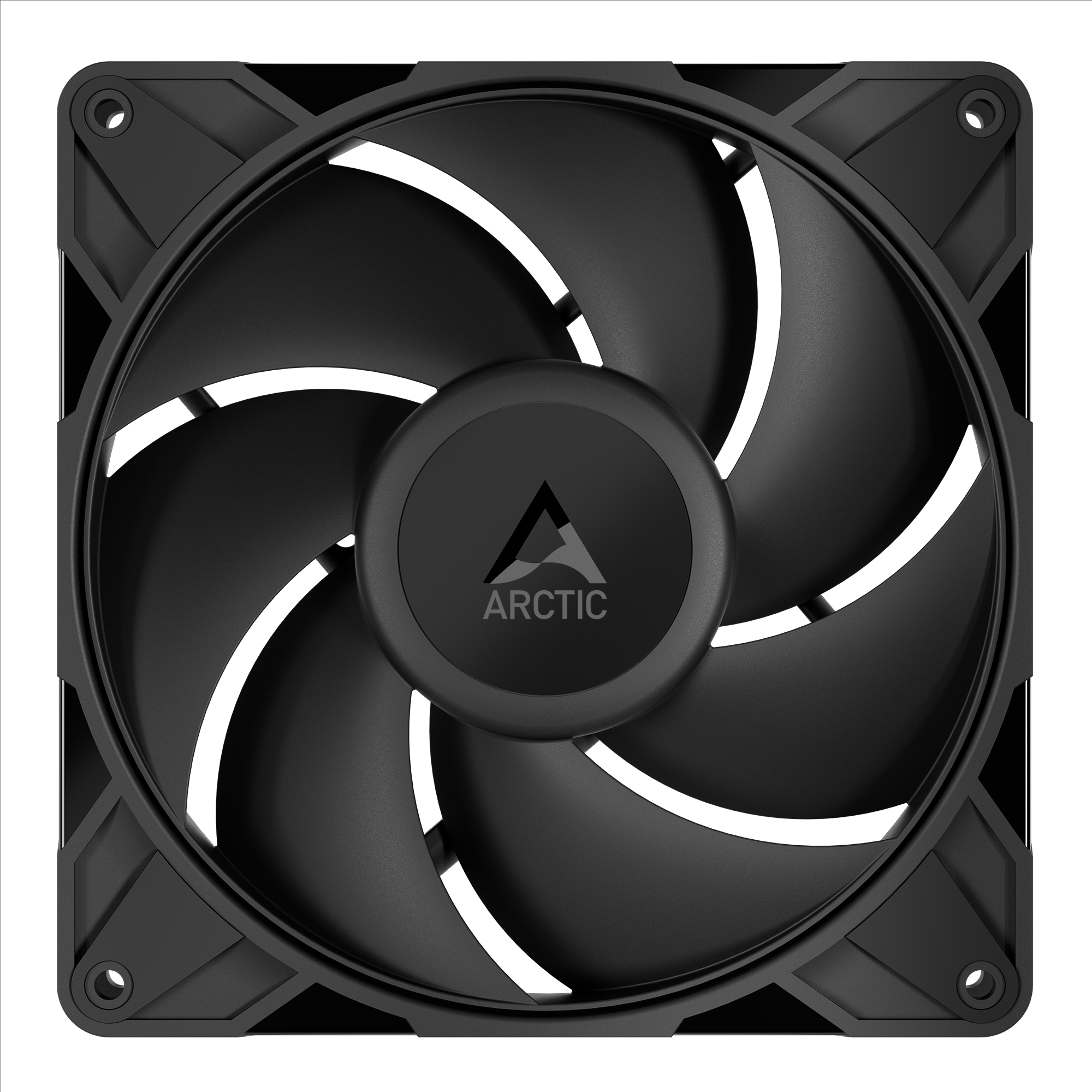

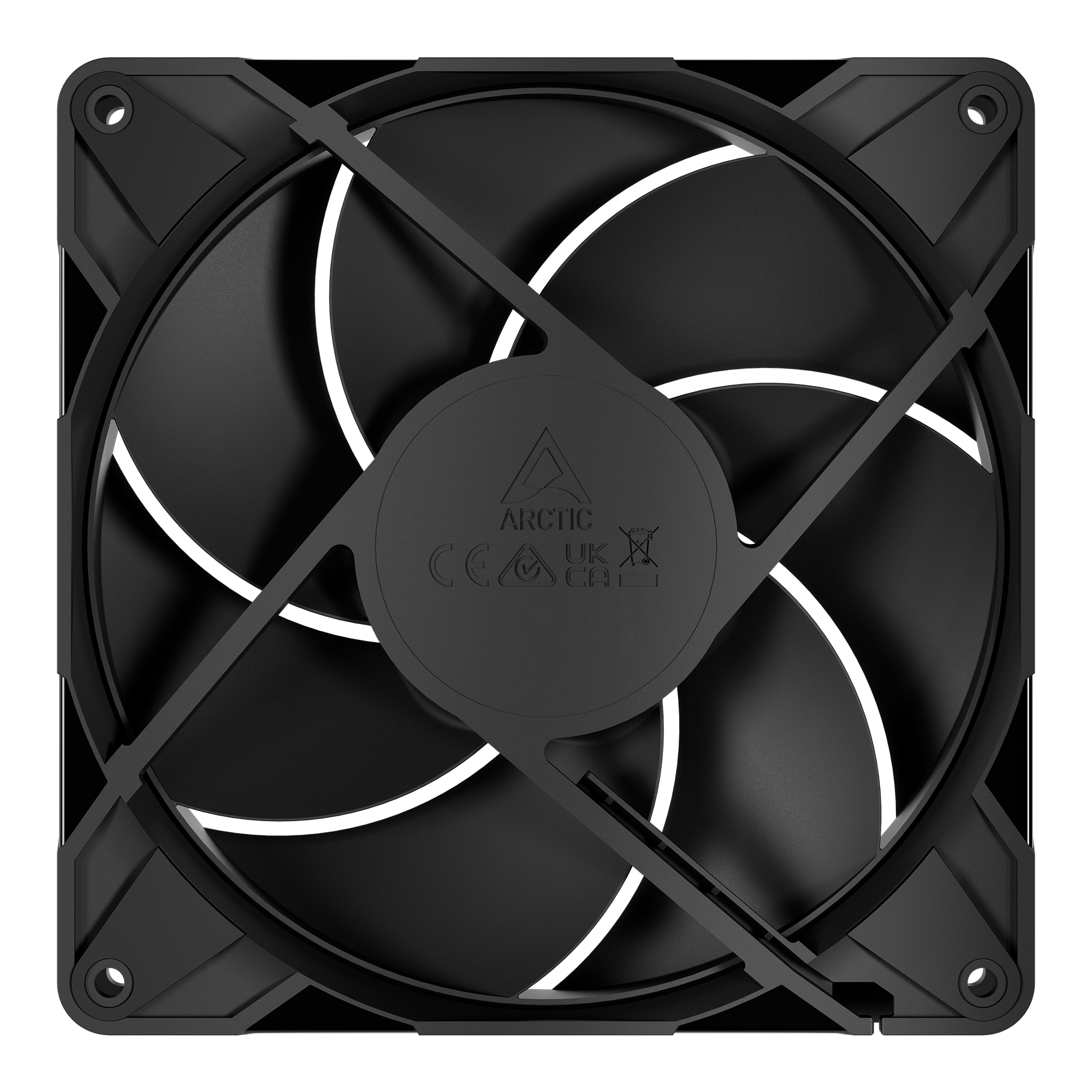

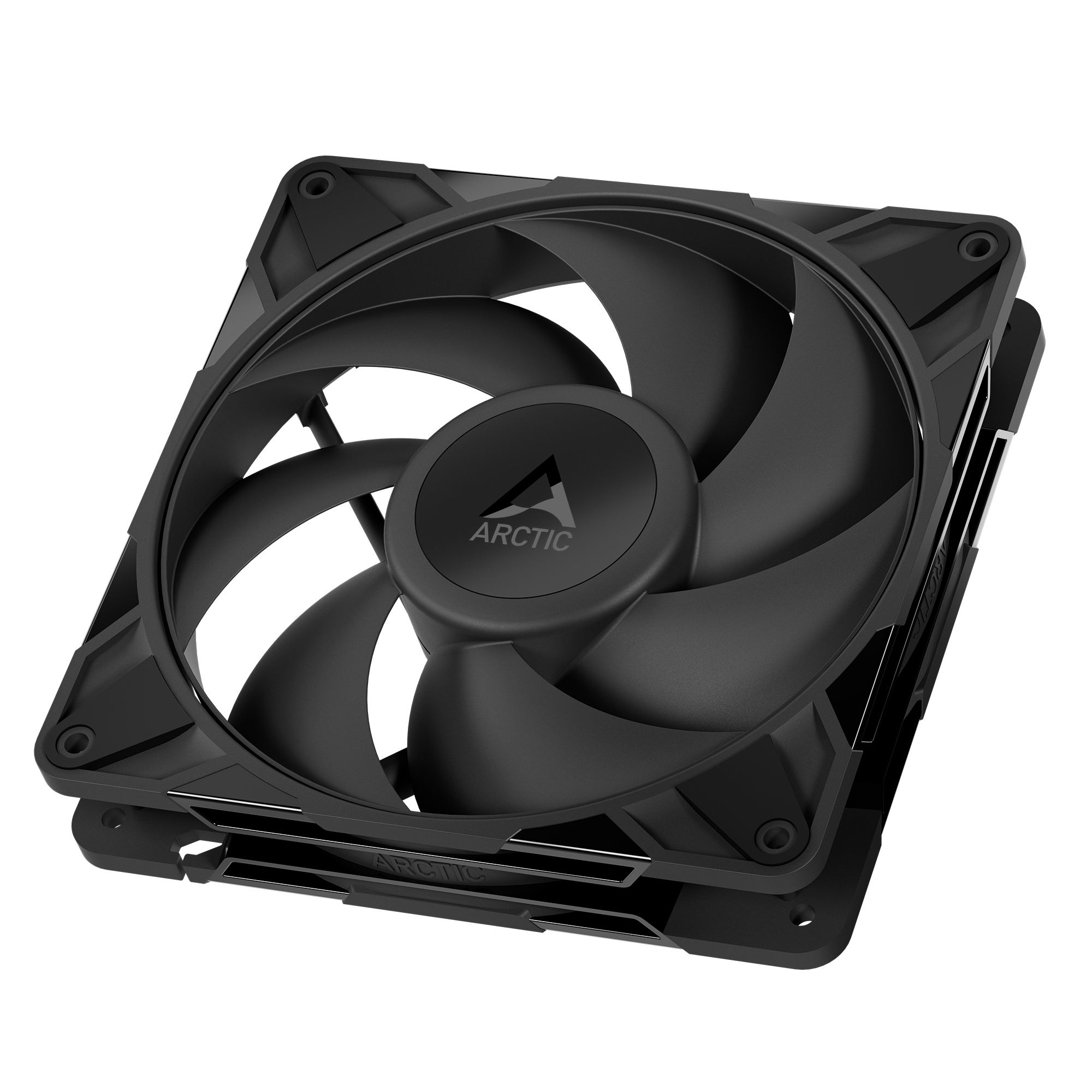

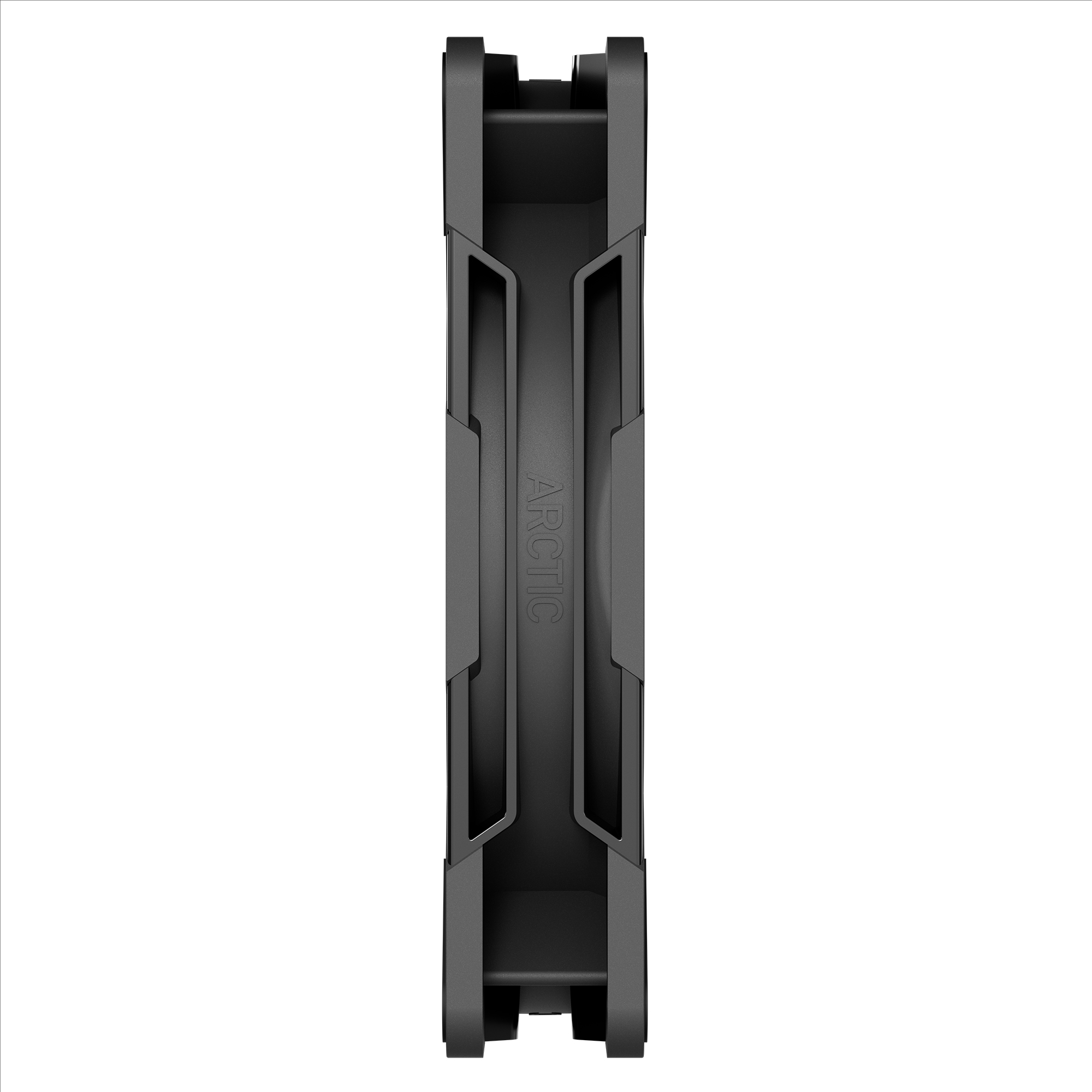

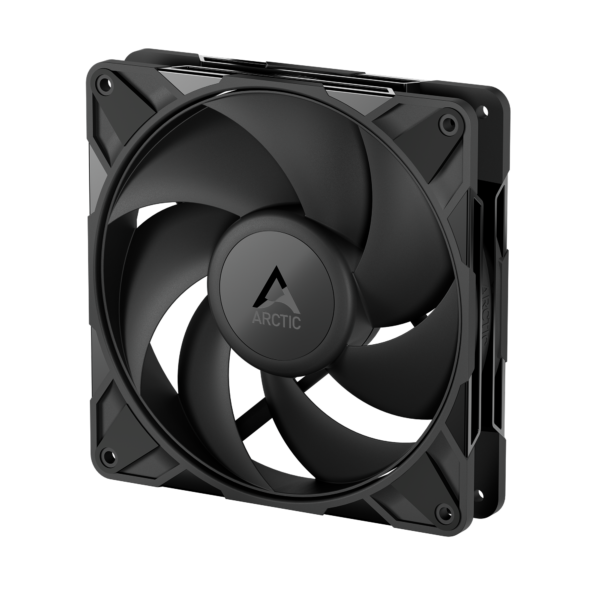

About Arctic P14 Pro 140 mm PWM Fan
Designed with an advanced blade structure and optimized for high static pressure, this fan excels in cases, radiators, CPU coolers, and other airflow-restricted environments.
Its wide PWM-controlled speed range allows precise cooling adjustments, while the Fluid Dynamic Bearing ensures smooth and reliable long-term operation.
The 140 mm form factor provides excellent airflow coverage, making it suitable for gaming PCs, workstations, and high-performance systems.
With enhanced motor technology and refined balancing, the P14 Pro delivers powerful airflow, stable operation, and dependable cooling performance.
| Category | Specification |
|---|---|
| Product Name | Arctic P14 Pro 140 mm PWM Fan |
| Fan Type | High Static Pressure PWM Fan |
| Fan Size | 140 mm |
| Dimensions | 140 × 140 × 27 mm |
| Weight | Approximately 237–240 g |
| Speed Range | 400 – 2500 RPM |
| PWM Control | Yes |
| Zero RPM Mode | Yes, below 5% PWM signal |
| Airflow | 110 CFM |
| Airflow Volume | 186 m³/h |
| Static Pressure | 5.2 mmH₂O |
| Bearing Technology | Fluid Dynamic Bearing (FDB) |
| Fan Connector | 4-Pin PWM Connector |
| Rated Voltage | 12 V DC |
| Rated Current | 0.35 A |
| Starting Voltage | 5 V |
