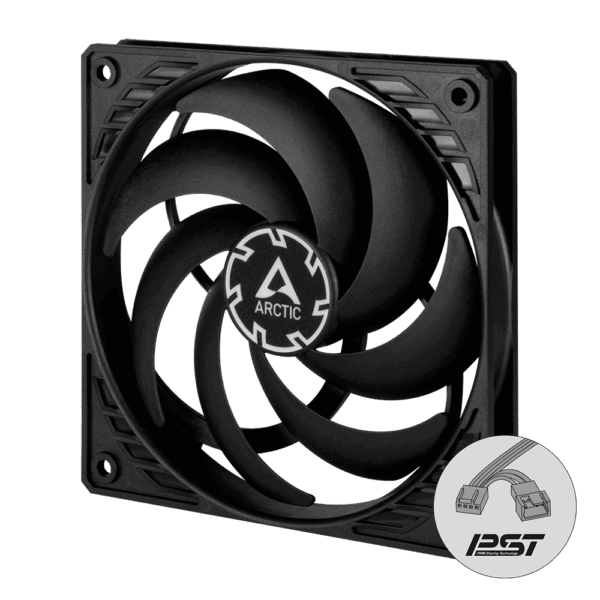

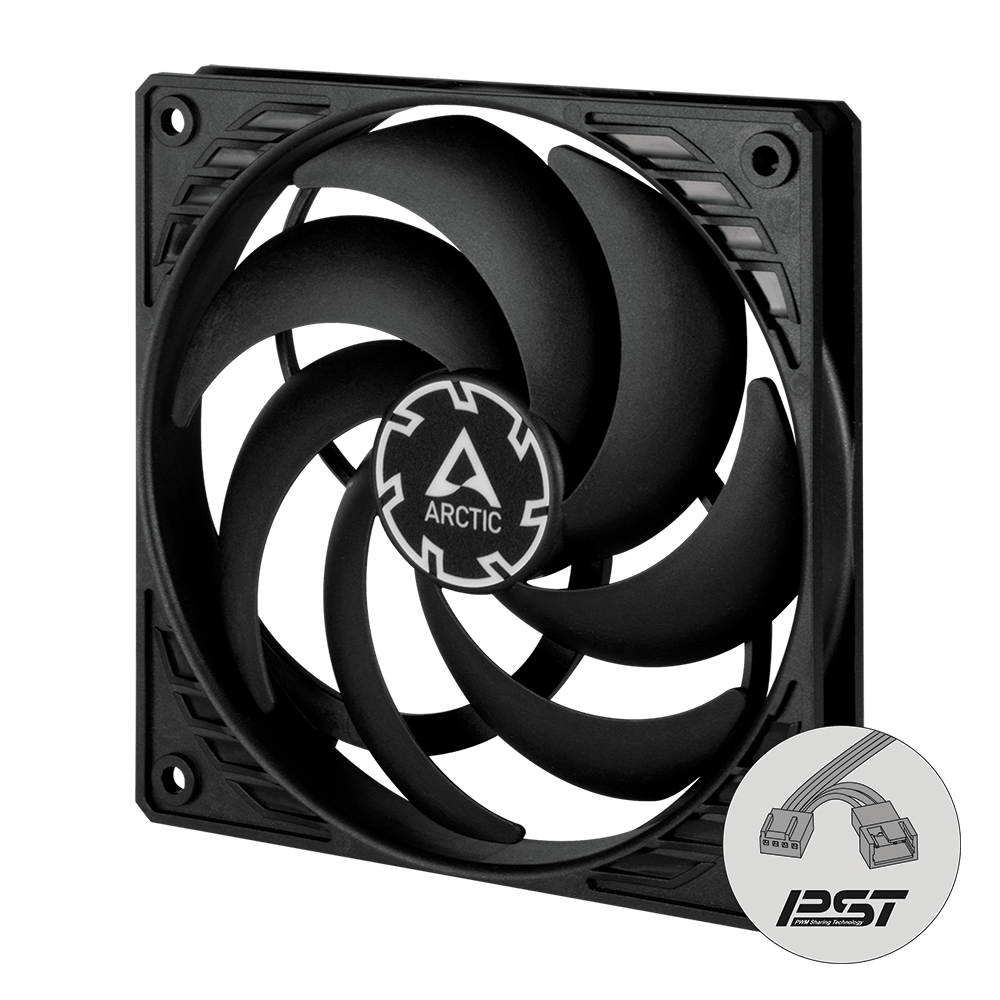

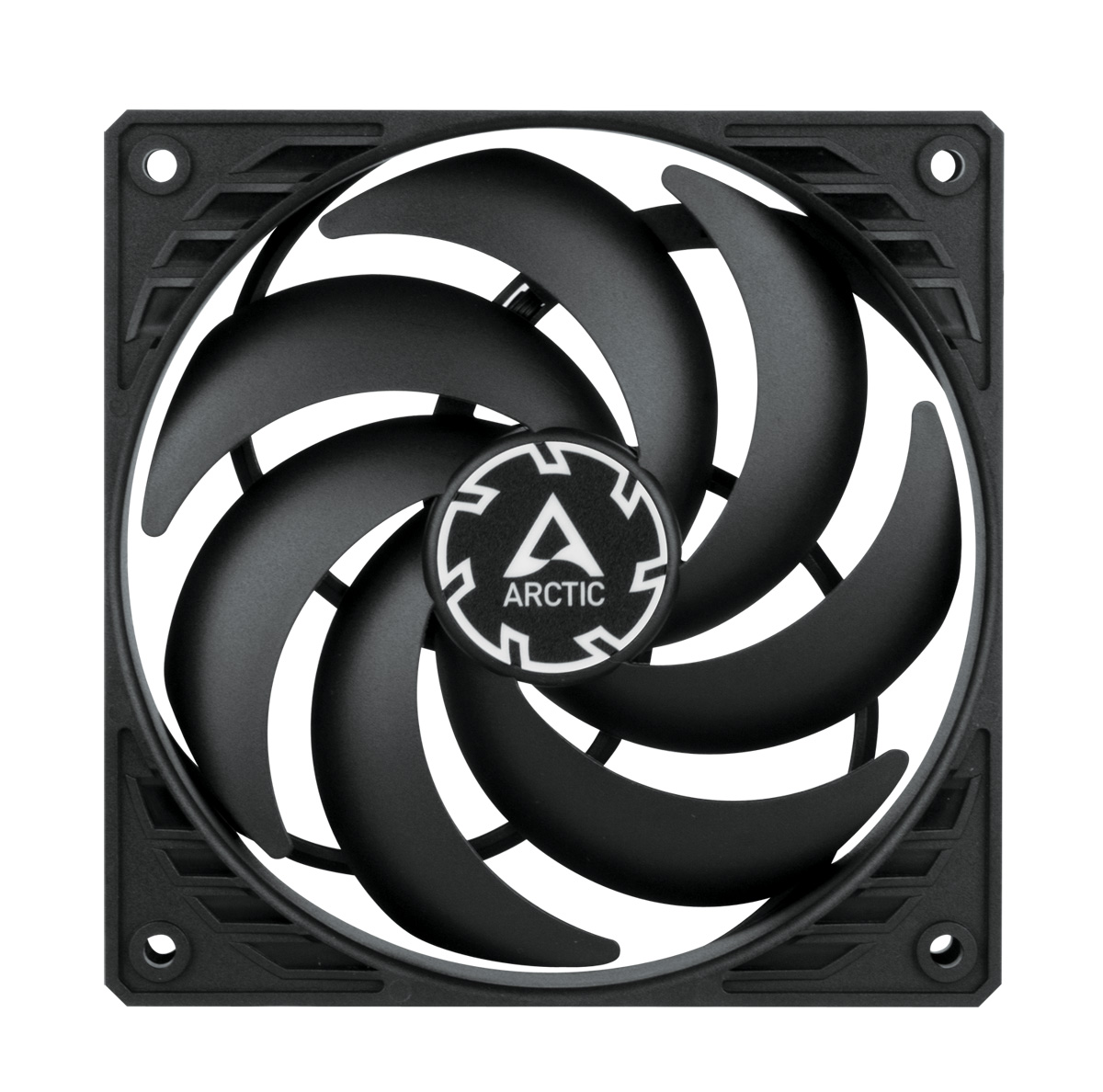

About Arctic P12 Slim PWM PST Fan

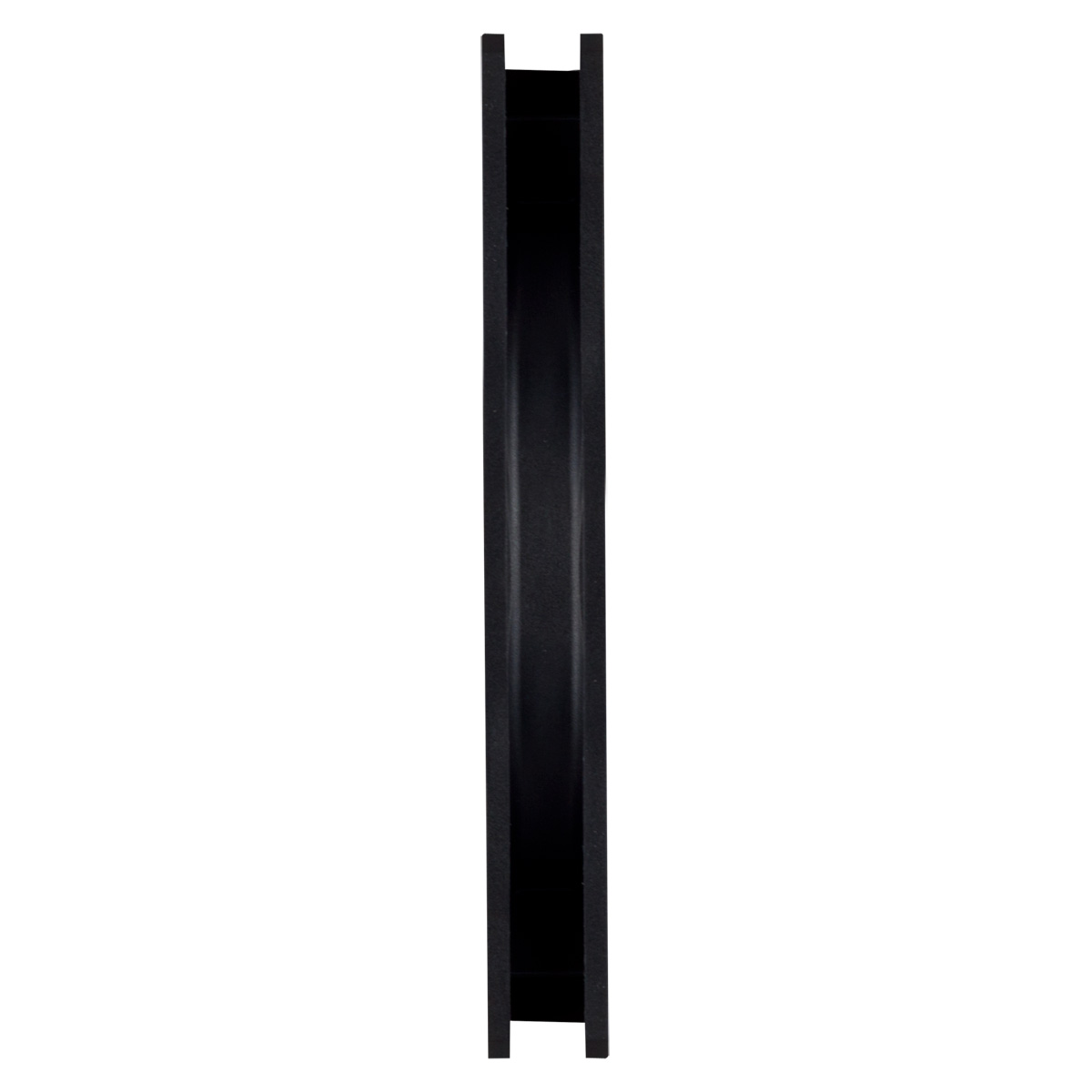

With a slim 15 mm thickness, it is ideal for Small Form Factor (SFF) systems, radiators, HTPCs, and densely packed cases.
Despite its compact design, the fan delivers efficient airflow and optimized static pressure, making it suitable for both case ventilation and radiator applications.
PWM Sharing Technology (PST) allows multiple fans to be synchronized from a single motherboard header for simplified cable management.

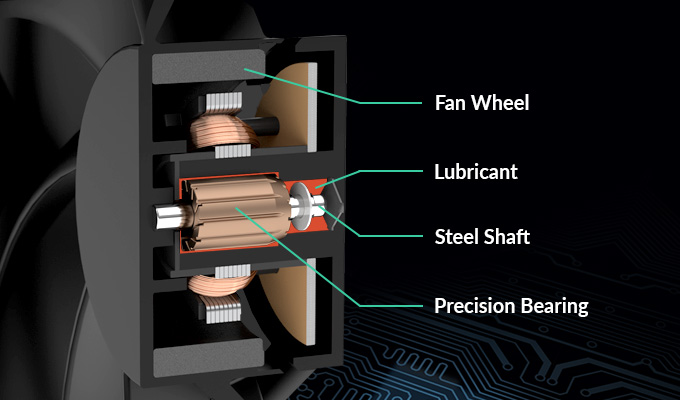

Combined with a Fluid Dynamic Bearing, quiet operation, and long service life, it offers dependable cooling performance.
| Category | Specification |
|---|---|
| Product Type | Pressure-Optimized Slim PWM Fan |
| Fan Dimensions | 120 × 120 × 15 mm |
| Fan Weight | 85 g |
| Fan Speed | 300 – 2100 RPM (PWM Controlled) |
| RPM Control | PWM |
| Airflow | 71.53 m³/h |
| Airflow (CFM) | 41.1 CFM |
| Static Pressure | 1.45 mmH₂O |
| Noise Level | 0.3 Sone |
| Bearing Technology | Fluid Dynamic Bearing |
| Rated Voltage | 12 V DC |
| Starting Voltage | 4 V |
| Current Draw | 0.12 A |
| Connector Type | 4-Pin PWM |
