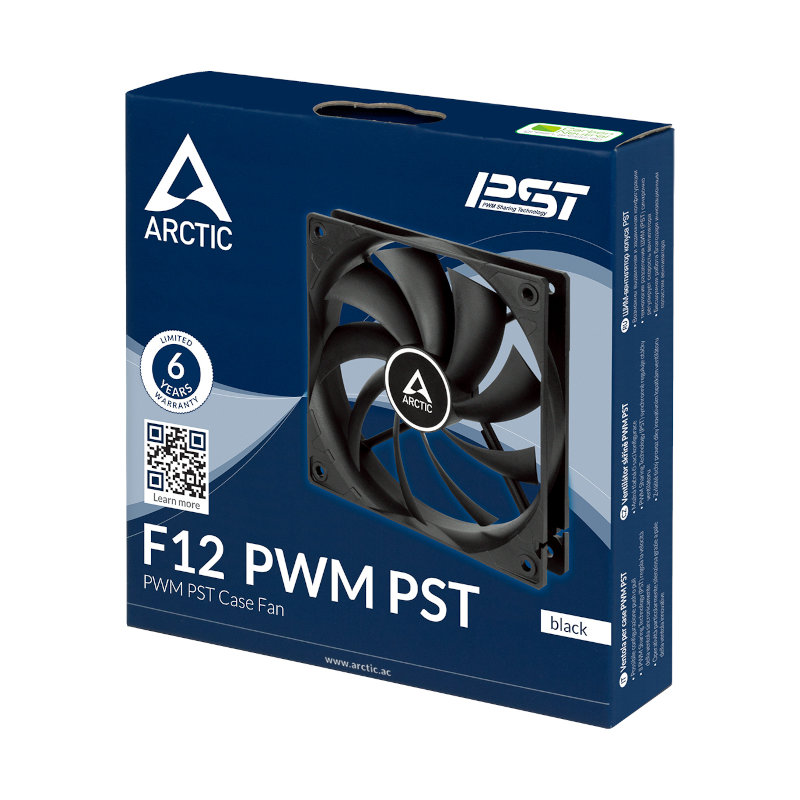

About Arctic F12 PWM PST Black Fan
Built for desktop PC cases, Arctic 120mm PWM Computer Fan features PWM control that automatically adjusts fan speed according to system temperatures, helping balance cooling performance and acoustics.
The integrated PWM Sharing Technology (PST) allows multiple fans to be connected and controlled through a single motherboard header, simplifying cable management.
Equipped with a Fluid Dynamic Bearing, the Arctic PWM Fan with Cable Splitter offers smooth operation and long-term reliability.
Its airflow-optimized blade design makes it well-suited for general case ventilation, intake, and exhaust applications.
| Category | Specification |
|---|---|
| Product Name | Arctic F12 PWM PST Black |
| Fan Type | Airflow-Optimized Case Fan |
| Fan Dimensions | 120 x 120 x 25 mm |
| Fan Weight | 109 g |
| Speed Range | 230 – 1350 RPM |
| PWM Control | Yes |
| PWM Sharing Technology (PST) | Yes |
| Airflow | 53 CFM / 90.1 m³/h |
| Static Pressure | 1.0 mmH₂O |
| Noise Rating | 0.3 Sone |
| Bearing Technology | Fluid Dynamic Bearing |
| Connector Type | 4-Pin PWM Connector + 4-Pin PST Socket |
| Operating Voltage | 12 V DC |
| Starting Voltage | 6 V DC |
| Current Draw | 0.21 A |
| Cable Length | 400 mm |
| Fan Frame | Standard 120 mm Frame |
| Operating Temperature | 0°C to 40°C |
