About ZOTAC GAMING GeForce RTX 5080 Solid Core OC 16GB

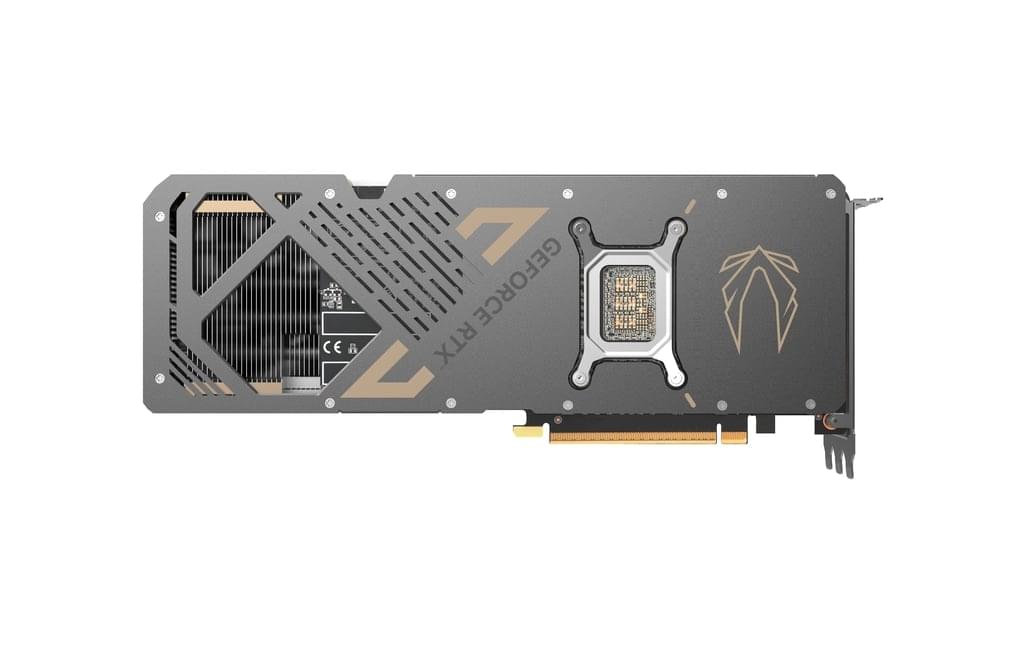

Unmatched Durability with Solid Core Design: The “Solid Core” variant is different from the others in that it emphasizes robustness. It includes a metal mid-frame that helps to shield the PCB board from the risk of warping, in addition to a die-cast metal back plate that serves the same purposes, apart from facilitating passive cooling. This ensures that the card is firm even if mounted upright.
Blackwell Architecture & GDDR7 Speed: Experience the Future of Gaming with Blackwell Architecture from NVIDIA. The RTX 5080 Solid Core OC has an incredible 16 GB of GDDR7 memory running at an astonishing speed of 30 Gbps. With a huge bandwidth of this nature, it is capable of handling expert-level 4K gaming, giving smooth video in 8K and super-fast rendering in professional applications. The new card has native support for DLSS 4 and has AI-powered rendering for realistic lighting effects and yet runs without hiccups.

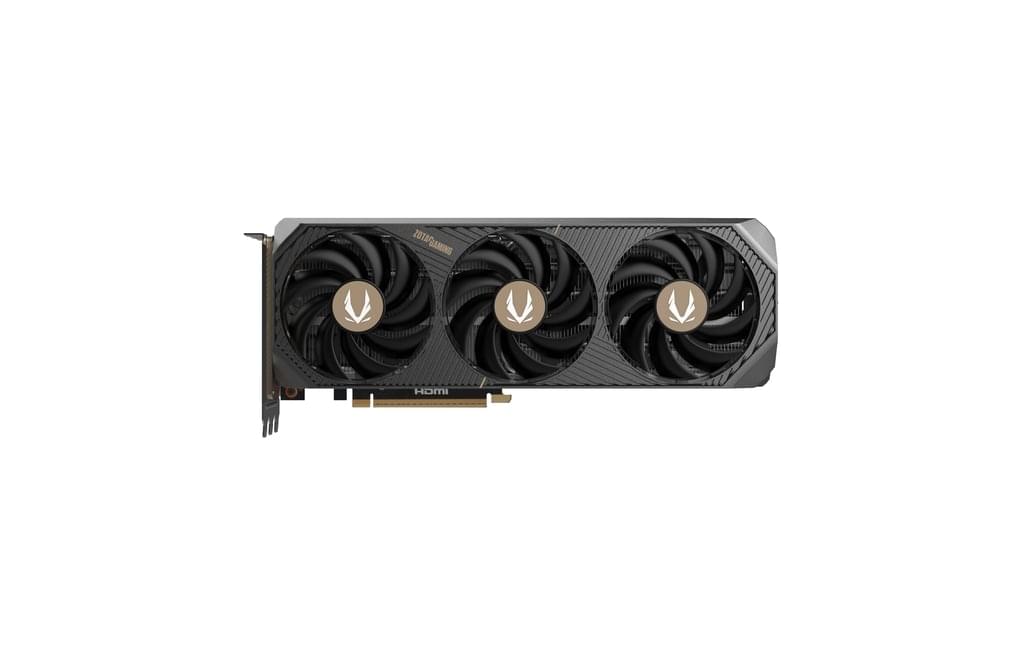

IceStorm 3.0 Cooling System: ZOTAC’s IceStorm 3.0 heatsink design keeps the GPU core cool during heavy usage. It uses three large-blade fans with “BladeLink” technology, which helps in stabilizing spins while generating greater air pressure. At the bottom, the heatsink comes with an enormous vapor chamber along with copper heat pipes that help in heat distribution. Fan motors in these heatsinks also support FREEZE Fan Stop, which stops their rotation during idle operation.
| Feature | Specification |
| Graphics Engine | NVIDIA® GeForce RTX™ 5080 |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Core Clock | 2640 MHz (Boost) |
| Memory Speed | 30 Gbps |
| CUDA Cores | 10,752 |
| Cooling System | IceStorm 3.0 (Triple Fan) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 12V-2×6 (16-pin) |
| Recommended PSU | 850W |
| Power Consumption | 360W |
| Card Dimensions | 303.5 x 115.8 x 55.7 mm (2.5 Slot) |
| HDCP Support | 2.3 |
Key Features
- Factory Overclocked (OC): Tuned out of the box for higher boost clocks (2640 MHz) than the reference specification.
- 16GB GDDR7 Memory: The fastest graphics memory standard available, ensuring future-proof performance for years to come.
- Spectra RGB Lighting: subtle, customizable RGB elements to match your build’s aesthetic.
- Future-Ready Connectivity: Includes DisplayPort 2.1b and HDMI 2.1b to support the latest 4K 240Hz and 8K monitors.
- Compact 2.5-Slot Design: At roughly 303mm long, it offers excellent compatibility with a wide range of mid-tower cases compared to larger enthusiast cards.
