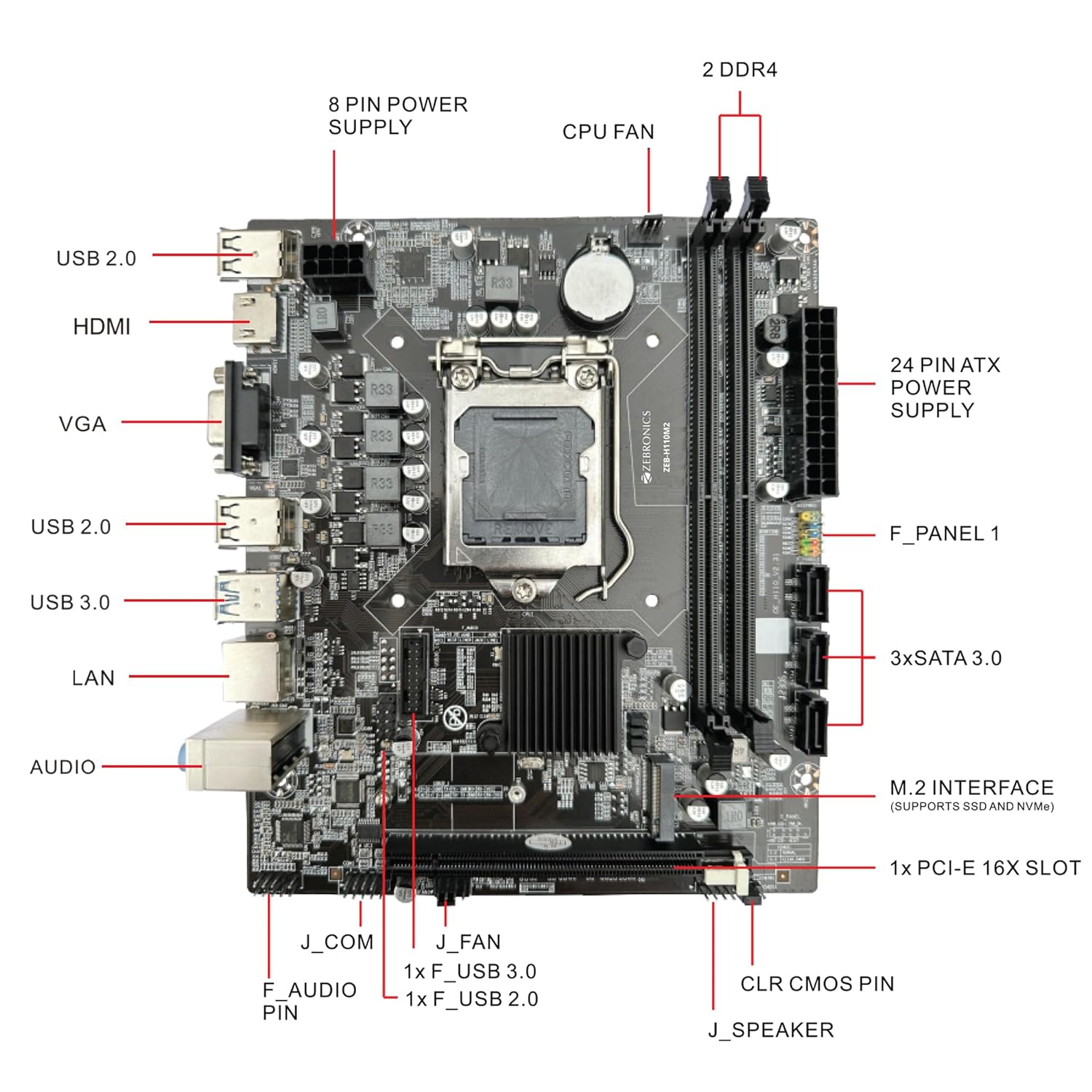

About Zebronics H110-M2 Micro‑ATX Motherboard
The Zebronics H110-M2 is a small, reasonably priced motherboard made for office setups, students, casual users, and novice gamers. It is based on Intel’s H110 chipset, which supports LGA 1151 and supports Core, Pentium, and Celeron CPUs ranging from the 6th to the 9th generation.

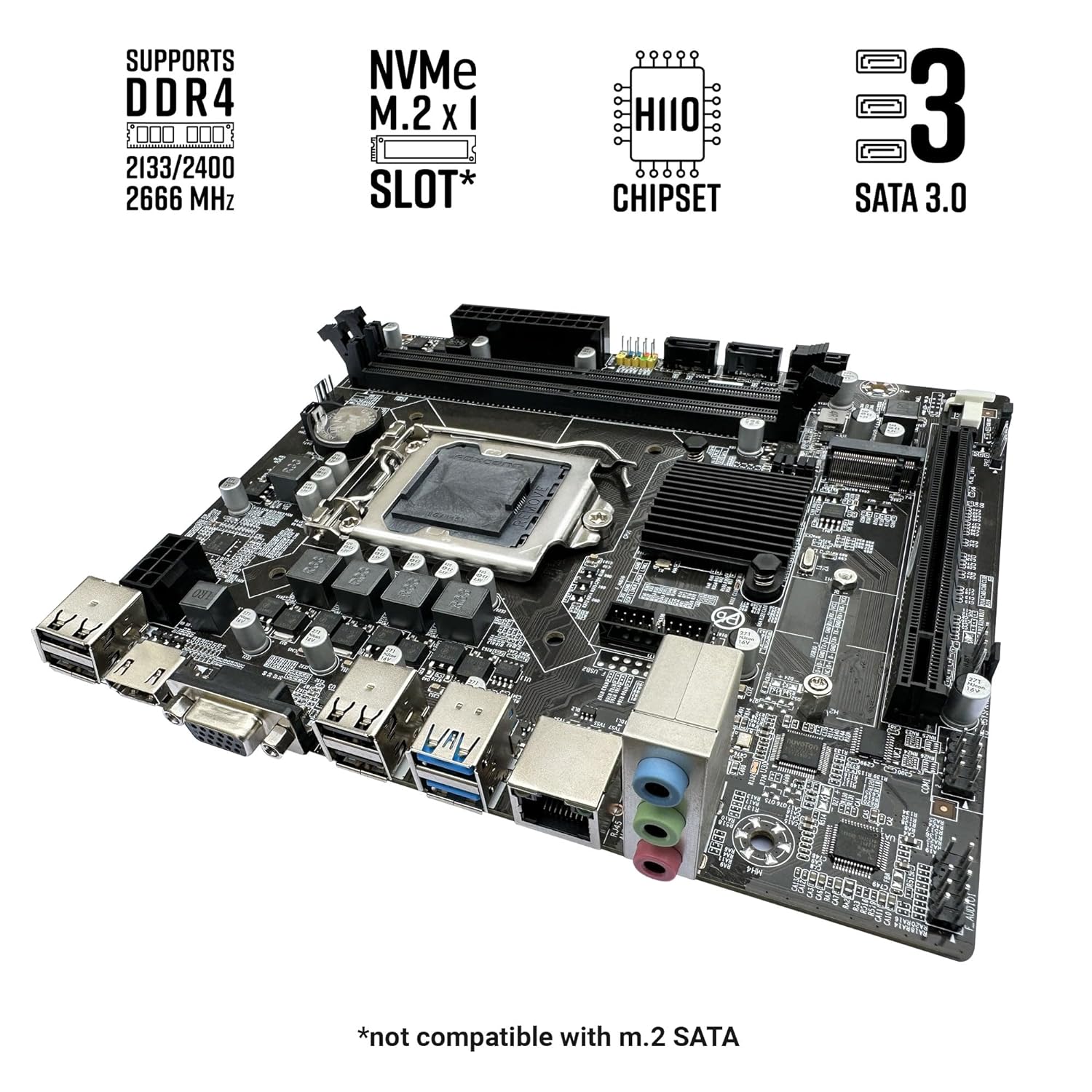

- Memory: Dual DIMM slots support up to 32 GB DDR4 at speeds of 2133/2400/2666 MHz—ideal for everyday tasks and moderate multitasking.
- Expansion & Storage: Adds flexibility with a PCIe 3.0 x16 slot (wired to CPU) and an NVMe M.2 slot for fast SSDs. There are also three SATA 6 Gb/s ports for HDDs or SSDs.
- Connectivity: On the rear I/O, you’ll find HDMI and VGA ports, two USB 3.0 ports, four USB 2.0 ports, 3.5 mm audio jacks, and Gigabit LAN (RTL8111G).
- Audio & Networking: Delivers 5.1-channel audio and real-time wired networking—no frills, just dependable functionality.
- Build & BIOS: Comes with standard AMI BIOS, micro‑ATX form factor, and onboard fan headers. Ideal for compact or low-cost builds with basic needs.
Features of the Zebronics H110-M2 Micro‑ATX Motherboard
| Feature | Specification |
|---|---|
| Socket / Chipset | LGA 1151 / Intel H110 |
| CPU Support | 6th–9th Gen Intel Core, Pentium, Celeron |
| Form Factor | Micro‑ATX (≈24 × 24 cm) |
| Memory | 2× DDR4 DIMM, up to 32 GB, 2133–2666 MHz |
| PCIe / M.2 | 1× PCIe 3.0 x16, 1× NVMe M.2 |
| Storage Ports | 3× SATA 6 Gb/s |
| USB I/O | 2× USB 3.0, 4× USB 2.0 (rear) internal headers |
| Display Output | HDMI, VGA |
| Audio | 5.1-channel high-def |
| LAN | Gigabit Ethernet (RTL8111G) |
| BIOS | AMI BIOS |
| Other Headers | CPU fan, system fan, front-audio, USB 2.0/3.0 onboard |
Ideally Best For
- Budget-friendly office and school PCs
- Light gaming rigs with a single GPU and NVMe SSD
- Compact home theatre or media systems
- DIY small-format builds needing HDMI and Gigabit LAN
- Teams deploying value-focused equipment in bulk
Buy Zebronics H110-M2 Micro‑ATX Motherboard LGA 1151 DDR4 | PCIe x16 M.2 NVMe, USB 3.0 Online Today.
