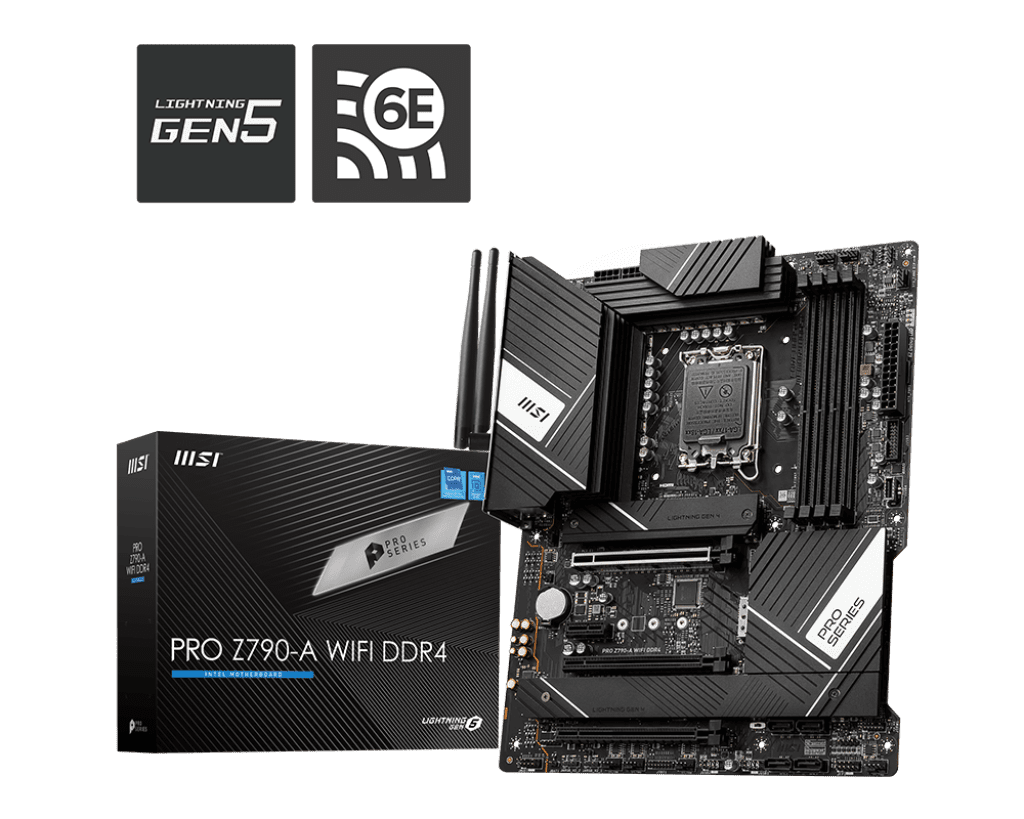

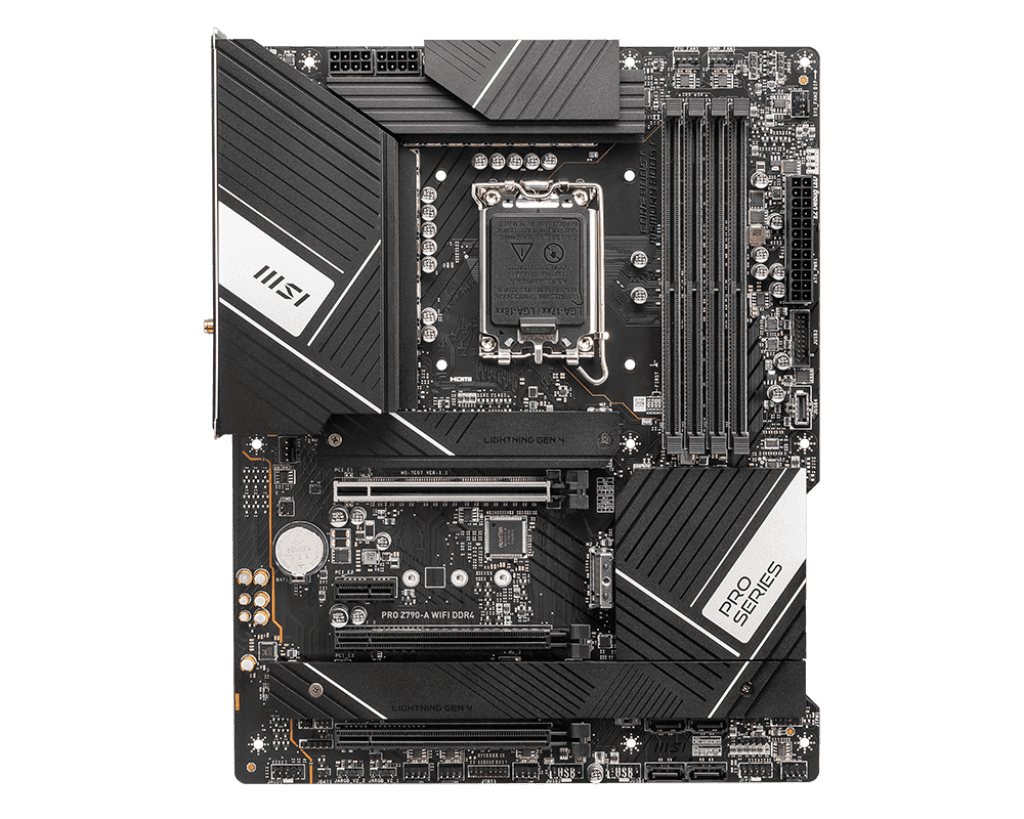

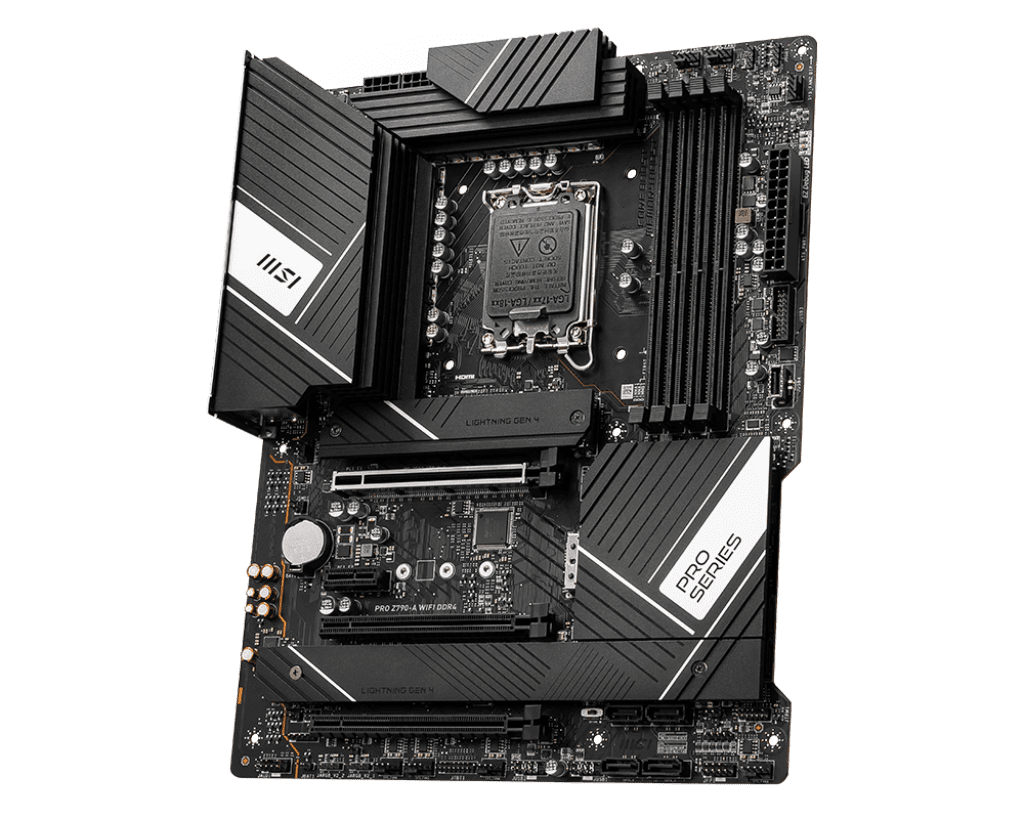

About MSI PRO Z790‑A WiFi DDR4 ATX Motherboard
The MSI PRO Z790‑A WiFi DDR4 ProSeries is a robust ATX motherboard designed for DDR4-enabled high-performance Intel builds. It is based on the Z790 chipset and offers an accessible platform for 12th, 13th, and 14th generation core CPUs.
Top Features
- Memory & Performance: Supports up to 128 GB DDR4, overclockable to 5333 MHz, delivering fast application and multitasking performance without DDR5 cost.
- Power & Stability: Utilises a robust 16 1 1 phase VRM design with effective heatsinks for sustained CPU performance.
- Expansion Ready: Features a Steel Armor PCIe 5.0 x16 slot for next-gen GPUs, plus multiple PCIe 3.0 x1 slots for additional components.
- Storage Solutions: Offers 2 M.2 PCIe 4.0 x4 slots with thermal management, plus 6 SATA 6 Gb/s ports for extensive drive support.
- Connectivity: Includes Wi‑Fi 6E, Bluetooth 5.3, and 2.5G LAN for fast wired and wireless networking.

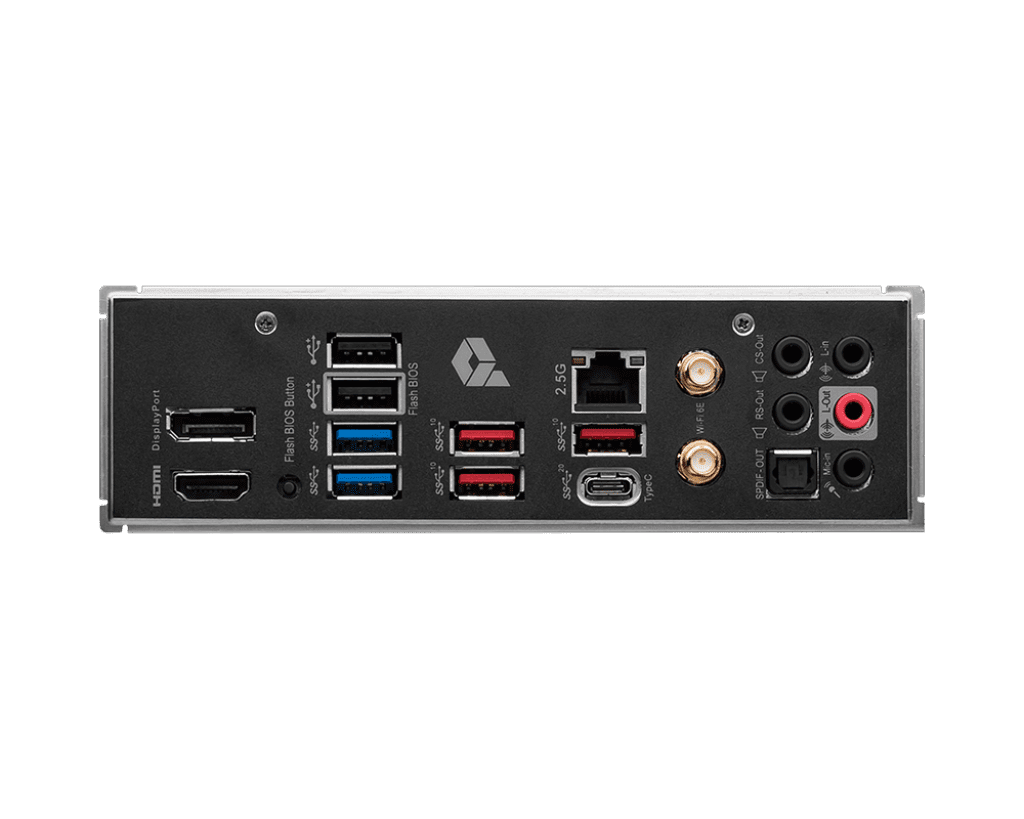

- Citizen I/O: Packed with modern I/O options—USB 3.2 Gen2x2 Type‑C, Gen2/Gen1 Type‑A, USB 2.0, and display outputs HDMI 2.1 and DisplayPort 1.4 for monitor versatility.
- Audio: Delivers high–quality 7.1‑channel HD audio via Realtek codec with isolated circuits for enhanced sound clarity.
- Design & Tools: Built with a pre-installed I/O shield for cleaner builds, EZ Debug LEDs for quick diagnostics, a Flash BIOS button, and full ARGB/RGB headers for lighting personalisation.
Features of the MSI PRO Z790‑A WiFi DDR4 ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel Z790 / LGA 1700 |
| CPU Support | Intel 12th–14th Gen Core, Pentium, Celeron |
| Form Factor | ATX |
| Memory Support | 4× DDR4 DIMM up to 128 GB, OC to 5333 MHz |
| Power Design | 16 1 1 phase VRM with large heatsinks |
| PCIe Expansion | 1× PCIe 5.0 x16, multiple PCIe 3.0 x1 |
| M.2 Storage | 2× PCIe 4.0 x4 NVMe (heatsink protected) |
| SATA Ports | 6× SATA III 6 Gb/s |
| Wireless & LAN | Wi‑Fi 6E, Bluetooth 5.3, 2.5G LAN |
| USB Configuration | USB 3.2 Gen2x2 Type‑C, Gen2/Gen1 Type-A, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | Realtek 7.1 channel HD audio with PCB isolation |
| Build Features | I/O shield, Flash BIOS button, EZ Debug LEDs, ARGB/RGB headers |
Buy MSI PRO Z790‑A WiFi DDR4 ATX Motherboard LGA 1700 DDR4 | PCIe 5.0 GPU Slot, Dual M.2 Gen4 Online Today.
