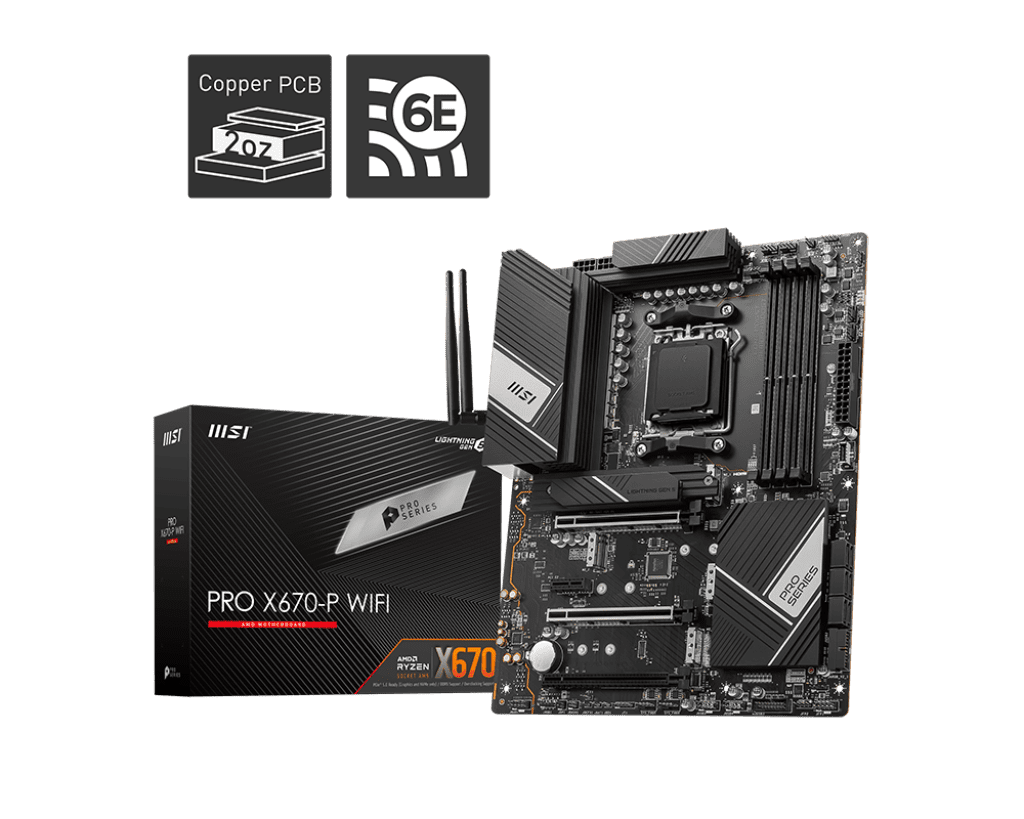

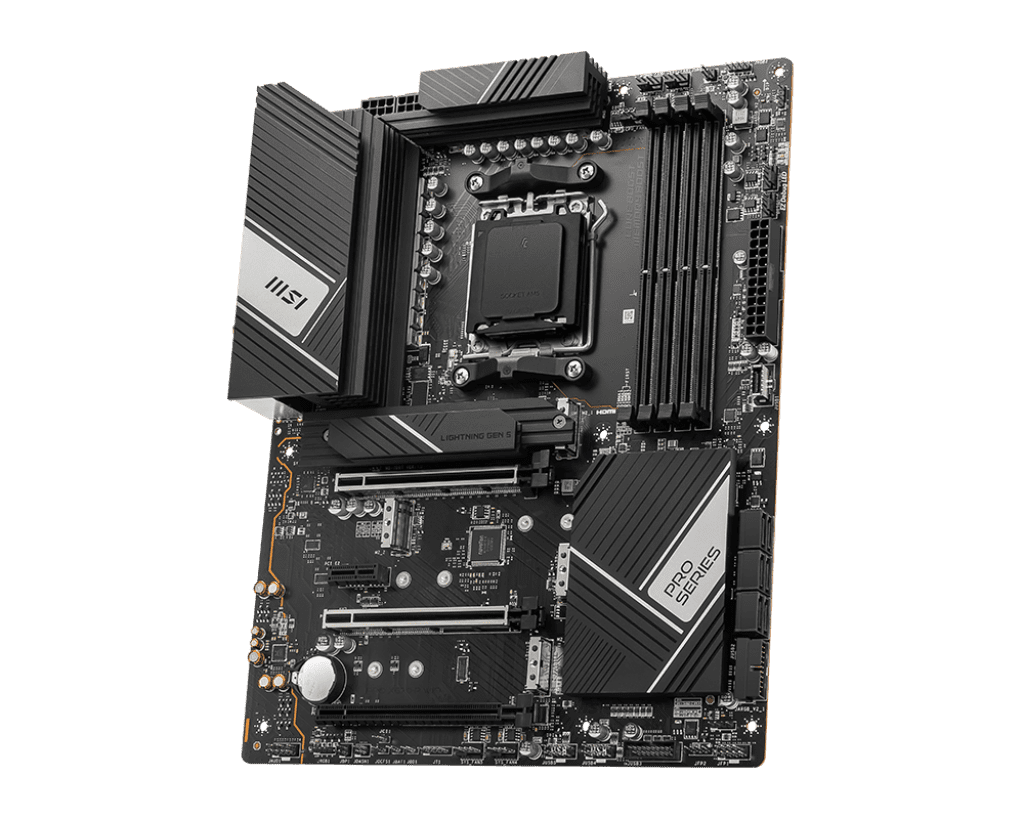

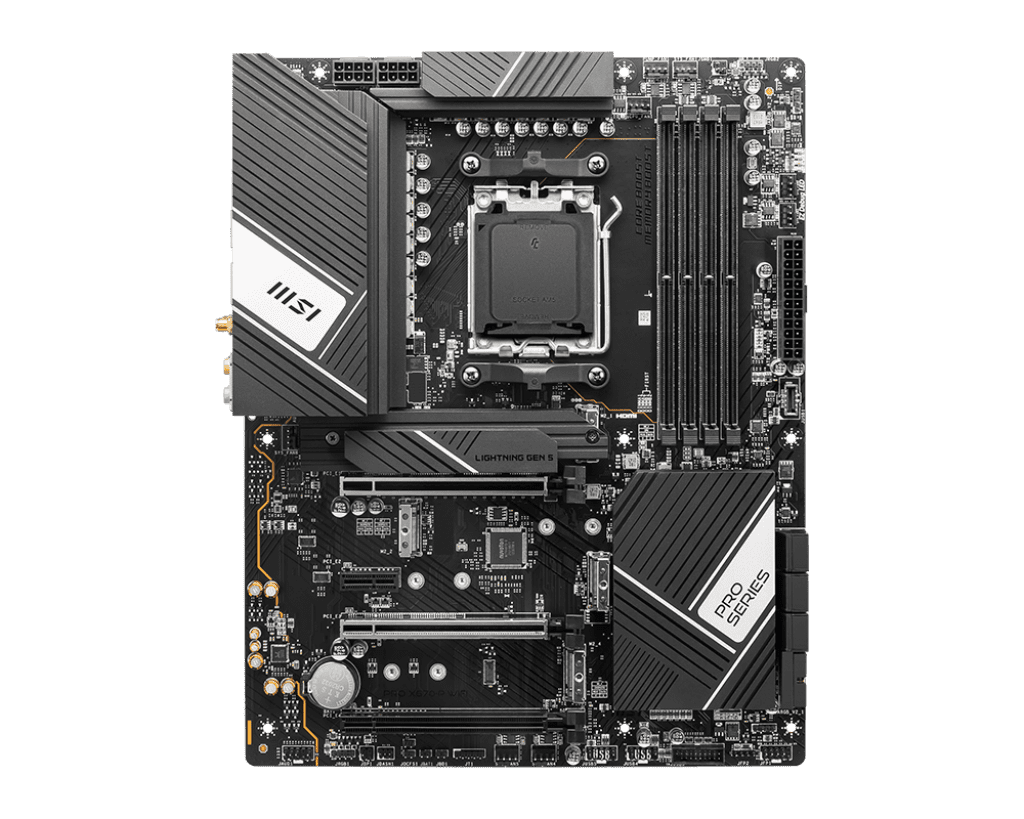

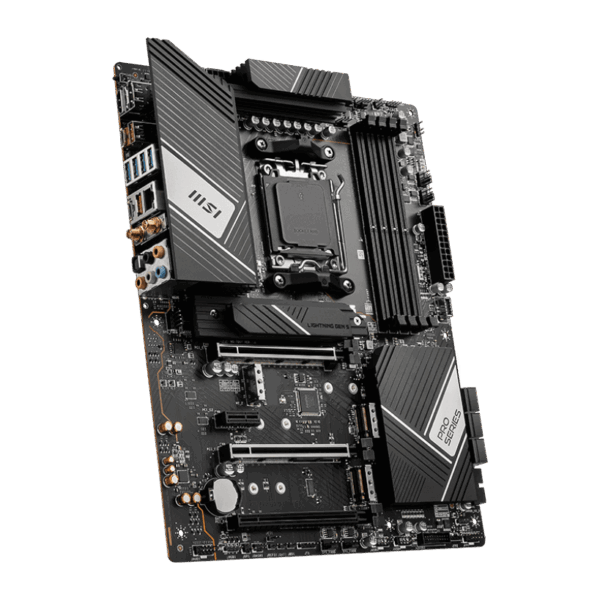

About MSI PRO X670‑P WiFi DDR5 ATX Motherboard
For AMD AM5 platforms, the MSI PRO X670‑P WiFi DDR5 offers outstanding performance and dependability in a sleek, businesslike design. It supports Ryzen 7000, 8000, and 9000 series processors and is outfitted with the X670 chipset and AM5 socket, providing full access to PCIe 5.0 bandwidth and state-of-the-art features.
- Memory: 4 DDR5 DIMM slots support up to 192 GB with overclocking beyond 7600 MHz, promoting fast multitasking and efficient rendering workloads.
- Power & Cooling: High-grade 12 2 1 phase VRM with extended heatsinks ensures firm voltage under heavy loads and high-end CPU configurations.
- Storage: Includes one PCIe 5.0 M.2 slot alongside two PCIe 4.0 M.2 slots, all with thermal guards. Also offers six SATA 6 Gb/s ports for additional storage.
- Expansion: Features a Steel Armor PCIe 4.0 x16 slot for powerful GPUs and two PCIe 3.0 x1 slots for extra peripherals.
- Connectivity: Delivers high-speed wired and wireless networking via 2.5G LAN, Wi‑Fi 6E, and Bluetooth 5.3. USB includes USB 3.2 Gen2x2 Type‑C, Type‑A, and legacy USB connections.
- Display Options: HDMI 2.1 and DisplayPort 1.4 outputs via compatible integrated graphics.
- Audio: Supports 7.1-channel high-definition sound through Realtek audio codec with PCB isolation.
- Build Convenience: Equipped with a pre-installed I/O shield, BIOS Flash button, EZ Debug LEDs, and multiple ARGB and RGB headers for aesthetic customisation.
Features of the MSI PRO X670‑P WiFi DDR5 ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | AMD X670 / AM5 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Form Factor | ATX |
| Memory Support | 4× DDR5 DIMM, up to 192 GB, overclockable to 7600 MHz |
| Power Design | 12 2 1 phase VRM with heatsinks |
| PCIe Expansion | 1× PCIe 4.0 x16 (Steel Armor), 2× PCIe 3.0 x1 |
| M.2 Storage | 1× PCIe 5.0 x4, 2× PCIe 4.0 x4 (all with heatsinks) |
| SATA Ports | 6× SATA III (6 Gb/s) |
| Networking | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.3 |
| USB Connectivity | USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2/Gen1, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | Realtek HD 7.1-channel with isolation |
| Build Features | I/O shield, BIOS Flash button, EZ Debug LEDs, multiple RGB/ARGB headers |
Ideally Best For
- High-end Ryzen gaming rigs need DDR5 and PCIe 5.0 speeds
- Content creators & streamers who demand fast memory and storage
- Future-ready workstation builds with strong connectivity
- DIY enthusiasts looking for a straightforward installation and high performance
- Professional systems require reliable power delivery and expandability
Buy MSI PRO X670‑P WiFi DDR5 ATX Motherboard AM5 DDR5 | PCIe 5.0 M.2, Wi‑Fi 6E Online Today.
