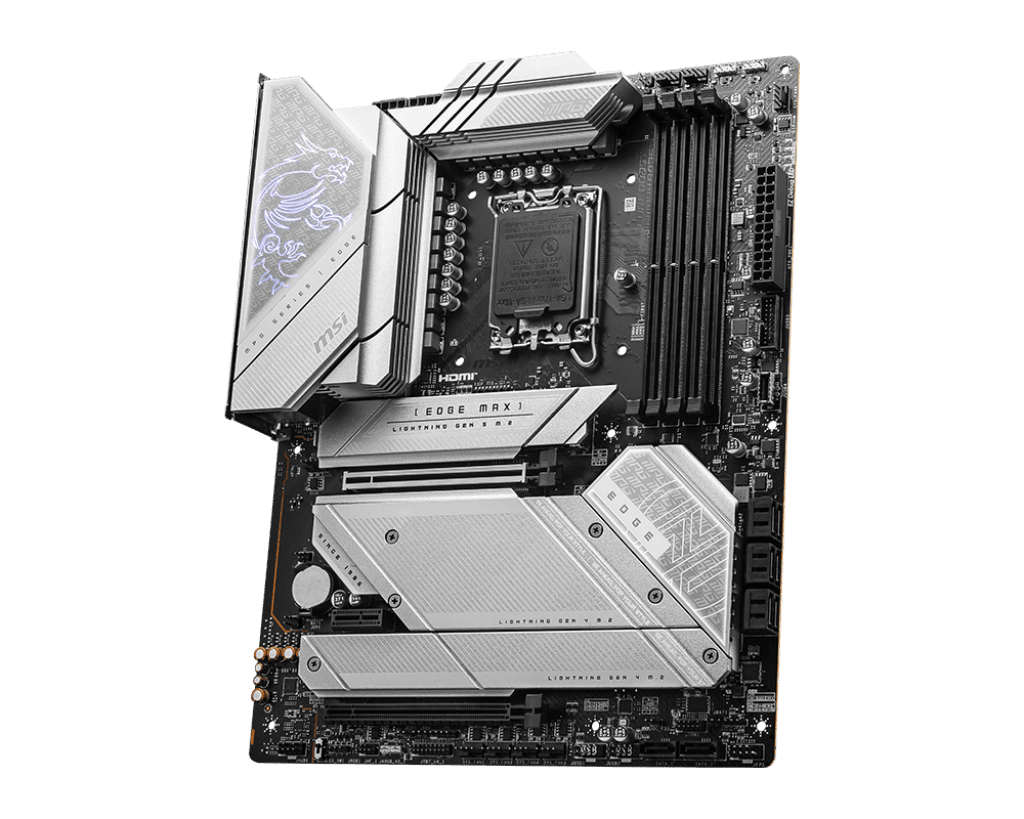

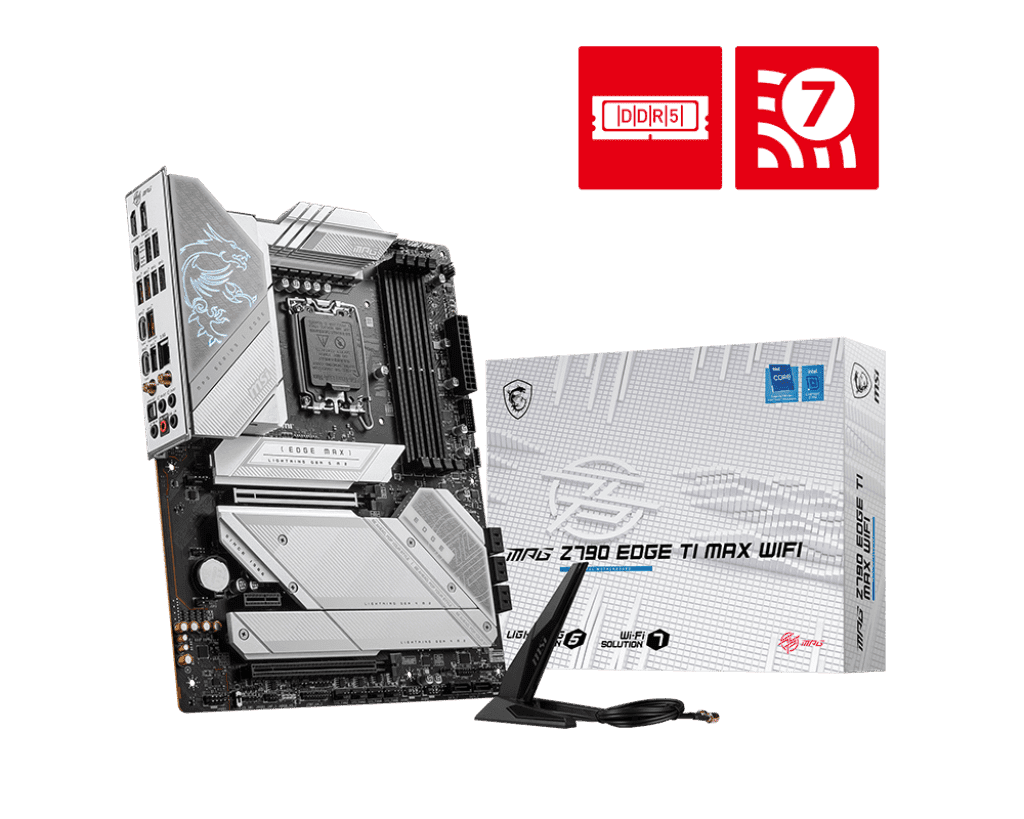

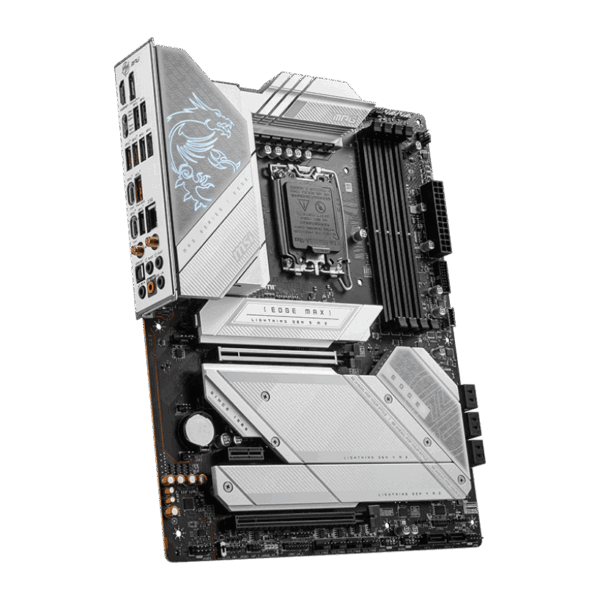

About MSI MPG Z790 Edge Ti Max WiFi Gaming ATX Motherboard
The MSI MPG Z790 Edge Ti Max WiFi enhances mid-range Intel desktop configurations with high-end features and design. It combines performance and value with support for the newest LGA 1700 CPUs, reliable power delivery, and excellent connectivity. With DDR5 support up to 128 GB and overclocking up to 7800 MHz for better gaming and multitasking, memory performance is improved. For graphics performance that is ready for the future, it has a reinforced PCIe 5.0 x16 slot.
There are two PCIe 4.0 M ports for storage. Six SATA 6 Gb/s ports and two heat-protected slots are available for RAID 0, 1, 5, and 10 or conventional drives. Fast wired and wireless access is ensured by networking features like Bluetooth 5.3, Wi-Fi 6E, and 2.5G LAN.
The board’s eight-layer copper PCB, extended VRM heatsinks, and 16 1 1 power-phase design provide dependable voltage stability and effective thermal performance. A pre-installed I/O shield, EZ Debug LEDs, a Flash BIOS button, and RGB/ARGB headers for lighting control are examples of built-in convenience features.
Features of the MSI MPG Z790 Edge Ti Max WiFi Gaming ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel Z790 / LGA 1700 |
| CPU Support | Intel 12th–14th Gen Core, Pentium, Celeron |
| Form Factor | ATX |
| Memory Support | 4× DDR5 DIMM, up to 128 GB, OC up to 7800 MHz |
| Power Design | 16 1 1 VRM, 8-layer PCB with 2 oz copper |
| PCIe Slot | 1× PCIe 5.0 x16 (Steel Armor) |
| M.2 Storage | 2× PCIe 4.0 M.2 with heatsinks |
| SATA Ports | 6× SATA 6 Gb/s |
| Networking | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.3 |

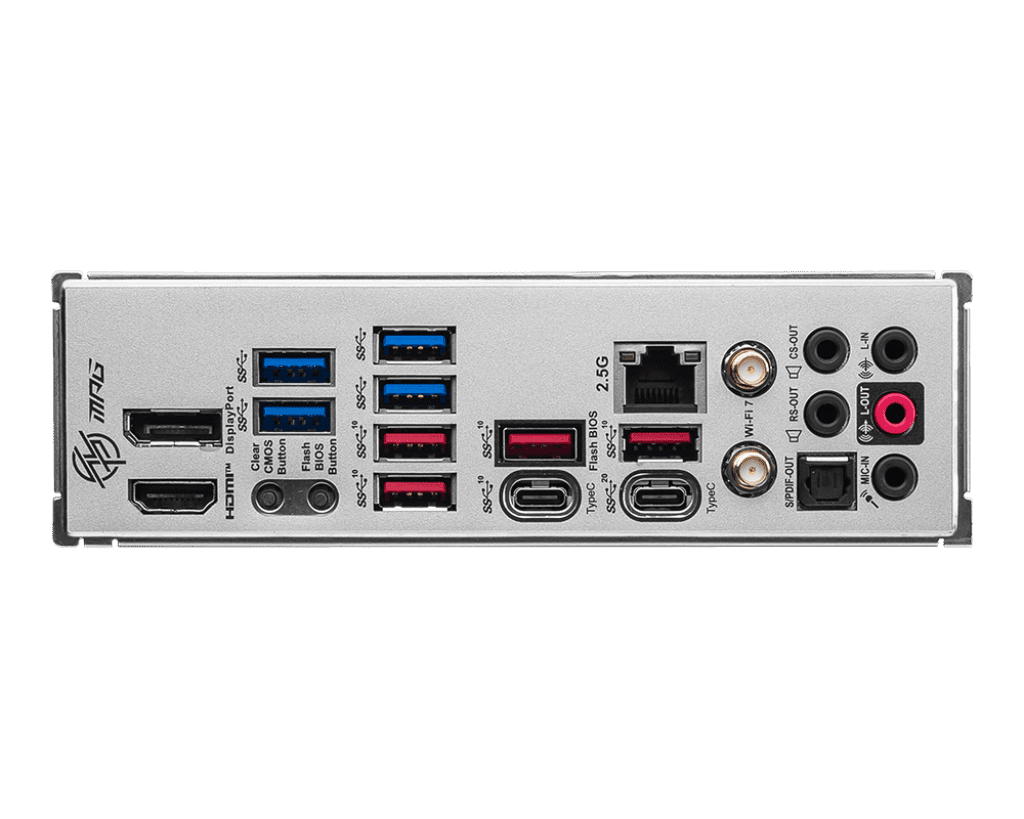

| USB Connectivity | USB 3.2 Gen2x2 Type‑C rear, Gen2/Gen1 Type-A, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 (with integrated GPU) |
| Audio | Audio Boost HD with high-definition Realtek codec |
| Cooling Design | Extended VRM heatsinks, M.2 Shield Frozr for SSDs |
| Builder Enhancements | Pre-installed I/O shield, BIOS Flash button, EZ Debug LEDs |
| Lighting Support | RGB & ARGB headers, Mystic Light compatible |
Ideally Best For
-
Serious gamers who want DDR5 speeds and PCIe 5.0 GPU support
-
Content creators & streamers seeking fast storage and memory bandwidth
-
System builders looking for a balance between premium features and affordability
-
PC enthusiasts who want strong connectivity and overclock readiness
-
DIY builders desiring easy installation, troubleshooting tools, and lighting control
Buy MSI MPG Z790 Edge Ti Max WiFi Gaming ATX Motherboard LGA 1700 DDR5 | PCIe 5.0 x16, Dual M.2 Gen4 Online Today.
