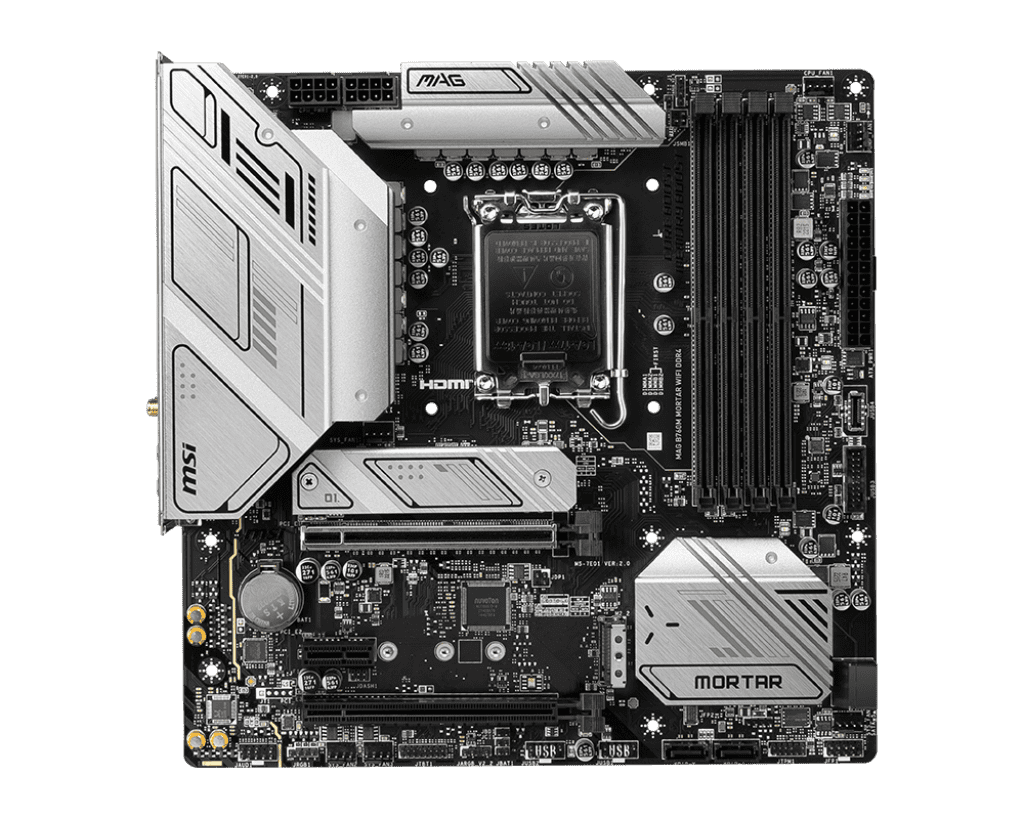

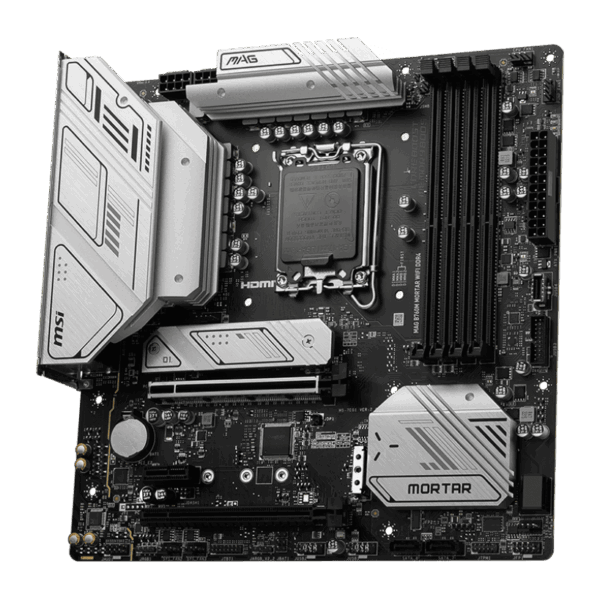

About MSI MAG B760M Mortar WiFi DDR4 mATX Motherboard
Built for high-speed performance and contemporary Intel CPUs, the MSI MAG B760M Mortar WiFi DDR4 is a small powerhouse. This motherboard provides cutting-edge connectivity, excellent memory performance, and strong durability—all within the micro-ATX form factor—and supports Intel’s 12th, 13th, and 14th Gen Core processors on the LGA 1700 socket. With overclocking speeds of up to 5333 MHz for improved multitasking, gaming, or creative workflows, it supports up to 128 GB of DDR4 RAM across 4 DIMM slots. This guarantees outstanding stability even under load and quick responsiveness.
The PCIe 5.0 x16 Steel Armor slot supports the newest GPUs and provides next-generation bandwidth for graphics. Dual PCIe Gen4 x4 M allows for seamless storage expansion. There are four SATA 6 Gb/s ports for conventional drives and two slots with heatsinks for thermal control. With Wi-Fi 6E and Bluetooth 5.3 for low-latency wireless performance and 2.5G LAN for wired speed, networking is strong and flexible. USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-A, and USB 2.0 options for peripherals and quick file transfers are all available on the front and back of the device.
Extended VRM heatsinks, M.2 Shield Frozr, and a robust 6-layer PCB control thermal performance. Stable power delivery for extended workloads and overclocking potential is provided by the board’s 12 1 1 Duet Rail Power System. EZ Debug LEDs, Flash BIOS Button, ARGB headers, and a pre-installed I/O shield are among the extra features that make building and upgrading simple. This board is designed to deliver whether you’re building a high-efficiency workstation or a small gaming PC.
Features of the MSI MAG B760M Mortar WiFi DDR4 mATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel B760 / LGA 1700 |
| CPU Support | 12th–14th Gen Intel Core, Pentium Gold, Celeron |
| Form Factor | micro‑ATX (244 × 244 mm) |
| Memory Support | 4× DDR4 DIMMs, up to 128 GB, OC to 5333 MHz (OC using XMP profiles) |
| Power Design & Cooling | 12 1 1 Duet Rail VRM, extended heatsinks, 6-layer 2 oz copper PCB |
| Expansion Slots | 1× PCIe 5.0 x16 Steel Armor, 1× PCIe 3.0 x1 |
| M.2 Slots | 2× M.2 slots; M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4 or SATA |
| SATA Ports | 4× SATA 6 Gb/s with RAID support |
| Networking | Intel Wi‑Fi 6E, Bluetooth 5.3, Realtek 2.5G Ethernet |
| USB Ports | Rear: USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-A; Front: USB 3.2 Gen1 & USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 (for CPUs with iGPU) |
| Audio | Realtek ALC897 codec, 7.1‑Channel HD audio |
| Extras | Flash BIOS Button, EZ Debug LEDs, RGB headers |
Ideally Best For
- Compact Gaming Builds seeking next-gen GPU support with PCIe 5.0
- Budget Power Users wanting Wi‑Fi 6E and 2.5G LAN in a small form factor
- Content Creators using high-speed M.2 SSDs and large DDR4 capacity
- Value-Oriented Builders needing PCIe 5.0 and SATA-capable M.2 in a sub-$200 board
- DIY Enthusiasts who appreciate easy BIOS updates and diagnostic features
