MSI MAG B760M Mortar DDR5 mATX Motherboard – Intel LGA 1700 | PCIe 5.0, Dual M.2 Gen4, USB-C, 2.5G LAN
MSI MAG B760M Mortar DDR5 mATX is a micro‑ATX motherboard for Intel 12th & 13th Gen processors. Supports DDR5 memory, PCIe 5.0 graphics, dual Gen4 M.2 slots, USB-C 20Gbps, and 2.5G LAN—perfect for powerful SFF gaming or productivity rigs.
Original price was: ₹17,737.00.₹17,318.00Current price is: ₹17,318.00.
Out of stock
Out of stock
19
People watching this product now!
Payment Methods:
Description
About MSI MAG B760M Mortar DDR5 mATX Motherboard

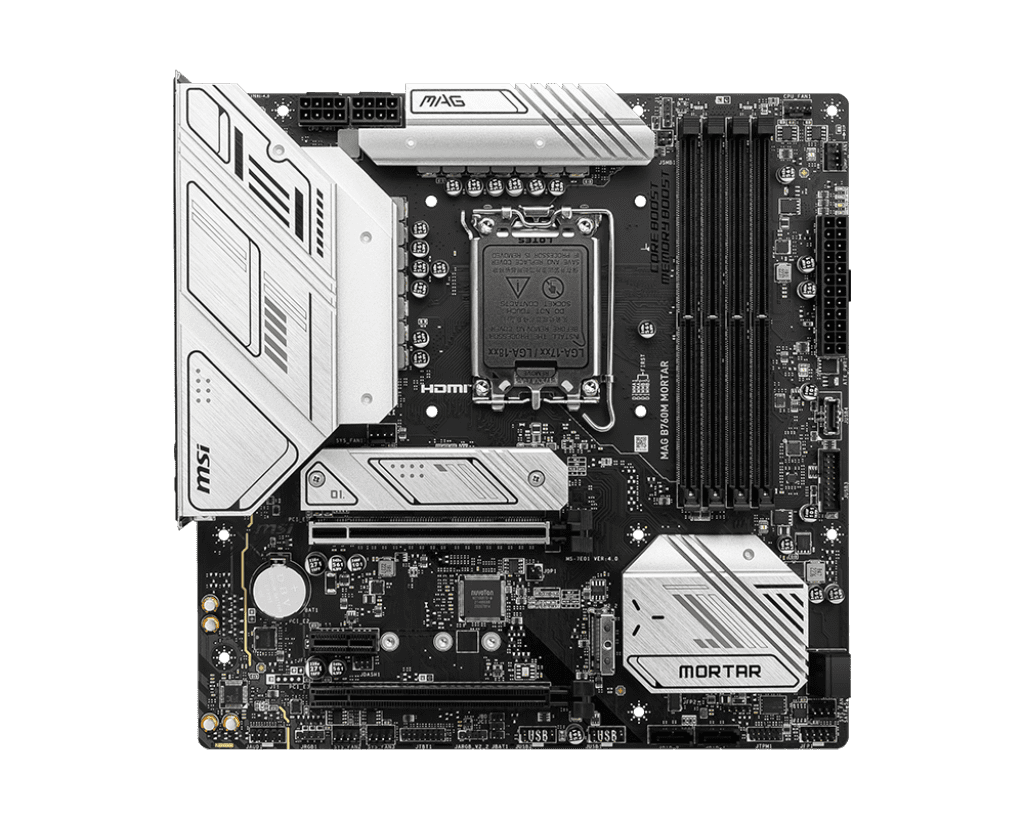

For professionals, gamers, and creators wishing to construct small but potent PCs on the Intel LGA 1700 platform, the MSI MAG B760M Mortar DDR5 is a sturdy and future-ready mATX motherboard. The Intel B760 chipset supports Pentium Gold, Celeron, and 12th and 13th Gen Intel Core processors, offering next-generation features and outstanding performance. With its four DDR5 DIMM slots, this motherboard can accommodate up to 128 GB of RAM operating at 7000 MHz (OC). DDR5 performance guarantees excellent responsiveness and bandwidth, whether you’re gaming, streaming, rendering, or multitasking.
Two PCIe Gen4 M.2 slots with thermal heatsinks for steady, fast NVMe SSD performance and a reinforced PCIe 5.0 x16 slot for the newest graphics cards handle expansion. Four SATA 6 Gb/s ports are also included for extra storage. Strong and reliable connectivity is provided by a 2.5G LAN for fast networking and a variety of USB ports, such as USB 3.2 Gen2x2 Type-C (20 Gbps), several USB 3.2 Gen1/Gen2, and USB 2.0 options. For users with CPUs that have integrated graphics, there are also HDMI and DisplayPort outputs available.
Assuring clean power and thermal balance under high load, the board is constructed with a 6-layer PCB with 2 ounces of copper, extended heatsinks, M.2 Shield Frozr, and 12 1 1 Duet Rail VRM for cooling and stability. This board is easy to build with and ready for visual customisation thanks to extra features like an ARGB header, Flash BIOS Button, EZ Debug LEDs, and an I/O shield that comes pre-installed.
Features of the MSI MAG B760M Mortar DDR5 mATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel B760 / LGA 1700 |
| CPU Support | Intel 12th & 13th Gen Core, Pentium Gold, Celeron |
| Form Factor | micro‑ATX (mATX) |
| Memory Support | 4× DDR5 DIMMs, up to 128 GB, 7000 MHz (OC) |
| Power Design | 12 1 1 Duet Rail VRM, Digital PWM |
| Expansion Slots | 1× PCIe 5.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
| Storage Support | 2× M.2 Gen4 x4 (w/ heatsinks), 4× SATA 6 Gb/s |
| Networking | 2.5G LAN |

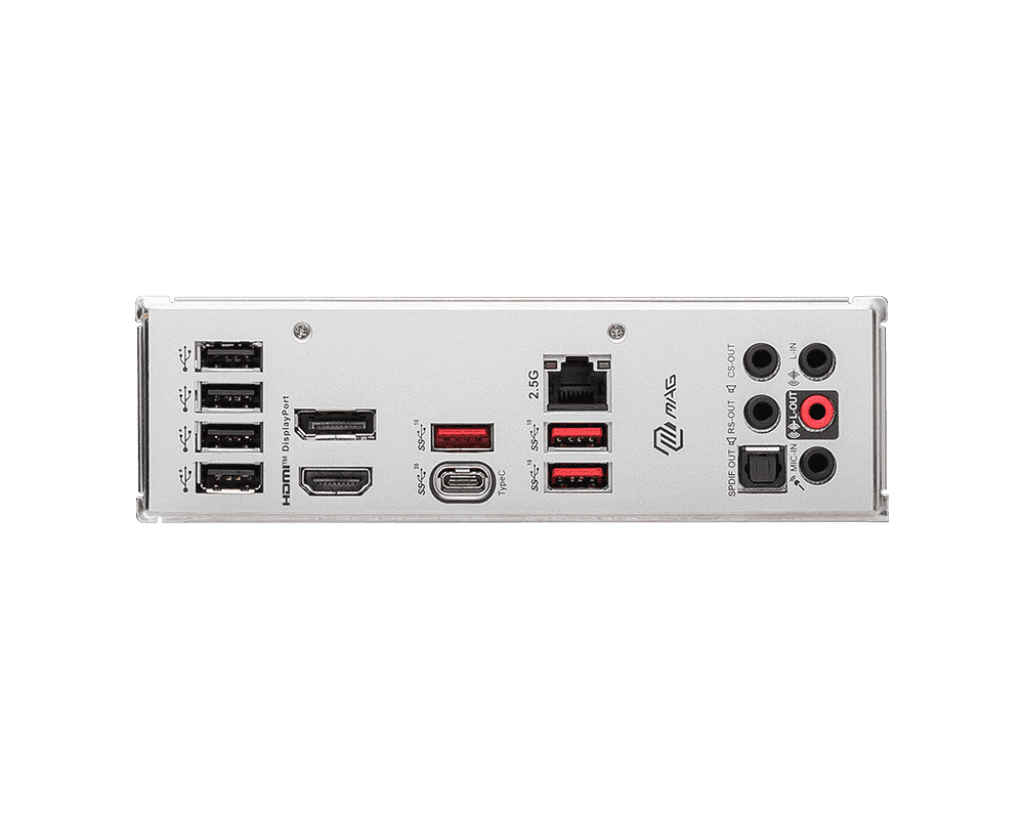

| USB Connectivity | USB 3.2 Gen2x2 Type‑C, USB 3.2 Gen1/Gen2, USB 2.0 |
| Display Outputs | HDMI, DisplayPort (for CPUs with integrated graphics) |
| Audio | 7.1 Channel High-Definition Audio |
| Cooling System | Extended heatsinks, M.2 Shield Frozr, 6-layer PCB |
| Build Features | Flash BIOS Button, EZ Debug LEDs, RGB headers |
Ideally Best For
- Compact Gaming Setups with Intel 13th Gen and DDR5
- Content Creators needing high-speed memory and Gen4 SSDs
- Power Users who want PCIe 5.0 GPU bandwidth in an mATX form
- Builders seeking a small form factor without sacrificing features
- Upgrade Seekers transitioning to DDR5 and newer Intel platforms
