About MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS 16GB GDDR7 Graphics Card
Unleash the full potential of your high-end PC build with the MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS 16GB GDDR7 Graphics Card. Engineered on NVIDIA’s cutting-edge Blackwell architecture, this GPU features massive performance upgrades, including 5th-generation Tensor Cores and 4th-generation RT Cores. Equipped with 8960 CUDA cores and 16GB of incredibly fast 28 Gbps GDDR7 VRAM on a 256-bit interface, it delivers the raw bandwidth and computing power necessary to conquer 4K gaming, DLSS 4 generation, and intensive AI-driven content creation. For enthusiasts seeking maximum power, the GPU can hit extreme boost clocks up to 2580 MHz via the MSI Center.

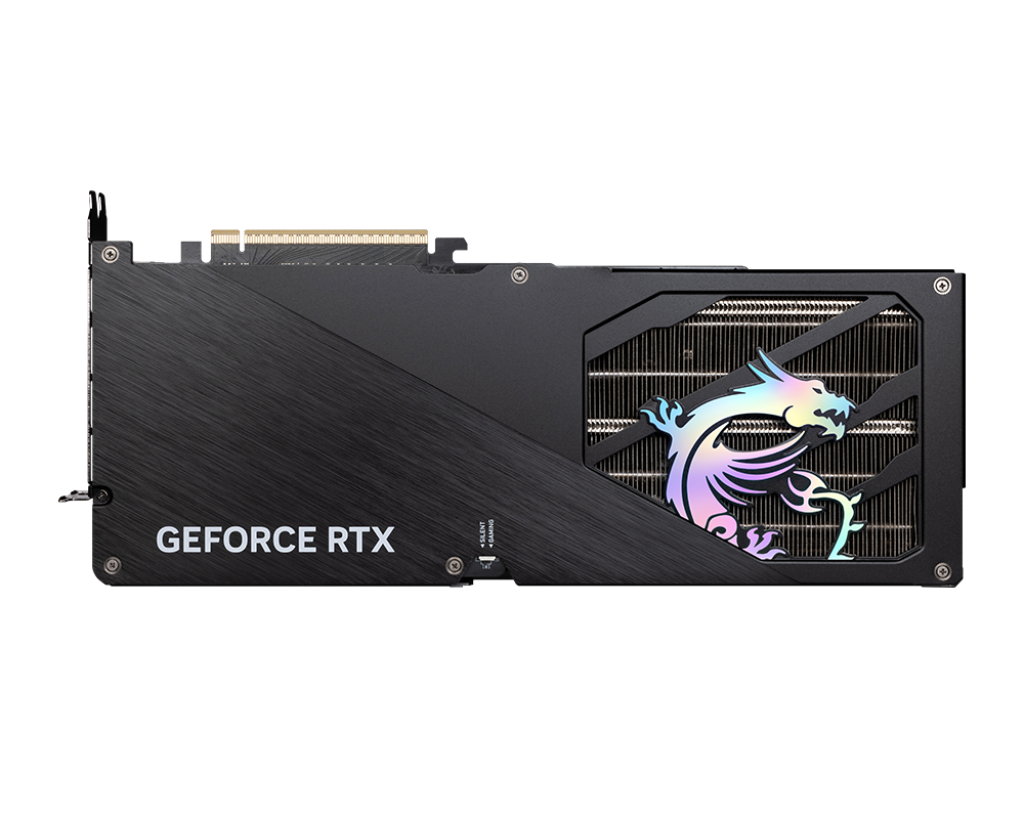

Thermal management is completely redefined with MSI’s exclusive TRI FROZR 4 cooling system. Three advanced STORMFORCE fans—featuring specialized claw texturing and a circular arc design—drive massive airflow with minimal noise. Heat is swiftly drawn away from the GPU die and memory modules by a solid nickel-plated copper baseplate, transferring through precision-engineered square core pipes into a massive heatsink array. The Air Antegrade Fin 2.0 and Wave Curved 4.0 designs ensure optimized airflow passthrough, while the vented metal backplate reinforces the card against PCB sag and aids in passive heat dissipation.

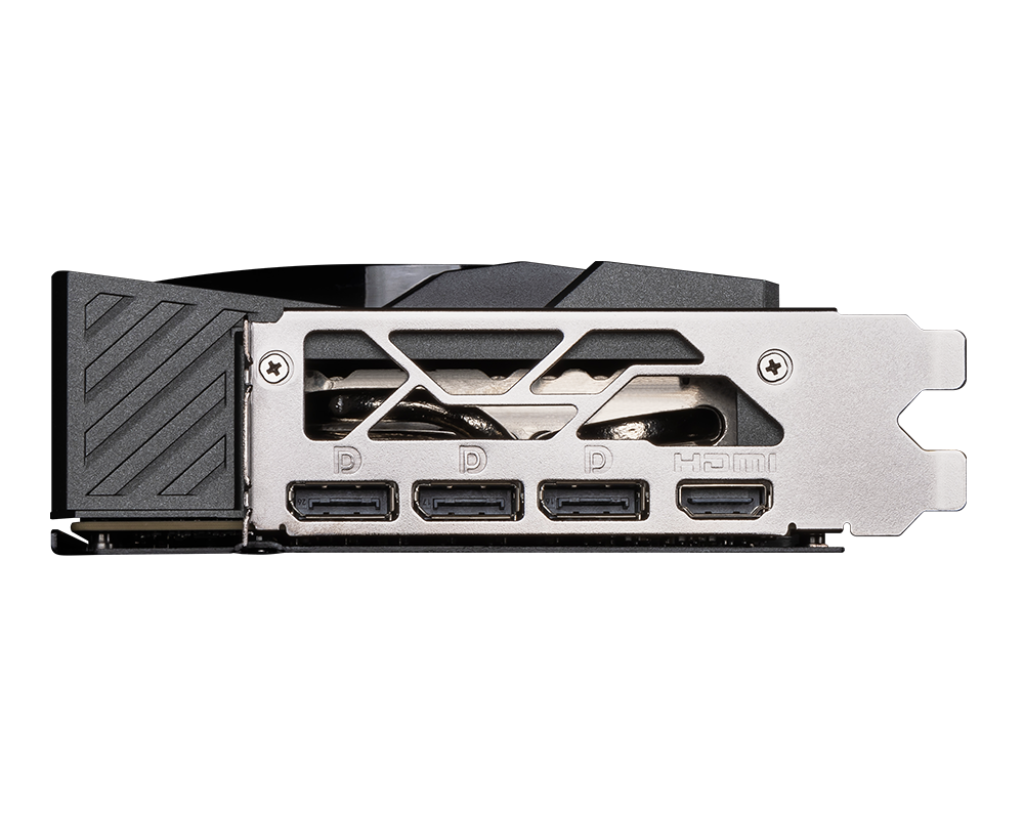

Built for modern displays and future-proof performance, the card is fully equipped with PCIe 5.0 x16 bandwidth. It offers the latest in display connectivity with three DisplayPort 2.1b ports and one HDMI 2.1b port, allowing you to easily drive 8K resolution displays or ultra-high refresh rate 4K monitors. For added convenience, the physical Dual BIOS switch puts you in complete control, letting you instantly toggle between maximum performance in GAMING mode or a stealthy acoustic profile in SILENT mode.
Specifications MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS 16GB GDDR7 Graphics Card
| Feature | Specification |
|---|---|
| Model | GeForce RTX 5070 Ti 16G GAMING TRIO OC PLUS |
| Architecture | NVIDIA Blackwell |
| Video Memory | 16GB GDDR7 |
| Stream Processors | 8960 CUDA Cores |
| Engine Clock (Boost) | Up to 2572 MHz (Gaming & Silent Mode) |
| Engine Clock (Extreme) | Up to 2580 MHz (via MSI Center) |
| Memory Speed | 28 Gbps |
| Memory Interface | 256-bit |
| Bus Standard | PCI Express Gen 5.0 x16 |
| Display Connectors | 1× HDMI 2.1b, 3× DisplayPort 2.1b |
| Cooling Solution | TRI FROZR 4 Thermal Design (Triple STORMFORCE Fans) |
| Power Consumption | 300W |
| Power Connectors | 1× 16-pin (12V-2×6) |
| Minimum PSU Requirement | 750W |
| Dimensions | 338 × 140 × 50 mm |
| Special Features | Dual BIOS, Metal Backplate, 4th Gen RT Cores, 5th Gen Tensor Cores |
