Msi B650M Gaming Plus WIFI Motherboard
Avail the all-new MSI B650M Gaming Plus WIFI Motherboard from Avika Retails at the best price. Best in-class features includes:
| Spec Category | Details |
|---|---|
| Socket | AM5 |
| Chipset | AMD B650 |
| Form Factor | mATX (Micro-ATX) |
| Memory Type | DDR5 |
| RAM Slots | 4 |
| Max Memory | 256 GB |
| WiFi / Bluetooth | WiFi 6E, Bluetooth 5.3 |
| LAN | 2.5 Gb Ethernet |
| M.2 Slots | 2 × PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6 Gbps |
| Expansion Slots | 1 × PCIe 4.0 x16, 2 × PCIe x1 |
About the item:
-
High-Speed Memory Support – Supports DDR5-7200+ (OC) for fast performance in CPU/memory bound workloads.
-
Strong Connectivity – WiFi 6E & Bluetooth 5.3 onboard, plus 2.5 Gb Ethernet and multiple USB Gen2/Type-C ports.
-
Robust Cooling Solutions – Heatsinks on VRMs and M.2 slots, multiple fan headers, temperature monitoring.
-
Solid Build / Power Design – 13-phase VRM, dual 8-pin CPU power connectors, reinforced PCIe x16 slot.
-
Gaming-Focused Design – HDMI 2.1 / DisplayPort, audio codec with isolation, BIOS flash without CPU, debug LEDs, all useful in gaming rigs.
₹14,590.00
16
People watching this product now!
Payment Methods:
Description
About MSI B650M Gaming Plus WIFI Motherboard

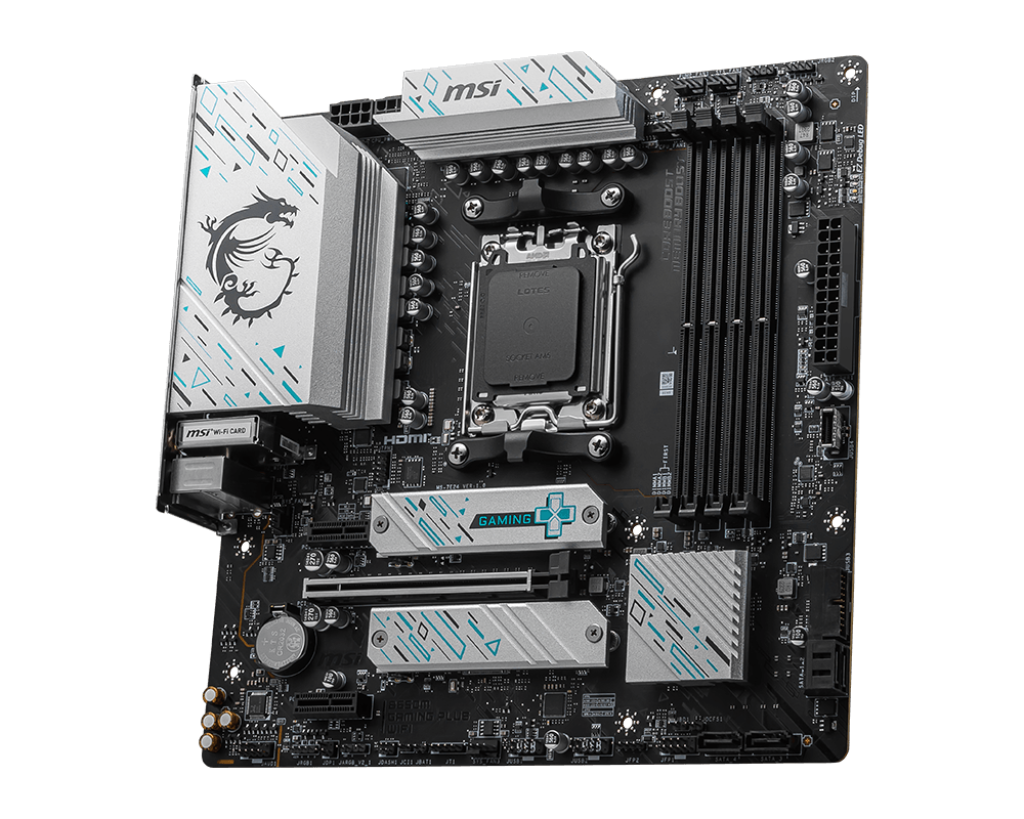

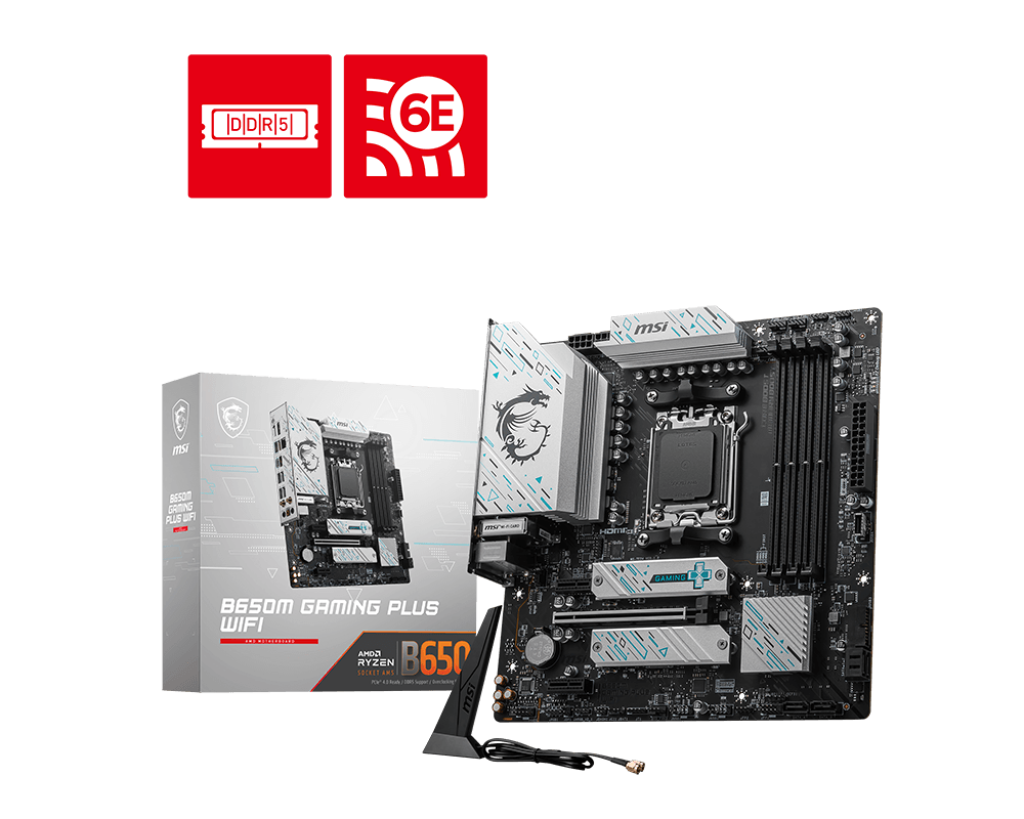

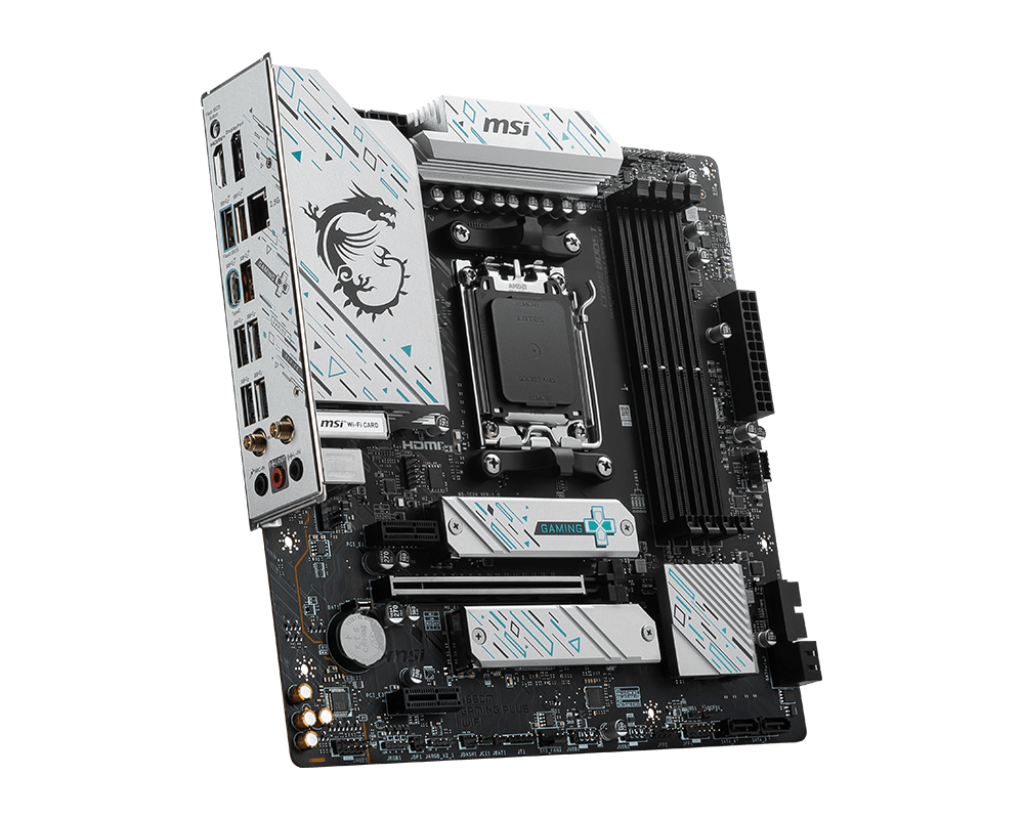

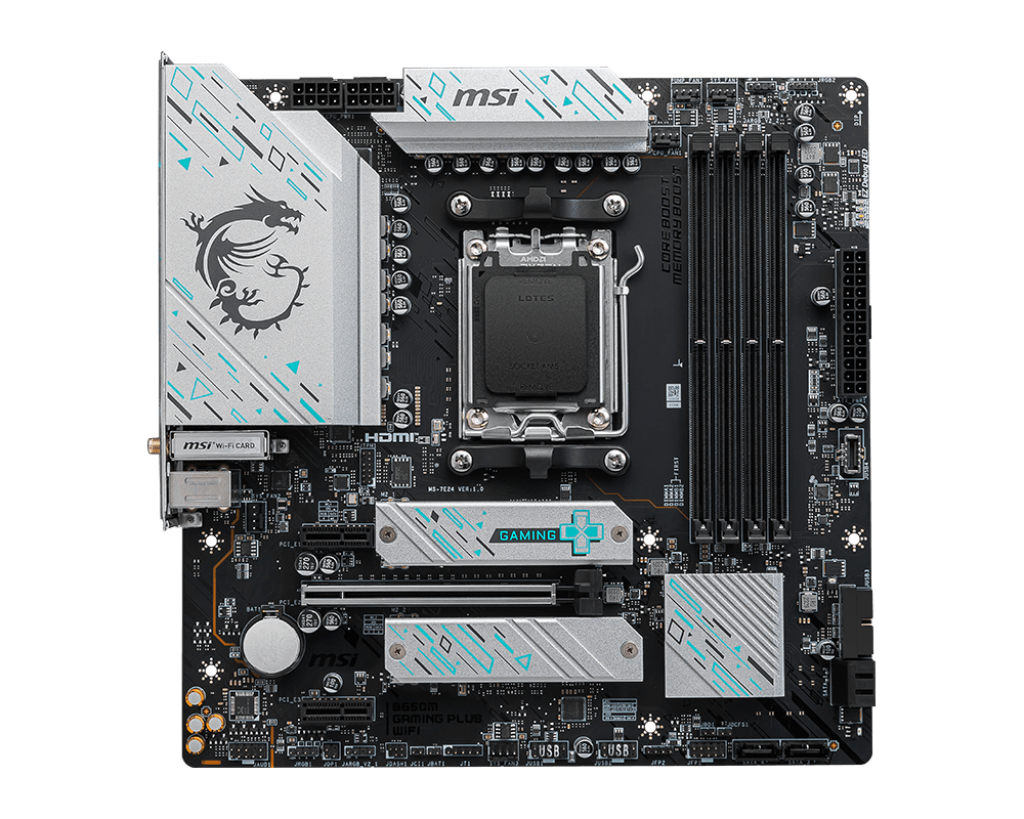

MSI B650M Gaming Plus WIFI Motherboard is the ideal mATX motherboard for gamers and performance enthusiasts who want a compact but capable platform without compromising on features.
Built on the AMD B650 chipset with Socket AM5, the MSI B650M Gaming Plus WIFI Motherboard delivers support for the latest Ryzen CPU families (7000 / 8000 / 9000), ultra-fast DDR5 memory, and a suite of connectivity, cooling, and performance enhancements designed to balance power, thermal efficiency, and usability.
| Specification Category | Details |
|---|---|
| CPU / Socket / Chipset | Socket AM5; supports AMD Ryzen 7000 / 8000 / 9000 series CPUs; chipset: B650. |
| Form Factor | Micro-ATX, approx. 244 × 244 mm. |
| Power Delivery / VRM | 13-phase configuration (10+2+1) using MOSFET assemblies (Alpha&Omega AONS36303 and AONS36308), PWM controller Richtek RT3678BE. |
| Memory Support | 4 × DIMM slots, DDR5 memory; supports up to DDR5-7200+ (OC) modules; maximum memory up to 256 GB. |
| Graphics / Expansion | 1 × PCIe 4.0 x16 with reinforced slot, 2 × PCIe 3.0 x1. |
| Storage | 2 × M.2 PCIe 4.0 x4 (with heatsinks / radiators), 4 × SATA 6 Gbps ports. |
| Connectivity | Rear I/O: USB 3.2 Gen1 (Type-A), USB 3.2 Gen2 (Type-A), USB 3.2 Gen2 (Type-C); Display outputs: HDMI 2.1, DisplayPort 1.4. RJ-45 (2.5 GbE). WiFi 6E / BT 5.3. |
| Audio | Realtek ALC897 codec; audio path isolation, high quality capacitors, separate PCB layers for left/right audio to reduce interference. |
| Cooling | Heatsinks on VRMs, large aluminium radiator, M.2 Shield Frozr for M.2 drives; 5 × 4-pin fan headers; support for PWM/DC; temperature sensors. |
| BIOS / Features | Flash BIOS button; EZ Debug LEDs; support for overclocking (memory and moderate CPU); MSI Click BIOS 5. |
At its core, the MSI B650M Gaming Plus WIFI Motherboard is engineered to deliver strong performance in a smaller footprint. With the AM5 socket, it supports modern Ryzen CPUs, including those with high core counts and the latest architecture improvements.
Memory support is top-tier: 4 DIMM slots allow up to 256 GB of DDR5 RAM, with support for overclocked kits, reaching DDR5-7200+, ensuring that both gaming and multitasking workloads benefit from speedy memory access.
For expansion in the MSI B650M Gaming Plus WIFI Motherboard, there is one full-size PCIe 4.0 x16 slot (with reinforcement to handle heavy graphics cards) and two PCIe 3.0 x1 slots.
In storage, two M.2 PCIe 4.0 x4 slots (both with heatsinks / thermal shields) allow ultra-fast NVMe SSDs, while 4 SATA ports cover more traditional drives.
Display outputs are HDMI 2.1 and DisplayPort 1.4, giving flexibility if you use the CPU’s integrated graphics (on Ryzen parts that support it).
Connectivity is comprehensive: WiFi 6E plus Bluetooth 5.3 equipped in the MSI B650M Gaming Plus WIFI Motherboard provides modern wireless, while LAN is a 2.5 Gb Ethernet port for high-speed wired networking.
USB connectivity is rich — USB 3.2 Gen1 and Gen2 (both Type-A and Type-C) ports ensure you can plug in high-speed external drives, peripherals, and more without bottlenecks.
Cooling System of the MSI B650M Gaming Plus WIFI Motherboard
To maintain performance under heavy loads, cooling is given significant attention.
The VRMs are equipped with large aluminium heatsinks.
One of the heatsinks spans over the rear I/O area, which not only keeps components cool but also helps dissipate heat away from the CPU socket region. M.2 slots come with “Shield Frozr” (i.e. heatsink cover) to protect NVMe drives from thermal throttling.
There are five 4-pin fan headers present in the MSI B650M Gaming Plus WIFI Motherboard each supporting PWM/DC mode.
The headers are rated for sufficient current to handle CPU coolers, system fans, even water-cooling pump setups.
Thermal sensors around the board allow for intelligent fan control, meaning under light load the system can be relatively quiet, and only ramp up fans when needed.
Performance
In performance benchmarks, the MSI B650M Gaming Plus WIFI Motherboard holds up well.
With a high-end CPU like the Ryzen 7 7800X3D paired with a powerful GPU, the motherboard’s power delivery and cooling keep thermals manageable, and components remain stable under long gaming and rendering sessions.
The board allows the CPU to reach its boost clocks, and memory overclocking is effective with compatible DDR5 kits.
Connectivity present in the MSI Gaming Plus WiFi Desktop Motherboard
For modern gamers and creators, connectivity matters. The MSI B650M Gaming Plus WIFI Motherboard delivers with multiple USB ports (both Type-A and Type-C), high-speed Gen2 options, and dedicated ports for fast devices.
The presence of USB-C Gen2 ensures future peripherals can be connected without adapters.
Best Applications
The MSI B650M Gaming Plus WIFI Motherboard is best suited for:
-
Gaming PCs where you want modern features but in a smaller mATX form factor.
-
Content creation rigs where storage speed, memory capacity, and CPU stability matter (video editing, streaming).
-
Compact builds / LAN-party setups where size matters but you don’t want to skimp on performance or features.
-
Upgrade platforms for users who have AMD AM5 CPUs or planning to upgrade in future.
-
Mixed-use PCs that do gaming + productivity + light workstation work.
The MSI B650M Gaming Plus WIFI Motherboard is a well-balanced motherboard in the mid-range segment.
It delivers strong hardware: AM5 support, DDR5-7200+, solid VRM and cooling, plus modern connectivity (WiFi 6E, 2.5 GbE, USB-C).
Its audio and expansion support are more than adequate for most gaming and creative tasks.
If you’re building a gaming rig or a compact performance machine, this board gives you much of what you’d expect from higher-end gear in a more affordable package.
