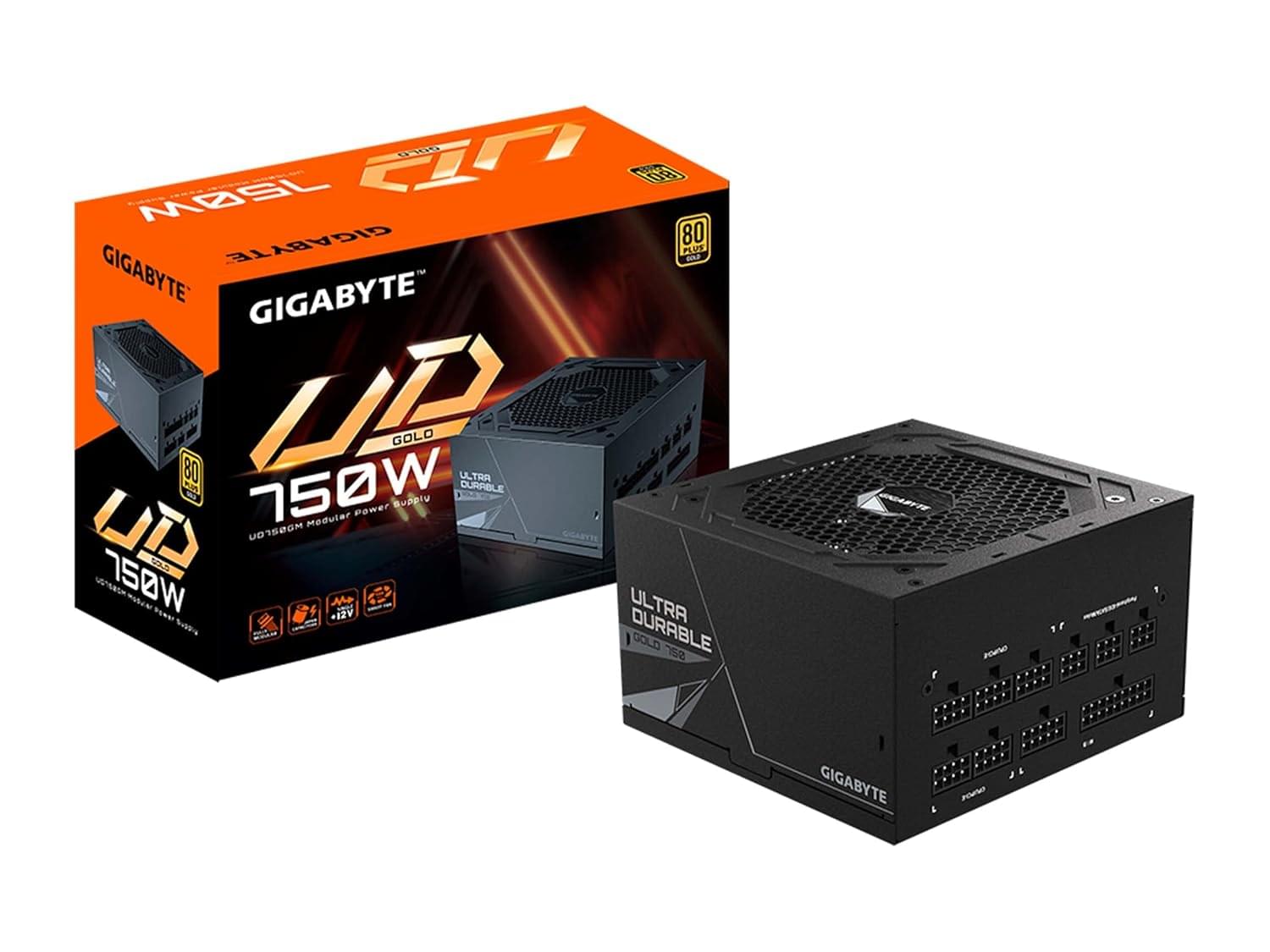

About Gigabyte UD750GM 750W 80 PLUS Gold Fully Modular ATX Power Supply
Power your high-performance PC build with confidence using the Gigabyte UD750GM 750W Fully Modular ATX Power Supply. Carrying the Ultra Durable design DNA, this power supply is engineered with premium components-including high-quality main Japanese capacitors-to deliver efficient, reliable, and long-lasting performance. The 80 PLUS Gold certification guarantees up to 90% power efficiency under typical loads. This ensures less power waste, significantly reduced heat generation, and lower electricity costs compared to standard, non-certified power supplies.
Designed for ease of installation and clean aesthetics, the fully modular architecture features sleek, flat black cables. This allows builders to connect only the exact cables required for their system, effectively eliminating internal clutter. The result is improved case airflow and optimized chassis thermal performance. Furthermore, thanks to Gigabyte’s excellent engineering, the UD750GM boasts a highly compact design with a length of just 140mm, ensuring it fits comfortably into a wide variety of ATX cases without space constraints.
Thermal management and system safety are at the core of the UD750GM. It utilizes an enhanced thermal solution equipped with a 120mm smart hydraulic bearing (HYB) fan. This intelligent fan adjusts its speed based on the system’s power load and completely stops spinning when the system is idle or under a low load (less than 20%), providing a true zero-decibel acoustic experience. To guarantee your valuable PC components remain safe, the unit includes six comprehensive circuit protections: Over Voltage (OVP), Over Power (OPP), Short Circuit (SCP), Under Voltage (UVP), Over Current (OCP), and Over Temperature (OTP).
Specifications Gigabyte UD750GM 750W 80 PLUS Gold Fully Modular ATX Power Supply
| Feature | Specification |
|---|---|
| Model | GP-UD750GM |
| Form Factor | ATX 12V v2.31 |
| Total Wattage | 750W |
| Efficiency Certification | 80 PLUS Gold (90% efficiency at typical load) |
| Modularity | Fully Modular |
| Fan Type | 120mm Smart Hydraulic Bearing (HYB) Fan |
| Capacitors | Main Japanese Capacitors |
| Input Voltage | 100–240 Vac (full range) |
| Protections | OVP, OPP, SCP, UVP, OCP, OTP |
| Connectors Included | 1× ATX/MB (20+4 Pin), 2× CPU/EPS (4+4 Pin), 4× PCIe (6+2 Pin), 8× SATA, 3× Peripheral (4-Pin), 1× Floppy |
| MTBF (Mean Time Between Failures) | >100,000 hours |
| Dimensions | 150 × 140 × 86 mm |
